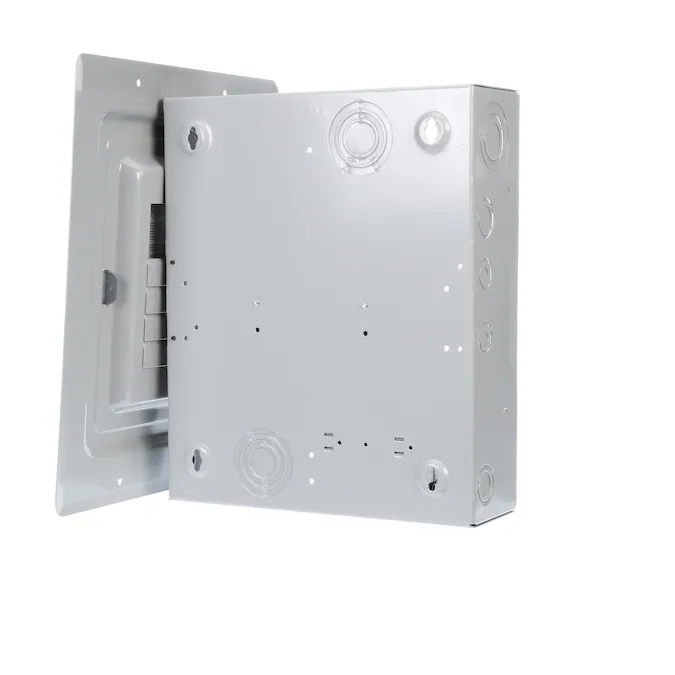

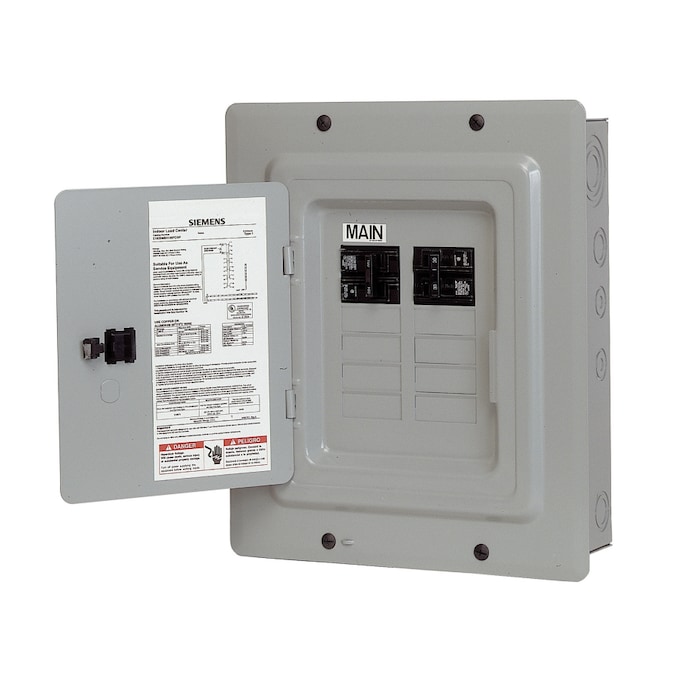

This Siemens Renovation Panel is the smart choice for contractors when value and quick installation are of highest priority. This EQ series Value Pack Load center feature copper bussing, 10-year warranty, 100% neutrals, 3 Q120U circuit breakers and 1 Q230U circuit breaker and the ground bar is now included. Ideal for older home renovation projects where the distance between the studs is narrower than current construction practices. The narrower panel eliminates the need to ‘notch’ out the existing studs.
- Includes (2) Q115U and (1) Q230U circuit breakers and ground bar
- Solid copper bus bar construction
- Ideal for subfeed applications
- 100A, 10 Spaces, 20 circuits, Main Breaker
- EQ Series Small Circuit Panel
- UL Listed
- Service Entrance or Subfeed Applications

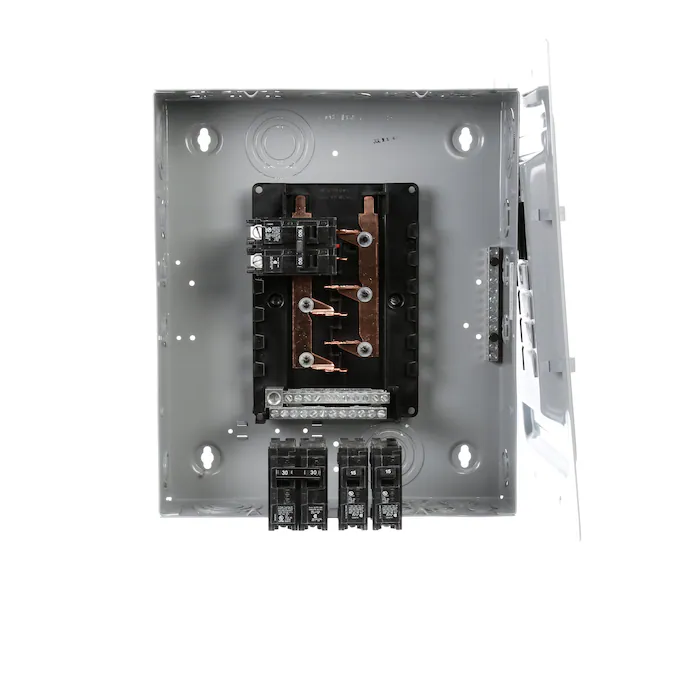

- Main breaker and ECGB10 ground bar factory installed
- NEMA Type 1 rated intended for indoor use
General
- Manufacturer Color/Finish: Gray
- Series Name: EQ
- Type: Main breaker
Dimensions
- Depth (Inches): 3.7
- Height (Inches): 12.3
- Width (Inches): 14.6
Features
- Amperage: 100
- Buss Bar Construction: Copper
- Circuits: 20

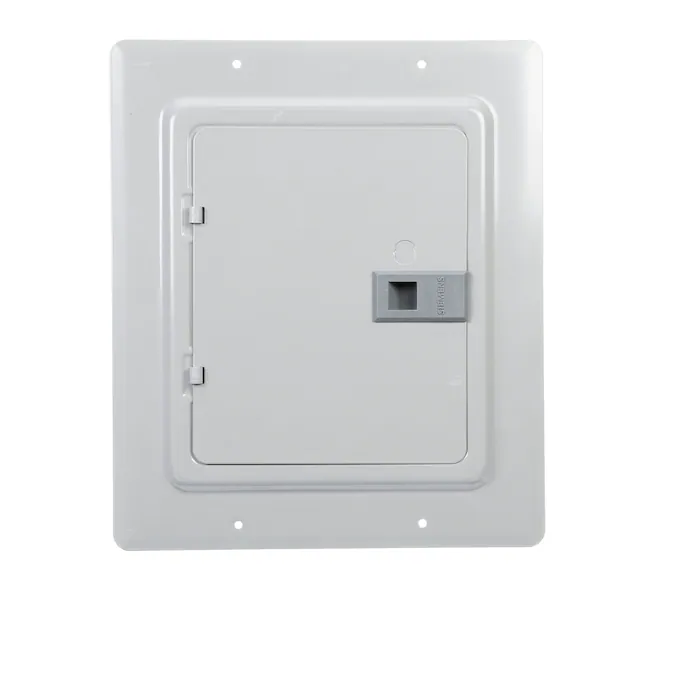

- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: Yes
- Mounting Type: Combination
- Number of Spaces: 10
- Orientation: Over/Under
- Paintable: Yes
- Phase Type: Single phase (124/240)
- Plug-On Neutral: No
- Usage: Service entrance
- Use Location: Indoor
- Value Pack: Yes
- Value Pack Contents: (2) Q115U and (1) Q230U
- Voltage: 120
Compatibility
- Brand/Model Compatibility: Siemens
Warranty
- Warranty: 10-year
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
