The SharkBite 3/4-in x 1/2-in plastic female x barb 12-port manifold with brass ball valves offers direct runs to fixtures for quick delivery of hot and cold water to outlets. This manifold helps to eliminate fittings between the manifold and outlets.
- Lead free DZR brass construction for durability and reliability
- Low-cost plumbing connection system
- Barb connection
- Compatible with PEX pipe
General
- Series Name: N/A
- Type: PEX
Dimensions
- Inlet 1 Fitting Diameter: 3/4-in
- Inlet 2 Fitting Diameter: 3/4-in
- Outlet Diameter: 1/2-in
Features
- Inlet 1 Ball Valves: No
- Inlet 1 Fitting Orientation: Female
- Inlet 1 Fitting Thread Type: FPT
- Inlet 1 Fitting Type: Threading
- Inlet 2 Ball Valves: No
- Inlet 2 Fitting Orientation: Female
- Inlet 2 Fitting Thread Type: FPT
- Inlet 2 Fitting Type: Threading
- Material: Plastic
- Maximum PSI (PSI): 100
- Maximum Temperature (Fahrenheit): 180
- Number of Loops: N/A
- Number of Outlets: 12
- Outlet Ball Valves: Yes
- Outlet Material: Brass
- Outlet Orientation: N/A
- Outlet Thread Type: N/A

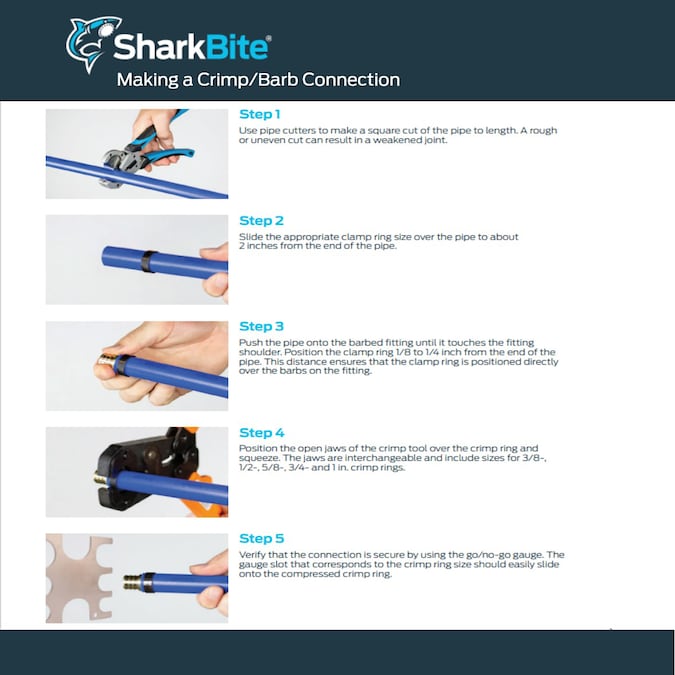

- Outlet Type: Crimp
- Warranty: 10-year limited
Compatibility

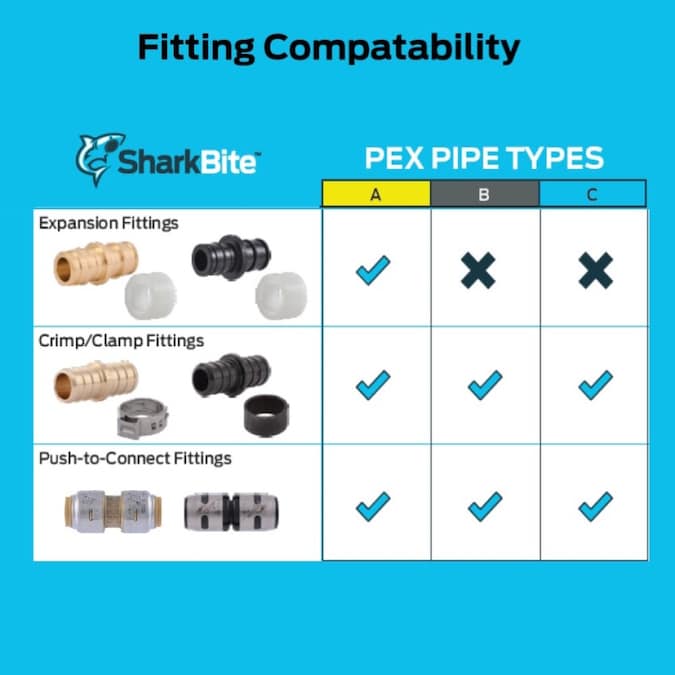

- Non-Oxygen Barrier PEX Compatible: Yes
- Oxygen Barrier PEX Compatible: Yes

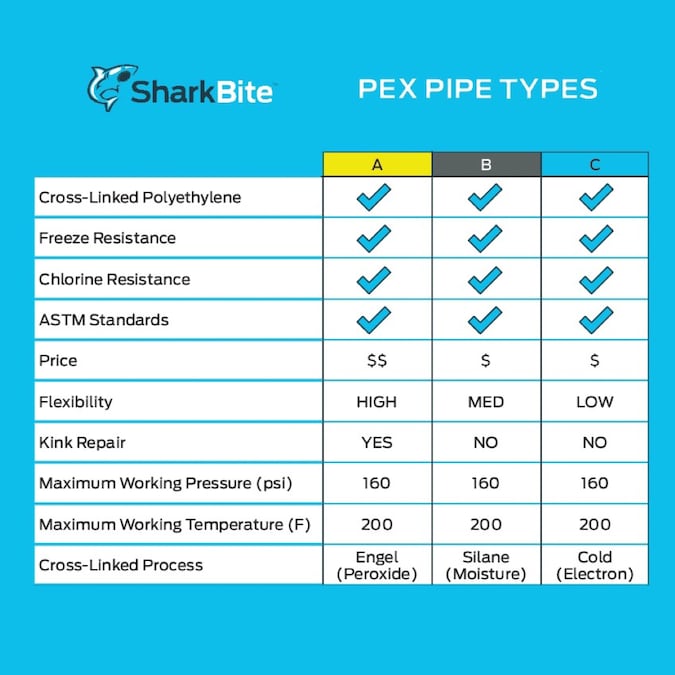

- PEX-A Compatible: Yes
- PEX-AL-PEX Compatible: No
- PEX-B Compatible: Yes
- PEX-C Compatible: Yes
Certifications
- CA Residents: Prop 65 Warning(s): Yes
Miscellaneous
- UNSPSC: 40101800
