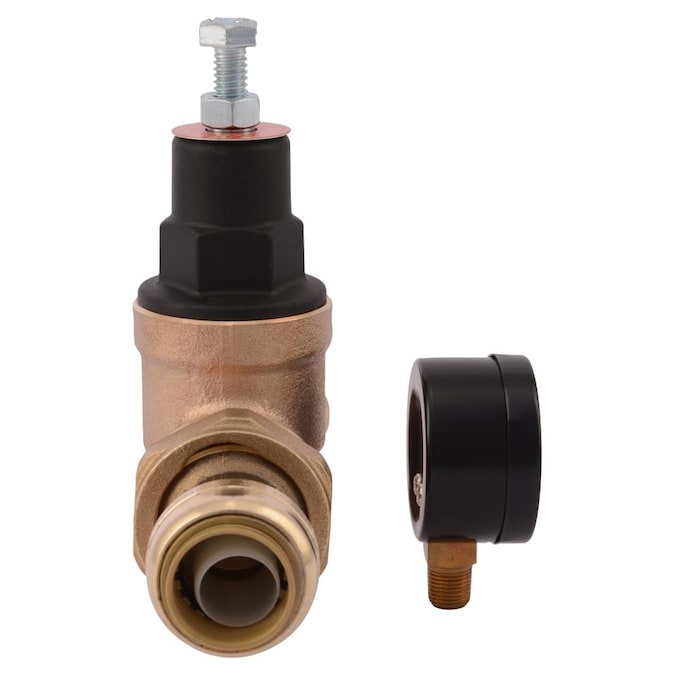

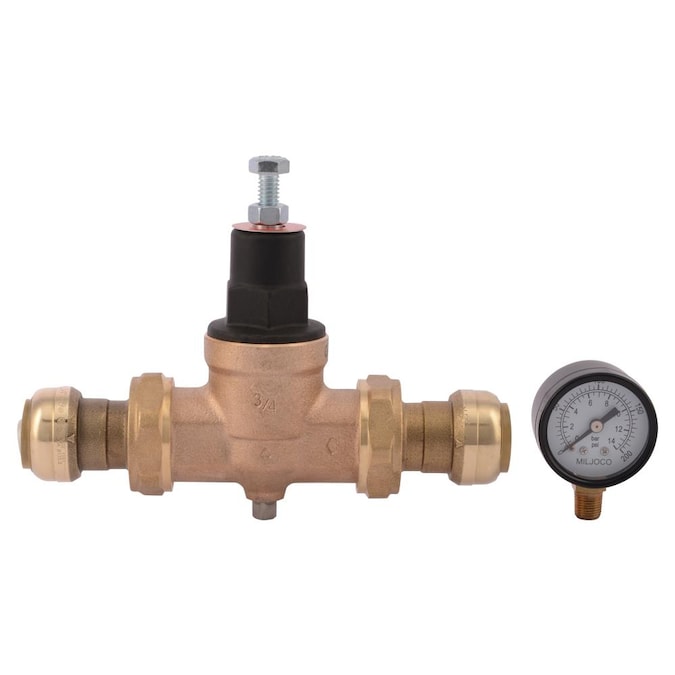

The SharkBite pressure-regulating valve is designed to reduce incoming water pressure to a safe pressure to protect plumbing components. They also help to prevent pressure surges from entering the household from the main line. High pressure can cause damage to appliances and plumbing. A pressure regulator should be installed after the main line to help protect plumbing. The SharkBite pressure regulator is a half-cartridge based pressure reducing and regulating valve with a lead-free bronze body. The valve resembles traditional regulators with a spring chamber and an adjusting screw but offers the high performance of a cartridge based valve. The valve is compatible with copper, PEX, CPVC or PE-RT pipes. Just insert the pipe and the fittings stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool so fittings and valves can be easily removed and reused.
- Low-lead compliant bronze body
- Compatible with any combination of 3/4-in copper, PEX, CPVC, or PE-RT pipes
- Factory set to regulate flow to a safe 45 PSI, adjustable from 10 to 70 PSI
- Integrated internal by-pass mechanism
- Cartridge based design allows for quick and easy service
- Designed for use where inlet pressure does not exceed 200 PSI
- Suited for hot (up to 180 degrees F) or cold water service
General
- Series Name: N/A
- Type: Pressure regulator valve
Dimensions
- Inlet Diameter: 3/4-in
- Inlet Size in Inches: 3/4-in
- Outlet Diameter: 3/4-in
Features
- Inlet Thread Type: Push-to-connect
- Material: Brass
- Maximum Pressure: 200 PSI
- Outlet Thread Type: Push-to-connect
- Warranty: 2-year limited
Compatibility
- Compatible Pipe Material: Multi-Purpose
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Complies with Federal Lead Guidelines: Yes
Miscellaneous
- UNSPSC: 40141600
