Designed to charge service batteries from two DC inputs—solar panels and alternator. Built-in Maximum Power Point Tracking (MPPT) to maximize the solar power . 3-phase charging profile (Bulk, Boost, and Float) ensures your service battery will be accurately charged at the correct voltage levels to 100%. Built-in Voltage Sensitive Relay (VSR) for easy setup with traditional alternators. Compatible with smart alternators (with variable output voltage). Trickle charges the starting battery via solar panels if the service battery is fully charged. Isolation of the starting battery and the service battery. Temperature and voltage compensation features prolong battery life and improve system performance. Smart Protection Features: battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection. Compatible with multiple battery types: AGM, GEL, Flooded, and Lithium. Compact with a sturdy design, it was built tough for all conditions. Bluetooth Monitoring Ready! Exclusively available with the BT-2 Bluetooth Module accessory and Renogy DC Home App available on the IOS and Google Play Stores Please Note: The BT-2 Bluetooth Module requires a separate purchase. Specifications System Voltage: 12VDCBattery Voltage Range: 9-16VDCMaximum Charging Current: 50ABattery Type: SLA, GEL, FLD, LI, USERBackup Battery Charging Mode: MPPTCharging Efficiency: Up to 97%Max. Solar Input Voltage: 25VMaximum Solar Input Power: 660WAlternator Input Voltage: Traditional Alternator: 13.2-16VDC / Smart Alternator (Euro 6): 12-16VDCMaximum Alternator Input Power: 660WSelf-consumption: 60mAOperating Temperature Range: -22°F~149°F / ﹣35℃~65℃ Dimensions: 9.2 x 5.8 x 3.0 in / 234*146*77 mmWeight: 3.13 lbs / 1.42 kg
-10%
Renogy DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT for Gel, AGM, and Lithium Batteries Using Multi-Stage Charging, in RVs, Cars, Boats, Yachts
Original price was: $257.99.$232.19Current price is: $232.19.
In stock
Description

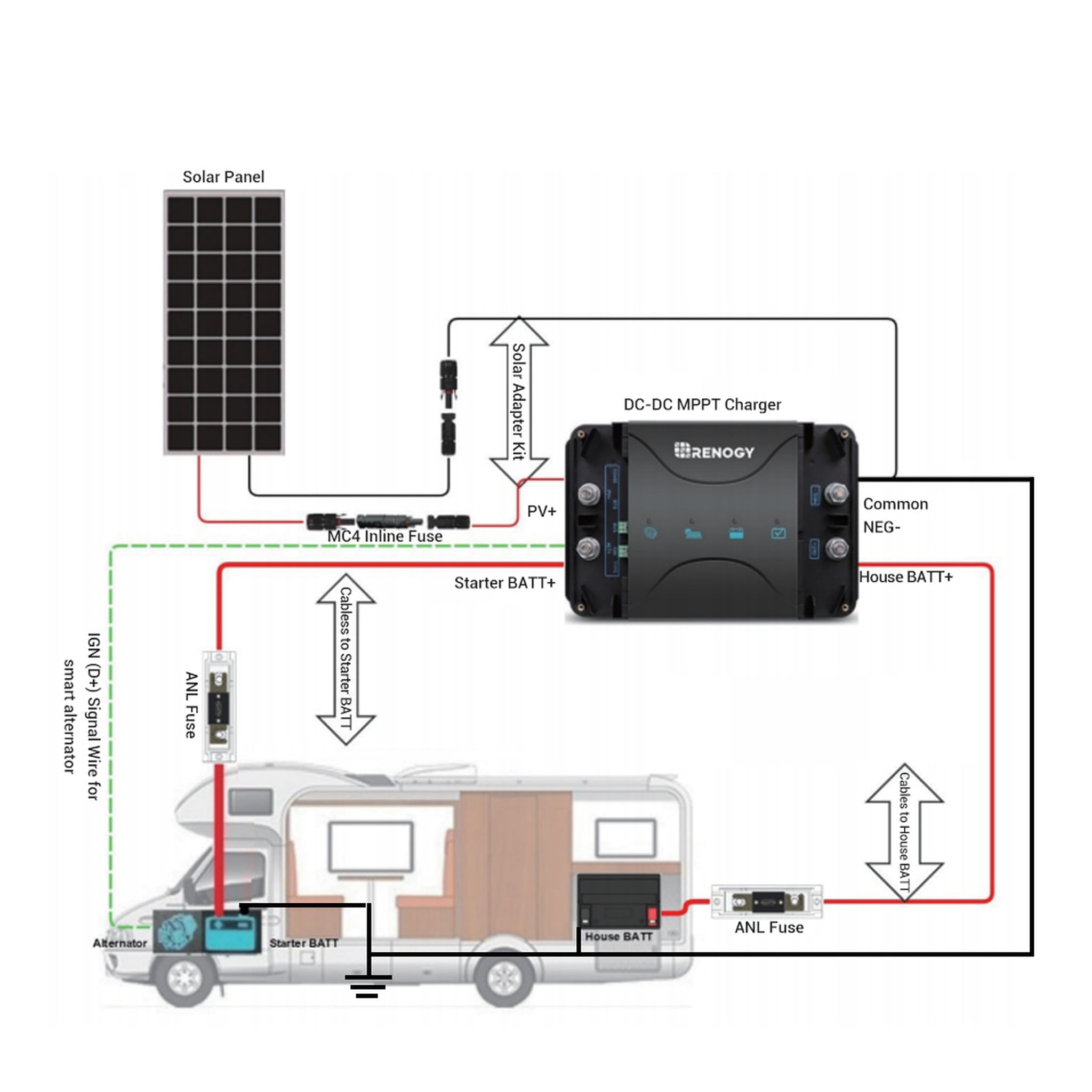

Renogy’s DCC50S DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from an alternator connected to a starting battery or by utilizing solar panels connected directly to the unit. While your vehicle’s alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It’s the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy’s DC to DC MPPT Charger has you covered whether you’re using Flooded, Gel, AGM, or Lithium batteries. Now you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App!
Additional information
| Brand | Renogy |
|---|---|
| Model | RBC50D1S-G1 |
| UPC | 810009712237 |
