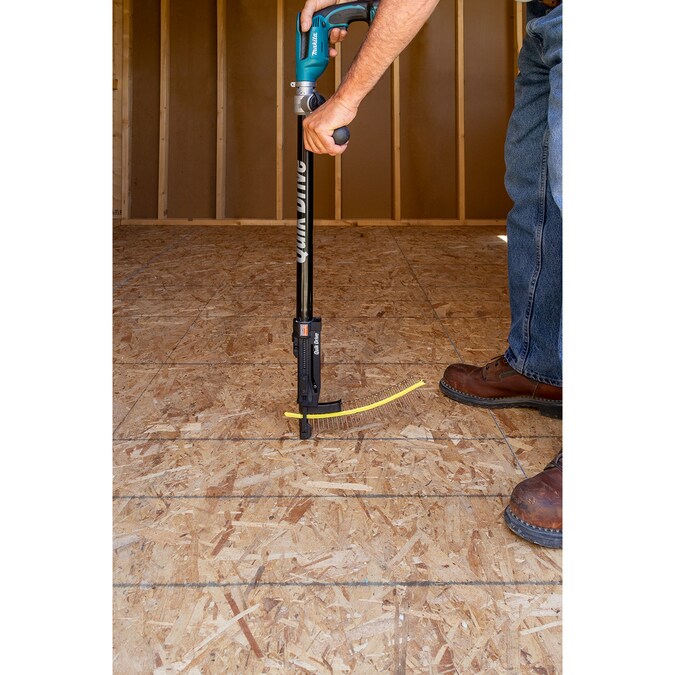

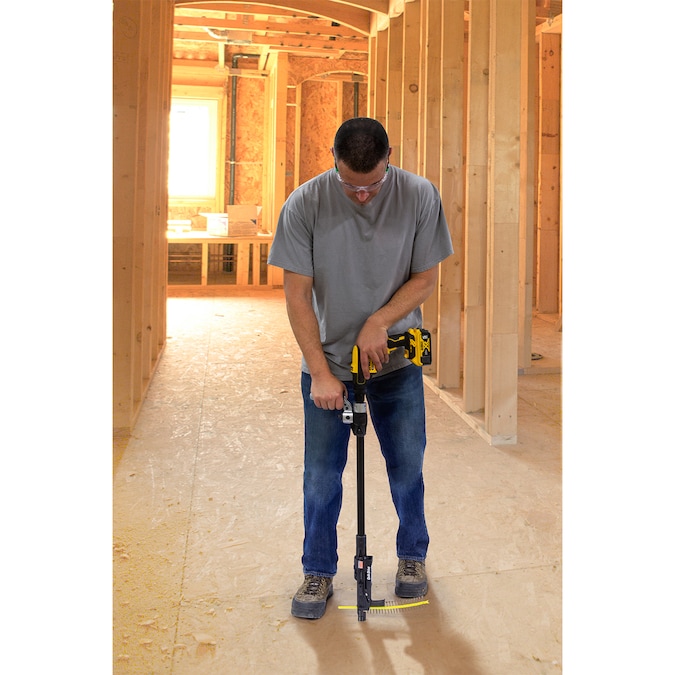

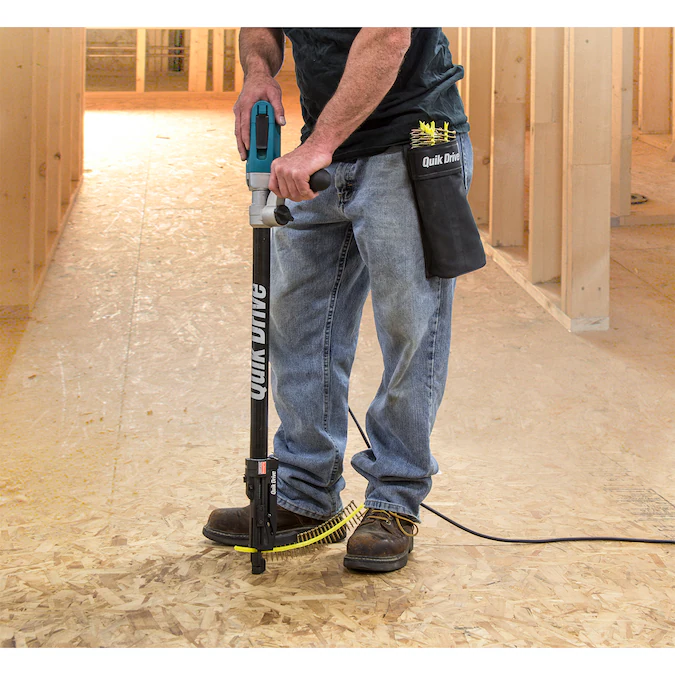

Simpson Strong-Tie Strong-Drive structural fasteners are engineered and extensively tested to efficiently meet your most demanding wood and metal applications. The Strong-Drive family is designed to install easier than other fastening methods, which saves time and money. The WSV Subfloor screw was developed for fastening subfloor sheathing using the Quik Drive auto-feed screw driving system. It has been re-engineered to reduce driving force and increase installation speed.

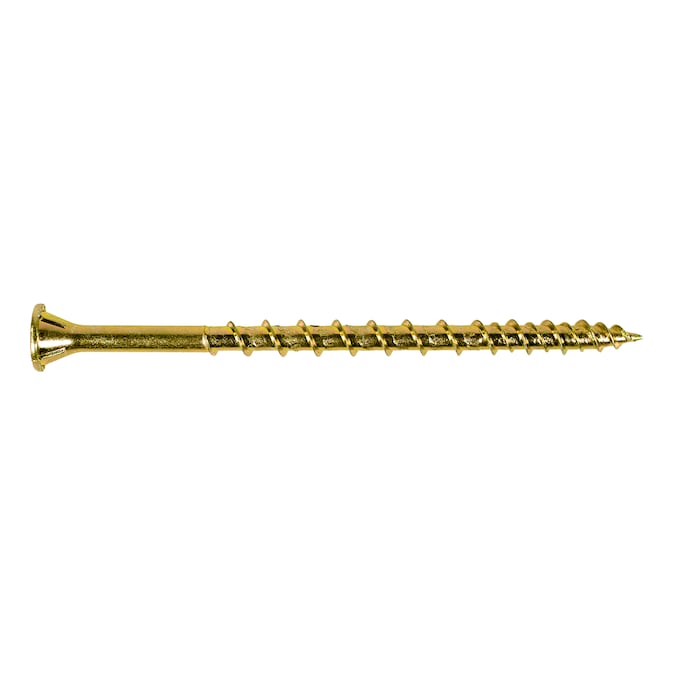

- Redesigned tip and thread pattern provides easy starts and up to 25% less torque while driving — makes for up to 20% faster driving
- Less installation torque also means less wear on tools

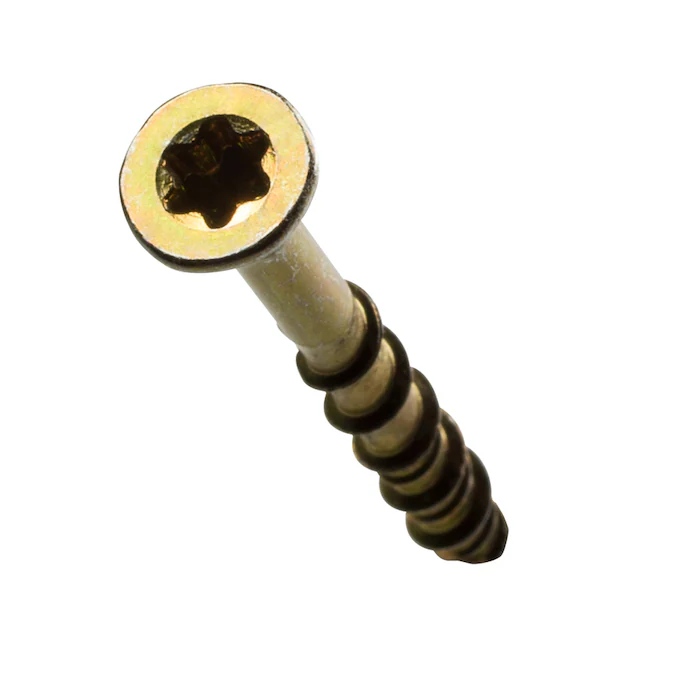

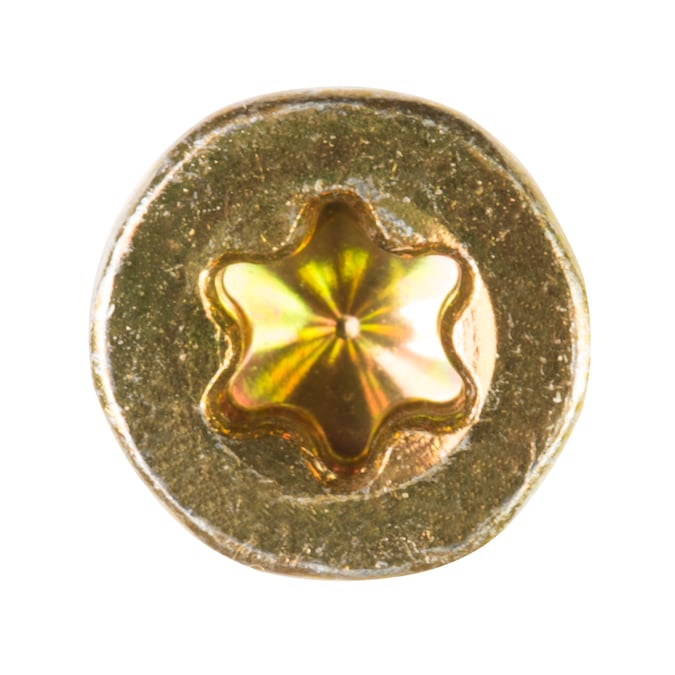

- Deep 6-lobed recessed ribbed head provides clean countersinking and more secure bit retention for fewer cam-outs

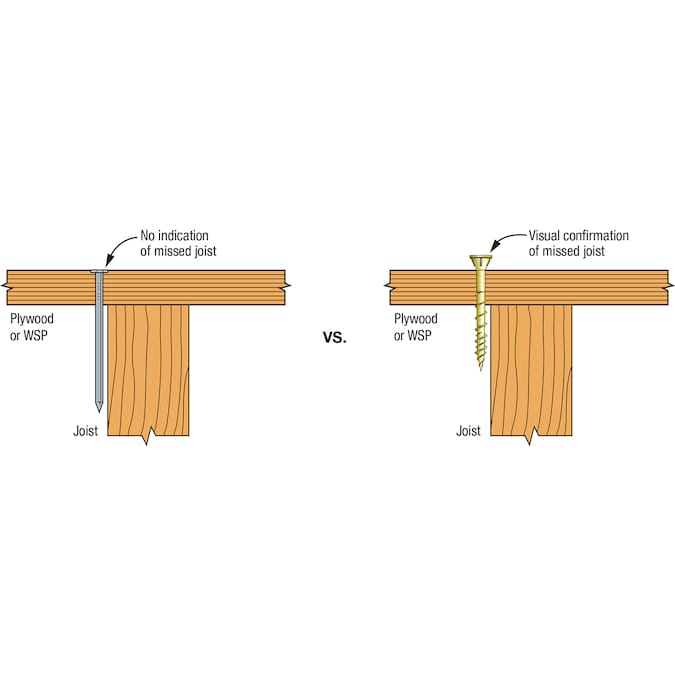

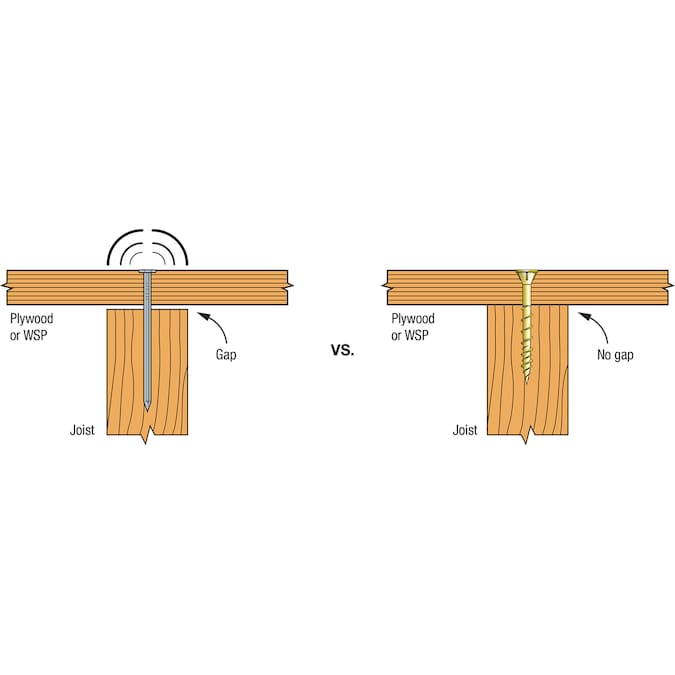

- The holding power of WSV screws reduces the gaps between the joist and subfloor that cause floor squeaks
- WSV screws can be easily backed out, allowing for future access to floor cavities
- 6-lobe T25 drive bit (included)
- Dual-evaluated under ICC-ES AC233 and AC120 for wood-frame subfloor fastening
- Length: 3-in
- Yellow zinc coatings are applied in accordance with ASTM F1941
General
- Finish: Yellow zinc
- Manufacturer Color/Finish: Yellow-Zinc Coated
- Series Name: Strong-Drive WSV
- Sub-Brand: N/A
- Type: Wood screws
Dimensions
- Length Measurement: 3-in
- Screw Thickness: #9
Features

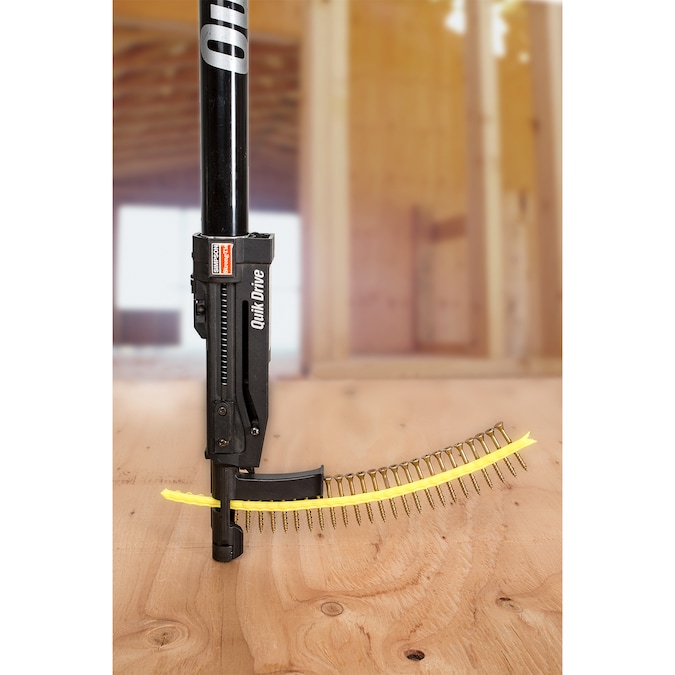

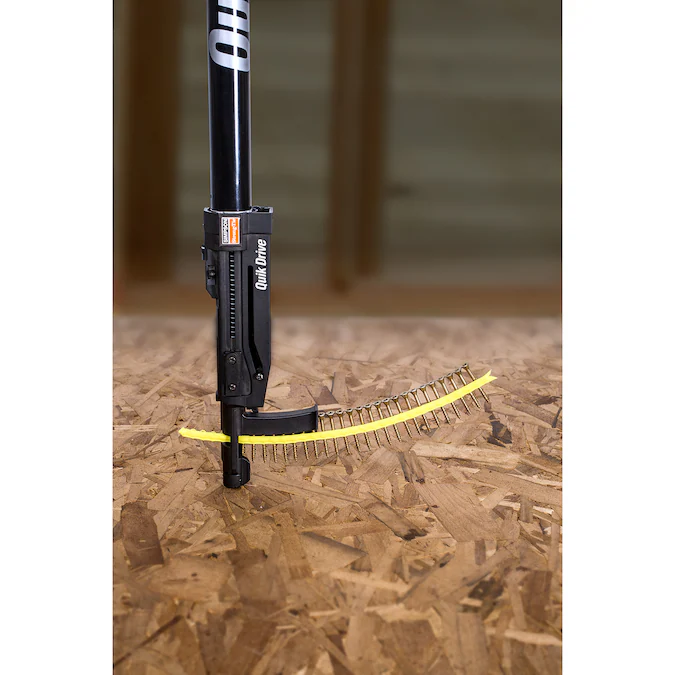

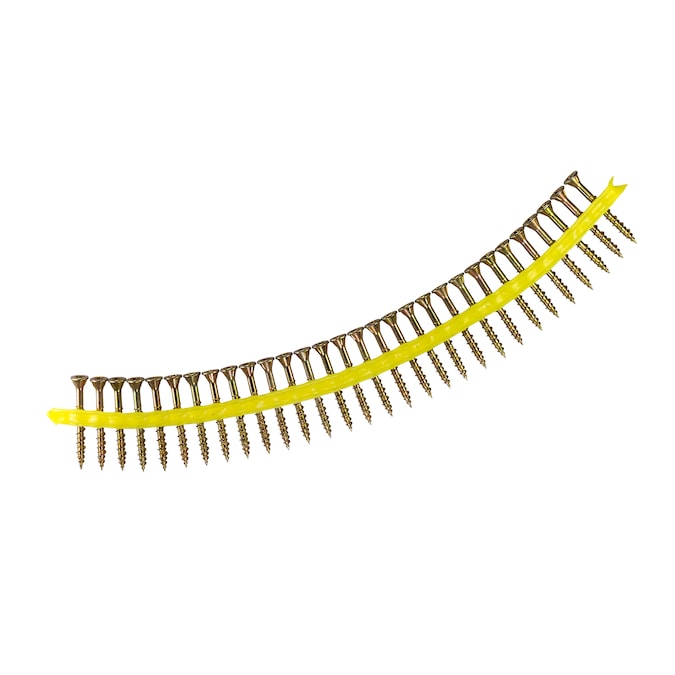

- Collated: Yes
- Contact Type Allowed: None
- Drive: 6-lobe
- For Use on Brick: No
- For Use on Composite: No
- For Use on Concrete: No
- For Use on Drywall: No
- For Use on Metal: No
- For Use on Plastic: No
- For Use on Vinyl: No
- For Use on Wood: Yes
- Head Type: Flat
- Material: Steel

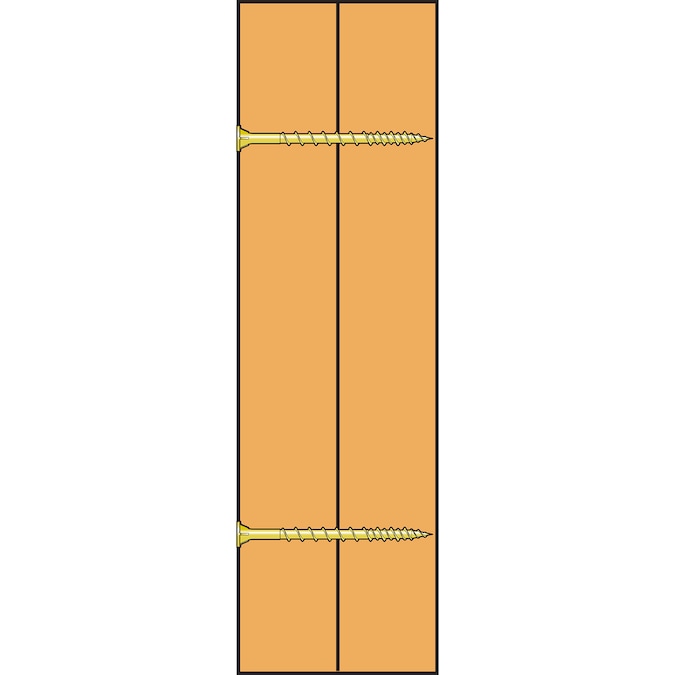

- Materials Fastened: Wood to wood
- Measure Type: Standard (SAE)
- Multi-Material: No
- Package Quantity: 1000

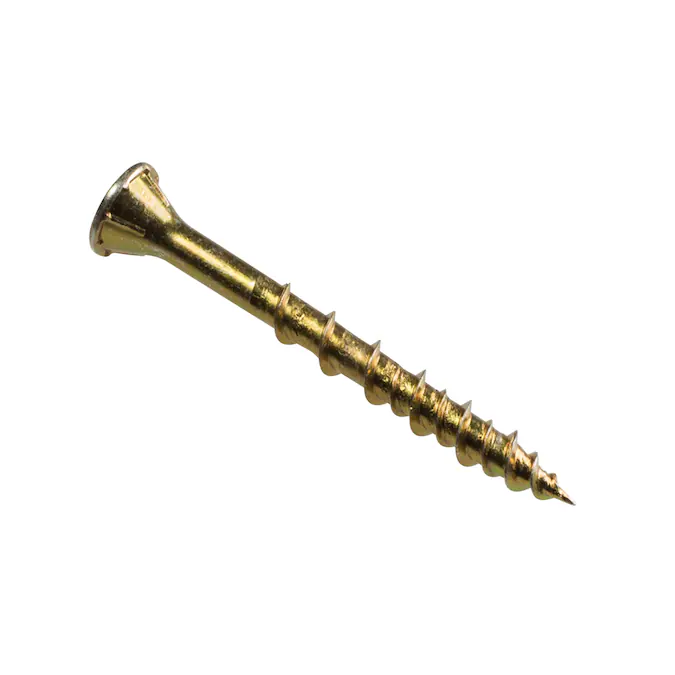

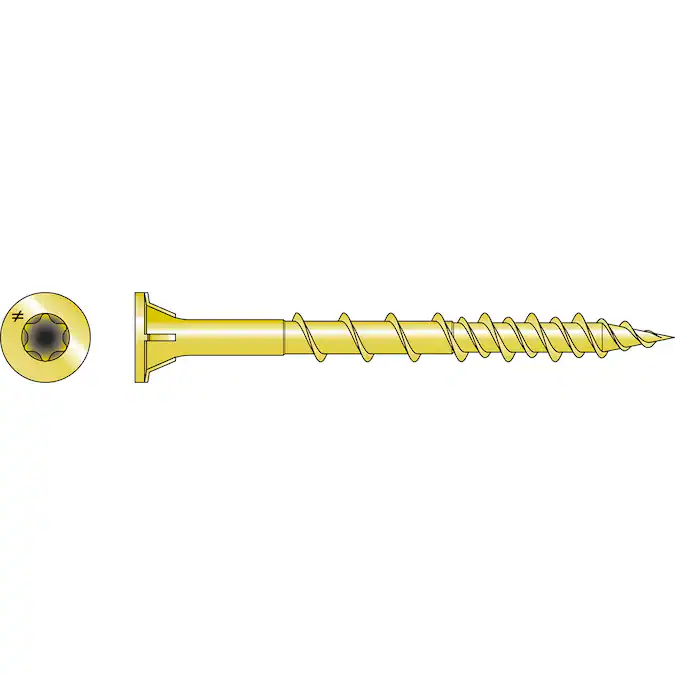

- Point Type: High-low threaded tip
- Screw Thread Pitch: N/A

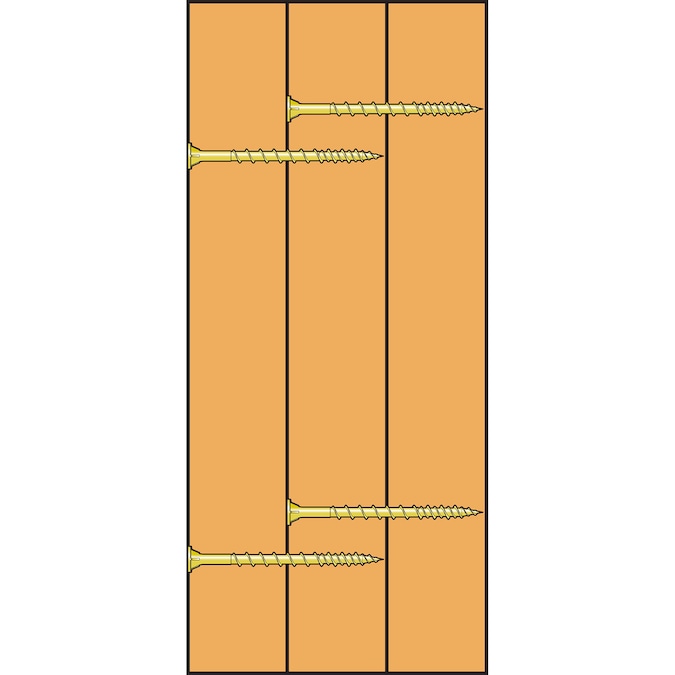

- Thread Type: Variable
- Use Location: Interior
- Warranty: Limited lifetime
Certifications
- ACQ Approved: No
- CA Residents: Prop 65 Warning(s): No
