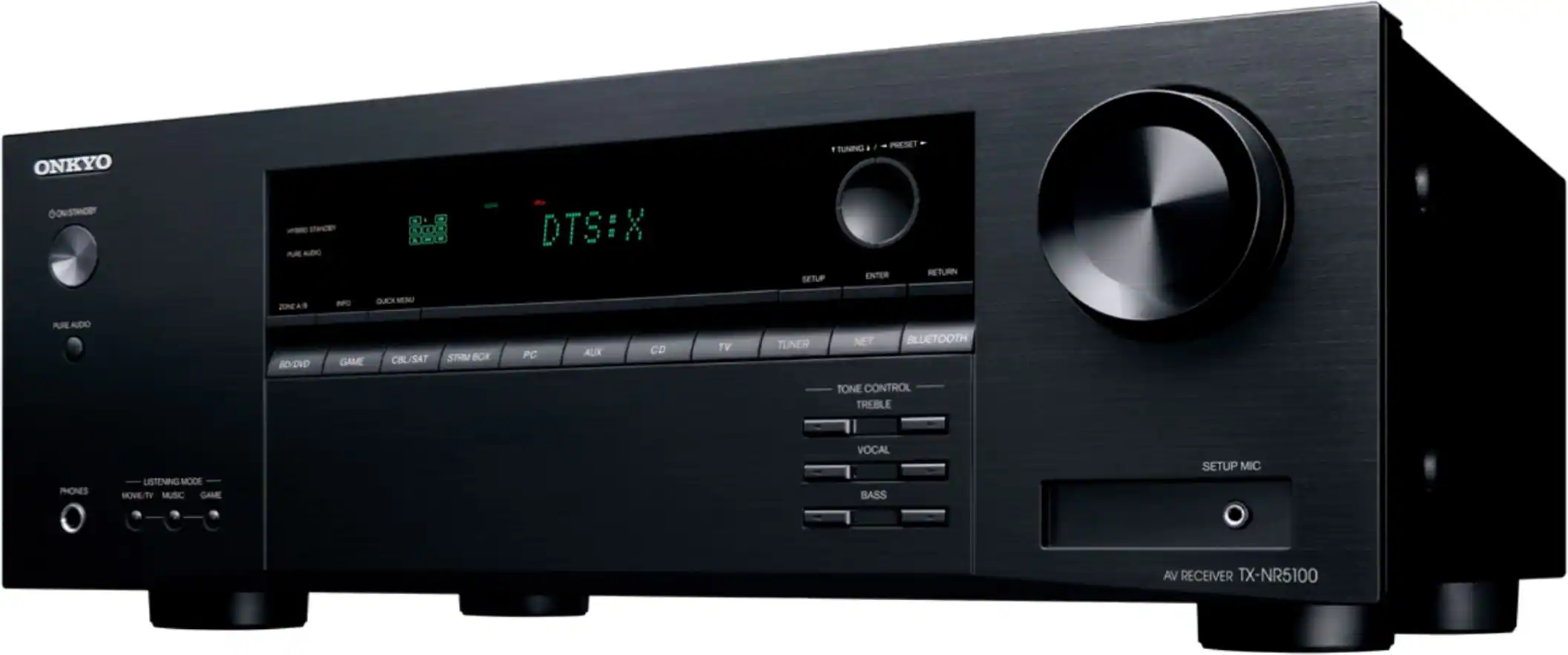

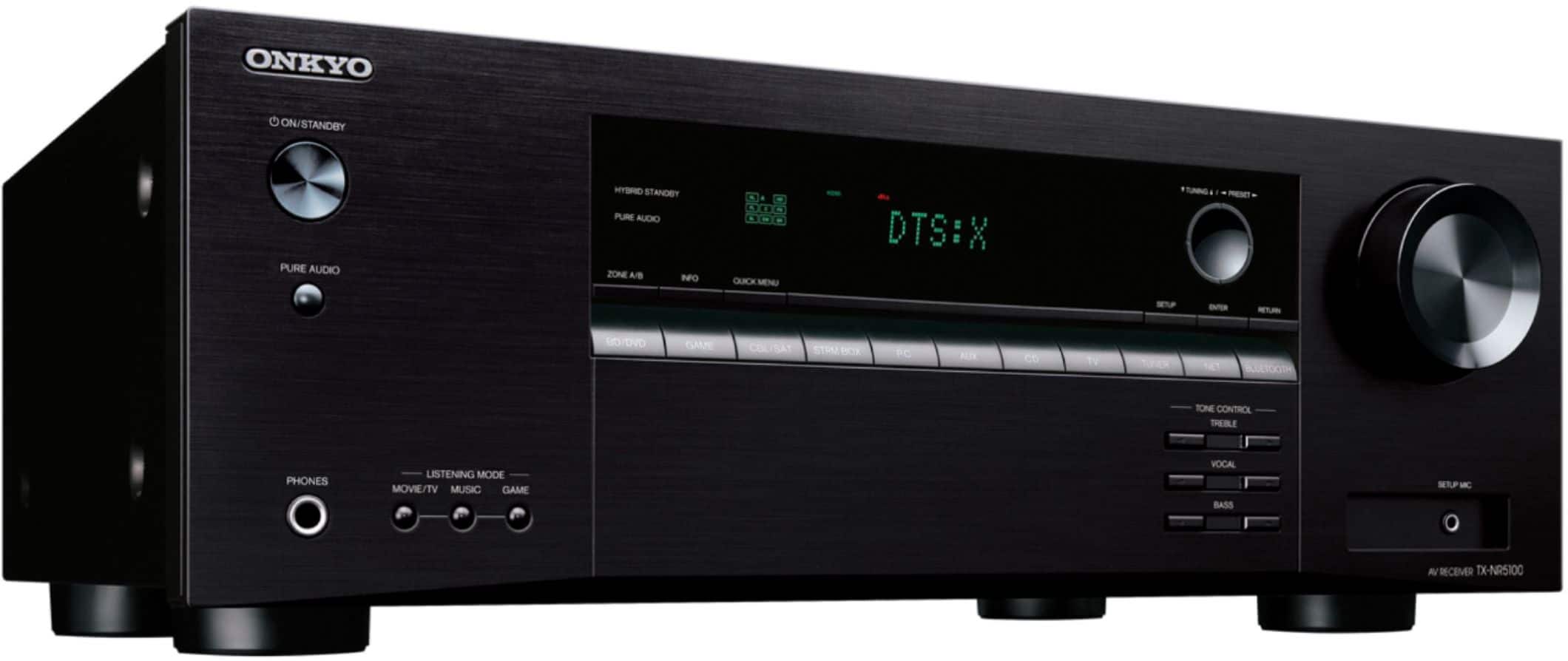

The Onkyo TX-NR5100 7.2-Channel with Dolby Atmos 8K/60B Ultra HD HDR Compatible AV Home Theater and Gaming Receiver is an affordable and versatile home theater centerpiece tailored to deliver a high-quality entertainment experience for your movies, music, and next-gen gaming systems. Our SMART AV Receiver combines HDMI 2.1 and 8K tech, high-res audio, and immersive sound via your connected media players, gaming consoles, and advanced audio from your TV apps via eARC for the ultimate gaming and home theater experience. Cue and control music with Hey Google, Alexa, or Siri; or hear what’s playing through the AVR on wireless headphones with bluetooth with aptX HD transmission technology. The options are virtually limitless.
Ultimate 4K/120AB Gaming Experience
4K/120AB enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. The TX-NR5100 supports higher performance from streaming devices like Apple TV.
HDMI 2.1 with 8K/60B
HDMI 2.1 is the most recent update of the HDMI spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K.
Smart Home Compatible with Voice Control
The Onkyo TX-NR5100 7.2-Channel 8K SMART AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more.
Dolby Atmos And DTS:X
Dolby Atmos and DTS:X formats allow engineers to map sound anywhere in 3D space, effects moving from speaker to speaker all around the room and wrapping your audience in films and games.
Dolby Atmos Height Virtualizer
When playing any Dolby format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Works with Sonos Certified
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port or Sonos Connect.
Built-in Streaming Services
Access to Spotify, TIDAL, Deezer, TuneIn, and Pandora are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
Ready for DTS play-Fi
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets.
Dynamic Audio Amplification
Refined over 70 years to deliver emotion in high fidelity, DAA features a custom High-Current Low-Noise Power Transformer, customized capacitors, and discrete amp output stages.
Specifications
Key Specs
- Color: Black
- Continuous Watts x Channel @ Ohms: 80 watts x 7 channels @ 8 ohms
- Maximum Watts x Channel @ Ohms: 80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
- Number of Channels: 7
- Audio Only Inputs: 1 x Optical digital audio, 1 x Coaxial digital audio
- Audio/Video Inputs: 4 x HDMI
- Network Connector(s): 1 x LAN
- Video Pass-through: HDR, 2160 (4K)
- Audio/Video Outputs: 2 x HDMI
- Wireless Connectivity: Bluetooth, Wi-Fi
- Works With: Amazon Alexa, Siri, Google Assistant
- Voice Assistant Built-in: Amazon Alexa, Google Assistant
General
- Brand: Onkyo
- Model Number: TX-NR5100
- Product Name: TX-NR5100 80W 7.2-Ch. with Dolby Atmos Home Theater and Gaming AV Receiver with Alexa Compatible
Audio
- High Resolution Audio: Yes
- Surround Sound Supported: Dolby Atmos
- Speaker A/B Switching: No
- Tuner Type(s): AM/FM, FM only, Internet

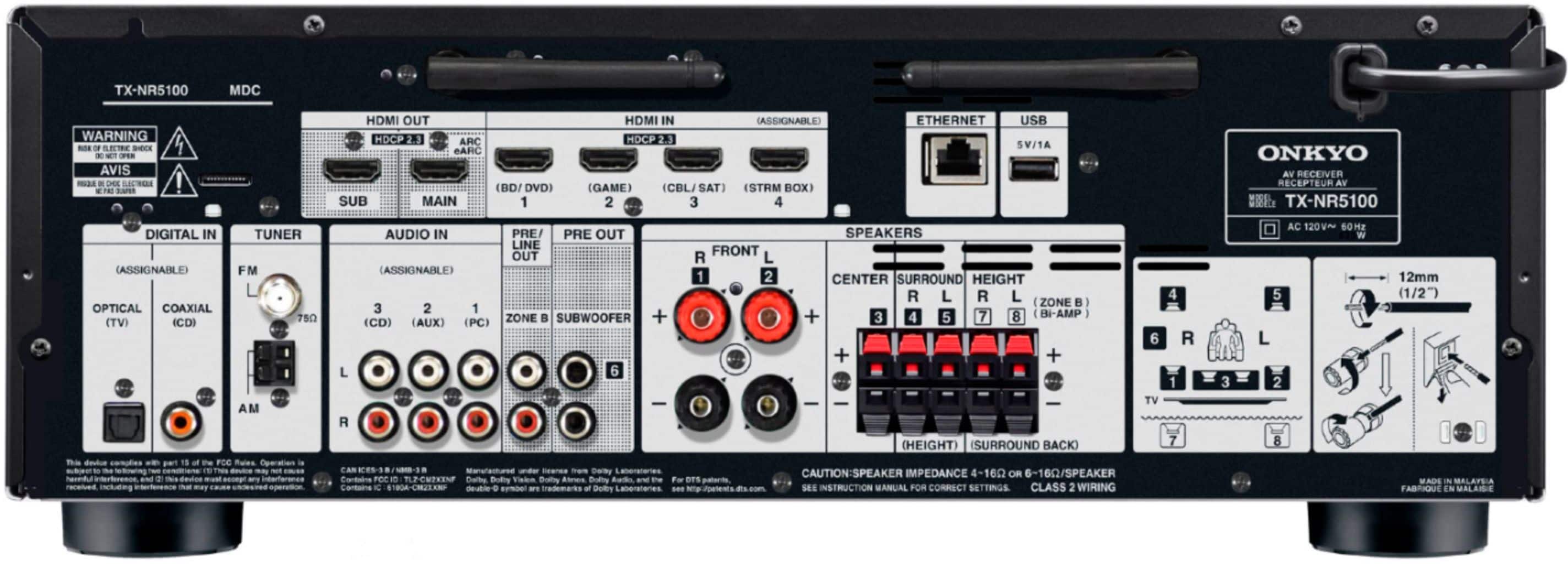

Inputs
- Video Only Inputs: 2 x Component video
- Number of HDMI Inputs (Total): 4
- Number of USB Inputs: 1
Outputs
- Video Only Outputs: 2 x Component video
- Speaker Connection Type: Banana Jack/Screw Terminals
- Number of HDMI Outputs (Total): 2
- Headphone Jack: Yes
Features
- App Compatible: Yes
- Auto Calibration: Yes

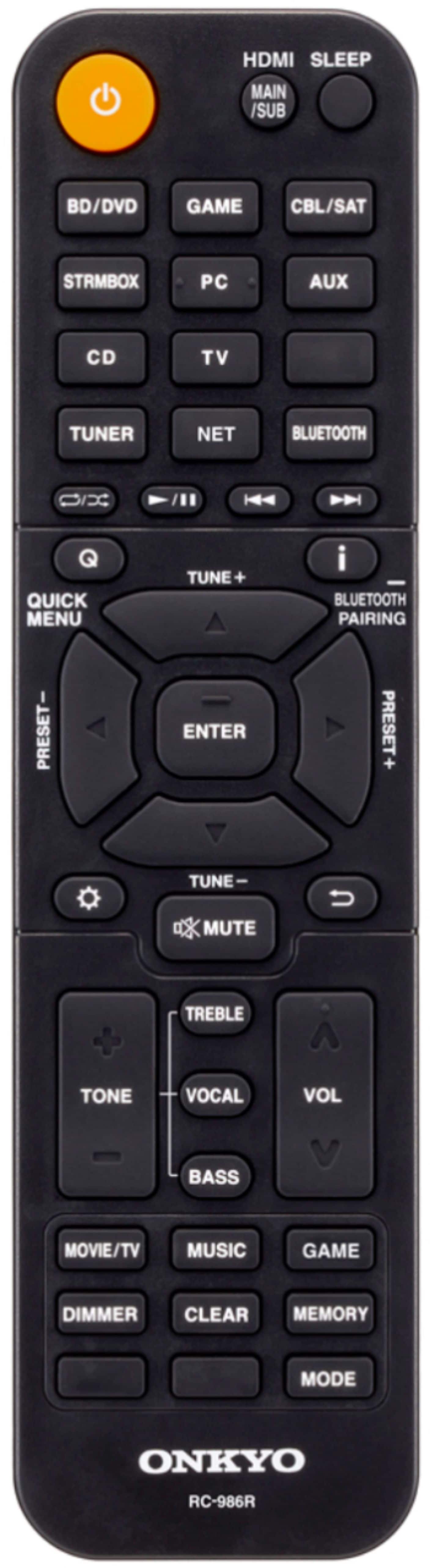

- Remote Control Included: Yes
Connectivity
- Wireless Multi-Room Audio: Yes
- Wireless Multi-Room Technology: Sonos, Google Cast, Apple AirPlay 2
Dimensions
- Product Height: 6.62 inches
- Product Width: 17.13 inches
- Product Depth: 13.94 inches
- Product Weight: 18.5 pounds
Certifications Listings & Approvals
- ENERGY STAR Certified: No
Warranty
- Warranty – Parts: 2 Years
- Warranty – Labor: 2 Years
Specifications
- UPC: 889951003564
