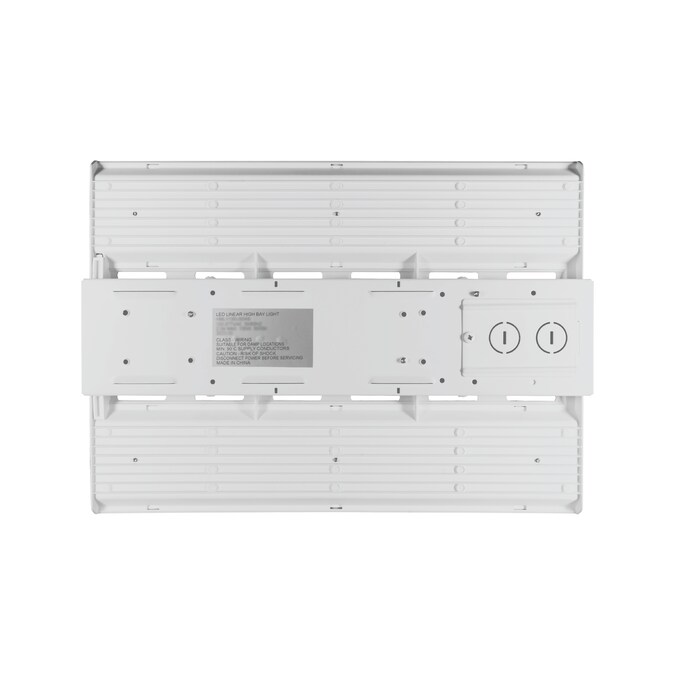

The HML1 is the newest addition to NICOR’s high bay product family. With it’s slim 10×14” footprint (on smaller wattages), the HML1 offers the high performance of a full-size fixture in a compact package. Available in 4000K and 5000K color temperatures with a variety of wattage and aisle distribution options, making it the ideal solution to replace traditional fluorescent fixtures. The HML1 also features a sensor socket option, allowing for field installation of motion sensor accessories adding to its versatility. The DLC 5.1 Premium fixture is equipped with built in 0-10V Dimming (full-range) and is Damp-Location Rated. Included is a V-Hook and Chain mounting system for easy installation. With its durable single-piece cast aluminum design, the HML1 is perfect for rugged applications like warehouses, gymnasiums, and other industrial or commercial spaces.
- 5000K Color Temperature
- 153 Watts
- 20675 Lumens
- Pre-Installed Sensor Socket
- Full Range 0-10V Dimming

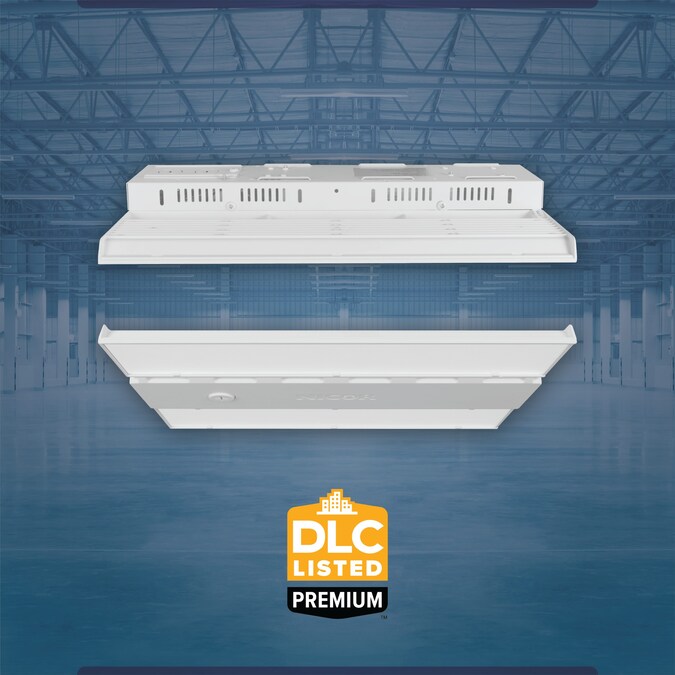

- DLC Premium Listed, RoHS Compliant

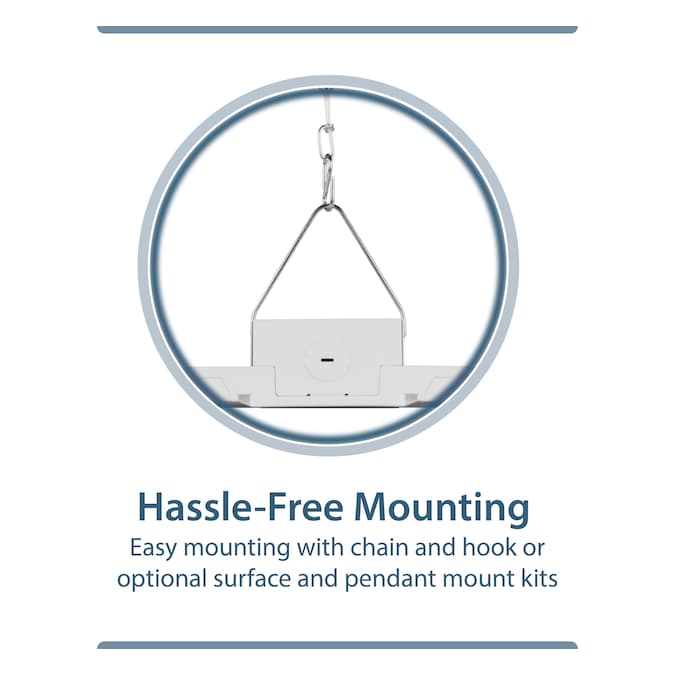

- Includes V-Hook and Chain Mounting Kit
- 60,000 Hour Lifespan
- 5-Year Limited Warranty
General
- Collection Name: HML1
- Color Temperature (Kelvins): 5000
- Color/Finish Family: White
- Light Color: Daylight

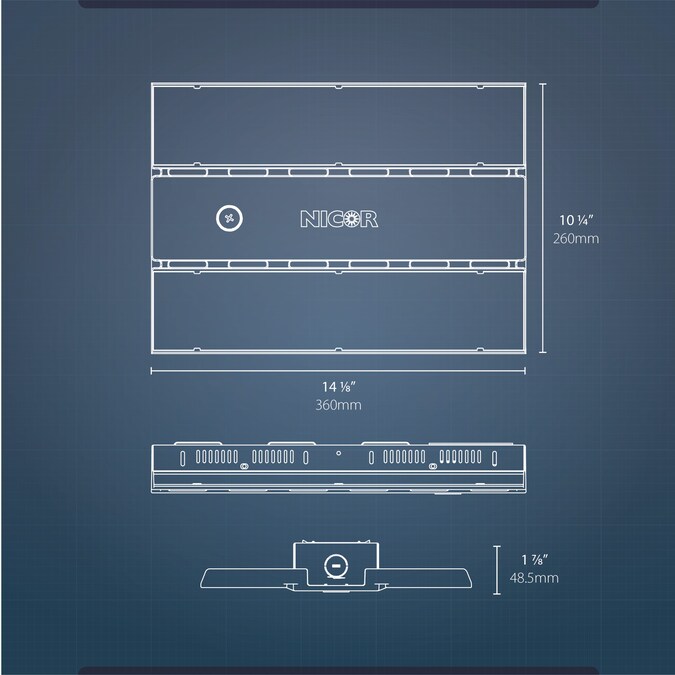

Dimensions
- Height (Inches): 1.9
- Length (Inches): 14.1
- Weight (lbs.): 3.61
- Width (Inches): 10.1
Features
- Adjustable Lumens: No
- Bulb Type: LED
- Bulb(s) Included: No
- For Use in Garages: Yes
- Light Bulb Base Type: Integrated

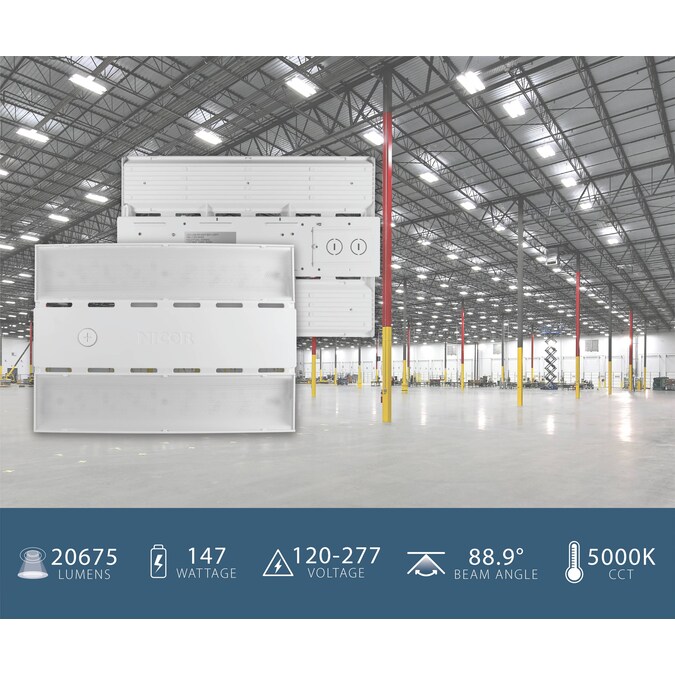

- Lumens: 20675
- Maximum Fixture Wattage: 147
- Number of Bulbs Required: 0
- Package Type: Individual pack
- Power Source: Hardwired
- Total Package Quantity: 1
- Warranty: 5-year
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39111500
