Protect your property from subsurface water damage with prefabricated Sheet Drainch Excess buildup of subsurface water affects the usability of your property and can cause flooding and costly damage to your foundation, retaining walls, and landscape. Sheet Drain is used on foundation walls, retaining walls, and raised planters to capture and remove subsurface water, reduce hydrostatic pressure, and to help prevent saturation of surfaces. Sheet Drain comes preassembled with a dimpled solid polymeric core wrapped in polypropylene geotextile filter fabric to prevent soil and sand from entering and potentially clogging the drainage system. This allows the collection of water from the fabric side to flow through to the drainage exits by gravity. Each roll of Sheet Drain provides 100 sq. ft. of drainage coverage, and can be cut to size. The core is 0.25 inch thick, and features an in-plane flow rate of 12.5 GPM/ft. NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.
- Drain subsurface water and reduce hydrostatic pressure
- Prevent saturation of foundation, retaining, and planter walls
- 100 square foot sheet of preassembled core and geotextile fabric
- Sheet Drain captures and removes subsurface water, reducing hydrostatic pressure to help prevent saturation of surfaces and costly property damage
- Use Sheet Drain vertically or horizontally on foundation walls, retaining walls, and raised planters along with a drainage system to convey water
- As part of a complete drainage system, Sheet Drain collects and directs water to a prefabricated strip drain (or perforated pipe and stone drainage system) for transport to designated drainage exits
- Roll out Sheet Drain on surfaces with dimples facing up or away from the surface, to secure onto concrete or wood, use construction adhesives, double-sided tape, or mechanical fasteners, for soil, use 4 inch to 8 inch long galvanized nails with washers

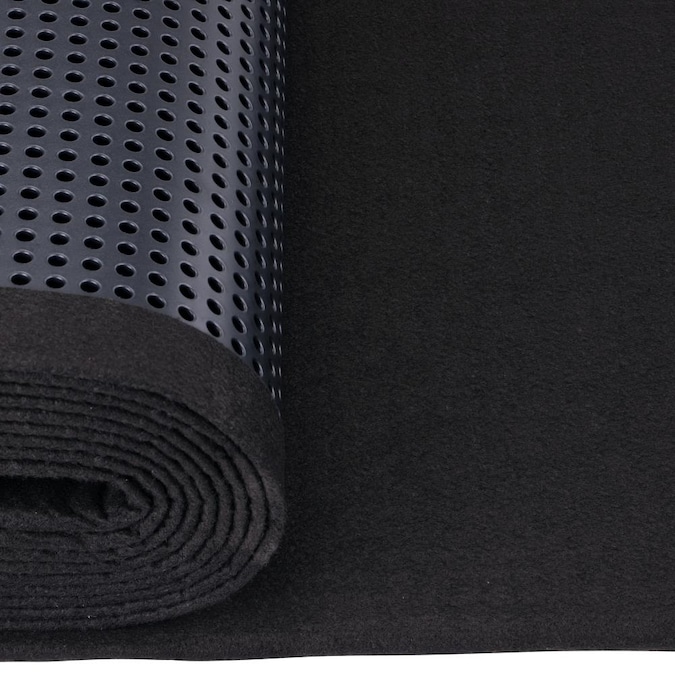

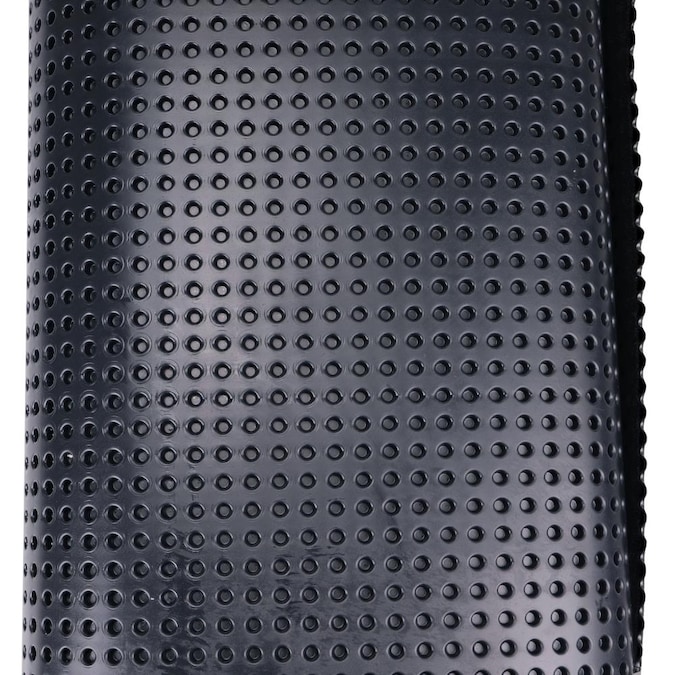

- Prefabricated Sheet Drain is made of a dimpled solid core with geotextile filter fabric bonded to the dimpled side, Core made of high-impact polystyrene (HIPS) using recycled content and treated with UV inhibitors to prevent damage from UV exposure during installation

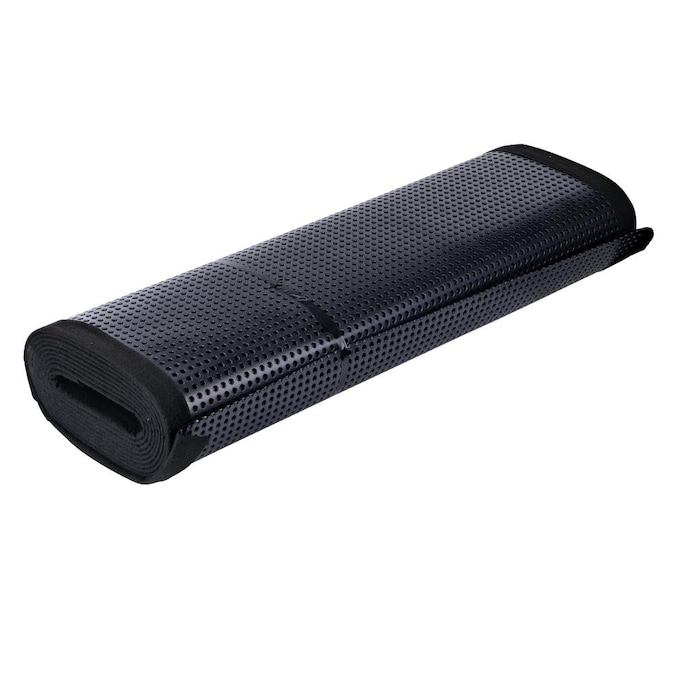

- Comes with one Sheet Drain roll measuring 4 feet X 25 feet
General
- Manufacturer Color/Finish: Black
- Series Name: 4 ft. x 25 ft. Sheet Drain
- Sub-Type: Sheet drain
- Type: Drain
Dimensions
- Diameter Measurement: N/A
- Fits Pipe Size: N/A
- Length Measurement: 20-ft
- Width Measurement: 24-in
Features
- Common Use: Use Sheet Drain vertically or horizontally on foundation walls, retaining walls, and raised planters along with a drainage system to convey water
- Material: ABS
- Package Quantity: 1
- Shape: Other
Warranty
- Warranty: 90-day limited
Certifications
- CA Residents: Prop 65 Warning(s): Yes
Miscellaneous
- UNSPSC: 21101500
