M-CORE™ is shower design on your time. This valve system is simpler and faster to install, and offers additional functionality with desired style choices to create an ideal shower environment. Moen has conducted extensive research to create M-CORE, and what drives the design is a passion to make the workday more streamlined for plumbers and to give more freedom in showering functionality and design whether in new construction or remodel projects. Homeowners and designers will enjoy M-CORE’s improved style and finish options including perfectly matching mixing and transfer trim, and attention to detail that reflects a desire for a dream bathroom.

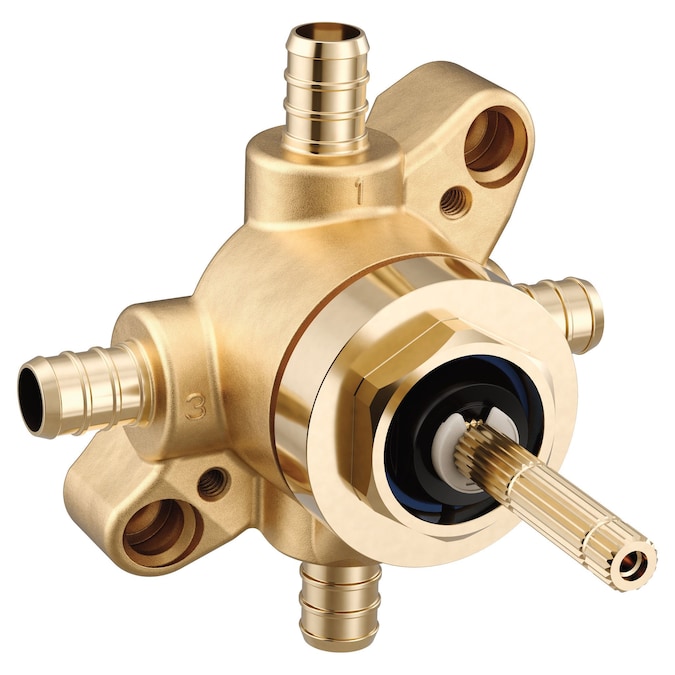

- M-CORE Transfer Valves can control 2 or 3 showering devices, a simple transfer cartridge modification changes the valve’s flow from two outlets to three outlets
- When using TWO showering devices, the valve has 2 independent and 1 shared functions
- When using 3 showering devices, the valve has 3 independent and 3 shared functions
- IMPORTANT: When using 3 Showering Devices, transfer valve cartridge must be modified – Simple cartridge modification changes the valves flow from two outlets to three outlets (See Transfer Valve Instructions for additional information)
- IMPORTANT: When using 2 Showering Devices, designated outlet 3 must be CAPPED – Caps sold separately
- M-CORE Transfer Valves have a simplified trim offering, and suite matching handles with integrated and mixing valves
- Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
- M-CORE’S adaptability allows the valves to be roughed in with the option of functionality and style changes that don’t require removing or changing the valve

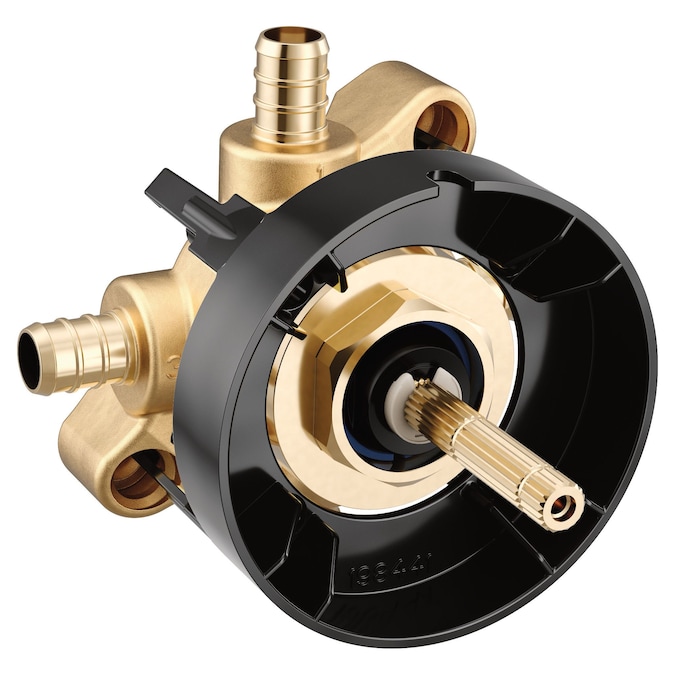

- Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time
General
- Series Name: M-core
- Type: Transfer valve
Dimensions
- Inlet Diameter: 1/2-in
- Inlet Size in Inches: 1/2-in
- Outlet Diameter: 1/2-in
Features
- Application: Shower
- Inlet Thread Type: PEX
- Material: Brass
- Maximum Pressure PSI: 300
- Outlet Thread Type: PEX
- Warranty: Limited lifetime
Certifications
- CA Residents: Prop 65 Warning(s): No
- Complies with Federal Lead Guidelines: Yes
Miscellaneous
- UNSPSC: 30181800
