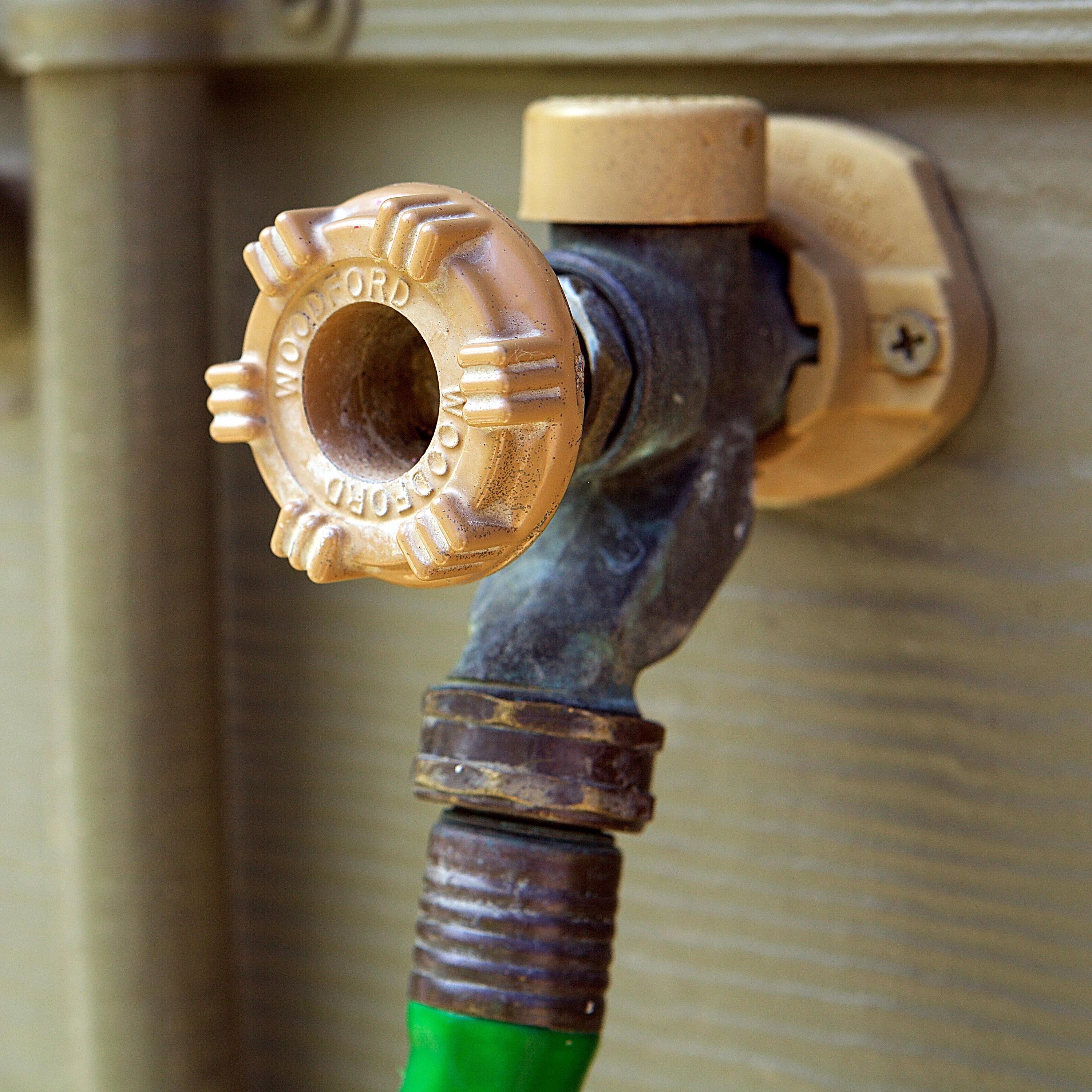

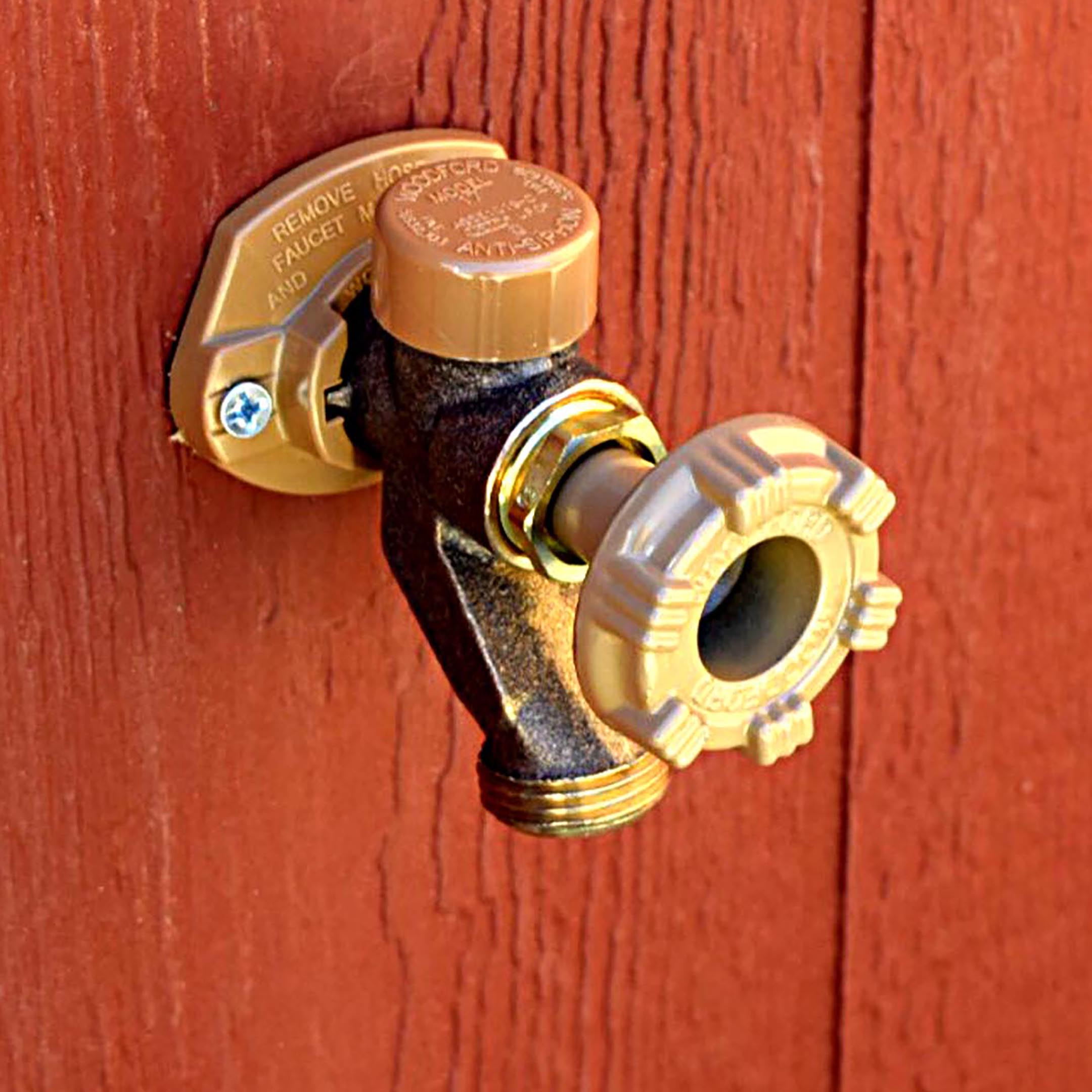

The freezeless Model 17 anti-siphon protected outdoor wall faucet is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The model 17 contains an integral backflow protection device which protects up to 125 PSI of backpressure and therefore does not require an add-on vacuum breaker. Round, powder-coated, die-cast aluminum handle. Woodford, The Choice of Professionals.
Series Name: Model 17
Type: Sillcock
Depth (Inches): 21.38
Height (Inches): 3.38
Inlet Diameter: 1/2-in
Inlet Size in Inches: 1/2-in
Length (Inches): 21.38
Outlet Diameter: 3/4-in
Thru-Wall Length: 16-in
Width (Inches): 2.5
Anti-Siphon: Yes
Frost Resistant: Yes
Handle Style: Handwheel

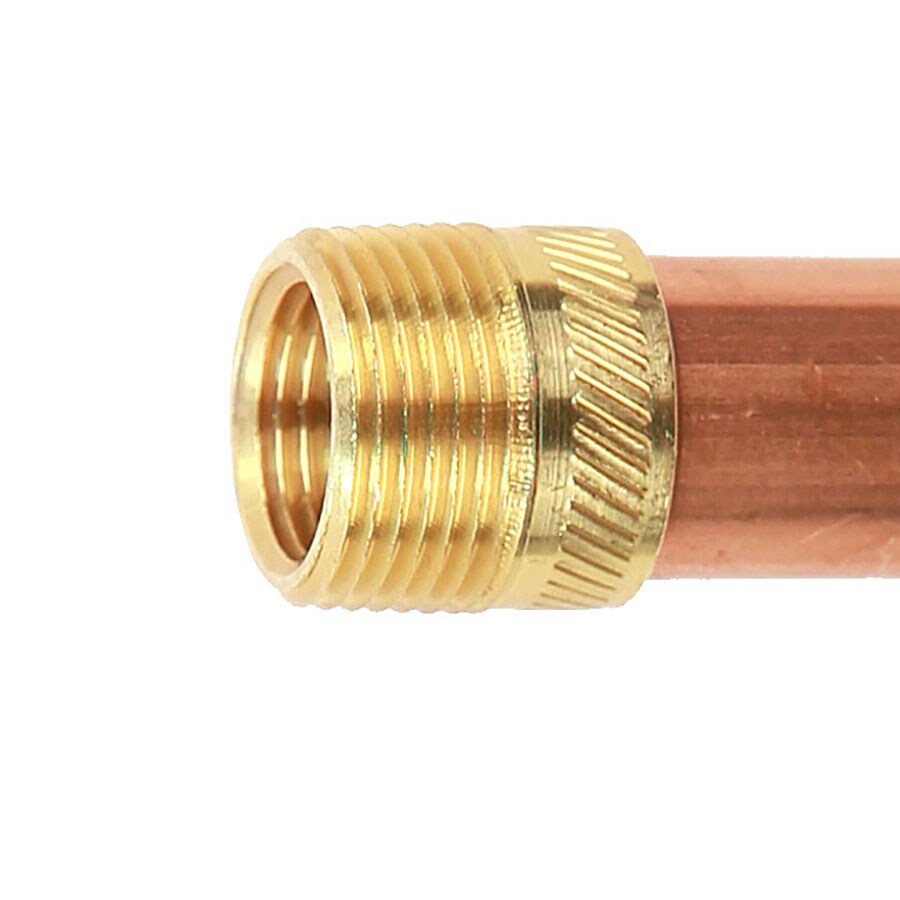

Inlet Thread Type: Copper sweat/MIP
Material: Brass
Outlet Thread Type: Hose thread
Turn: Multi turn
Use Location: Outdoor
Compatible Pipe Material: Copper
CA Residents: Prop 65 Warning(s): Yes
Complies with Federal Lead Guidelines: Yes
Warranty: 1-year limited
UNSPSC: 40141600
