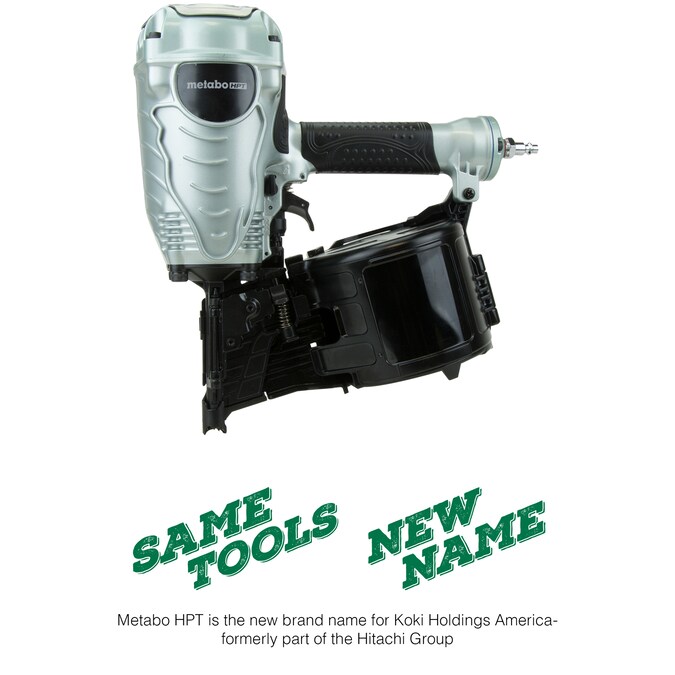

The NV90AGSM framing nailer drives wire collated nails from 1-3/4″ up to 3-1/2″ in length and features Metabo HPT’s next generation “industrial design.” Weighing only 7.7 lbs, it is easy to use all day, while still providing the power of a bulkier, heavier nailer. The convenient side-load, tilt bottom magazine allows for quick and easy fastener replenishment. It can be used for floor and framing, truss build-up, window build-up, sub flooring, roof decking, wall sheathing and housing construction.
- DEPTH ADJUSTMENT: Tool-less depth of drive dial adjusts for flush fastening in varying materials
- TRIGGER: Selective actuation switch allows for either sequential or contact nailing with the simple flip of a switch
- EASY LOAD: Side load, tilt bottom magazine for fast and easy reloads
- APPLICATIONS: Great for floor and framing, truss build-up, window build-up, sub flooring, roof decking, wall sheathing and housing construction

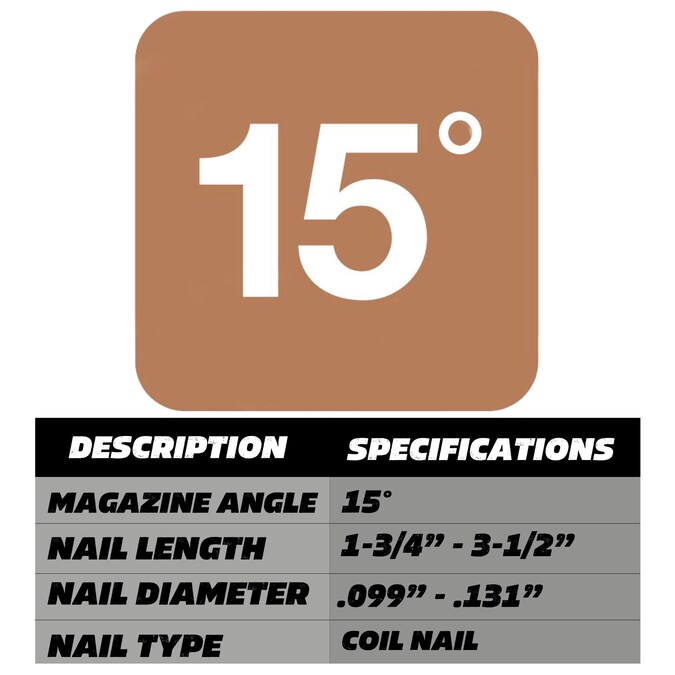

- FASTENERS: Accepts 15 degree +/- 1 wire coil nails from 1-3/4-in – 3-1/2-in
- LIGHTWEIGHT: At only 7.7 lbs, it is easy to use all day
- OPEN NOSE: Open nose design for easy jam removal
- DURABLE: Steel head plate for increased durability
- AWARD WINNING: Rated the Pro Preferred Nailer for 9 years running (2014 – 2022) by Builder and Developer Magazine
General
- Type: Framing
Dimensions
- Depth Control: Tool free
- Inlet Size in Inches: 1/4-in
- Magazine Capacity: 300
- Maximum Nail Diameter: 0.131-in
- Maximum Nail Length: 3-1/2-in
- Minimum Nail Length: 1-3/4-in
- Weight (lbs.): 7.7
Features
- Collation Material: Wire
- Collation Type: Angled
- Degree: 15
- Housing Material: Aluminum
- Jam Clearing: Tool free
- Maximum PSI: 120.0
- Pneumatic: Yes
- Power Source: Pneumatic
- Required Pressure (PSI): 70
- Strip or Coil: Coil
- Warranty: 5-year
Certifications
- ANSI Compliant: Yes
- CA Residents: Prop 65 Warning(s): Yes
