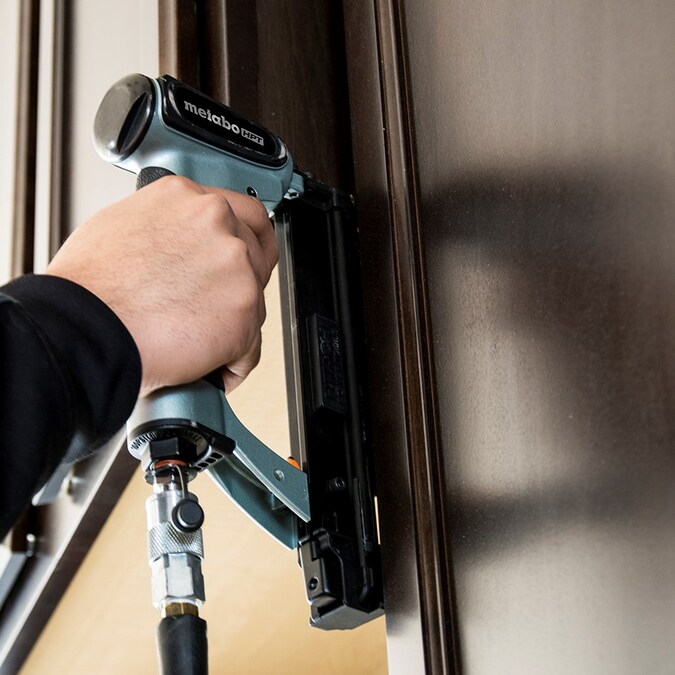

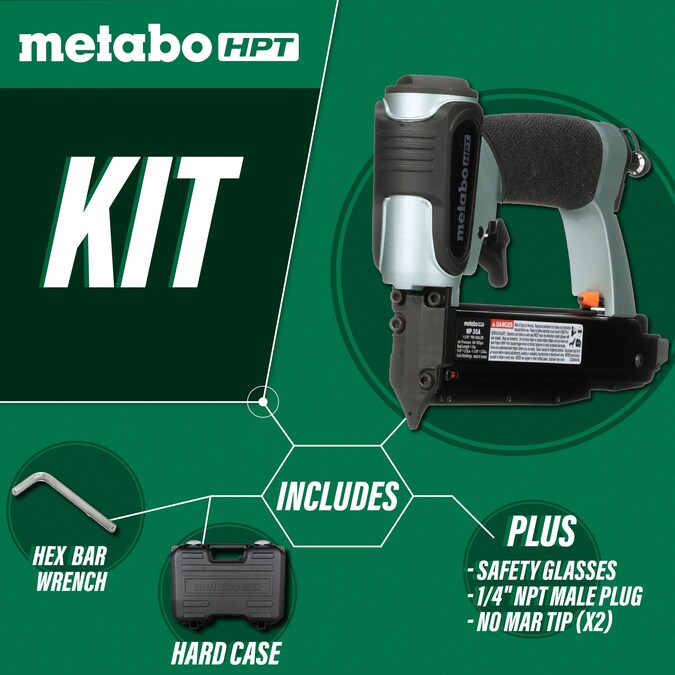

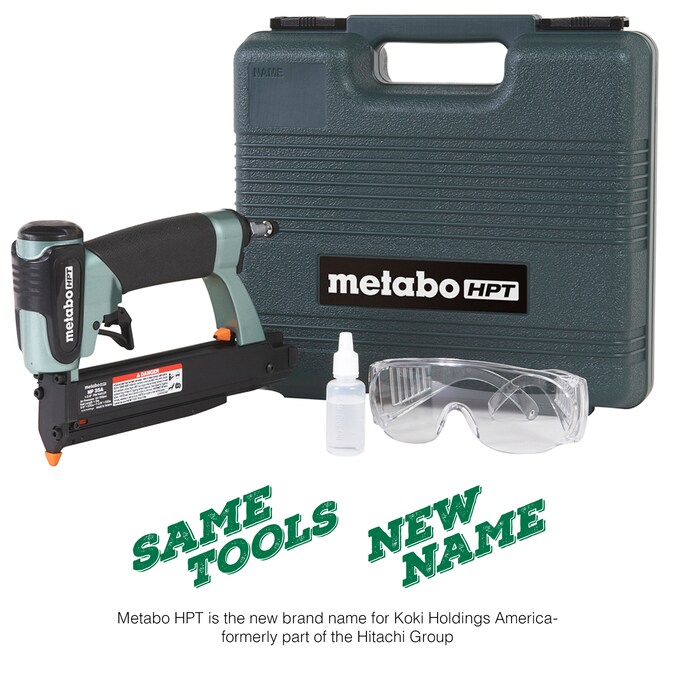

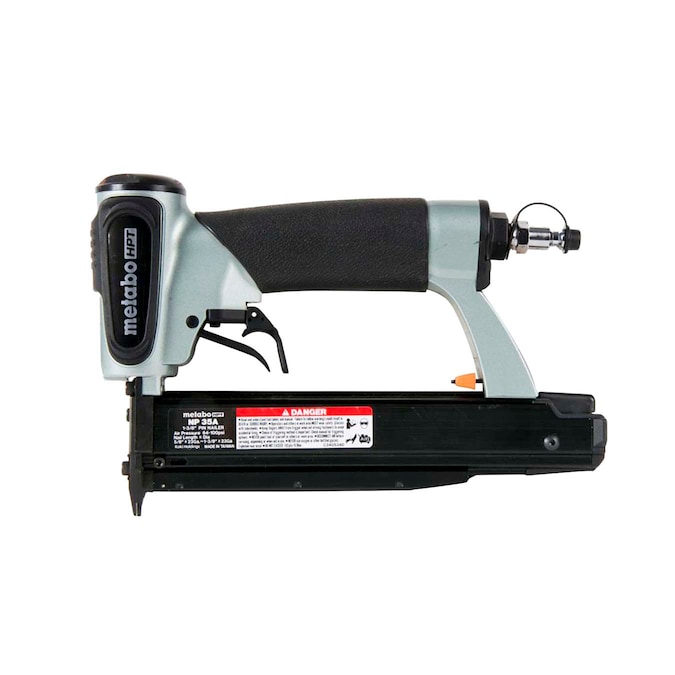

The new NP35A micro pin nailer fires 23-gauge headless pins which produce near invisible holes. The NP35A magazine automatically adjusts to 5/8 In., 3/4 In., 1 In., 1-3/16 In. and 1-3/8 In. fastener lengths for use on a wide variety of projects. The large housing shield, no mar tips and rear exhaust protect delicate work surfaces from costly damage. Other features includes visual reload indicator, adjustable depth of drive and large capacity magazine reduce downtime and offer convenience to the user. Lightweight and compact, the NP35A may be used in a variety of applications including cabinets, paneling, small moldings and trim, glazing bead, craft work, and picture frame assembly. Included with the NP35A are (2) no mar tips, carrying case, safety glasses and hex bar wrench.

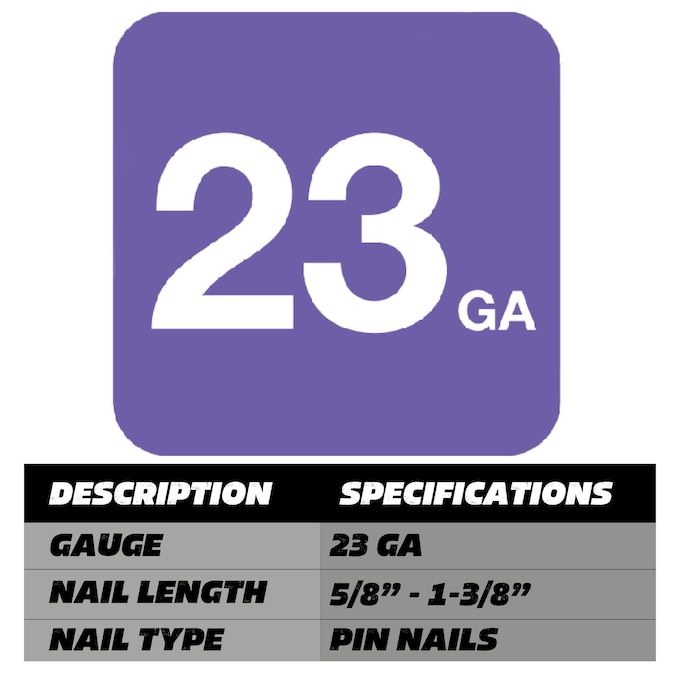

- FASTENERS: 23-gauge headless pins with automatic adjustment for 5/8 In, 3/4 In, 1 In, 1-3/16 In and 1-3/8 In fastener lengths

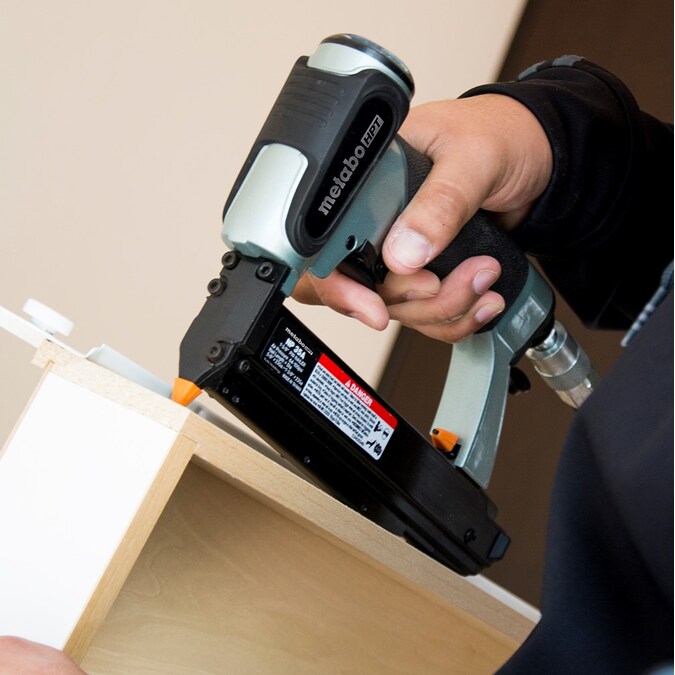

- APPLICATIONS: Great for cabinets, paneling, small moldings and trim, glazing bead, craft work, and picture frame assembly
- DEPTH ADJUSTMENT: Depth adjustment for flush drives into a variety of surfaces

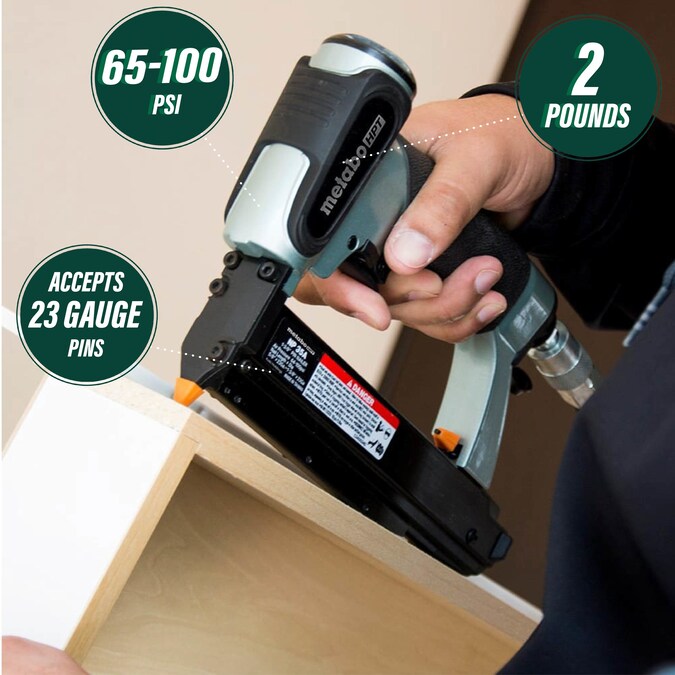

- LIGHTWEIGHT: Only 2.0 lbs, for easy all day use

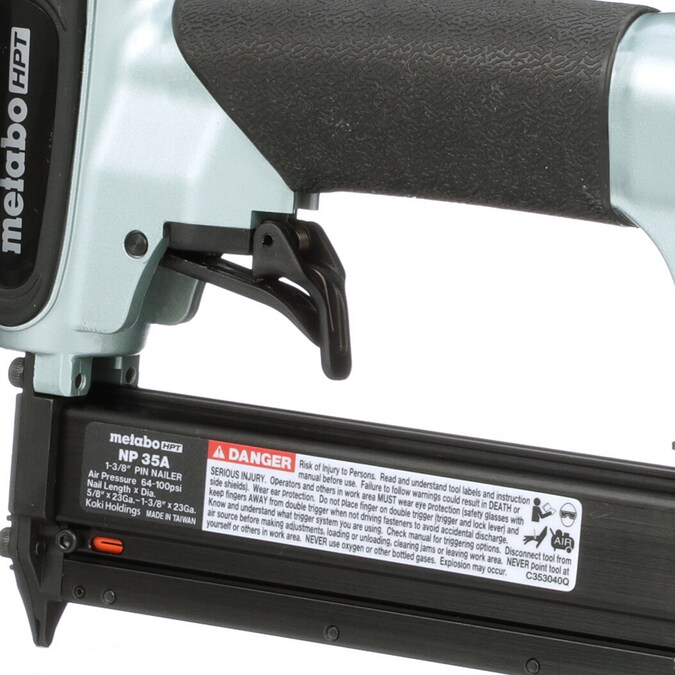

- TRIGGER: Dual trigger for safe and accurate placement of fasteners

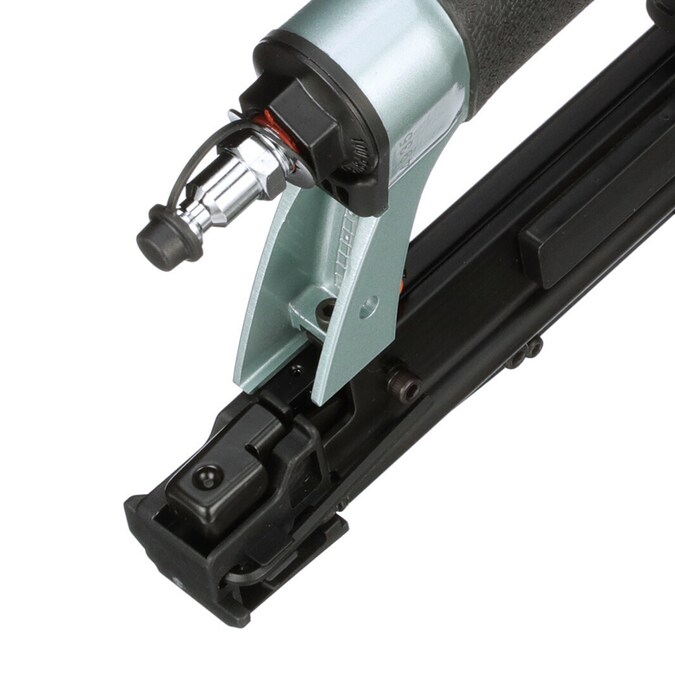

- REAR EXHAUST: Directs oil and debris away from the work surface

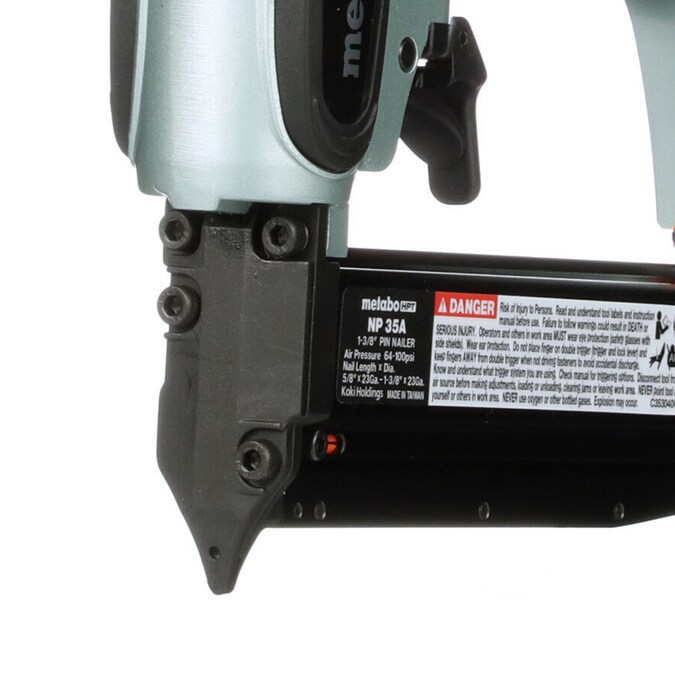

- NO-MAR TIP: No-mar tip on the nose protects the work piece from unintended markings
- MAGAZINE: Large fastener capacity for fewer reloads and less downtime
- AWARDS: Rated the Pro Preferred Nailer for 6 years running (2014 – 2019) by Builder and Developer Magazine
General
- Sub-Brand: N/A
- Type: Pin
Dimensions
- Depth Control: Requires tools
- Inlet Size in Inches: 3/8-in
- Magazine Capacity: 100
- Maximum Nail Diameter: 0.083-in
- Maximum Nail Length: 1-3/8-in
- Minimum Nail Length: 5/8-in
- Weight (lbs.): 4.7
Features
- Battery Recharge Time (Hours): 0
- Case Type: Hard
- Collation Material: Adhesive
- Collation Type: Straight
- Cordless: No
- Fastener Head Style: Headless
- Housing Material: Aluminum
- Jam Clearing: Requires tools
- Maximum PSI: 100.0
- Nail Gauge: 23
- Pneumatic: Yes
- Power Source: Pneumatic
- Required Pressure (PSI): 65
- Strip or Coil: Strip
- Warranty: 5-year
Warranty
- Base Warranty Labor (Months): 60
- Base Warranty Parts (Months): 60
Certifications
- ANSI Compliant: Yes
- CA Residents: Prop 65 Warning(s): Yes
