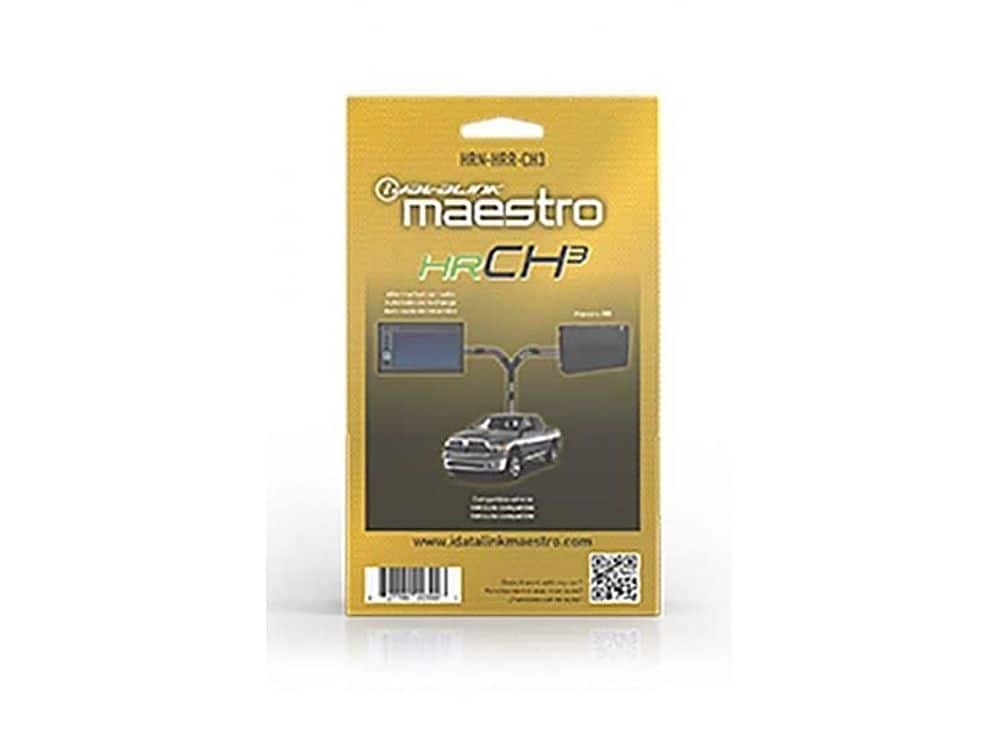

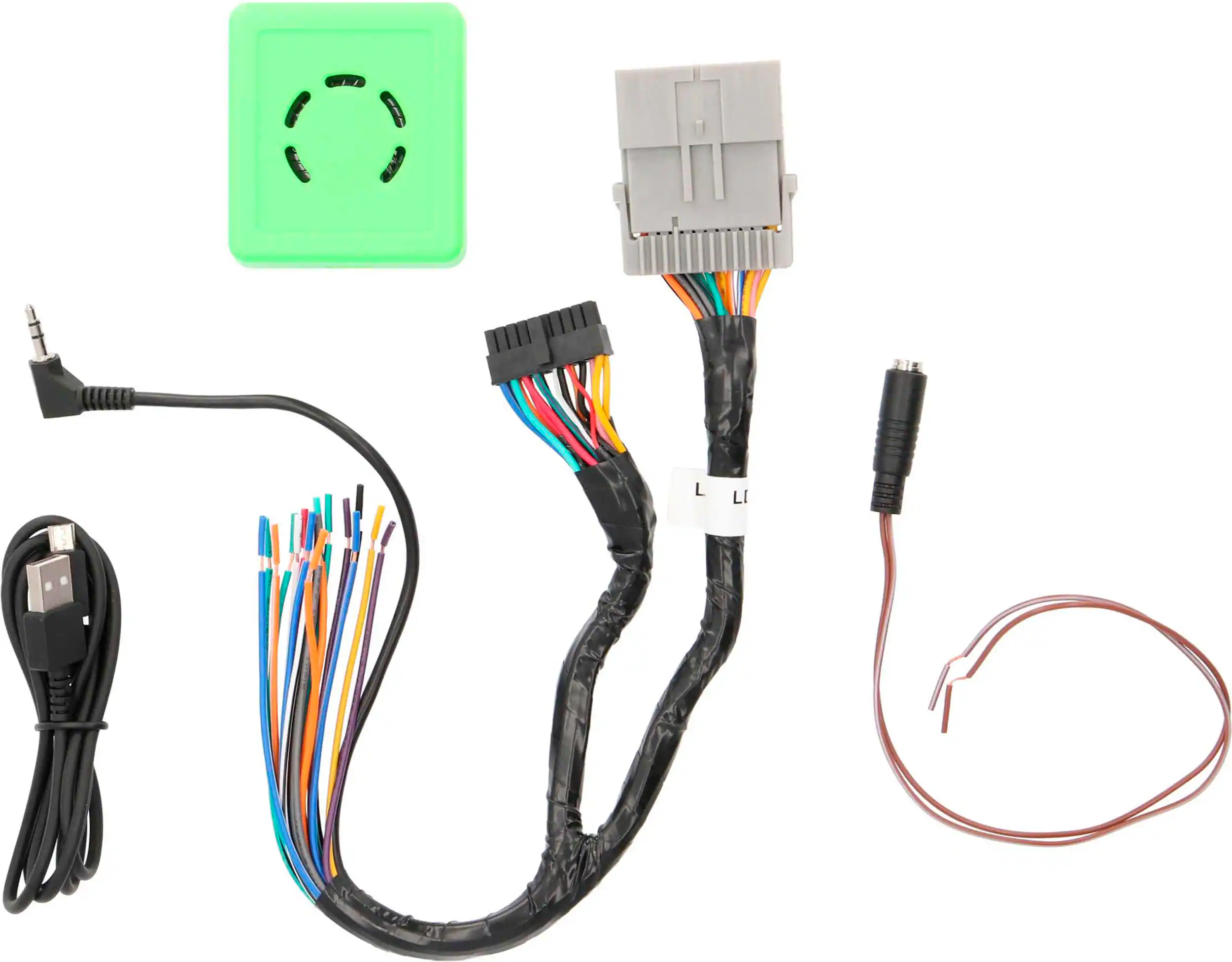

ADS-MRR and ADS-MRR2 compatible radio replacement harness for select Chrysler, Dodge, and Jeep vehicles 2013 and up. The radio side of the harness terminates in a universal connector that can be used in conjunction with available Maestro Head unit adapters for a plug n play solution or removed for conventional connections. For back-up camera and rear seat entertainment the AVCH1 is also required.
Steering Controls
retains the use of your steering wheel audio controls and factory amp in select vehicles.
Climate Controls
allows touchscreen control of climate and vehicle settings.
Backup Camera/Rear Seat Entertainment
Works with iDatalink HRN-AV-CH1 adapter to retain use of Rear Seat Entertainment monitor and back-up camera.
Vehicle Information
Displays engine performance data on touchscreen with select Alpine, JVC, Kenwood, and Pioneer receivers.
Seemless installation
allows seemless installation of a new receiver with iDatalink port in select Chrysler-made vehicles (also requires the Maestro ADS-MRR or MRR2 module).
Head Unit connectors
works with iDatalink’s “Head-unit Direct” harnesses (ACC-HU-xxxx), which eliminates the need for wire splicing.
Specifications
Key Specs
- Color: Black
General
- Brand: Maestro
- Model Number: HRN-HRR-CH3
- Product Name: Wiring Harness for Select Chrysler, Dodge, and Jeep Vehicles 2013 and Up
Compatibility
- Vehicle Compatibility: See Vehicle Compatibilty URL
- Product Compatibility: Stereo/receiver
- Product Type: Harness
Features
- Harness Type: Back-up camera
Dimensions
- Product Height: 7 inches
- Product Length: 3.9 inches
- Product Width: 0 inches
- Product Weight: 0.6 pounds
Warranty
- Warranty – Parts: 1 Year
- Warranty – Labor: Not Applicable
Specifications
- UPC: 627780003993
