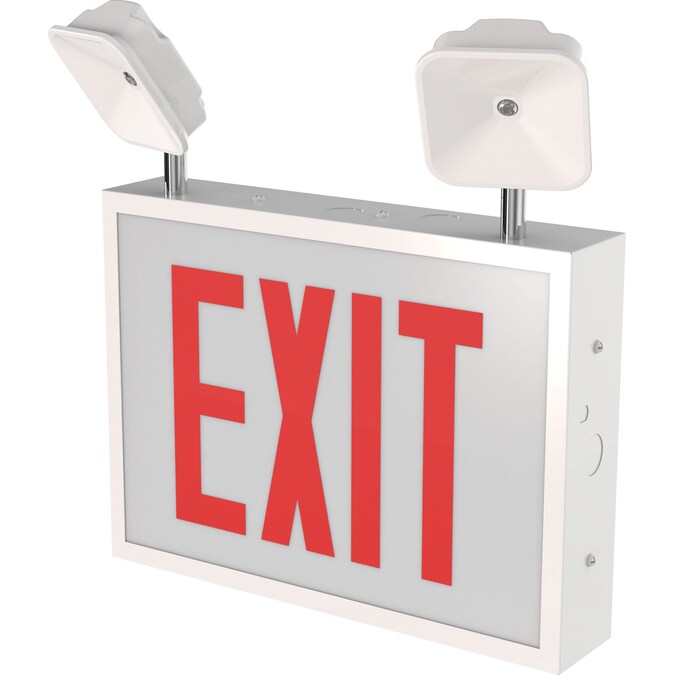

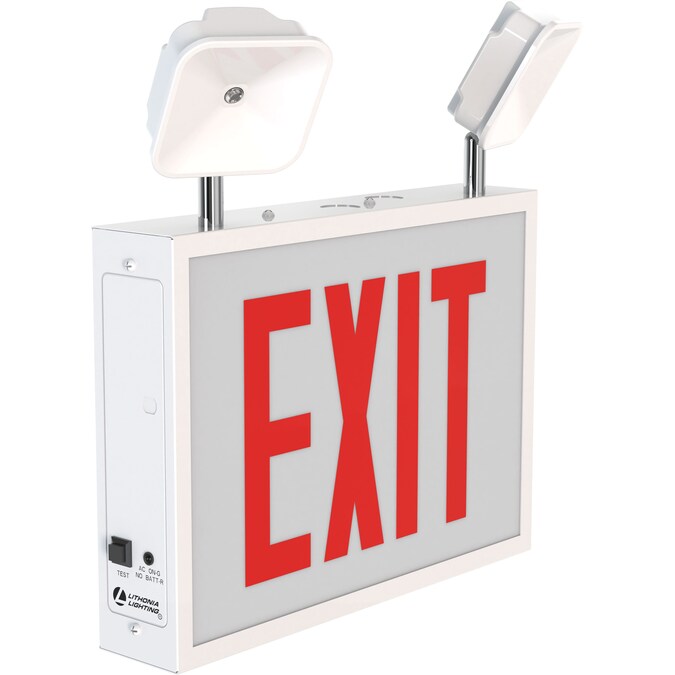

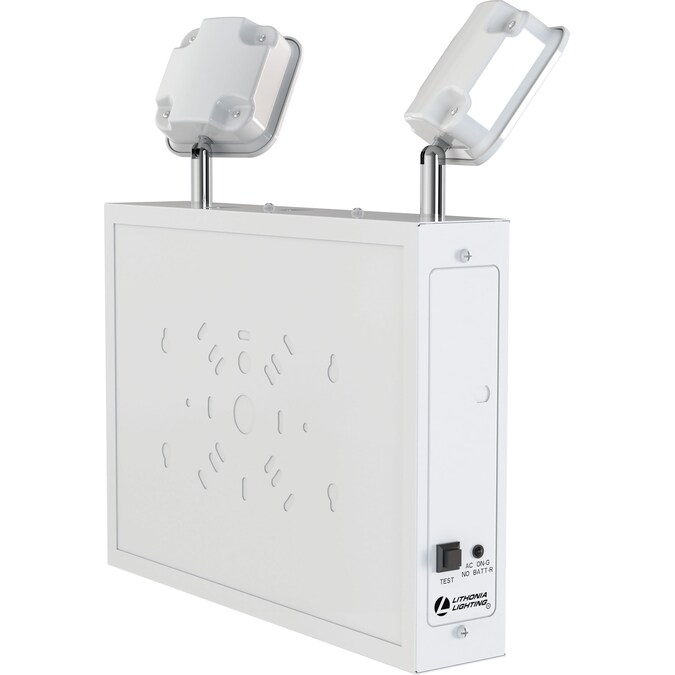

The TCC Commercial Steel Combo Unit provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting. Ideal for applications where steel housing emergency lighting is required.
- APPLICATIONS: Ideal for applications that require steel exit sign with emergency lighting, Chicago Approved
- COMPATIBILITY: Chicago Approved
- RATINGS: UL damp location listed at 32-104°F (0-40°C) Meets or exceeds all applicable requirements for UL 924, NFPA 101, NFPA 70, California Energy Commission Title 20 Listed and labeled to comply with Canadian Standards C22.2 No 141-10
- VOLTAGE: UVOLT (120 thru 347V, 50/60hz). Current-limiting charger maximizes battery life and minimizes energy consumption to provide low operating costs
- HOURS OF LIFE: The typical life of the LED lamp is 10 years
- DESIGN: 20-gauge steel housing, white powder coat finish, Exit No Arrow (ENA), Single face with red letters Uniform graphical illumination without shadows or hot spots
- BATTERY: Nickel Metal Hydride battery (9.6V)
- WARRANTY: 5-year limited warranty (pro-rata battery)
- DIMENSIONS: Length: 12″ x Height 13.52″ x Width 2.36″
General
- Collection Name: N/A
- Color/Finish Family: White
- Exit Light Color: Red
- Type: Exit and emergency light
Dimensions
- Depth (Inches): 12
- Height (Inches): 13.52
- Width (Inches): 2.36
Features
- Bulb Type: LED
- Light Fixture Material: Metal
- Lumens: 750
- Maximum Bulb Wattage: 3.5
- Maximum Fixture Wattage: 6
- Number of Bulbs Required: 0
- Power Source: Hardwired
- Voltage Type: 120-347
- Warranty: 5-year limited
Certifications
- CA Residents: Prop 65 Warning(s): No
- ENERGY STAR Certified: No
- Safety Listing: cULus safety listing
Miscellaneous
- UNSPSC: 39111700
