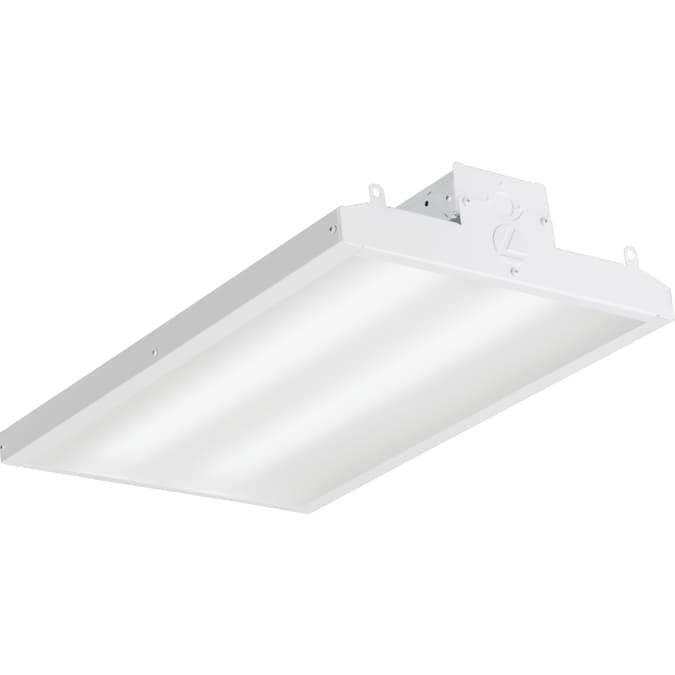

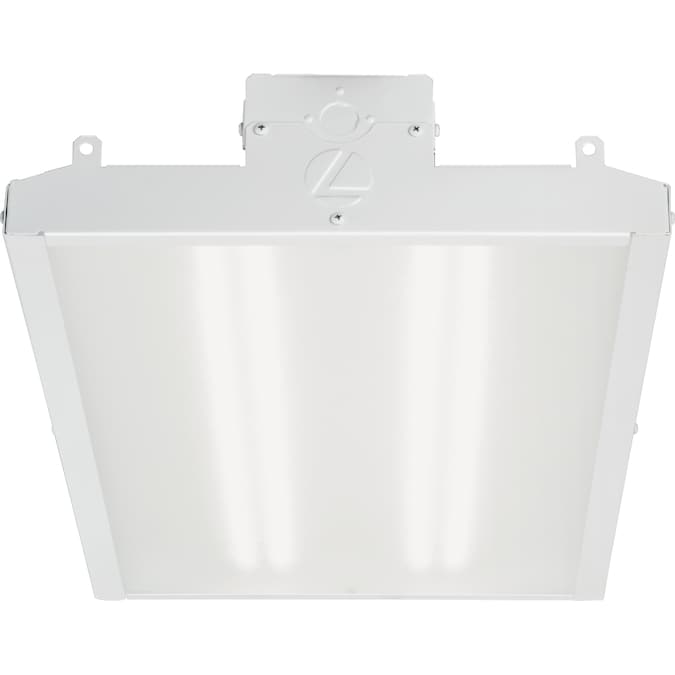

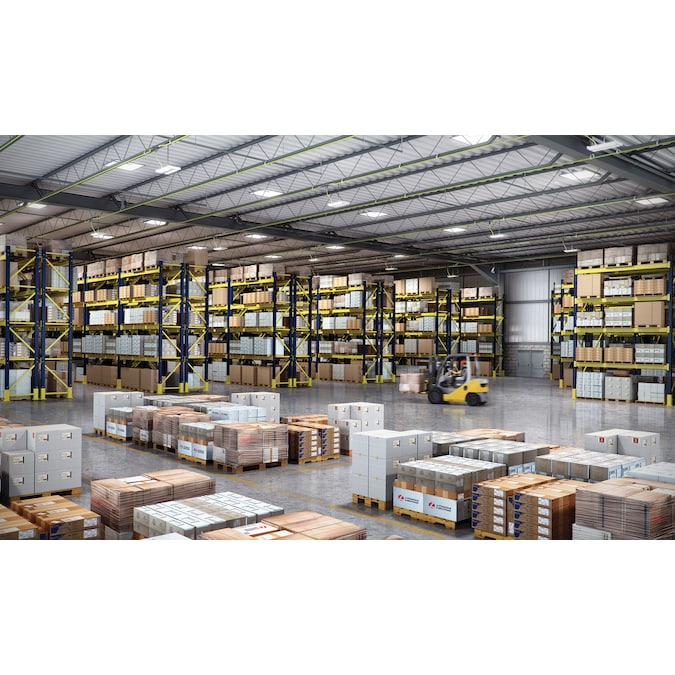

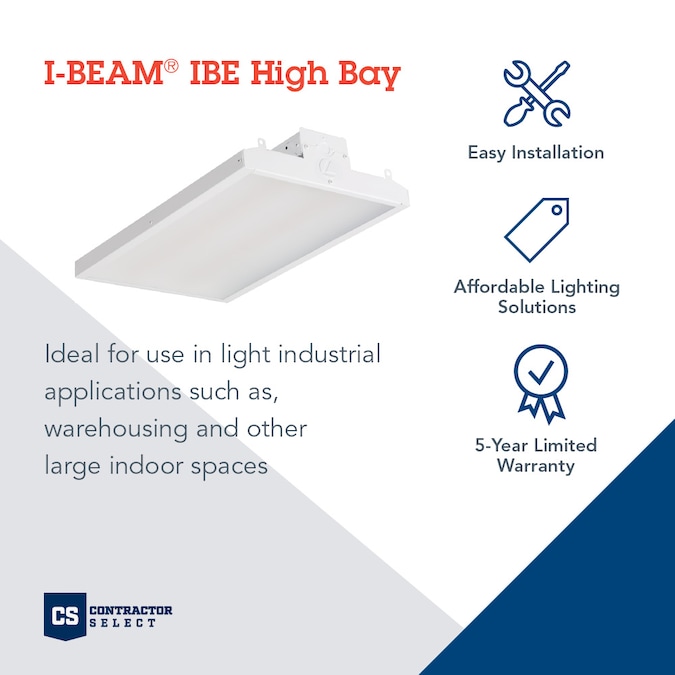

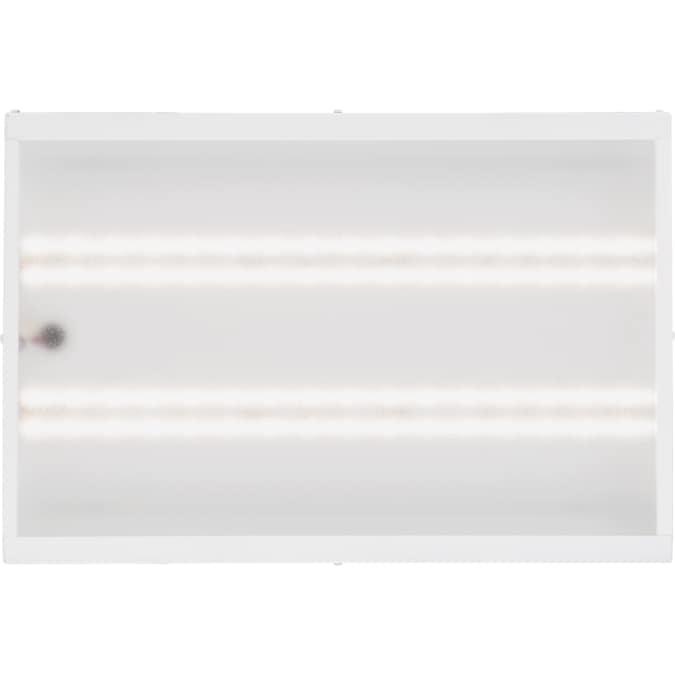

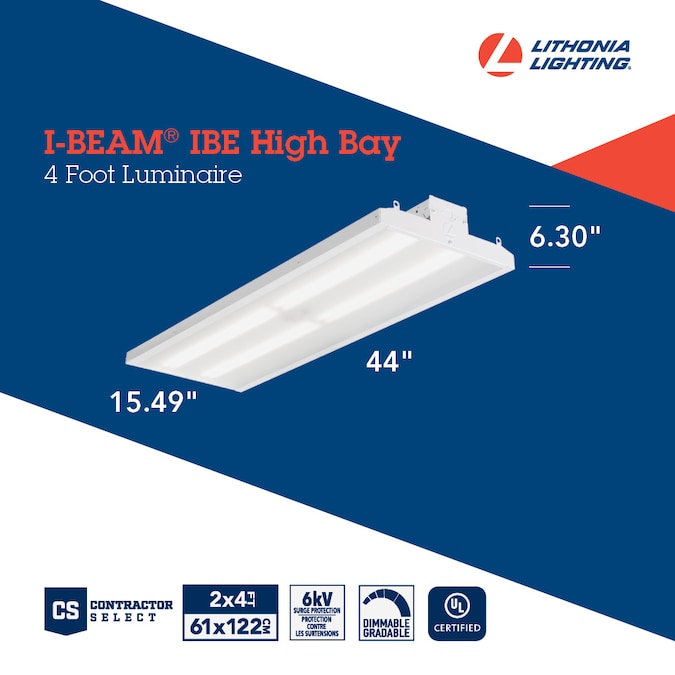

The I-BEAM IBE LED luminaire gives budget-conscious customers a reliable LED solution featuring 6kV surge protection standard and is designed to meet the challenges of warehouse and light industrial applications.

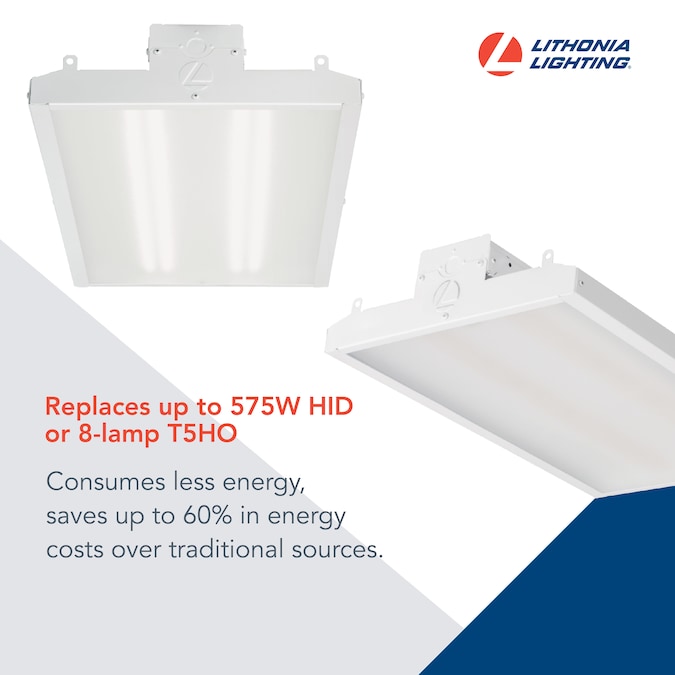

- TECHNOLOGY: Easily replaces traditional 175 watt metal halide, 4-lamp T8 HBF, 2-lamp T5HO saving up to 48% energy
- ENERGY SAVINGS: Integrated LEDs generate a nominal 12,000 lumens while efficiently using up to 83 watts to save money on utility bills
- DIMMING: Thermally protected driver standard with 0-10V dimming
- RATINGS: Meets highest standards – 6kV surge protection; UL , cUL certified to US and Canadian standards, listed for damp locations
- VOLTAGE: Multi-volt 0-10V dimming driver
- HOURS OF LIFE: 70% lumen maintenance at 100,000 hours

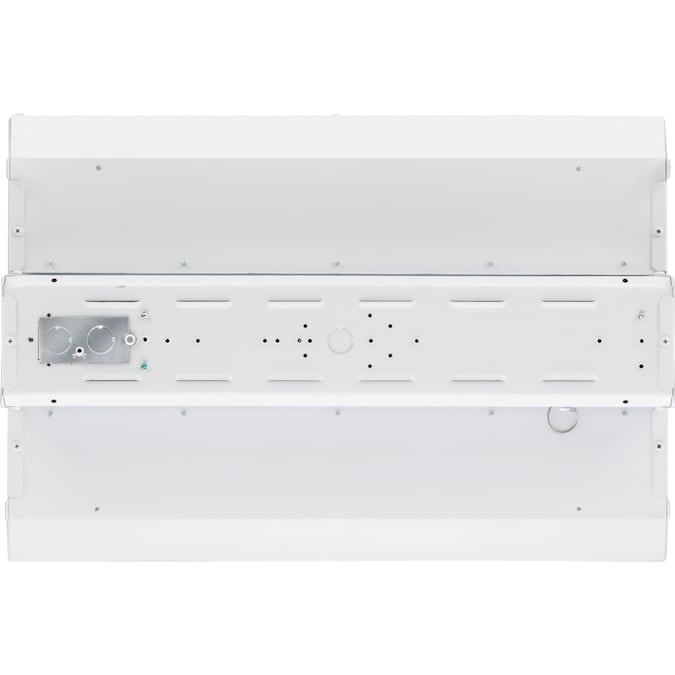

- INSTALLATION: Suitable for suspension by chain, cable, surface-mounting bracket, hook monopoint or single (pendant) monopoint
- BATTERY: Field-installable LED emergency driver sold separately
- WARRANTY: 5-year limited warranty
General
- Collection Name: I-BEAM
- Color Rendering Index (CRI): 80
- Color Temperature (Kelvins): 4000
- Color/Finish Family: White
- Light Color: Cool White
Dimensions
- Height (Inches): 4.27
- Length (Inches): 22
- Weight (lbs.): 7.2
- Width (Inches): 14.83
Features
- Adjustable Lumens: No
- Bulb Type: LED
- Bulb(s) Included: Yes
- Dimmable: Yes
- For Use in Garages: Yes
- Light Bulb Base Type: Integrated
- Lumens: 17762
- Maximum Bulb Wattage: 137
- Maximum Fixture Wattage: 137
- Motion Sensor: No
- Number of Bulbs Required: 0
- Package Type: Individual pack
- Pallet Quantity: N/A
- Power Source: Hardwired
- Recommended Light Bulb Shape: N/A
- Surge Protection: Yes
- Total Package Quantity: 1
- Usage Rating: Damp rated
- Voltage Type: 120-277
- Warranty: 5-year limited
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: cULus safety listing
Miscellaneous
- UNSPSC: 39111500
