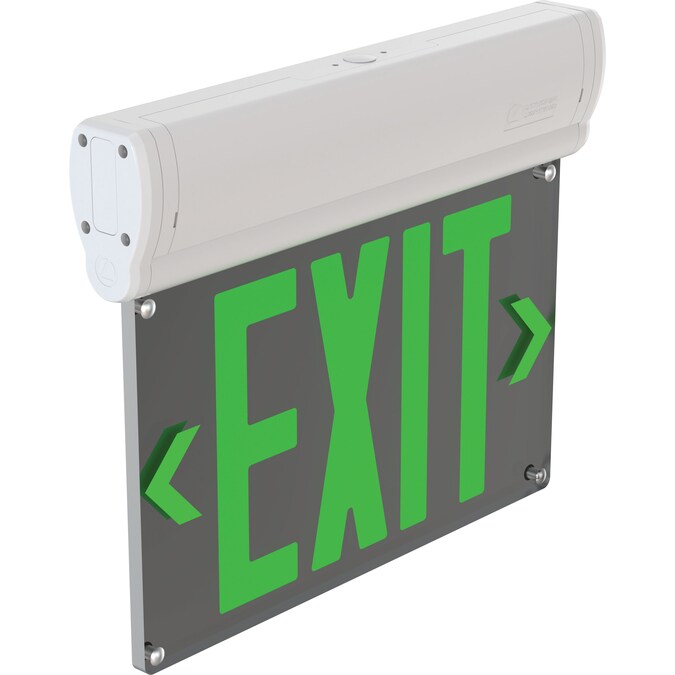

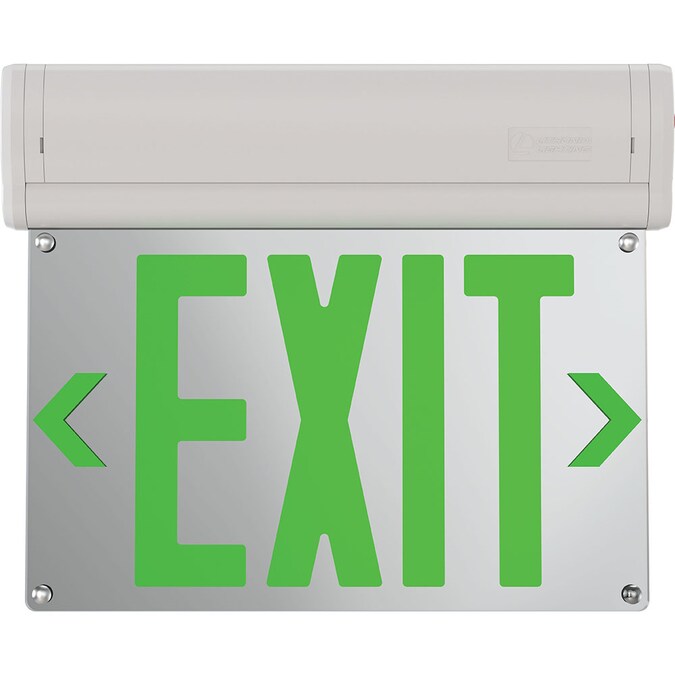

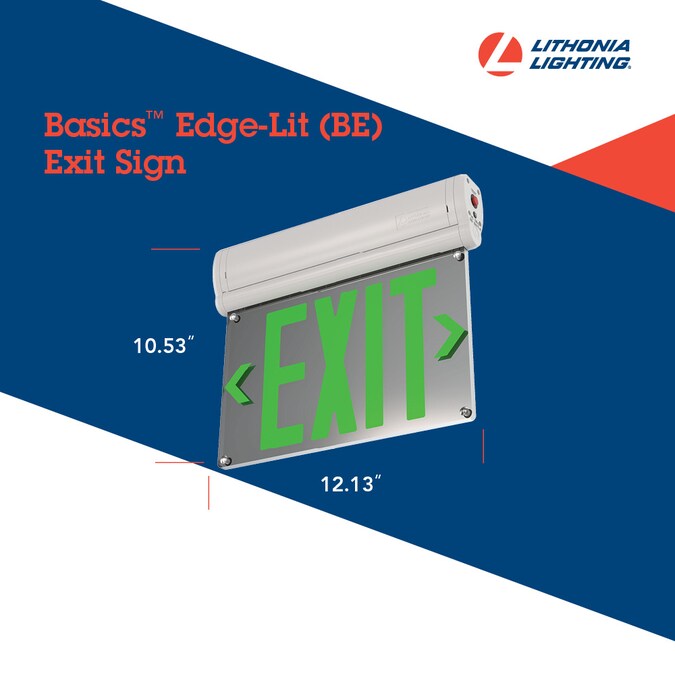

The Basics™ Edge-Lit Exit Sign from Lithonia Lighting provides a high-end aesthetic while remaining budget friendly. The exit panel rotates 0-180° to fit any mounting orientation and offers an internal switch for AC or Battery Back-Up (EL) for added flexibility.

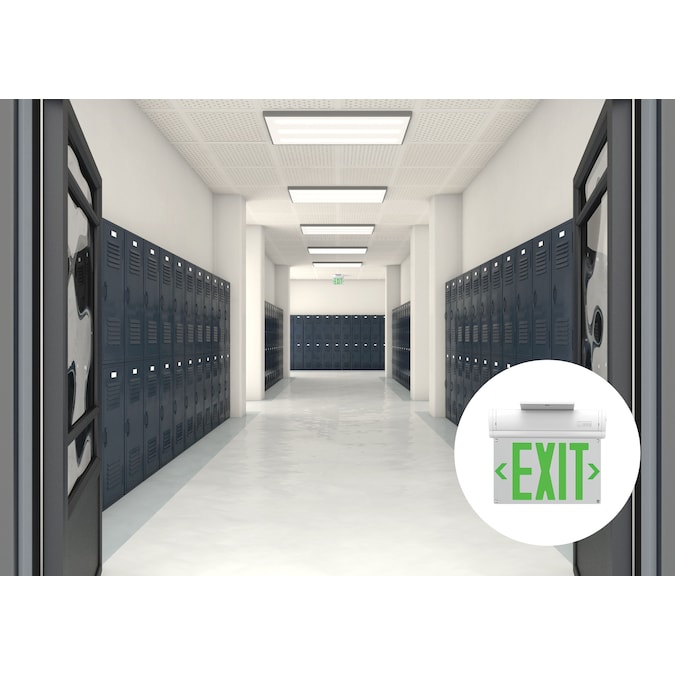

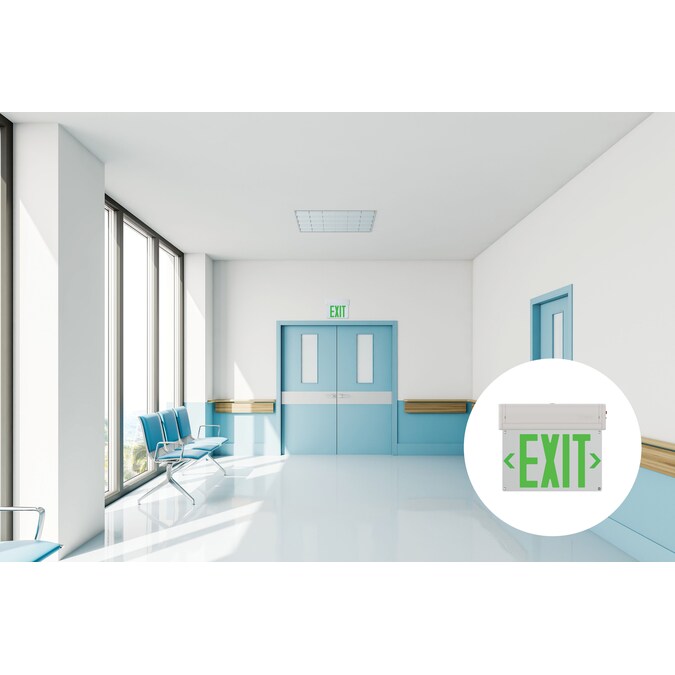

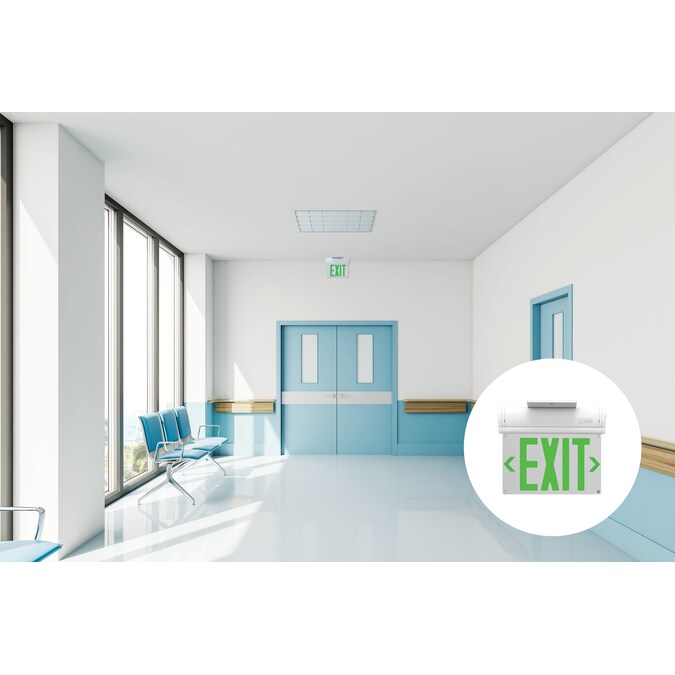

- APPLICATIONS: Ideal for applications such as schools, hospitals, office spaces, strip malls and multi-family.
- RATINGS: UL damp location listed 32-104°F (0-40°C) standard Meets UL924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards Meets all applicable FCC Title 47, Part 15, Subpart B.
- VOLTAGE: Multi-volt, 120-277VAC, 50/60hz.
- HOURS OF LIFE: The typical life of the LED lamp is 10 years.
- DESIGN: Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant, and corrosion-proof
- BATTERY: AC or Battery Back-up (EL) Using an internal switch, the end user has the ability to select between normal power (AC) or battery backup (EL) operation depending on the application (Patent Pending).
- WARRANTY: 2-year limited warranty.

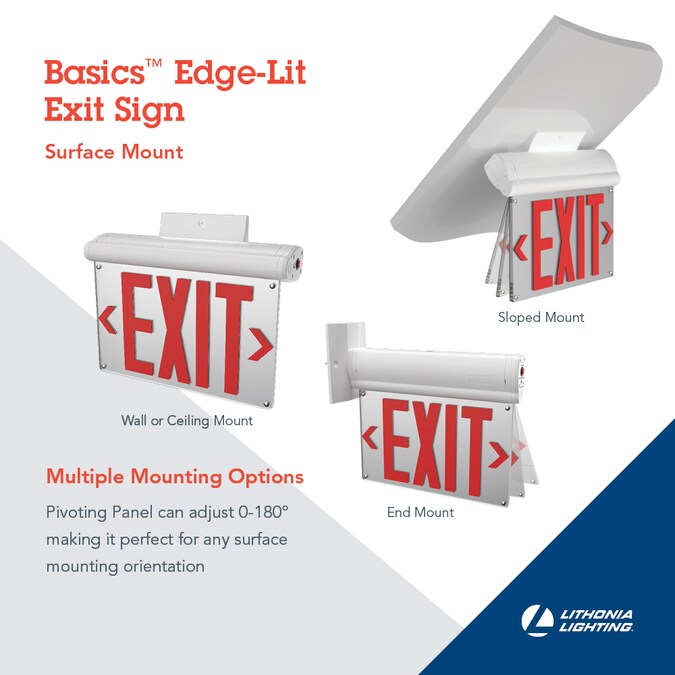

- INSTALLATION: Provides ceiling, wall and end mounting capability.
- ADJUSTABILITY: 3 Face standard – ships as a double-sided exit with a backplate, Allows capability to turn a double-sided exit to a single face exit, Ships standard with removable directional chevrons, These can be removed in the field
General
- Collection Name: 2-Pack
- Color/Finish Family: White
- Exit Light Color: Green
- Type: Exit light
Dimensions
- Depth (Inches): 12.13
- Height (Inches): 9.92
- Width (Inches): 1.82
Features
- Bulb Type: LED
- Light Fixture Material: Plastic
- Lumens: 0
- Maximum Bulb Wattage: 3.6
- Maximum Fixture Wattage: 3.6
- Number of Bulbs Required: 0
- Power Source: Hardwired
- Voltage Type: 120-277
- Warranty: 2-year limited
Certifications
- CA Residents: Prop 65 Warning(s): No
- ENERGY STAR Certified: No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39111700
