The Compact Pro High Bay (CPRB) is a budget-oriented high bay designed specifically with the contractor in mind. Its compact design makes it easier and quicker to install. CPRB is built with quality to last and performance to meet the needs of the job, making it the best choice for affordable and reliable light-duty industrial applications

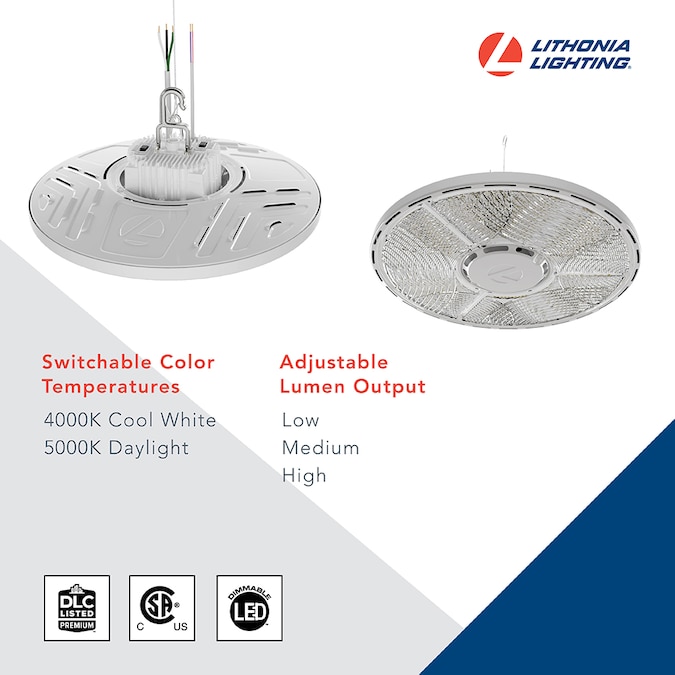

- TECHNOLOGY: Adjustable Lumen output (21000/24000/27000) and Switchable white (4000K/5000K) features allow for 9 potential configurations within one fixture, using two switches
- ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
- CONTROLS: 0-10V dimming driver standard for 10% to 100% dimming capabilities
- RATINGS: CSA listed, Damp location listed, IP54 rated, designed for ambient temperature ranging -37°C to 55°C
- VOLTAGE: UVOLT driver 120-347V
- HOURS OF LIFE: 70% lumen maintenance at 100,000 hours

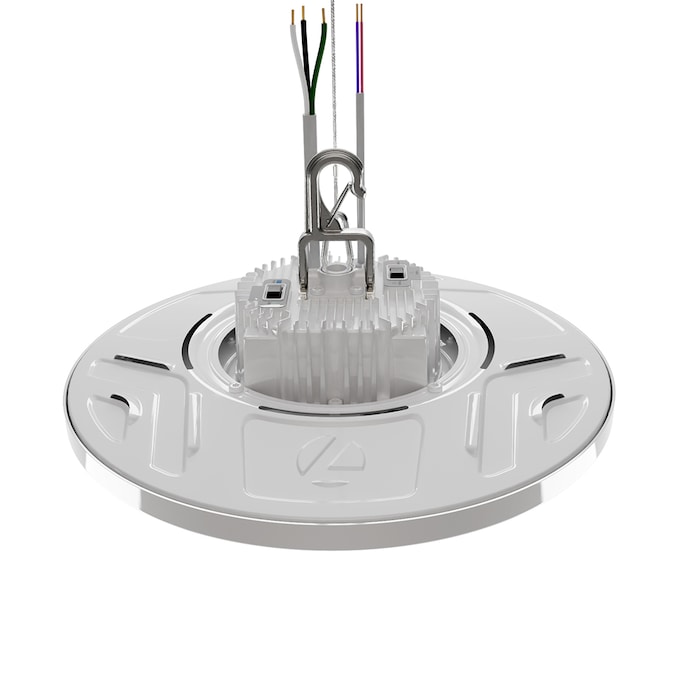

- INSTALLATION: Includes patent-pending permanently attached hook with safety latch feature and 7 FT galvanized safety cable standard
- BATTERY: Emergency battery pack, 40W AC output, sold separately
- WARRANTY: 5-year limited warranty
General
- Collection Name: N/A
- Color Temperature (Kelvins): 5000
- Color/Finish Family: White
- Light Color: Switchable white
Dimensions
- Height (Inches): 3.35
- Length (Inches): 15.14
- Weight (lbs.): 6.1
- Width (Inches): 15.14
Features
- Adjustable Lumen Output (ALO): 21000-27000
- Adjustable Lumens: Yes
- Bulb Type: LED
- Bulb(s) Included: Yes
- For Use in Garages: Yes
- Light Bulb Base Type: Integrated
- Lumens: 27000
- Maximum Fixture Wattage: 195
- Number of Bulbs Required: 1
- Package Type: Individual pack
- Pallet Quantity: N/A
- Power Source: Hardwired
- Recommended Light Bulb Shape: N/A
- Total Package Quantity: 1
- Warranty: 5-year limited
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: CSA safety listing
Miscellaneous
- UNSPSC: 39111500
