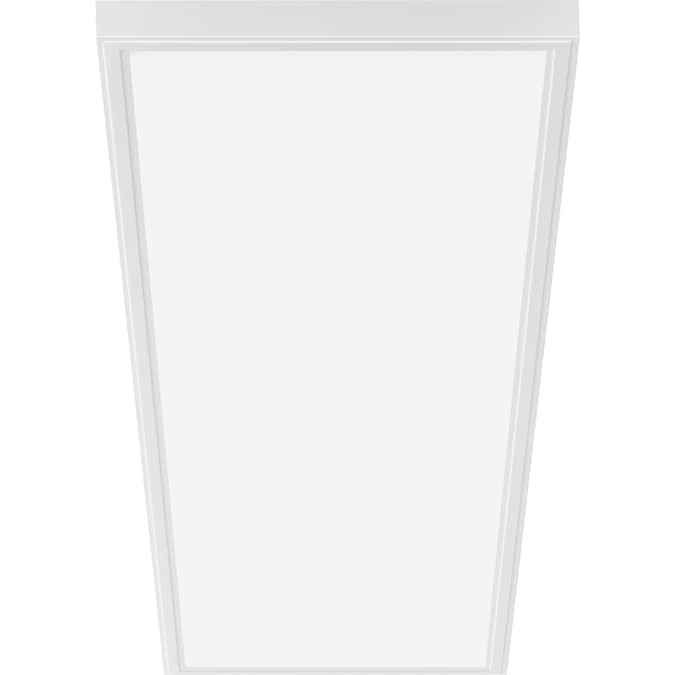

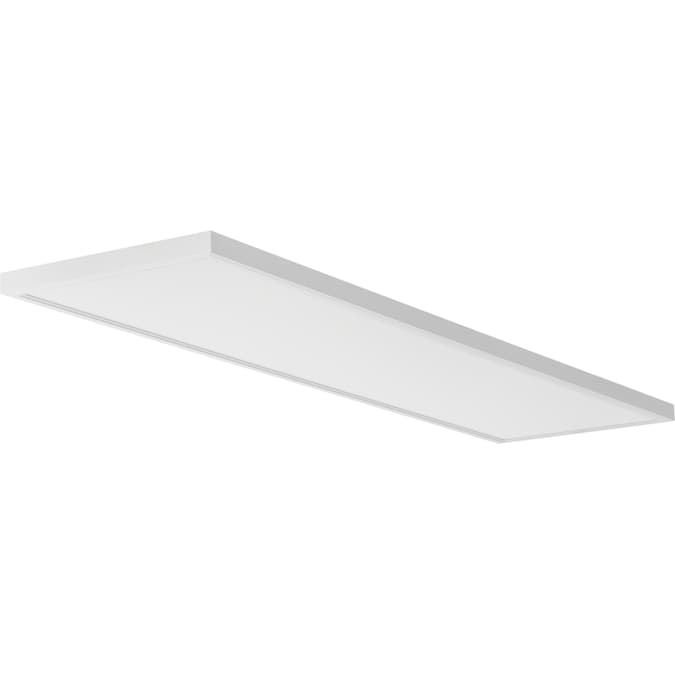

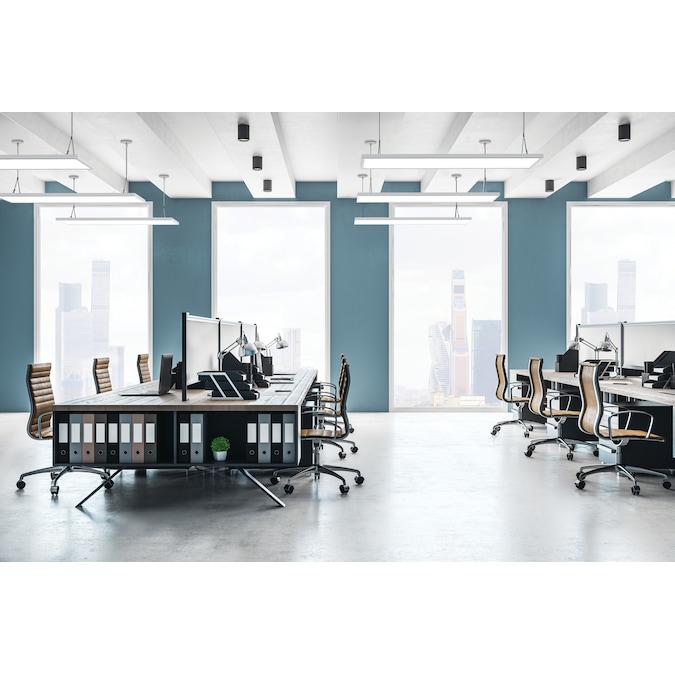

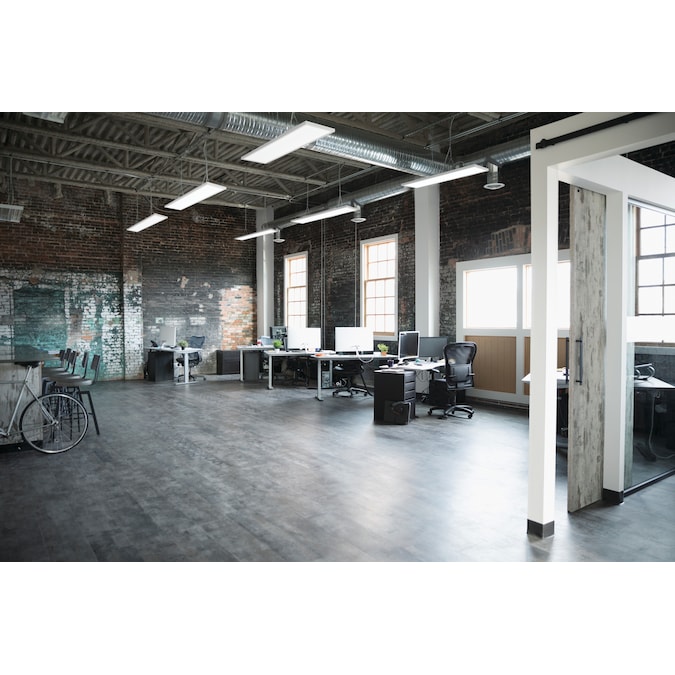

The CPANL LED Fully Switchable Flat Panel features an integrated driver that allows CPANL to be suspended, direct surfaced mounted or integrated into a t-grid ceiling. The adjustable lumen output (ALO) feature adds flexibility by allowing you to choose between three-lumen options with a simple switch. And now, CPANL also features switchable color temperature (SWW) which allows you to select either warm, medium or cool temperatures. Direct ceiling surface mount kit (DCMK 14) sold separately.
- TECHNOLOGY: Features adjustable lumen output (ALO) and switchable color technology (SWW) allowing for more flexibility and customization for your space
- ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
- DIMMING: 0-10 volts driver for dimming down to 10 percent
- RATINGS: Certified for damp locations, CSA certified, IC certified, DLC certified
- VOLTAGE: Standard MVOLT for 120-277 volts
- HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 60,000 hours (L7060,000
- INSTALLATION: Can be installed directly to the ceiling; If a mounting kit is needed, Direct ceiling surface mount kit (DCMK 14) is sold separately
- BATTERY: Field-installable LED emergency driver sold separately
- WARRANTY: 5-year limited warranty
General
- Collection Name: CPANL LED Series
- Color Rendering Index (CRI): 80
- Color Temperature (Kelvins): 5000
- Color/Finish Family: White
- Light Color: Switchable white

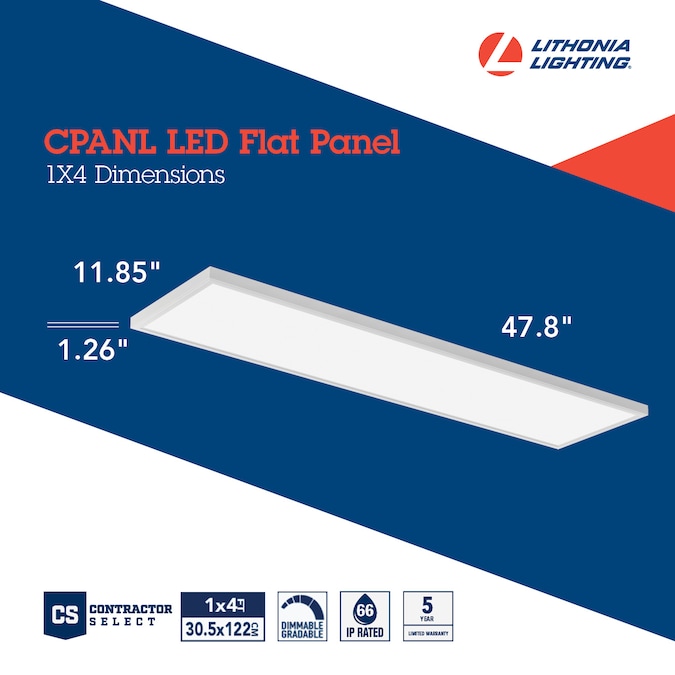

Dimensions
- Height (Inches): 1.26
- Length (Inches): 11.9
- Length Measurement: 1-ft
- Weight (lbs.): 10.45
- Width (Inches): 47.72
- Width Measurement: 4-ft
Features
- Adjustable Lumen Output (ALO): 2400-4400
- Adjustable Lumens: Yes
- For Use in Garages: No
- Lumens: 4400
- Maximum Bulb Wattage: 41
- Maximum Fixture Wattage: 41
- Mounting Type: Recessed mount
- Package Type: Individual pack
- Power Source: Hardwired
- Total Package Quantity: 1
- Voltage Type: 120-277V
- Warranty: 5-year limited
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: CSA safety listing
Miscellaneous
- UNSPSC: 39111500
