The Lectron V-BOX electric vehicle charging station offers state-of-the-art powerful Level 2 charging. With 48 amps and 240 volts of maximum output, it enables much faster charging speeds (with adjustable amp settings at 16, 24, 32, 40, and 48 amps). It is fully compatible with all J1772 electric vehicles and plugs into a NEMA 14-50 outlet. It comes with an extra-long 20-foot cable for maximum reach across most garages or driveways. It has an IP55 weatherproof rating, making it the optimum charging solution for indoor and outdoor use. The bright, easy-to-read LED screen gives you a clear, accurate display of your charging status. With the smooth contours of the faceplate, gun-metal grey finish, and pulsating V light, the V-BOX makes a powerful statement in any garage, as the perfect charging companion.
- POWERFUL CHARGING – The V-BOX has a maximum output of 48 amps – allowing for much faster-charging speeds, you can also choose a lower amp setting at 16, 24, 32, or 40 amps

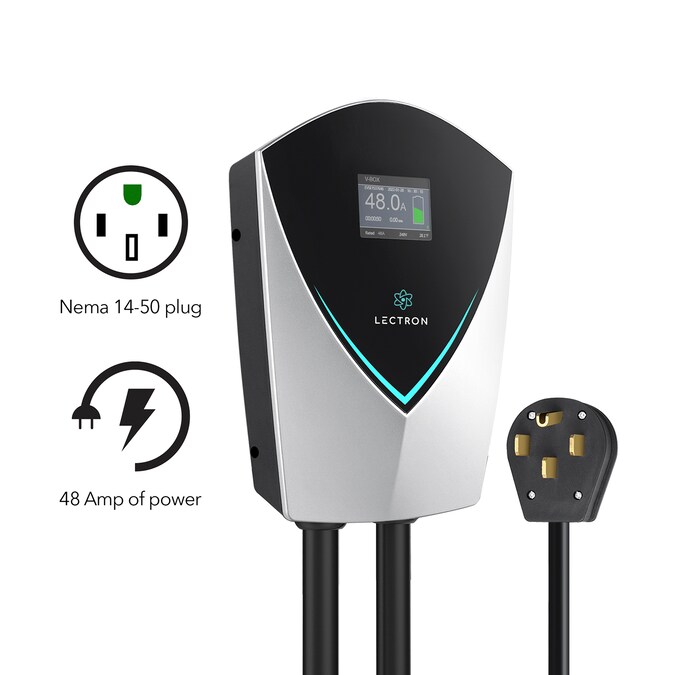

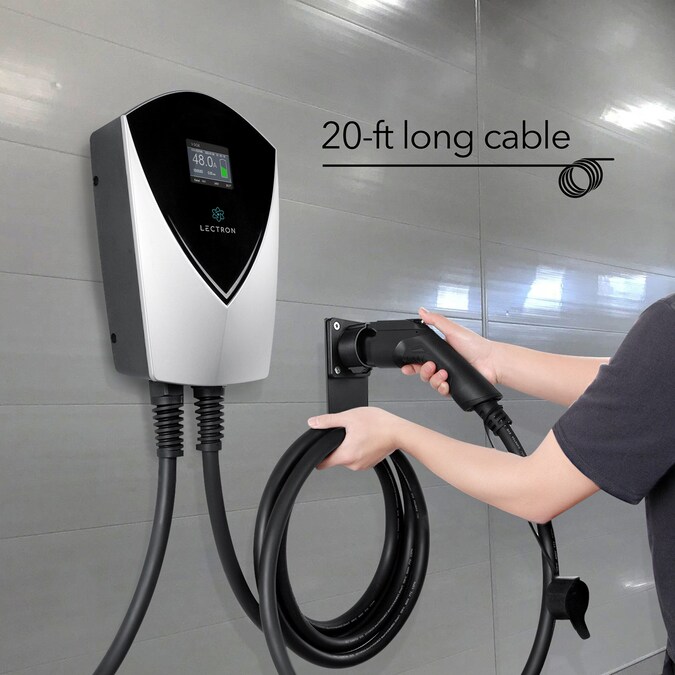

- COMPATIBILITY – Compatible with all J1772 EVs and plugs into a NEMA 14-50 outlet or can be hardwired, for powerful Level 2 charging, extra-long 20-foot cable for convenient charging

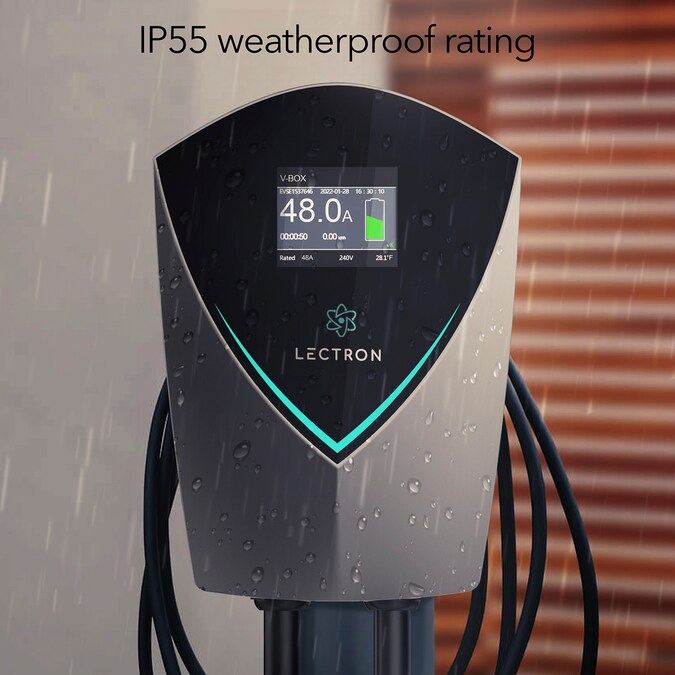

- WEATHERPROOF – The V-BOX has an IP55 weatherproof rating and is designed for maximum strength and durability

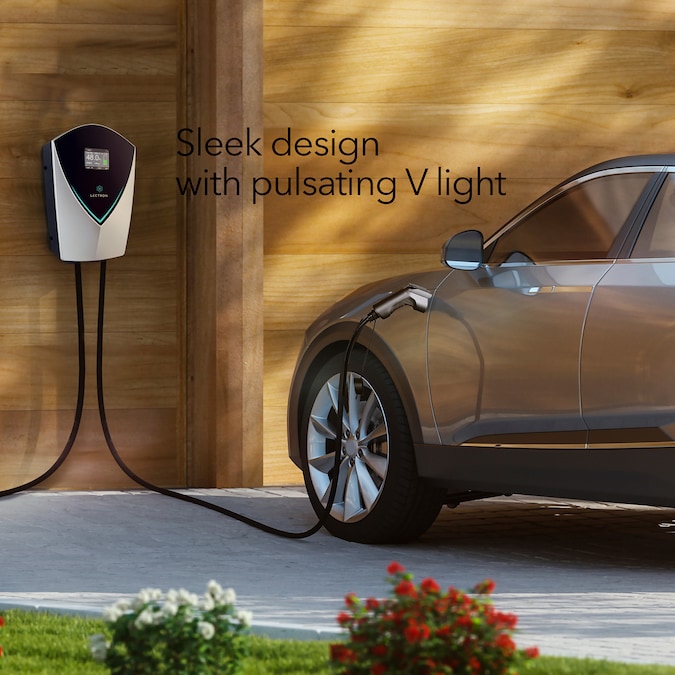

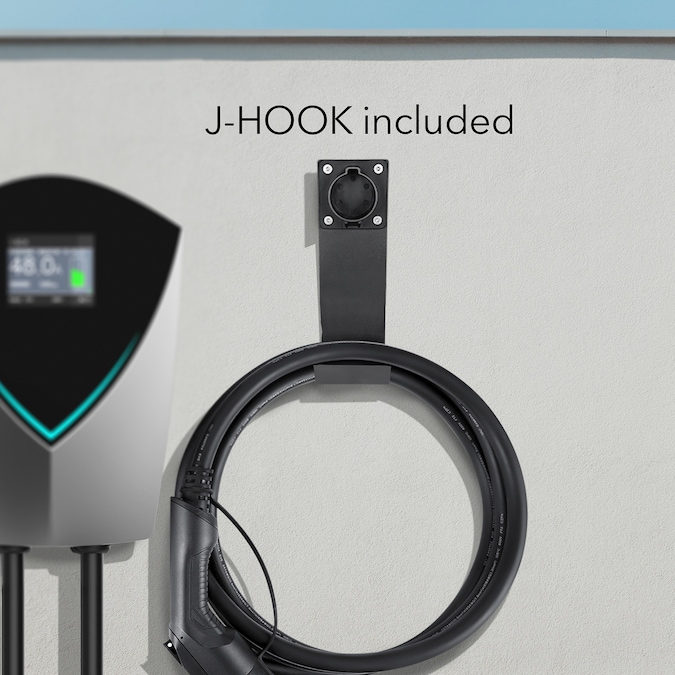

- SLEEK DESIGN – It has a smooth faceplate, gun-metal gray finish, and pulsating V light, Also includes a Lectron J-Hook to keep your cable organized.

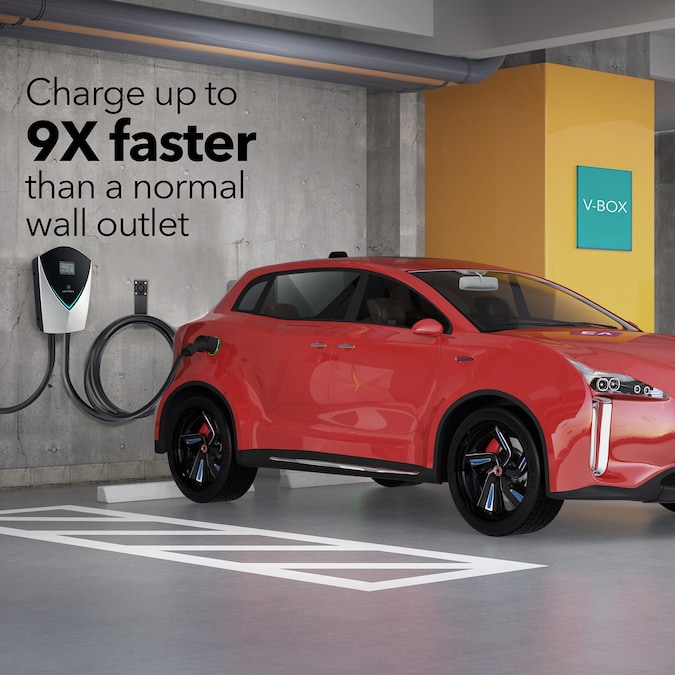

- FASTER LEVEL 2 CHARGER – With up to 46 mph charge, charge any EV overnight easily; Replace your old Level 2 EV charger with new V-box for faster charging.

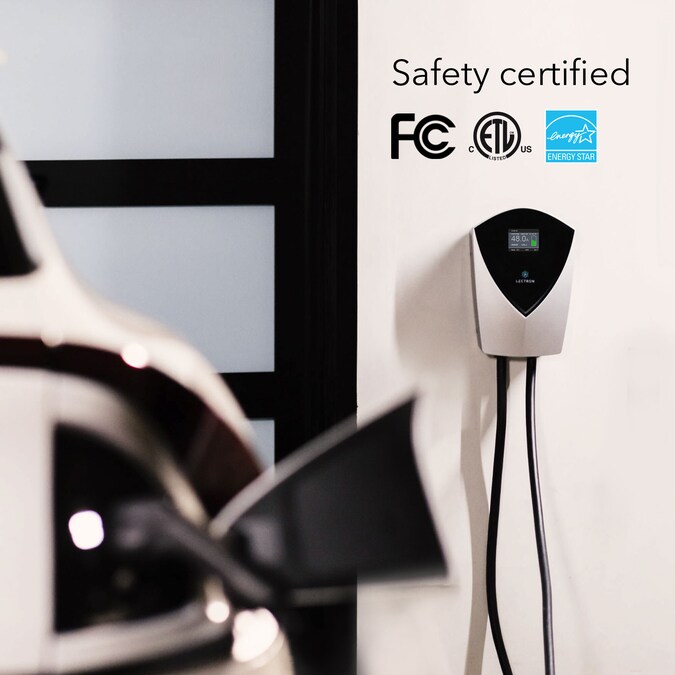

- SAFE AND EFFICIENT CHARGING – With FCC, ETL, and Energy Star certifications, the Lectron V-Box is secure and efficient charging for your electric vehicle
General
- Color/Finish Family: Black
- Manufacturer Color/Finish: Black
- Series Name: V-Box EV Charger – EnergyStar and ETL certified
Dimensions
- Cable Length (Feet): 20
- Depth (Inches): 9.45
- Height (Inches): 18.11
- Weight (lbs.): 17.64
- Width (Inches): 12.01
Features
- AC Charging Power Output (Kilowatts): 11.52
- ADA Compliant: No
- Amperage (Amps): 48
- Charging Level: Level 2
- Charging Time: 12-18 hours
- Commercial/Residential: Commercial or residential
- Delayed Time Charge: No
- Ground Fault Protection: No
- Hub Required: No
- Integrated RFID Reader: No
- Maximum Working Temperature (Fahrenheit): 122
- Minimum Working Temperature (Fahrenheit): -22
- Mounting Hardware Included: Yes
- Mounting Type: Wall mounted
- NEMA Configuration: 14-50P
- Number of Charging Plugs: Single
- Power Source: Plug in
- Remote Access: No
- Simultaneous Charging: No
- Smartgrid Enabled: No
- Universal: Yes
- Use Location: Indoor/Outdoor
- Voice Controlled: No
- Volts: 240
- Warranty: 1-year
Compatibility
- App Compatibility: No
- Bluetooth Compatibility: No
- Compatibility: Fits all electrical vehicles
- Smart Compatible: No
- Wi-Fi Compatibility: No
- Works with Amazon Alexa: No
- Works with Android: No
- Works with Apple HomeKit: No
- Works with iOS: No
- Works with SmartThings: No
- Works with the Google Assistant: No
Certifications
- CA Residents: Prop 65 Warning(s): No
- cUL 2594 Compliant: No
- ENERGY STAR Certified: Yes
- NEC 625 Compliant: No
- SAE J1772 Compliant: Yes
- Safety Listing: Not safety listed
- UL 2594 Compliant: No
Miscellaneous
- UNSPSC: 52161500
