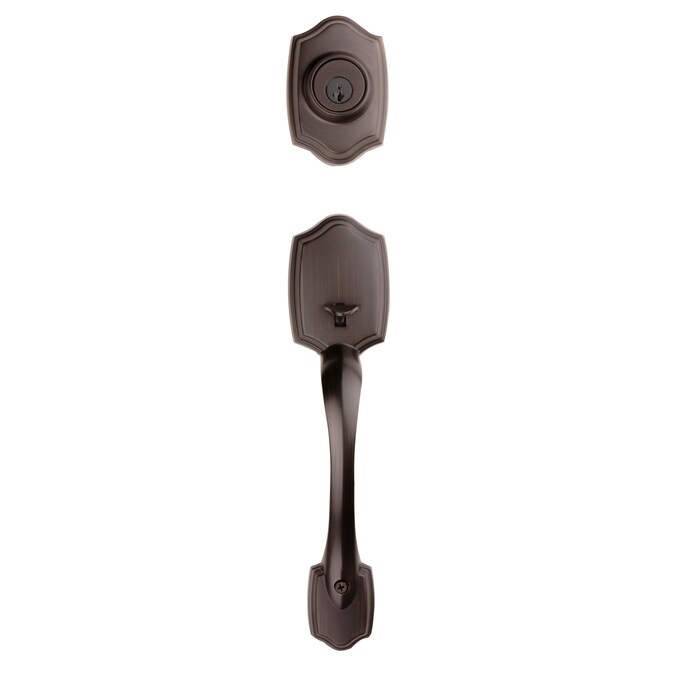

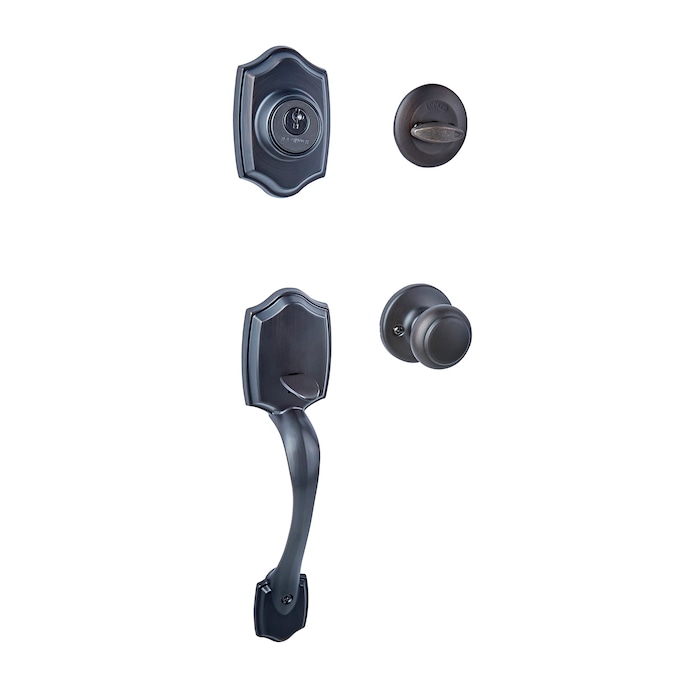

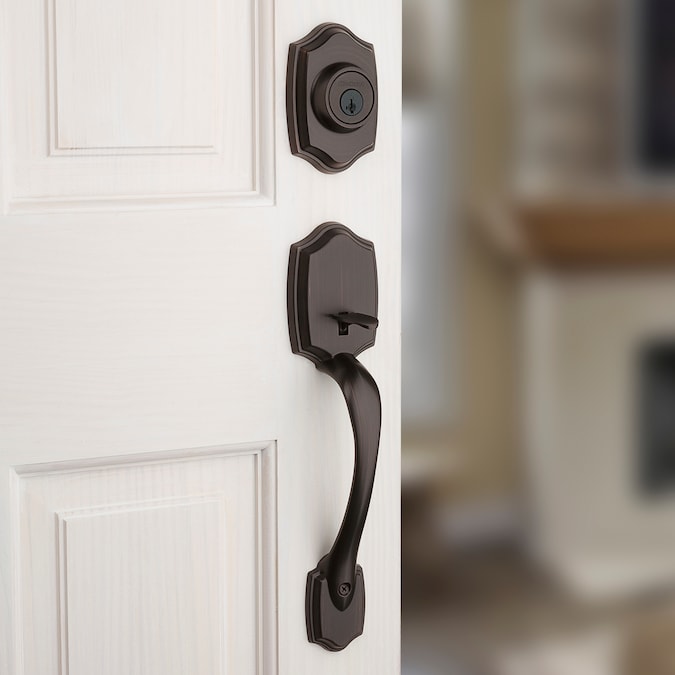

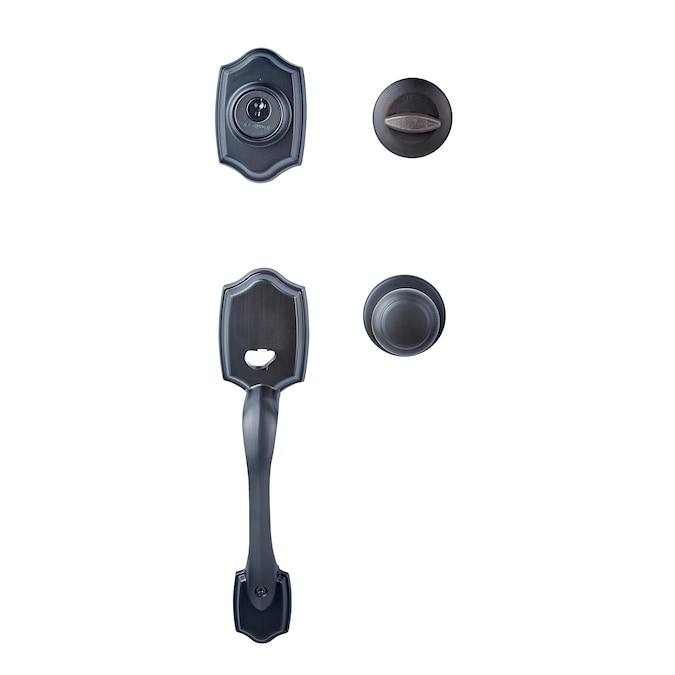

As the industry leader, Kwikset has provided trusted security for over 70 years and has become synonymous with security, peace of mind, style and innovation. The beveled design of the Belleview adds elegance to its traditional arched shape. The latch bolt is operated by the thumb piece on the outside and the grip on the inside. The deadbolt is operated by a key on the outside and a thumb turn on the inside. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product’s style.
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

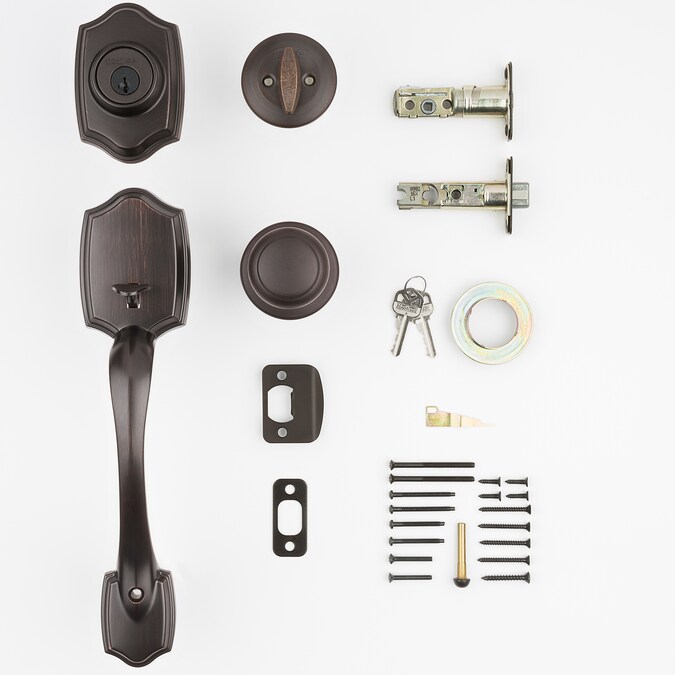

- Comes with 2 keys
- Interior knob with universal handing; fits both right handed and left handed doors
- Latch has 2 interchangeable faceplates; round corner and square corner
- Deadbolt Latch has 2 interchangeable faceplates – round corner and square corner
- Handleset Deadbolt ANSI/BHMA Grade 3 Certified
- Latch has adjustable backset 2-3/8 in to 2-3/4 in to fit all standard door preparations
General
- Collection Name: Belleview
- Color/Finish Family: Bronze
- Hardware Finish: Venetian
- Manufacturer Color/Finish: Venetian Bronze
- Series Name: N/A
- Type: Keyed entry door handleset
Dimensions
- Backset Size: Adjustable
- Bore Size: N/A
- Edge Bore Size: N/A
- Fits Door Thickness: 1-3/4-in
- Projection Measurement: 2-3/16-in
Features
- ADA Compliant: No
- Commercial/Residential: Residential
- Deadbolt Included: Single-cylinder deadbolt
- For Use with Entry Door: Yes
- For Use with Mobile Homes: No
- Handing: Reversible
- Interior Handle Type: Knob
- Keyway: K
- Knob Style: Cove
- Latch Style: Adjustable latch
- Lever Style: N/A
- Lock Type: Single
- Material: Steel
- Number of Cylinders: 1
- Projection (Inches): 2.1563
- Re-Key Technology: SmartKey
- Security Grade: Grade 3
- Style: Transitional
- Total Number of Pieces: 1
- Warranty: Limited lifetime
Certifications
- ANSI/BHMA Security Grade: Grade 3 (Good)
- CA Residents: Prop 65 Warning(s): No
Miscellaneous
- UNSPSC: 31162800
