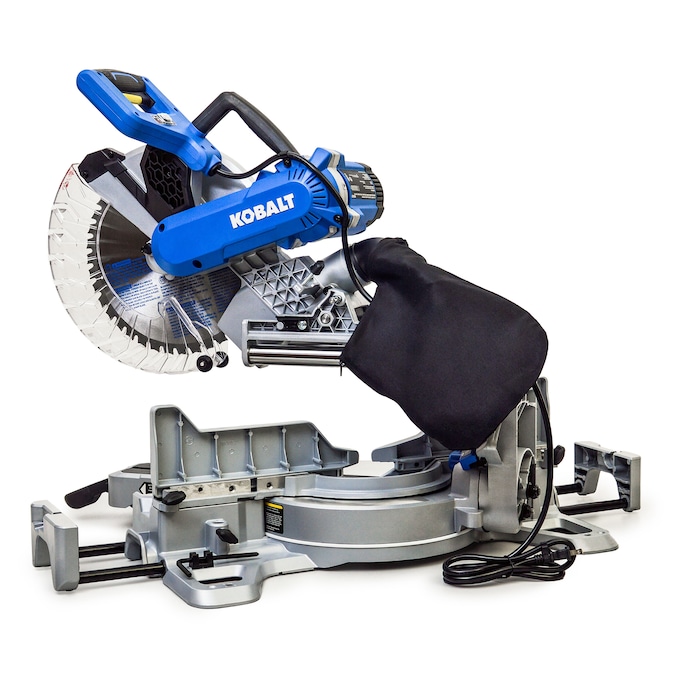

Innovative compact rail design reduces work space required for the operation of the saw. Three-year limited warranty. Includes 40 tooth carbide tipped saw blade, blade wrench, dust bag, safety clamp, retractable die-cast aluminum extensions and manual.
- Maximum crosscut up to 2 in x 16 in (dimensional) at 90 degrees with innovative two position fence design, 2 in x 10 in at 45
- Miter cuts up to 55 degrees left and 60 degrees right with 10 positive stops at most used angles
- Two aluminum extension supports on both sides of table for added stability of workpiece
- Front handle cam design for quick, accurate miter lock and miter Detent override

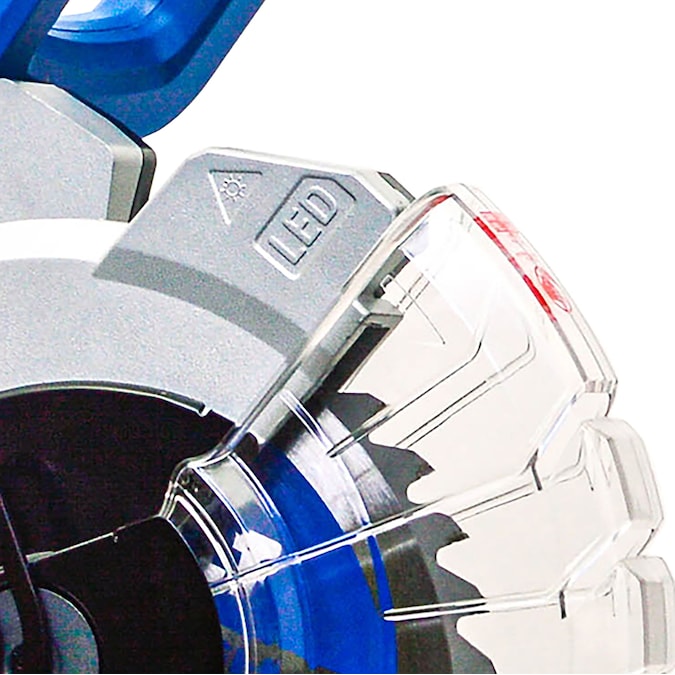

- LED cut- line indicator for quick and accurate cut alignment
- Powerful 15 amp ball bearing motor, delivers 4,200 RPM for molding and framing cuts

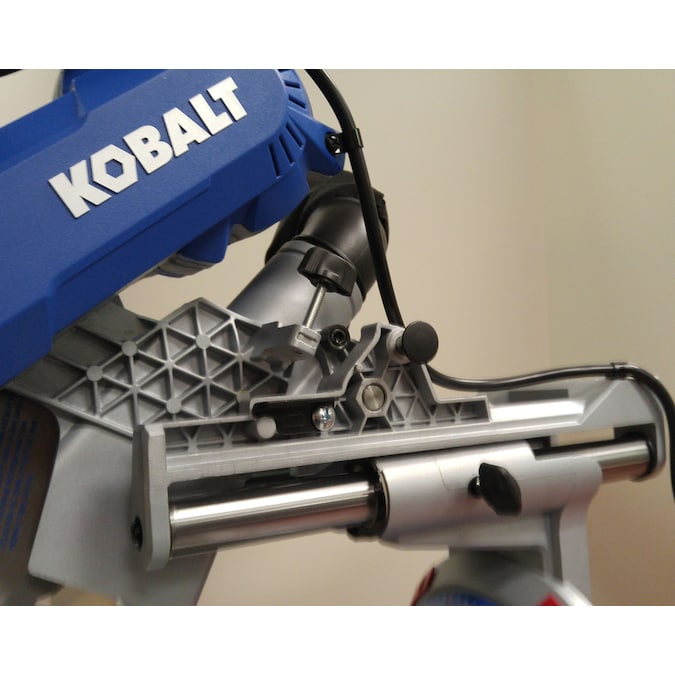

- Dual slide rail system with linear bearings for smooth and accurate operation
- Bevel cutting up to 48 degrees left and right
- Tall, 5-1/4 in high sliding fences support nested crown molding up 7-5/32 in and baseboard up to 5 in against the fence
General
- Series Name: Compact
- Sub-Brand: N/A
Dimensions
- Arbor Diameter: 5/8-in and 1-in
- Bevel Capacity (Degrees): 48
- Cord Length (Feet): 6
- Depth of Cut at 45 Degrees (Inches): 3.5
- Depth of Cut at 90 Degrees (Inches): 3.5
- Height (Inches): 26.75
- Length (Inches): 27
- Maximum Fence Height (Inches): 5.25
- Saw Blade Diameter: 12-in
- Tool Weight (lbs.): 53.26
- Width (Inches): 30
Features
- Amperage (Amps): 15
- Battery Included: No
- Bevel: Dual
- Bevel Lock Style: Clamp
- Blade Included: Yes
- Charger Included: No
- Compound: Yes
- Cordless: No
- Dust Handling: Port
- Electric Brake: Yes
- Folding: No
- Hybrid Capable: No
- Laser Guide: No
- Maximum Miter Cut – Left (Degrees): 55
- Maximum Miter Cut – Right (Degrees): 60
- Maximum Speed (RPM): 4200
- Miter Stop: Yes
- Number of Teeth: 40
- Power Rating (HP): 0
- Quick Release Vise: No
- Slide: Yes
- Sliding Fence: Yes
- Spindle Lock: Yes
- Warranty: 3-year limited
- Worm Drive: No
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 27112700
