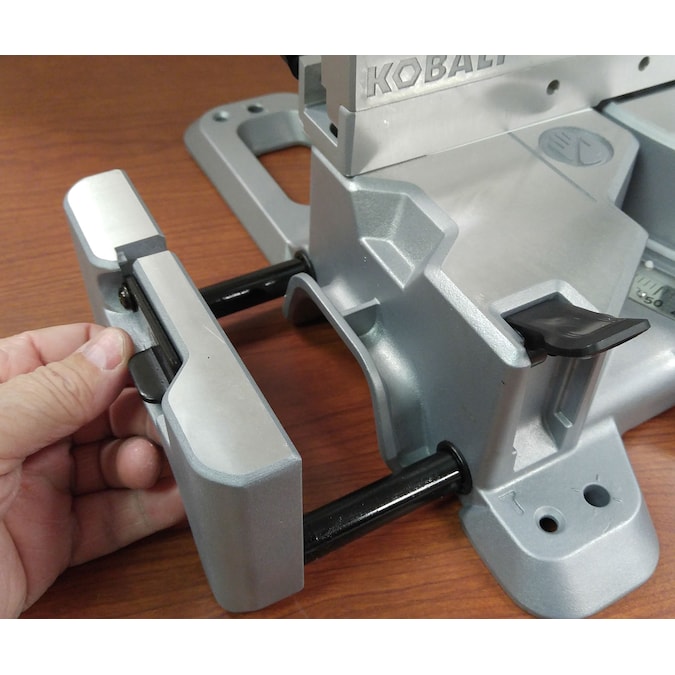

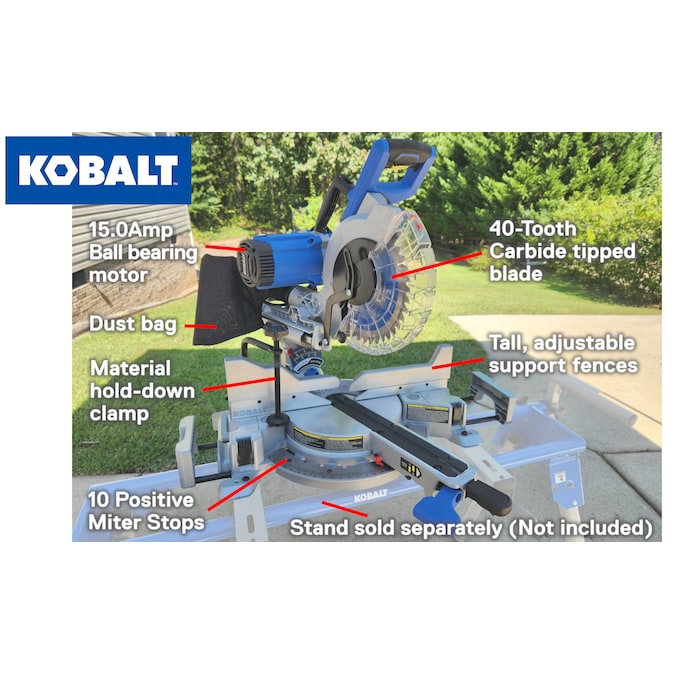

Innovative compact rail design reduces work space required for operation of saw. Three year limited warranty. Includes: 40 tooth carbide tipped saw blade, blade wrench, dust bag, safety clamp, retractable die-cast aluminum extensions, manual.

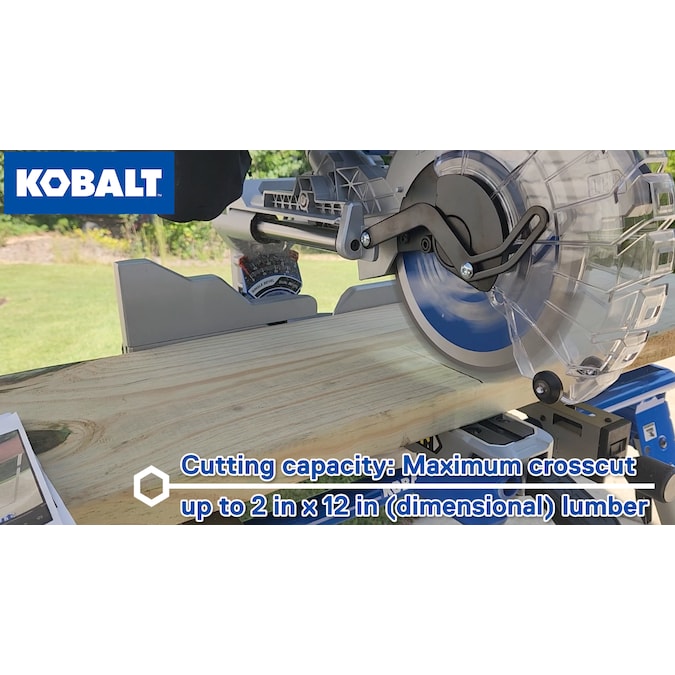

- Maximum crosscut up to 2 in x 12in (dimensional) at 90 degrees and 2 in x 8 in at 45

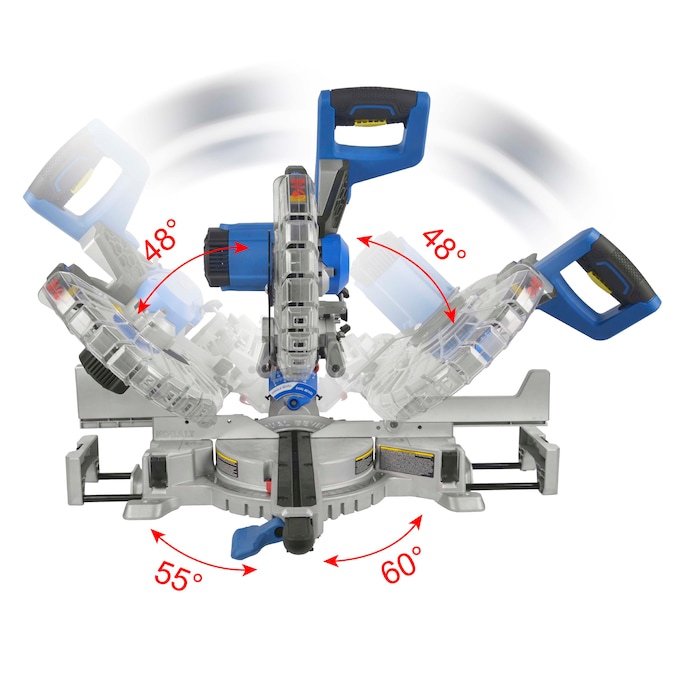

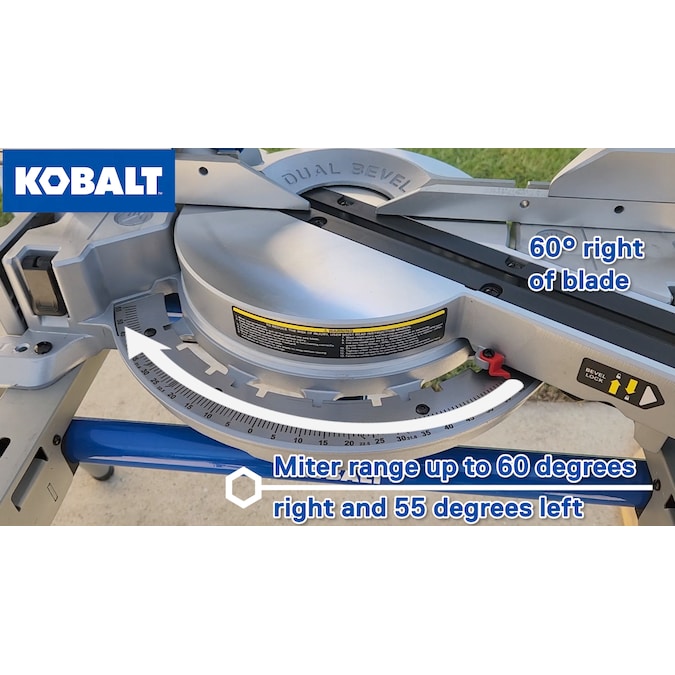

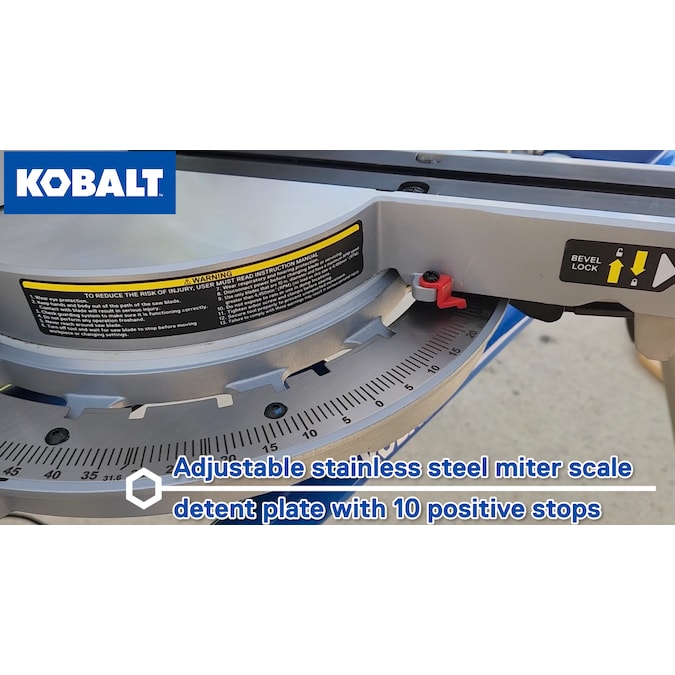

- Miter cuts up to 55 degrees left and 60 degrees right with 10 positive stops are most used angles
- Upfront bevel lock handle for accurate, convenient bevel angle adjustments

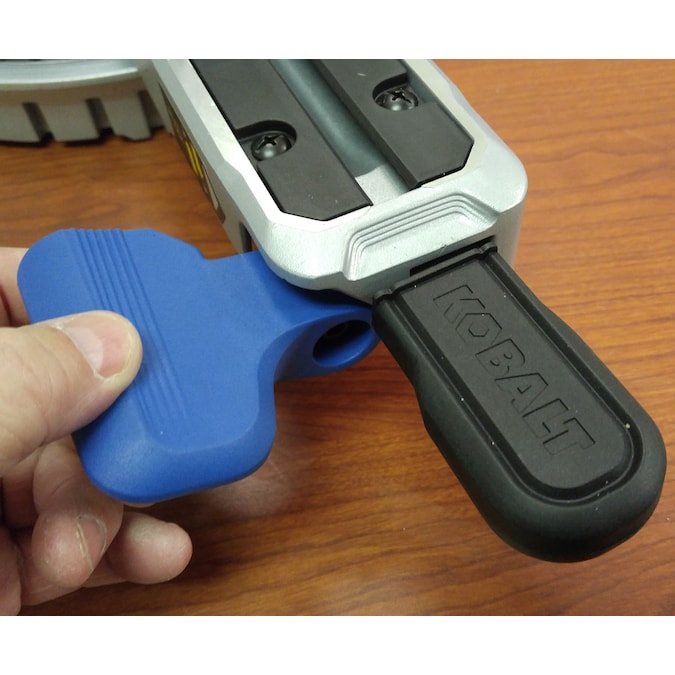

- Front handle cam design for quick, accurate miter lock and Detent override

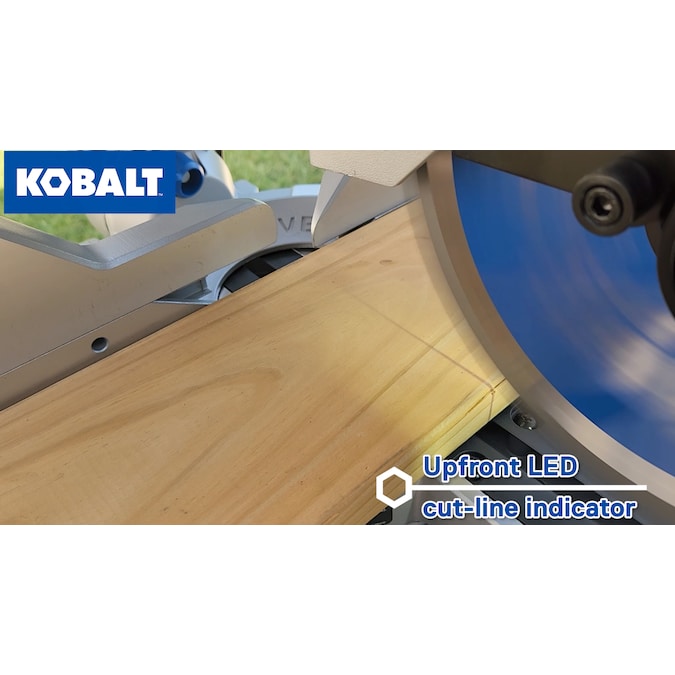

- LED cut-line indicator for quick and accurate cut alignment
- Powerful 15 amp ball bearing motor, Delivers 4,450 RPM for molding and framing cuts

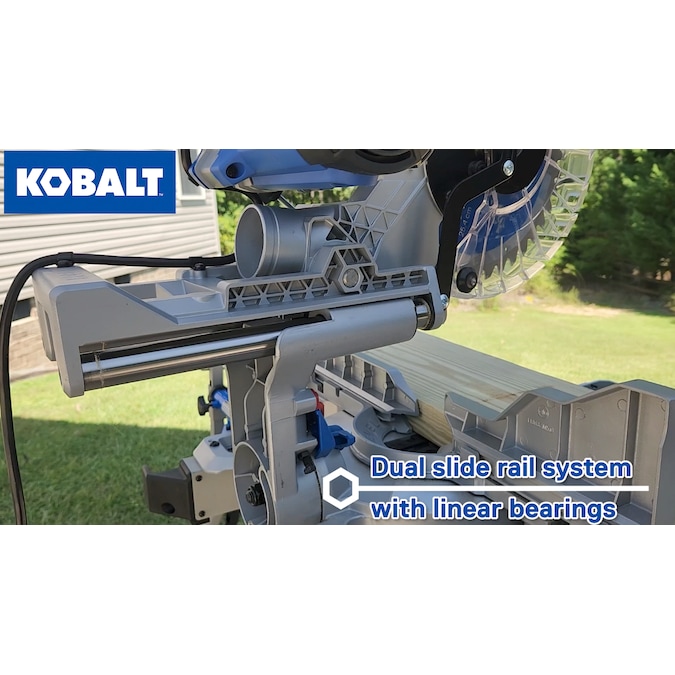

- Dual slide rail system with linear bearings for smooth and accurate operation

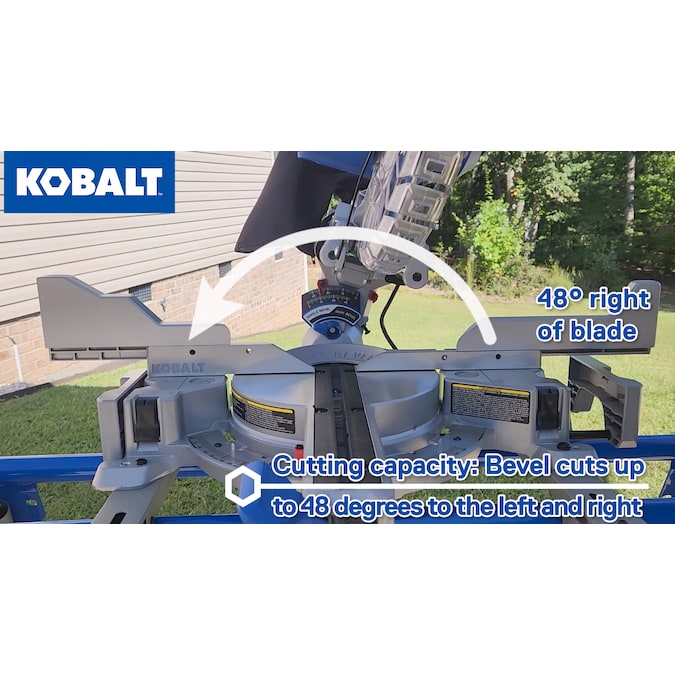

- Bevel cutting up to 48 degrees left and right
- Tall, sliding fence support nested crown molding up to 5-3/4 in and baseboard up to 4-1/2 in against the fence
General
- Battery Voltage: N/A
- Laser Color: N/A
- Series Name: Compact
- Sub-Brand: N/A
Dimensions
- Arbor Diameter: 5/8-in
- Bevel Capacity (Degrees): 48
- Cord Length (Feet): 6
- Depth of Cut at 45 Degrees (Inches): 3.5
- Depth of Cut at 90 Degrees (Inches): 3.5
- Height (Inches): 25
- Length (Inches): 24
- Saw Blade Diameter: 10-in
- Tool Weight (lbs.): 43
- Width (Inches): 25
Features
- Amperage (Amps): 15
- Battery Included: No
- Bevel: Dual
- Bevel Lock Style: Clamp
- Blade Included: Yes
- Charger Included: No
- Compound: Yes
- Cordless: No
- Dust Handling: Port
- Electric Brake: Yes
- Folding: No
- Hybrid Capable: No
- Laser Guide: No
- Maximum Miter Cut – Left (Degrees): 55
- Maximum Miter Cut – Right (Degrees): 60
- Maximum Speed (RPM): 4450
- Miter Stop: Yes
- Number of Teeth: 40
- Power Rating (HP): 0
- Quick Release Vise: No
- Slide: Yes
- Sliding Fence: Yes
- Spindle Lock: No
- Worm Drive: No
Warranty
- Warranty: 3-year limited
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 27112700
