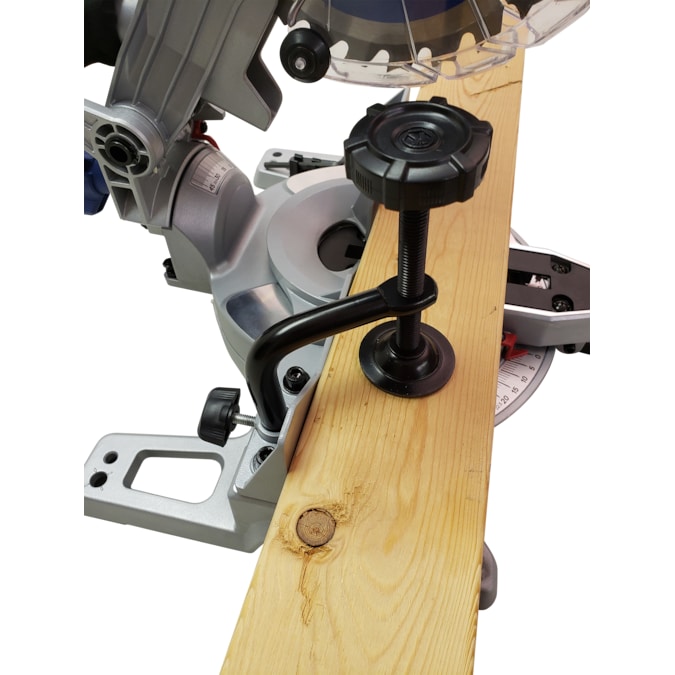

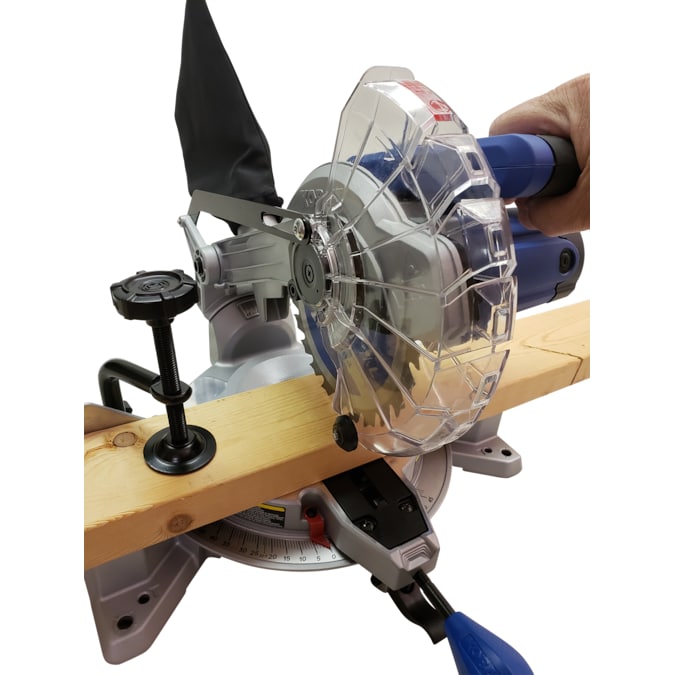

Includes 24T carbide-tipped blade, blade wrench, dust bag, hold-down clamp, manual.
- Cuts up to 2-in by 4-in (dimensional) lumber at 90 degrees, 2-in x 3-in at 45 degrees left and right

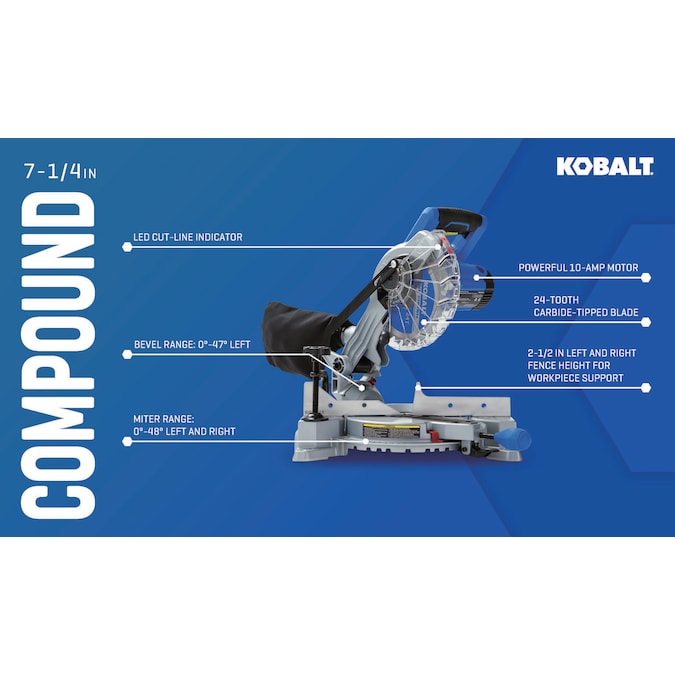

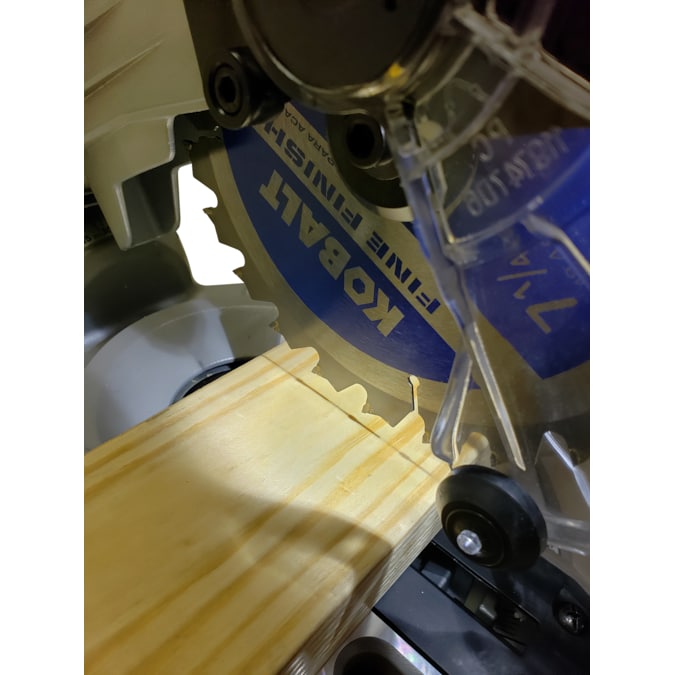

- Upfront LED cut-line indicator projects an accurate pre-cutting line for precise alignment
- Large, lightweight die-cast aluminum base and table

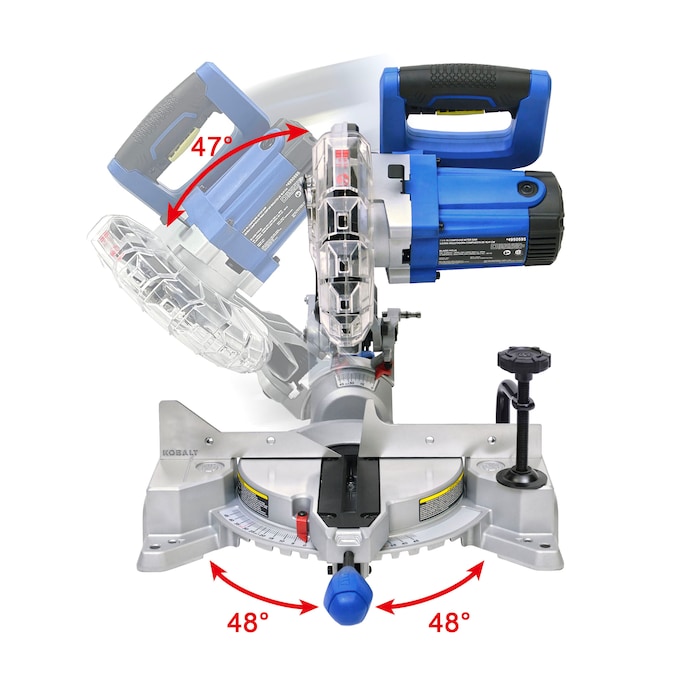

- Miter range: 0-48 degrees left and right ; bevel range: 0-47 degrees left

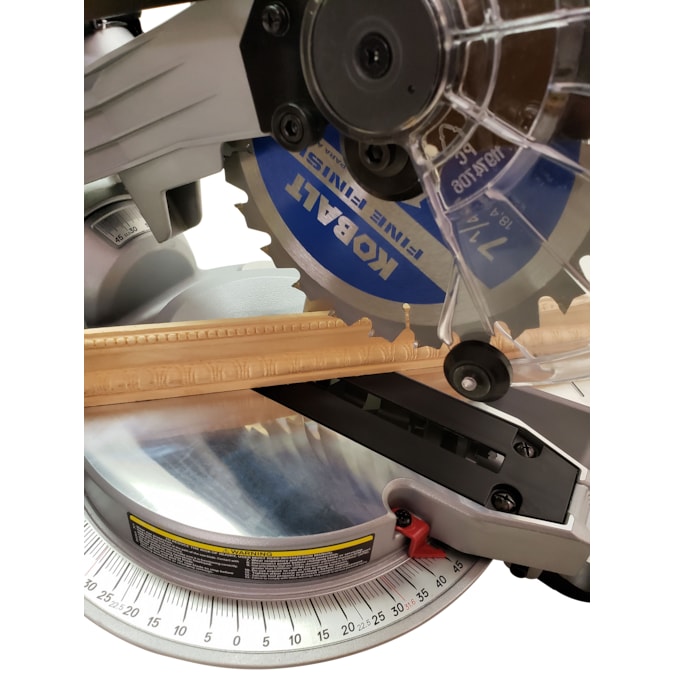

- Miter angle positive stops at most common angles; 0, 15, 22.5, 31.6, 45 degrees left and right
- Powerful 10.0 AMP 5,000 RPM motor
- 2-1/2-in left and right fence height for workpiece support
Dimensions
- Arbor Diameter: 5/8-in
- Bevel Capacity (Degrees): 47
- Cord Length (Feet): 6
- Depth of Cut at 45 Degrees (Inches): 2
- Depth of Cut at 90 Degrees (Inches): 2
- Height (Inches): 13.8
- Length (Inches): 18
- Maximum Fence Height (Inches): 2.5
- Saw Blade Diameter: 7-1/4-in
- Tool Weight (lbs.): 17.11
- Width (Inches): 15.75
Features
- Amperage (Amps): 10
- Battery Included: No
- Bevel: Single
- Bevel Lock Style: Twist
- Blade Included: Yes
- Charger Included: No
- Compound: Yes
- Cordless: No
- Dust Handling: Port
- Electric Brake: No
- Folding: No
- Hybrid Capable: No
- Laser Guide: No
- Maximum Miter Cut – Left (Degrees): 48
- Maximum Miter Cut – Right (Degrees): 48
- Maximum Speed (RPM): 5000
- Miter Stop: Yes
- Number of Teeth: 24
- Power Rating (HP): 2
- Quick Release Vise: No
- Slide: No
- Sliding Fence: No
- Spindle Lock: Yes
- Warranty: 3-year limited
- Worm Drive: No
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: CSA safety listing
Miscellaneous
- UNSPSC: 27112700
