Immersive sound comes alive from all directions (including overhead) with these Dolby Atmos enabled speakers. Add them to any monitor or tower speaker or use as surround speakers for a hemisphere of rich, detailed sound.
Handles up to 100W peak power (50W continuous)
For robust and controlled audio that is crisp and clear.

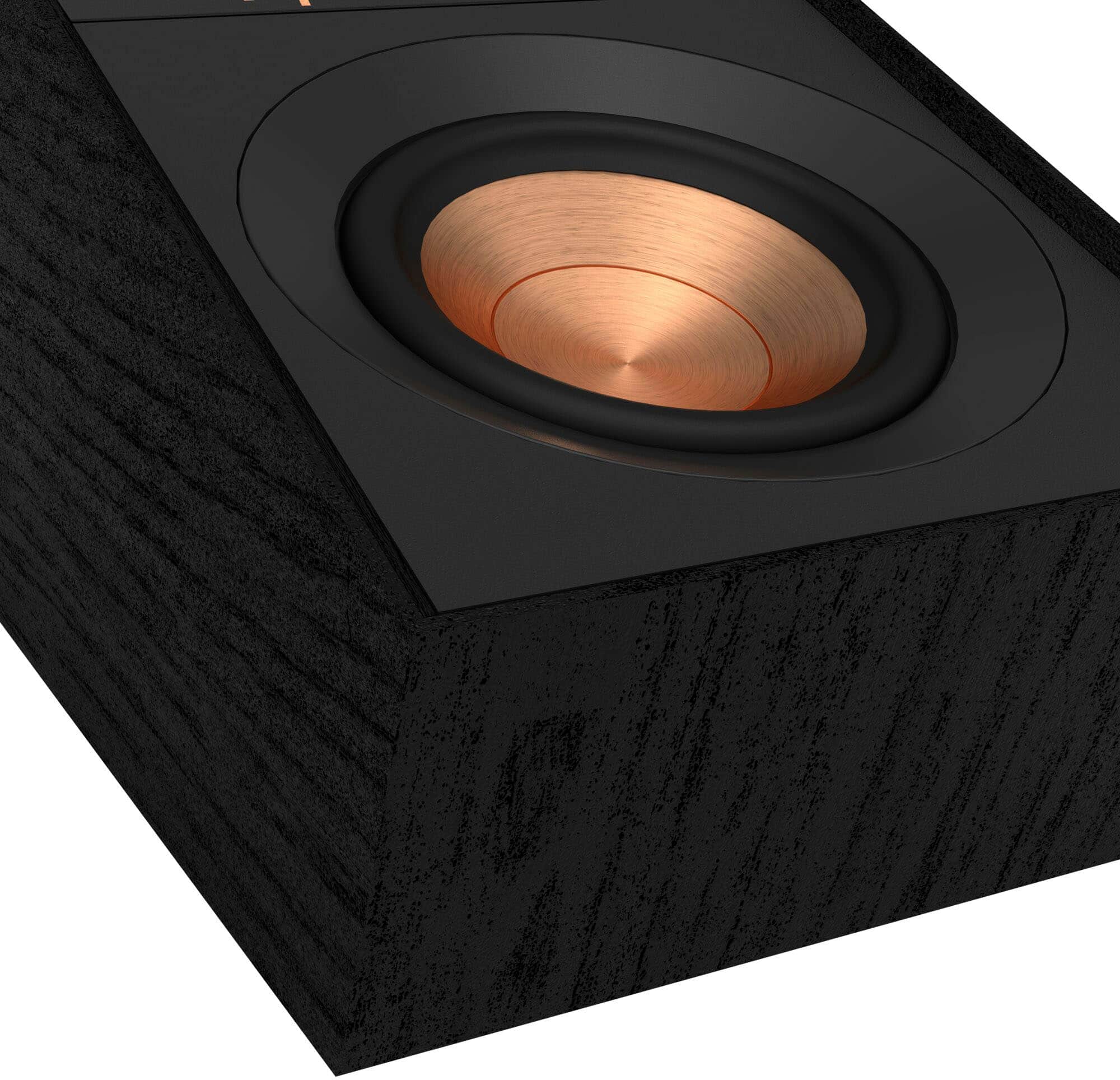

4″ spun copper thermoformed crystalline polymer (TCP) woofers
Utilizing trickle-down technology from Klipsch’s highly acclaimed Reference Premiere series speakers, the 4” TCP woofers have steeper angling of the cones for a smoother response and improved accuracy and transparency.

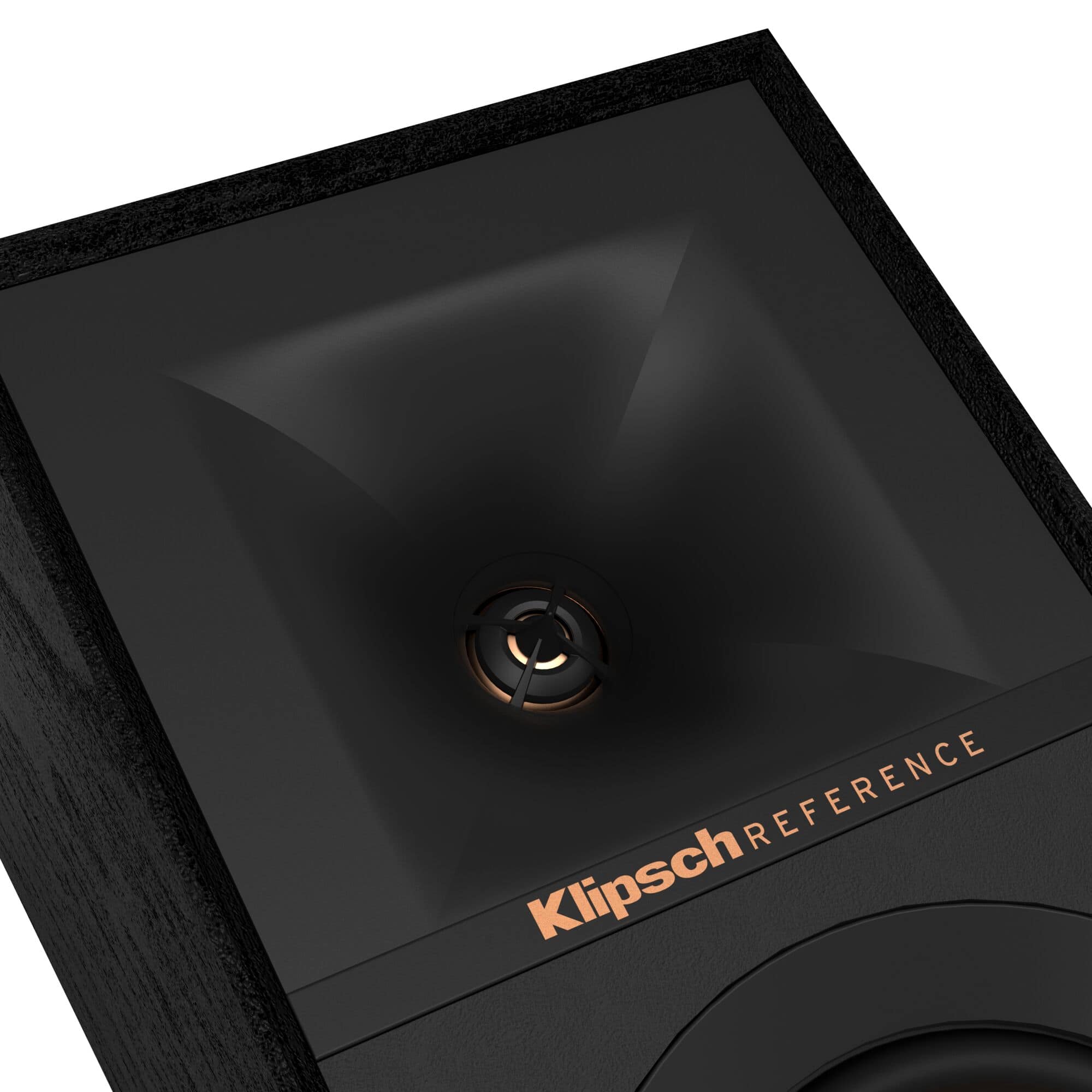

All new 90 x 90 Tractrix horn
An updated horn design, including increased outer horn dimensions, will deliver more power and emotion to your music and movies. Bigger definitely means better, with directivity control over a larger bandwidth of frequencies, resulting in a more accurate sound stage.
Linear travel suspension (LTS) Aluminum Tweeter
A hallmark of Klipsch speakers, the exclusive 1” LTS with Kapton Suspension tweeter minimizes distortion for more detailed performances. Aluminum is an extremely light and rigid material used in the tweeter assembly to provide high efficiency.
Dolby Atmos overhead sound effects
The addition of elevation speakers reflects sound from the ceiling to put sound anywhere in your room – making you feel like you’re truly in the middle of the action.
MDF cabinet with scratch-resistant, textured wood grain vinyl
Stylish aesthetic with absolute durability that results in a seamless integration into any décor.
High quality cabinet design
Reinforced 3/4″ MDF construction with all-new bracing design reduces cabinet vibration for less audible coloration and improved sonic accuracy.
Removable grille
Remains acoustically transparent while protecting the speaker’s components.
8 ohms nominal impedance
Ensures efficient conduction of power through the speaker.

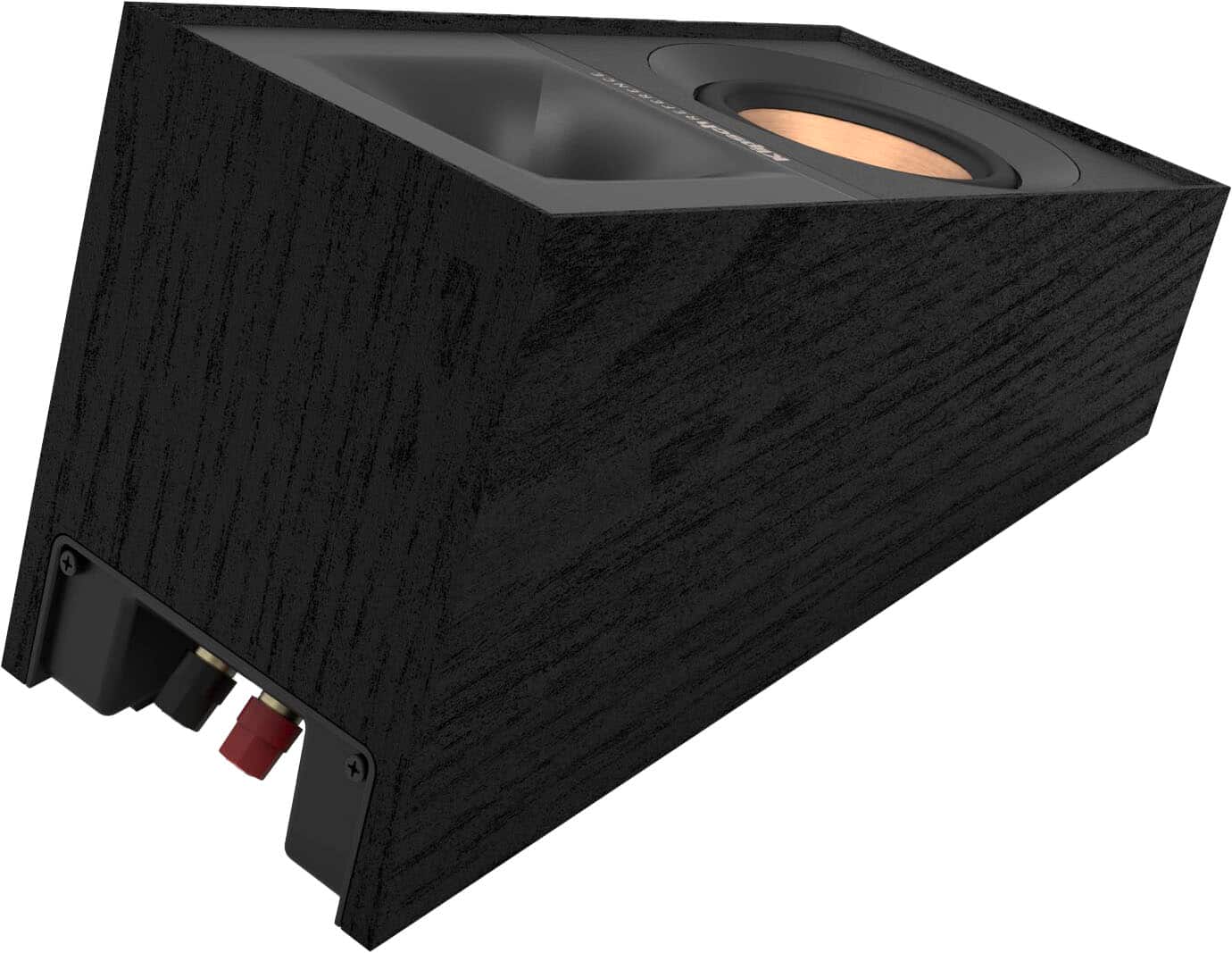

Keyhole mounting
For on-wall elevation/surround sound use.
Cables Included
Jumper wires are included in the box for an easy Dolby Atmos connectionm to the R-800F and R-600F floorstanding speakers.
Specifications
Key Specs
- Color: black
- Speaker Type: Satellite
- RMS Power: 50 watts
General
- Brand: Klipsch
- Model Number: 1069858
- Product Name: Reference Series 4″ 100-Watt Passive 2-Way Height Channel Speakers (Pair)
Audio
- Enclosure Type: Bass reflex
- Peak Power Handling: 100 watts
- Impedance: 8 ohms
- Minimum Frequency Response: 34 hertz
- Maximum Frequency Response: 45 kilohertz
- Sensitivity: 92 decibels
- High Resolution Audio: Yes
- Tweeter Type: Horn
- Woofer Type: Cone
- Number of Speakers: 1
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Midranges: 1
- Number of Drivers: 2
- Driver Size: 4 inches
- Number of Woofers: 1
- Woofer Size: 4 inches
Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: No
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Binding posts
Features
- App Compatible: No
- Indoor Or Outdoor Use: Indoor
Dimensions
- Product Height: 7 inches
- Product Width: 5.75 inches
- Product Depth: 12.7 inches
- Product Weight: 6 pounds
Material
- Tweeter Material: Aluminum
- Driver Material: Cerametallic
- Woofer Material: Cerametallic
Included
- Speaker Wire Included: No
Certifications Listings & Approvals
- ENERGY STAR Certified: No
Warranty
- Warranty – Parts: Five Years
- Warranty – Labor: Five Years
Specifications
- UPC: 743878046366
