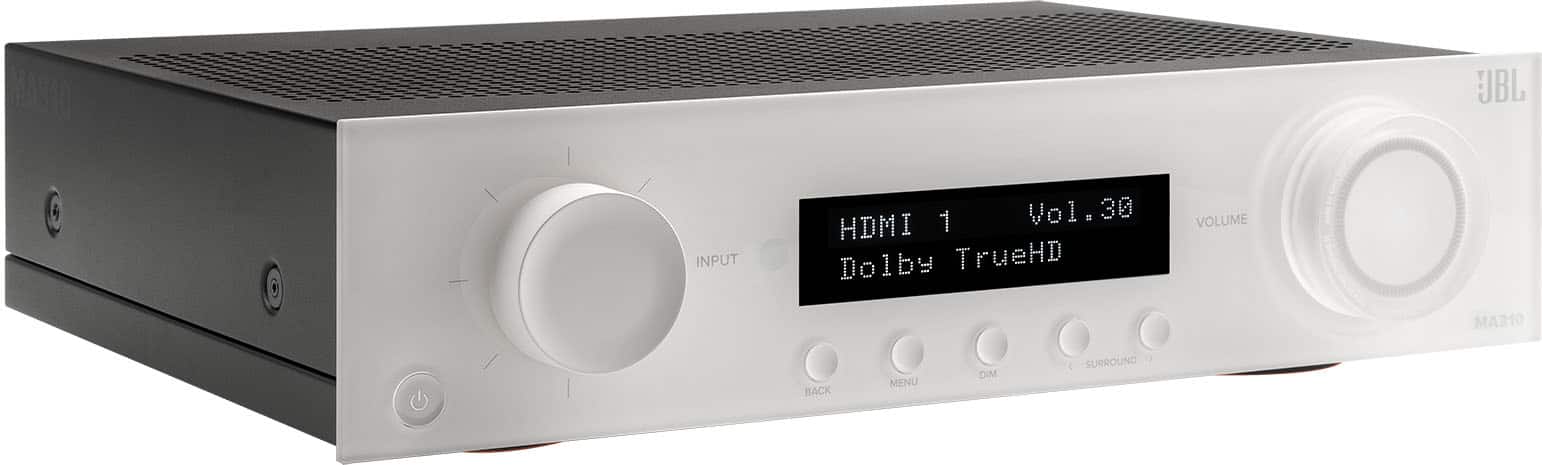

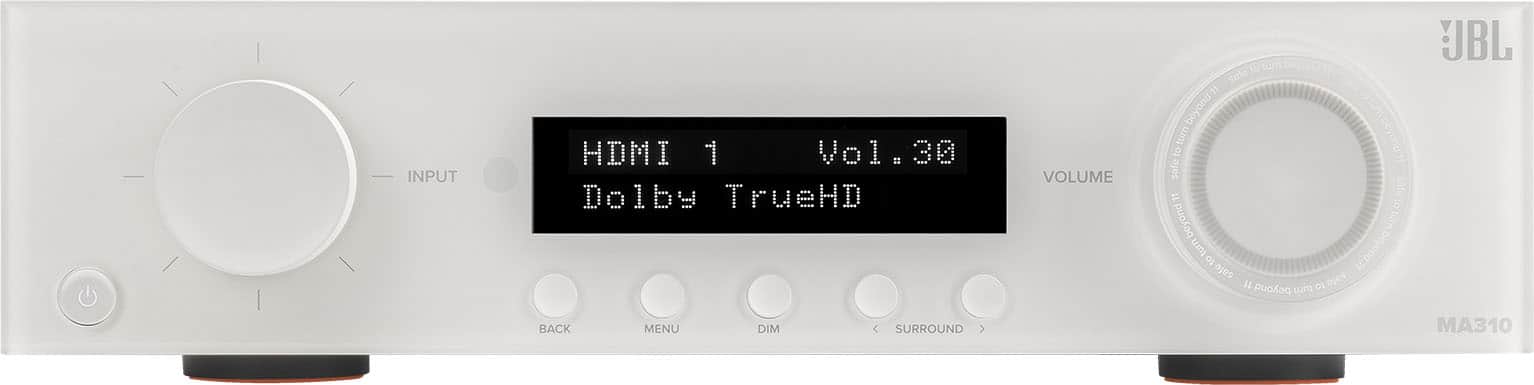

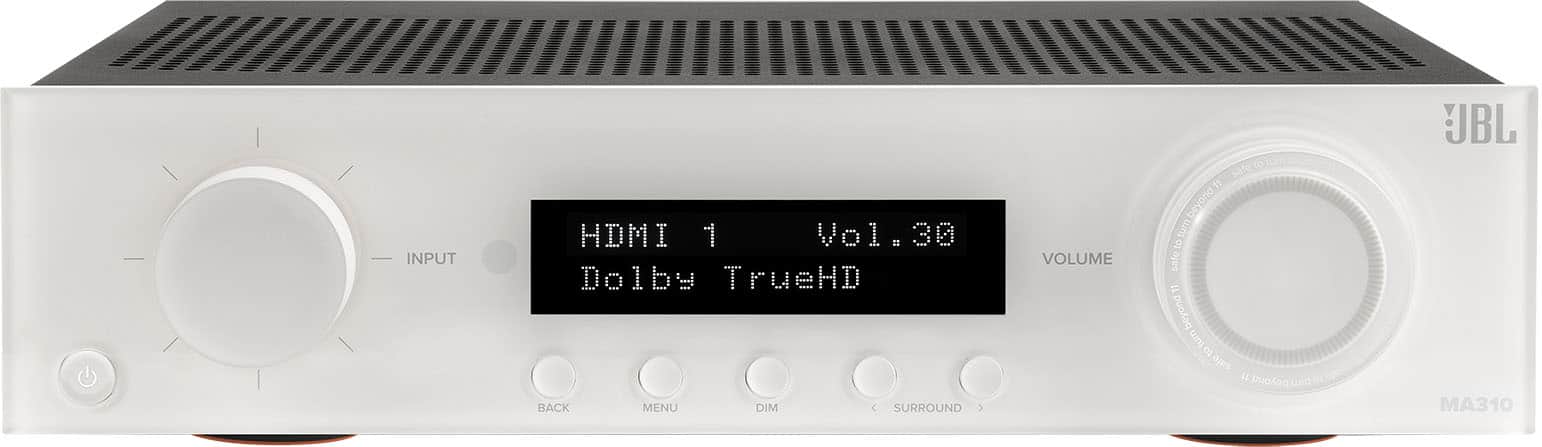

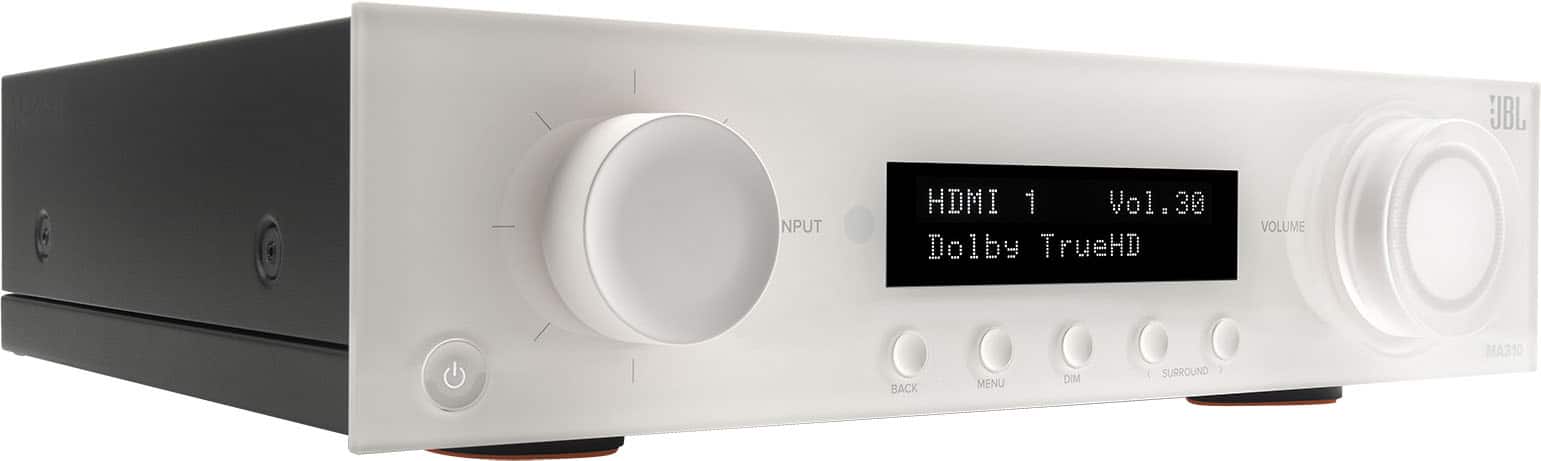

The JBL MA310 is an AV Receiver that delivers extraordinary performance with 4K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus ARC. With native 5-channel decoding of Dolby and DTS formats, the MA310 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth. The MA310 features five channels of low noise Class D amplification for real world power to all channels.
Stunning audio and video performance
High-performance 5.2-channel AV receiver that delivers stunning realism with the latest 4K video for the ultimate home cinema experience

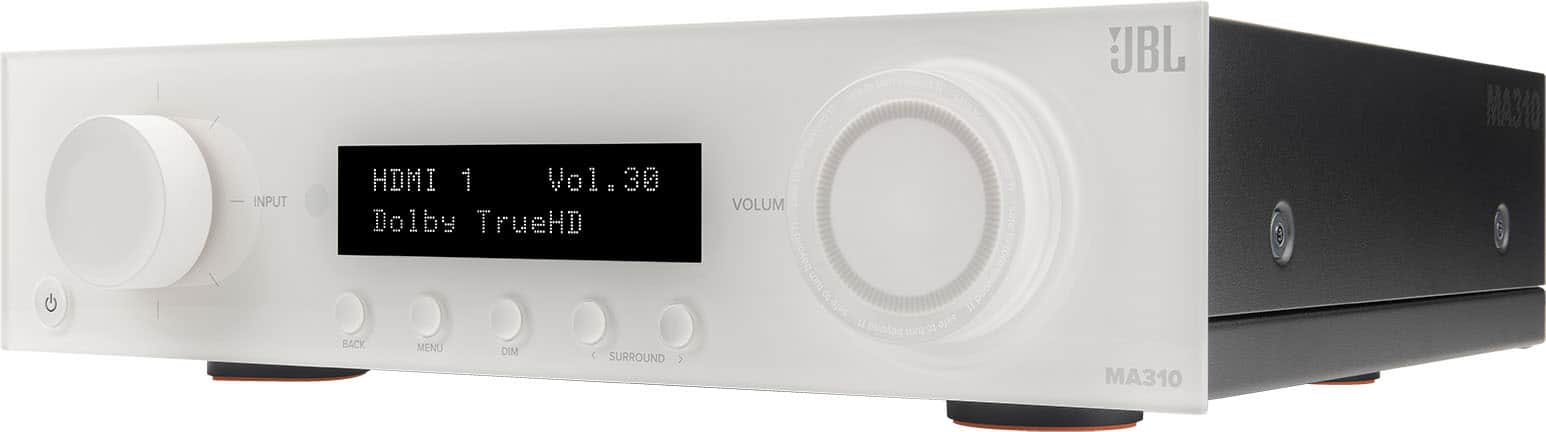

Intutive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles,streaming, cable boxes and more with 4 HDMI inputs and 1 output
High-performance immersive surround sound
Native 5-channel decoding of Dolby and DTS formats.
Bring both music and movies to life with true high fidelity
Designed with a passion for music and movies, bringing both to life with true high fidelity.
Bluetooth streaming
Stream music wirelessly via Bluetooth v5.1 + Low Energy.
On-screen setup and operation
On-screen display for easy system setup and operation (via HDMI).
Powerful amplification

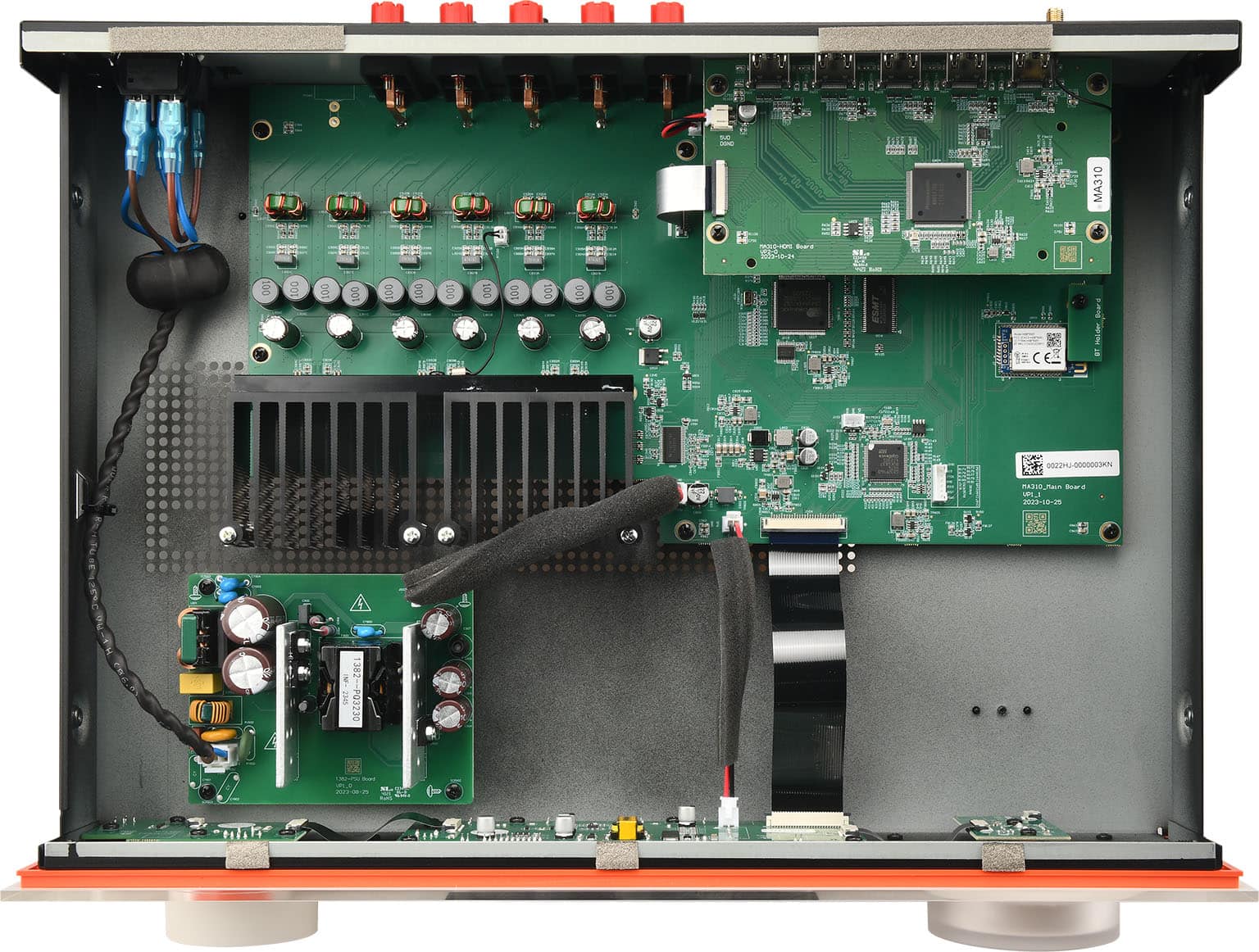

Five channels of low noise Class D amplification for real world power to all channels.
EZ Set EQ
EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
Specifications
Key Specs
- Color: White
- Continuous Watts x Channel @ Ohms: 60W x 2ch @ 8ohms, 50W x 5ch @ 8ohms
- Maximum Watts x Channel @ Ohms: 60W x 2ch @ 8 ohms, 50W x 5ch @ 8 ohms.
- Number of Channels: 5.2
- Number of Audio Zones: 1

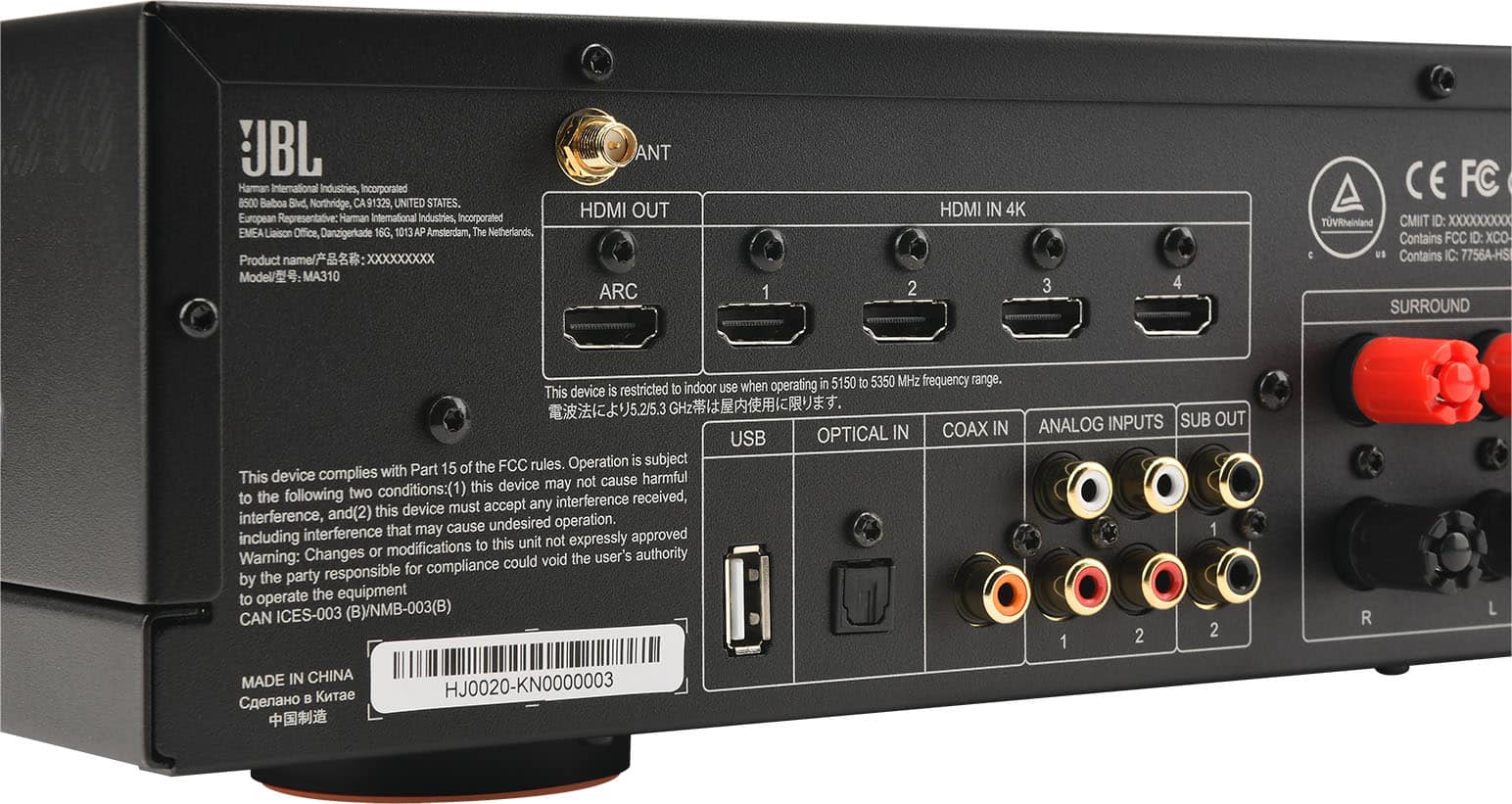

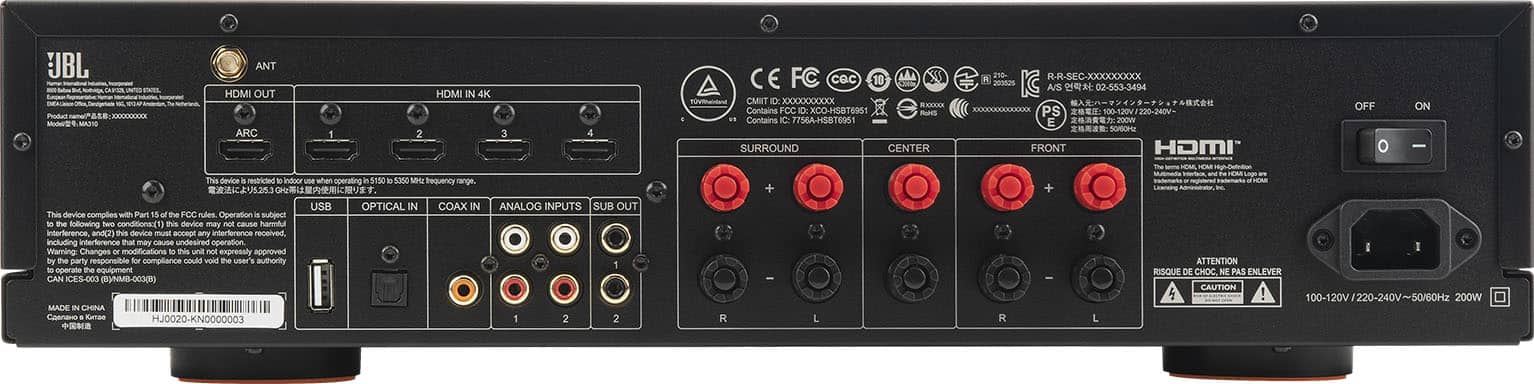

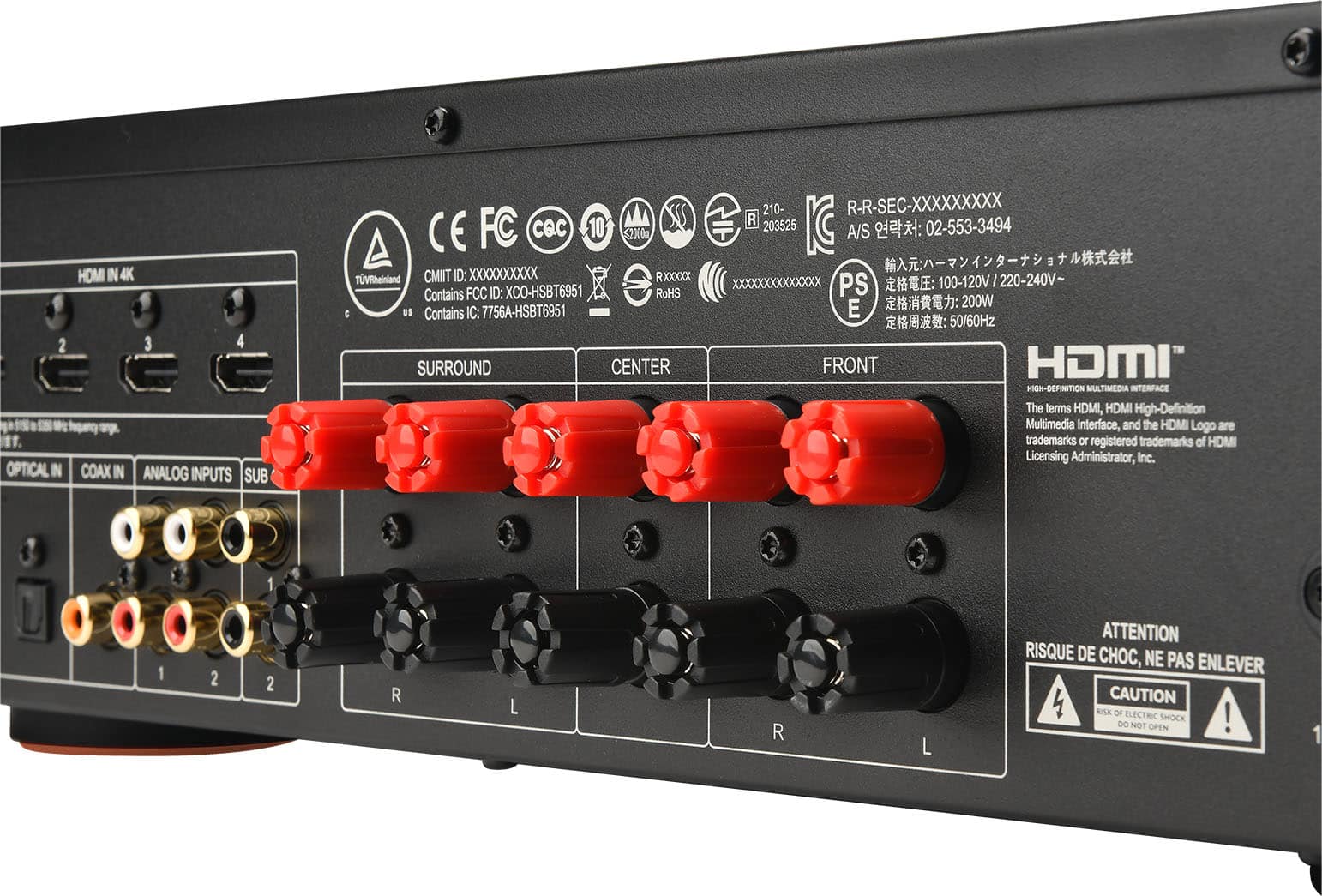

- Audio Only Inputs: 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Analog audio, 1 x Analog audio
- Audio/Video Inputs: 4 x HDMI 2.0
- Network Connector(s): No network connectors
- Video Pass-through: HDR, 2160 (4K)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz
- Audio/Video Outputs: 1 x HDMI
- Wireless Connectivity: Bluetooth
- Works With: Amazon Alexa, Google Assistant, Apple HomeKit, SmartThings
- Voice Assistant Built-in: Amazon Alexa, Google Assistant
General
- Brand: JBL
- Model Number: JBLMA310WHTAM
- Product Name: MA310 5.2ch 4K AV Receiver
Audio
- High Resolution Audio: Yes
- Number of Audio Zone Source Outputs: 1
- Surround Sound Supported: Dolby Digital, DTS
- Maximum Sampling Rate Supported: 24-bit/192kHz.
- Speaker A/B Switching: No
- Supported File Formats: MP3, WMA, AAC, FLAC, WAV, PCM
- DSP Modes: up to 24-bit/192kHz
- Equalizer: Yes
- Tuner Type(s): Internet
Inputs
- Video Only Inputs: No video only inputs
- Front Facing Inputs: 1 x USB Input:
- Number of HDMI Inputs (Total): 4
- Number of USB Inputs: 1
Video
- High Dynamic Range Format: HDR 10
Outputs
- Video Only Outputs: No video only outputs
- Speaker Connection Type: Banana Jack/Screw Terminals
- Number of HDMI Outputs (Total): 1
- Headphone Jack: No
Features
- App Compatible: Yes
- Featured Streaming Services: Apple Music, Spotify
- Auto Calibration: Yes
- Digital Content Protection: HDCP 2.3

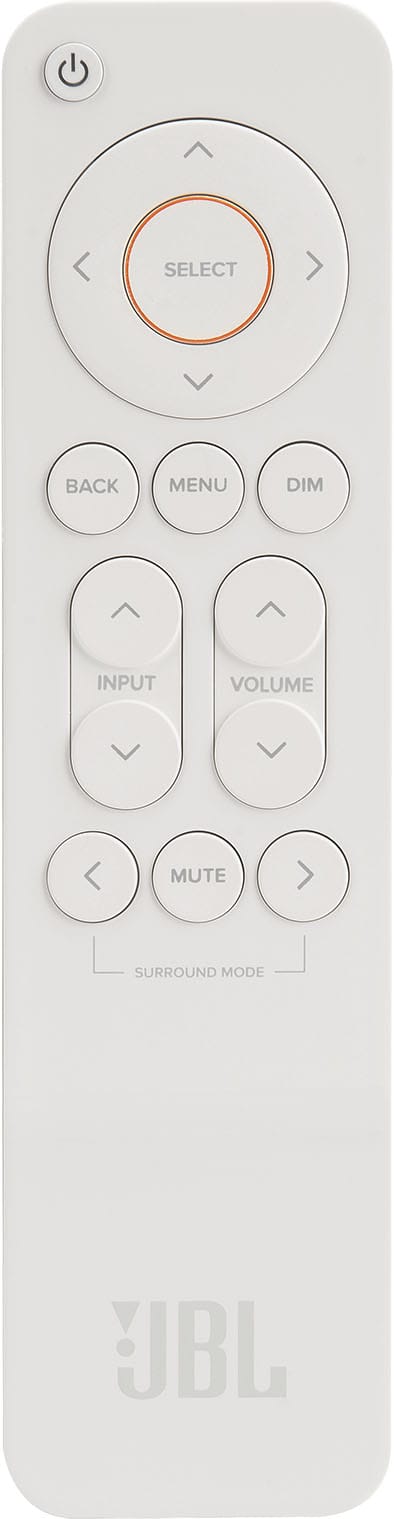

- Remote Control Included: Yes
Connectivity
- Wireless Multi-Room Audio: No
- IP Control: No
Dimensions
- Product Height: 4.3 inches
- Product Width: 17 inches
- Product Depth: 13.7 inches
- Product Weight: 11.3 pounds
Certifications Listings & Approvals
- ENERGY STAR Certified: No
Warranty
- Warranty – Parts: 1 Year Limited
- Warranty – Labor: 1 Year Limited
Specifications
- UPC: 050036400176
