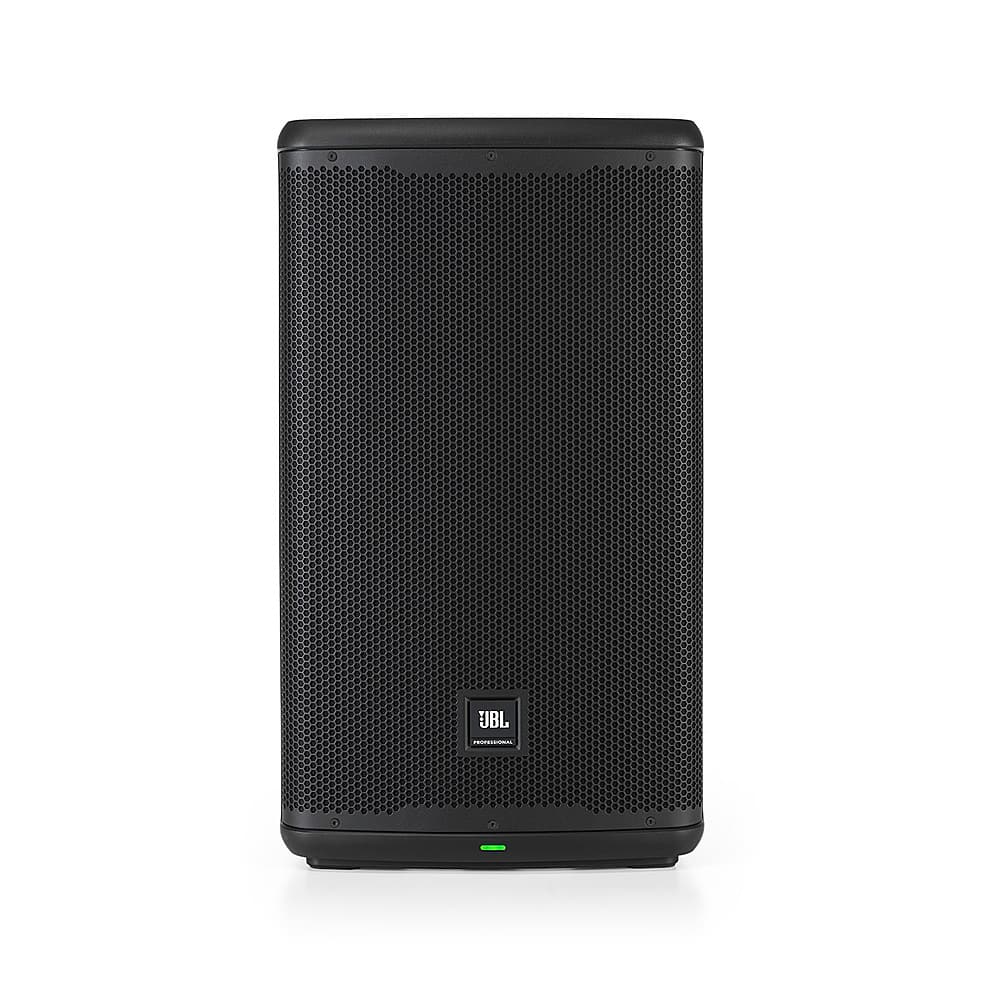

The JBL EON712 12-inch loudspeaker is part of JBL’s EON700 Series of powered PAs, which represents a major step forward in innovation and technology by delivering truly intelligible, clearly consistent coverage at any volume level. The EON700 Series leverages acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.
Acoustics and amplifier
JBL’s advanced waveguide and transducer technologies, coupled with highly efficient amplification, ensure uniform coverage across the entire listening area, even when you push the system to the limit.
Redesigned woofer
The EON712’s woofer is redesigned for lower impedance and higher efficiency, an improved horn delivers a smooth off-axis beamwidth and JBL’s powerful 2414H compression driver features a premium neodymium magnet for balanced response in a lightweight footprint. Max SPL(Sound Pressure Level) 127dB
Advanced DSP and Control

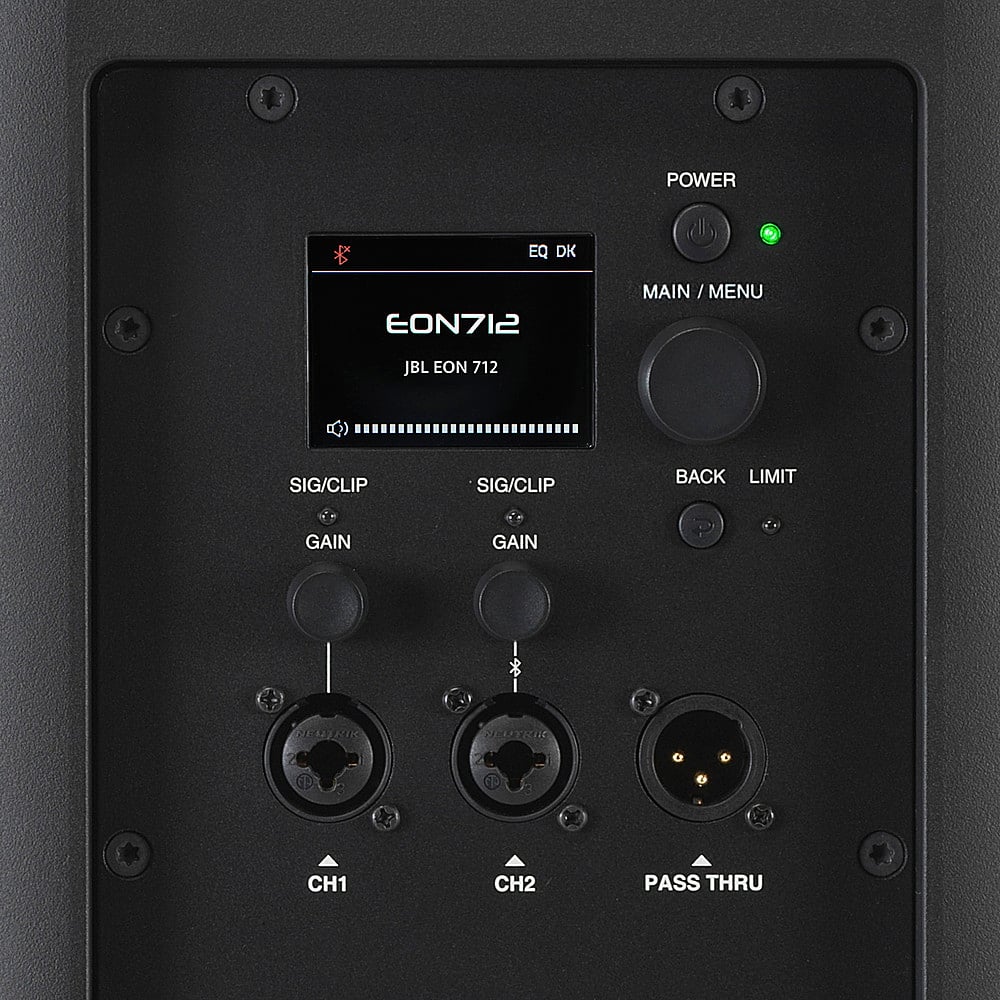

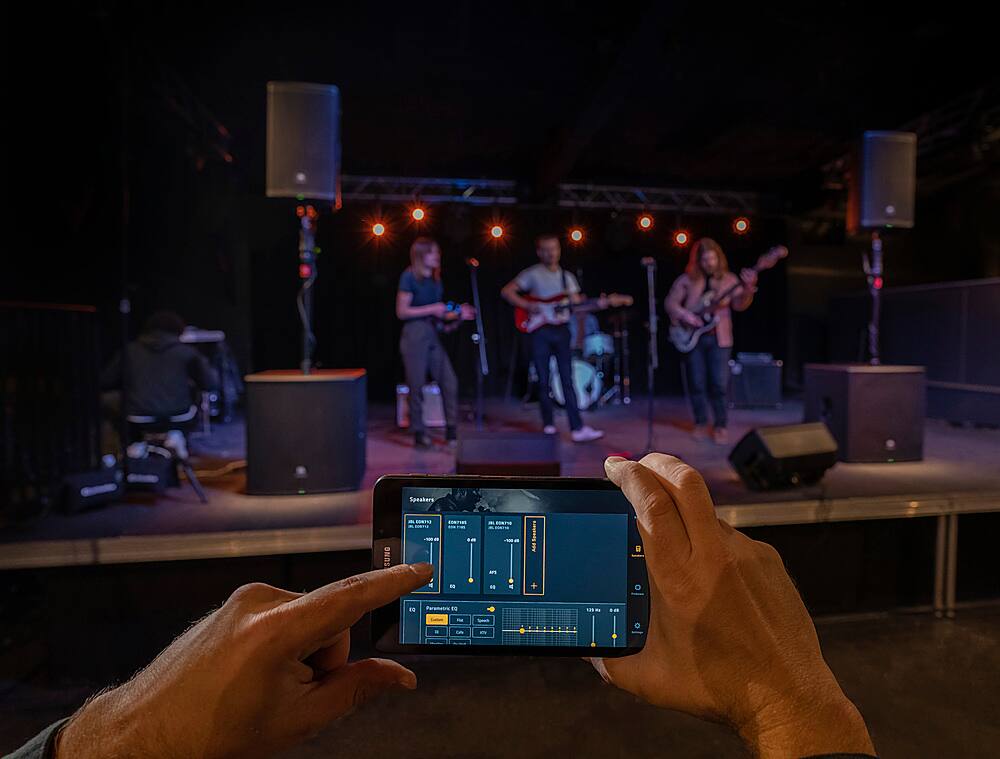

DSP Package Provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other functions. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App.
True Wireless Stereo (TWS) mode
Setup TWS (True Wireless Stereo) Bluetooth streaming. TWS gives EON700 user the ability to creat a true stereo image configuration by streaming Bluetooth source audio to left-and-right-designated EON700 speakers.
Bluetooth 5.0
Built-in Bluetooth 5.0 audio streaming and control take advantage of protocol’s security features, low latency, broad range and improved audio fidelity.
System versatility

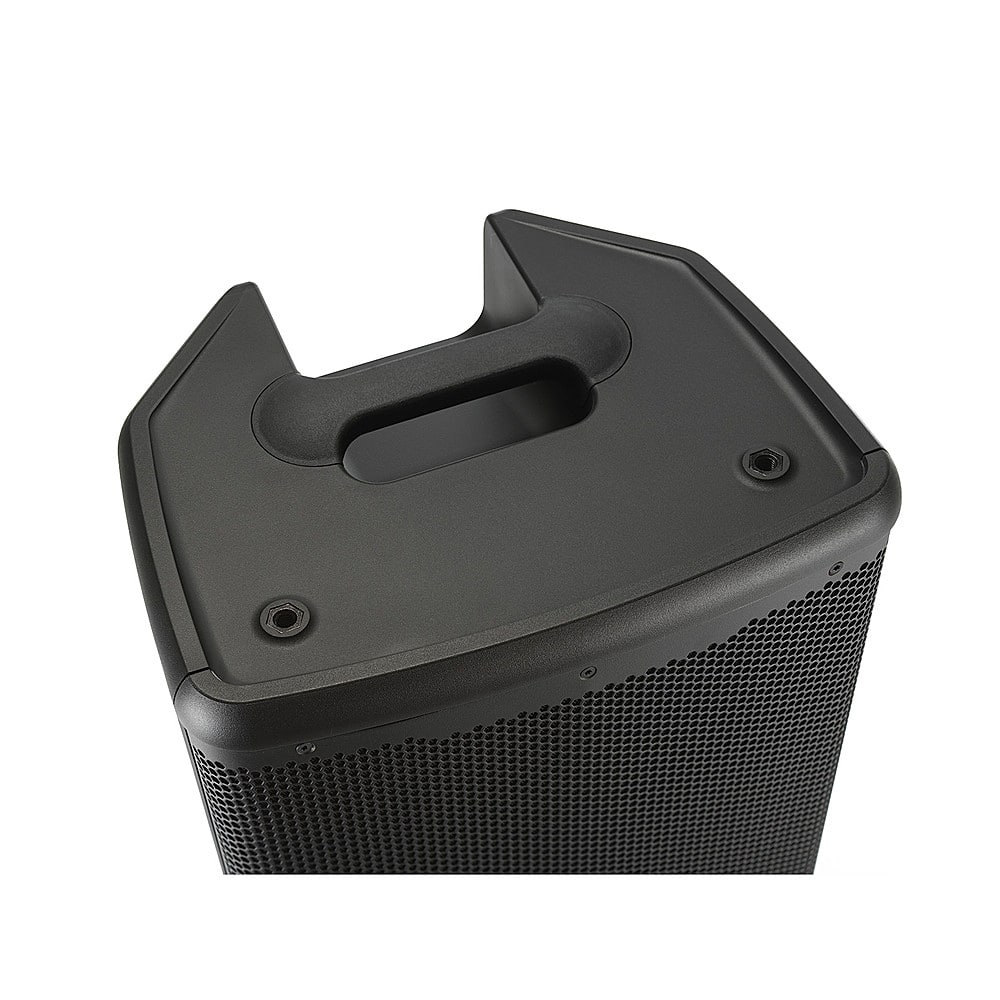

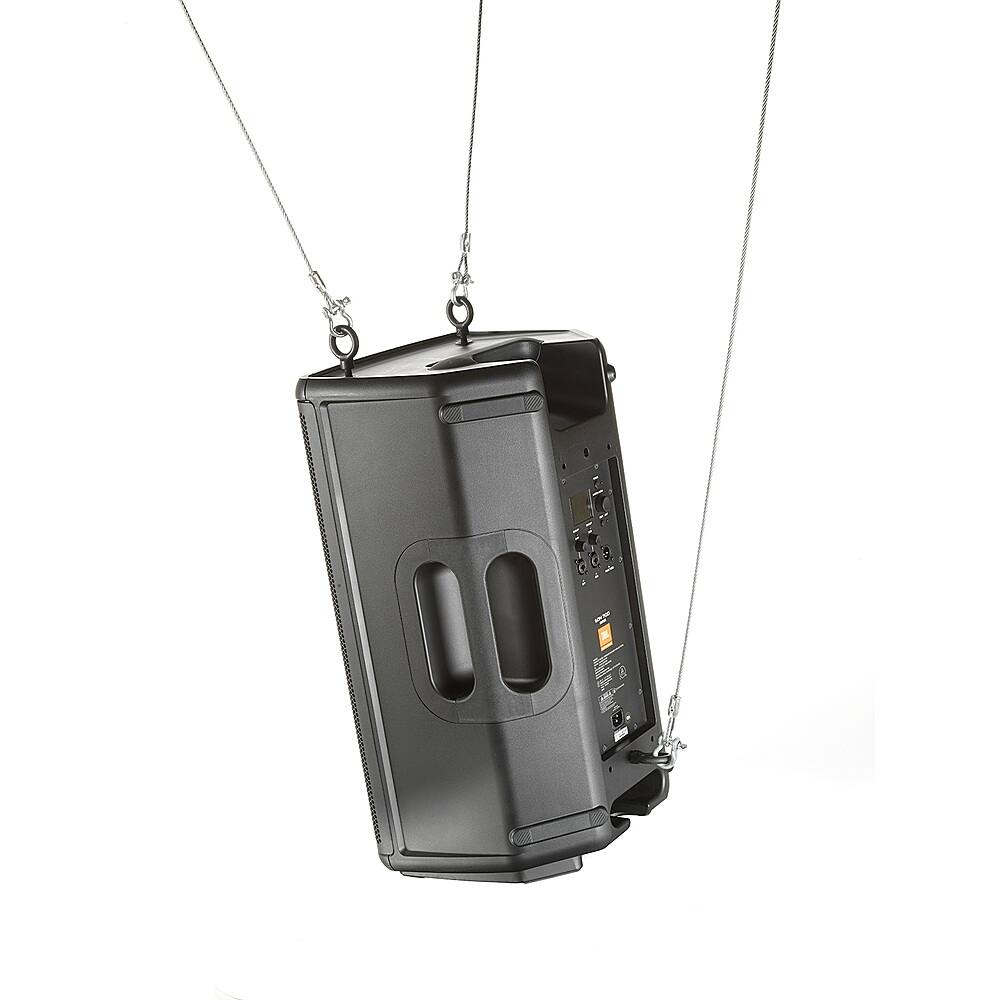

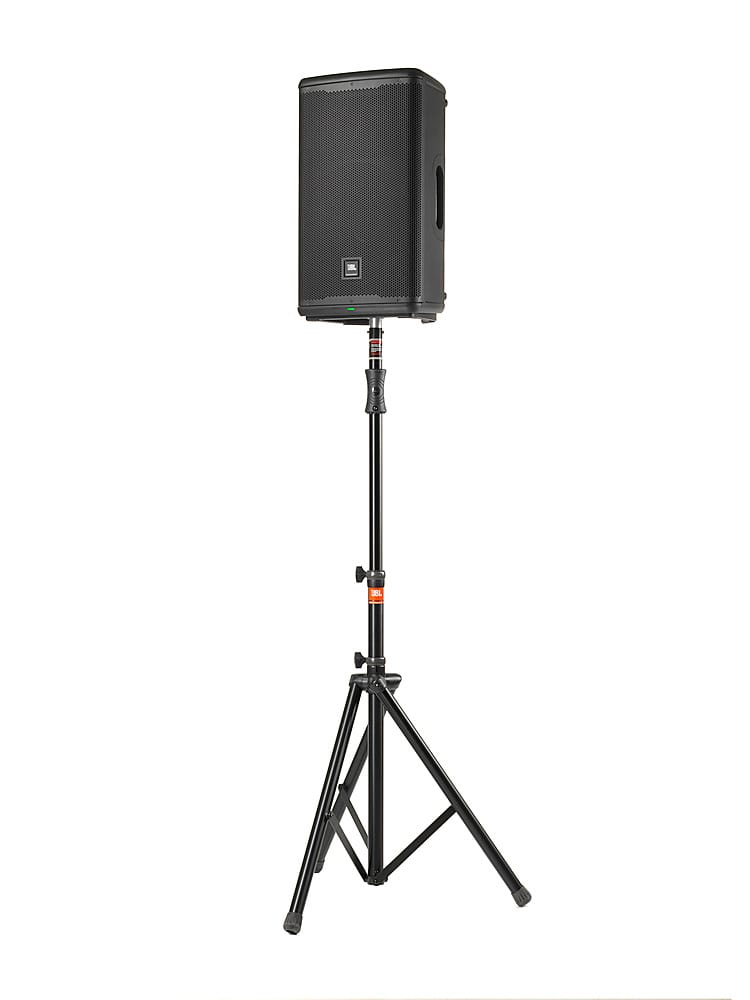

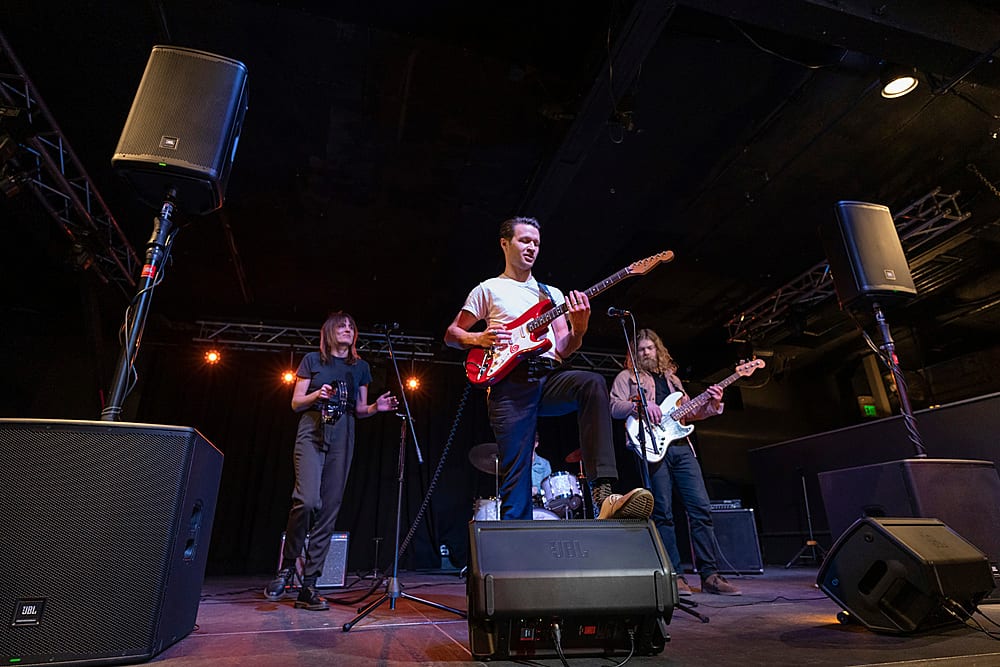

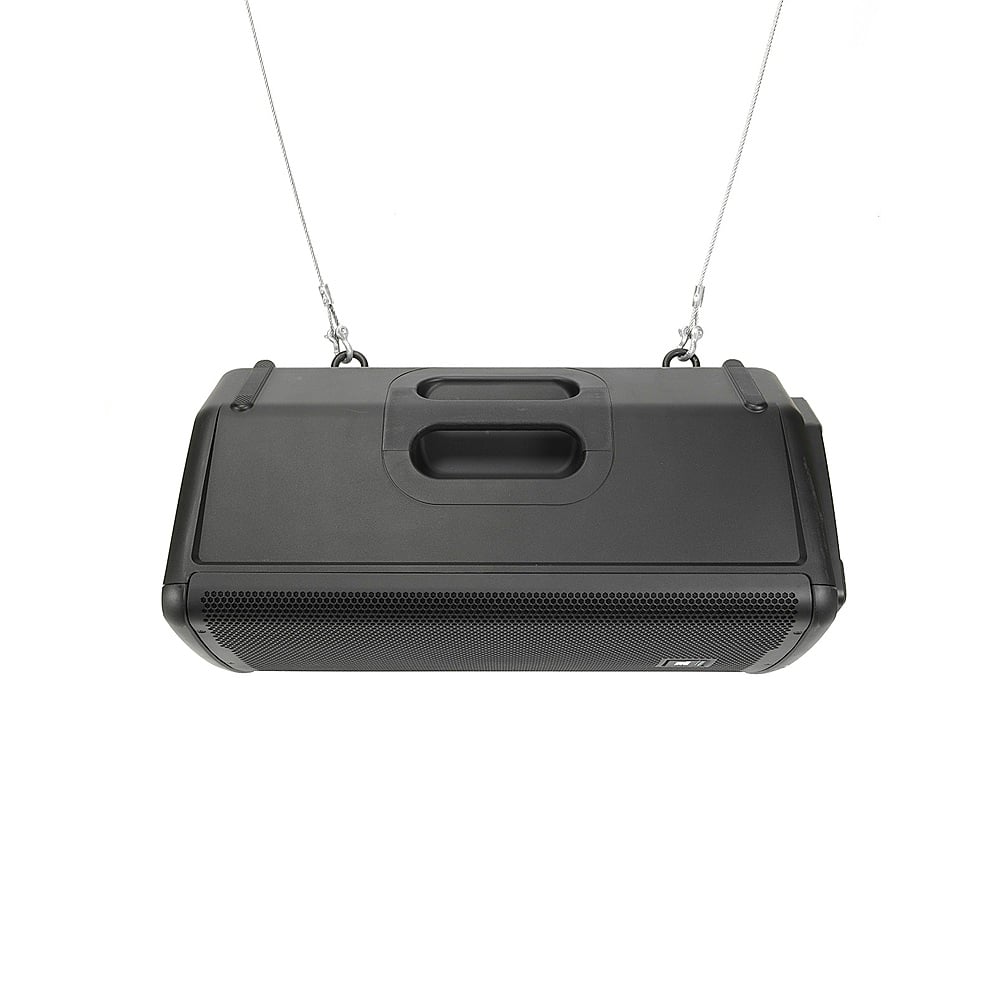

The loudspeaker can be used as a main PA speaker or floor monitor. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount or built-in pole mount.
Multiple configurations
Indexed feet molded into enclosures, enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport.
Rugged and ergonomic

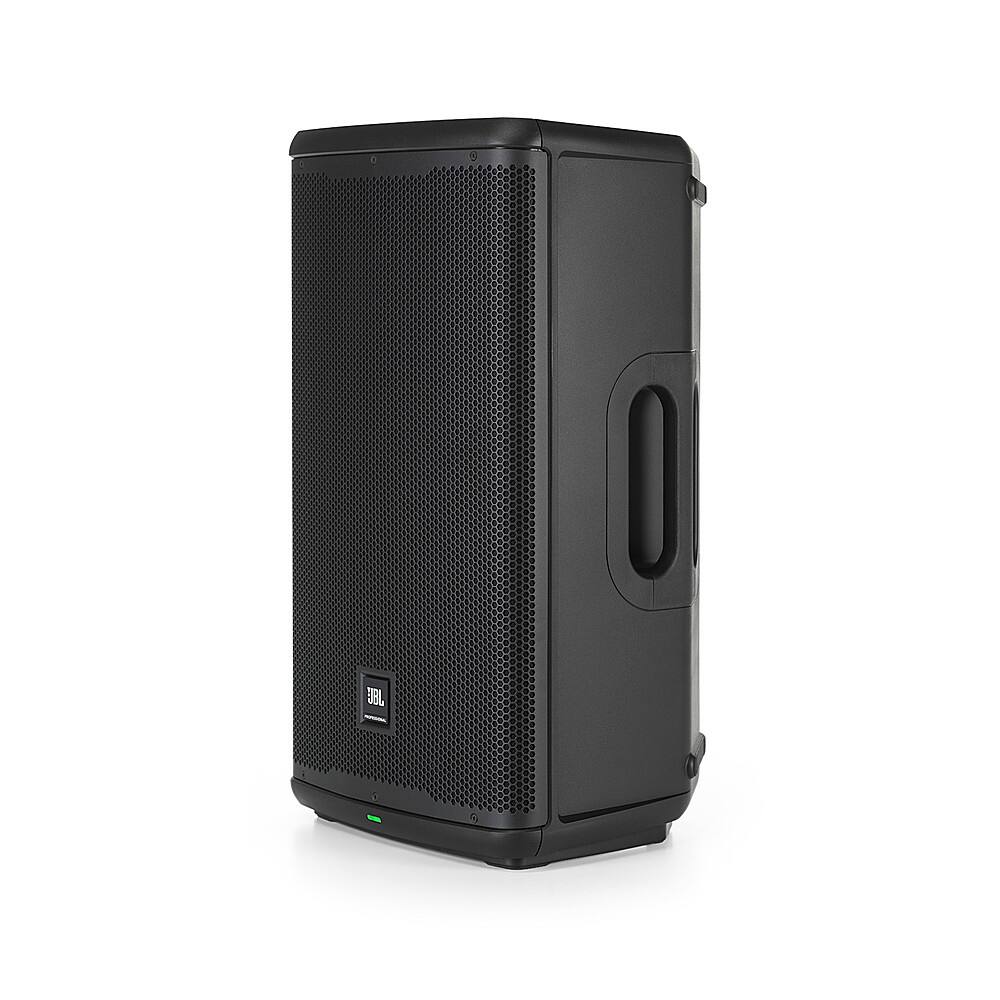

The EON712 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.
Reliable and tested
JBL Professional products undergo stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

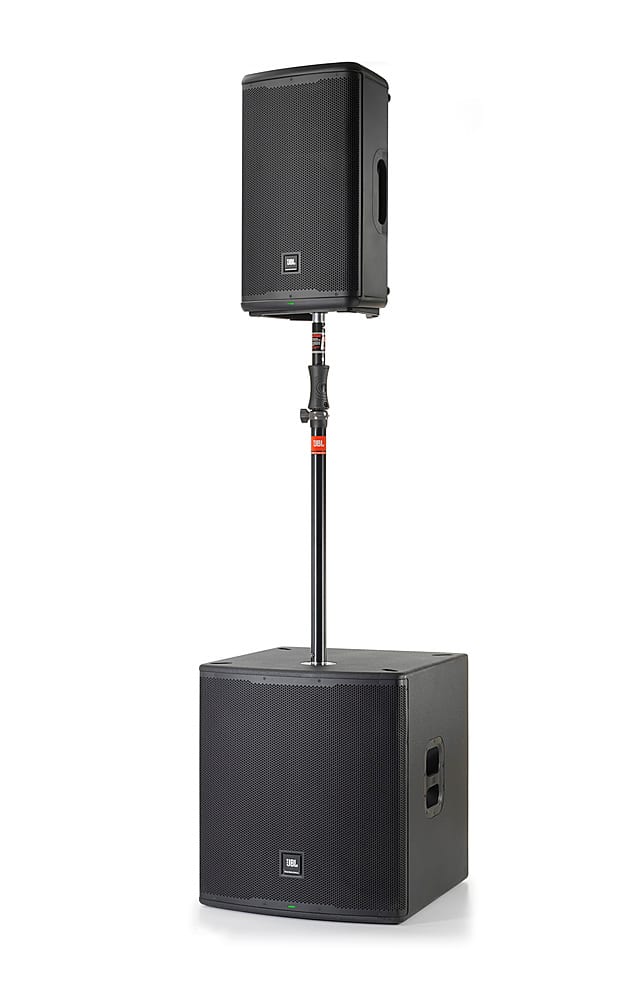

Pair with more speakers and subwoofer

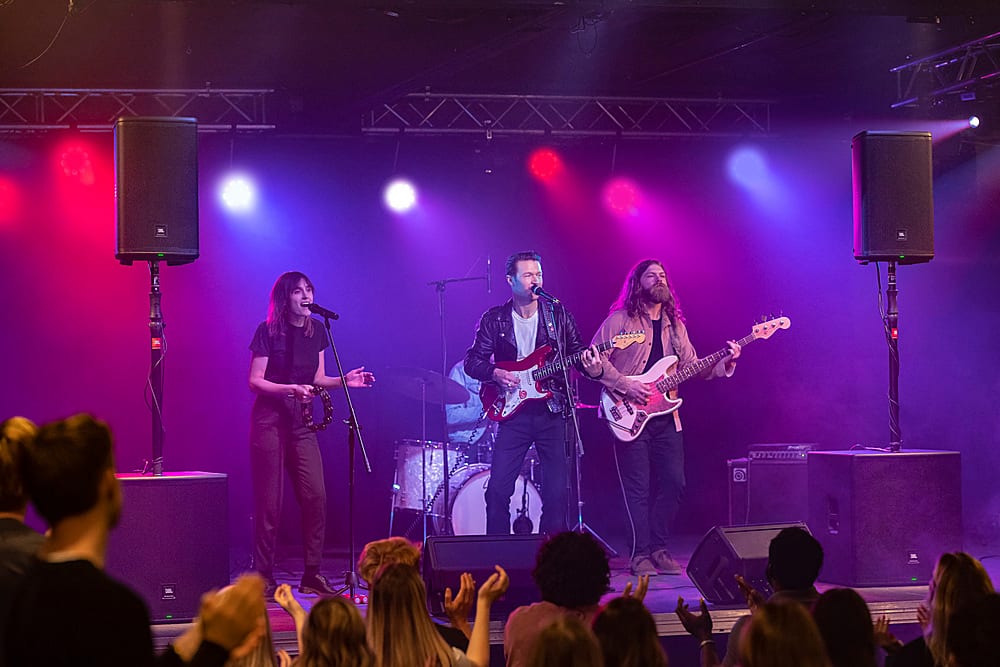

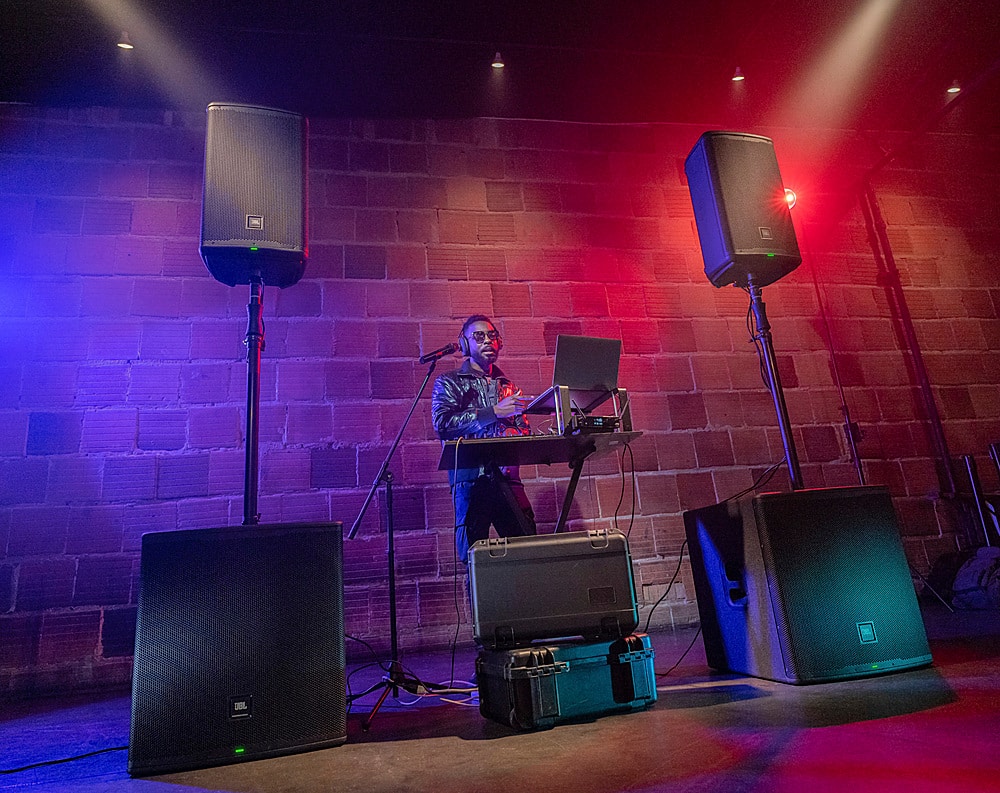

Pair with a second EON712 and EON718 subwoofer to increase your audio experience
Specifications
Key Specs
- Color: Black
General
- Brand: JBL
- Model Number: EON712
- Product Name: EON712 1300W 12″ Powered PA Speaker with DSP and Bluetooth
Audio
- Maximum Frequency Response: 20 kilohertz
- Minimum Frequency Response: 50 hertz
- Audio Mixer: 3 Channel
- Peak Power Handling: 1300 watts
- RMS Power: 650 watts
- Number of Channels: 1
Connectivity
- Number of Inputs: 2
- Microphone Inputs: XLR
- Line Level Outputs: XLR
- Wireless: Yes
- Wireless Connectivity: Bluetooth
Connectivity
- Number of Outputs: 1
Speaker
- Number of Speakers: 2
- Speaker Size: 12 inches
- Speaker Width: 12.75 inches
- Speaker Height: 26.38 inches
- Speaker Length: 15.04 inches
- Speaker Weight: 32 pounds
- Tweeter Size: 1 inches
Speaker
- Speaker Enclosure Material: Composite Polypropylene
Features
- App Compatible: Yes
- Indoor or Outdoor Use: Indoor and outdoor
Included
- Microphone Included: No
- Speaker Stand(s) Included: No
- Cable(s) Included: Yes
Power
- Power Source: Plug-in
- Rechargeable: No
- On/Off Switch: Yes
- Voltage: 110 volts

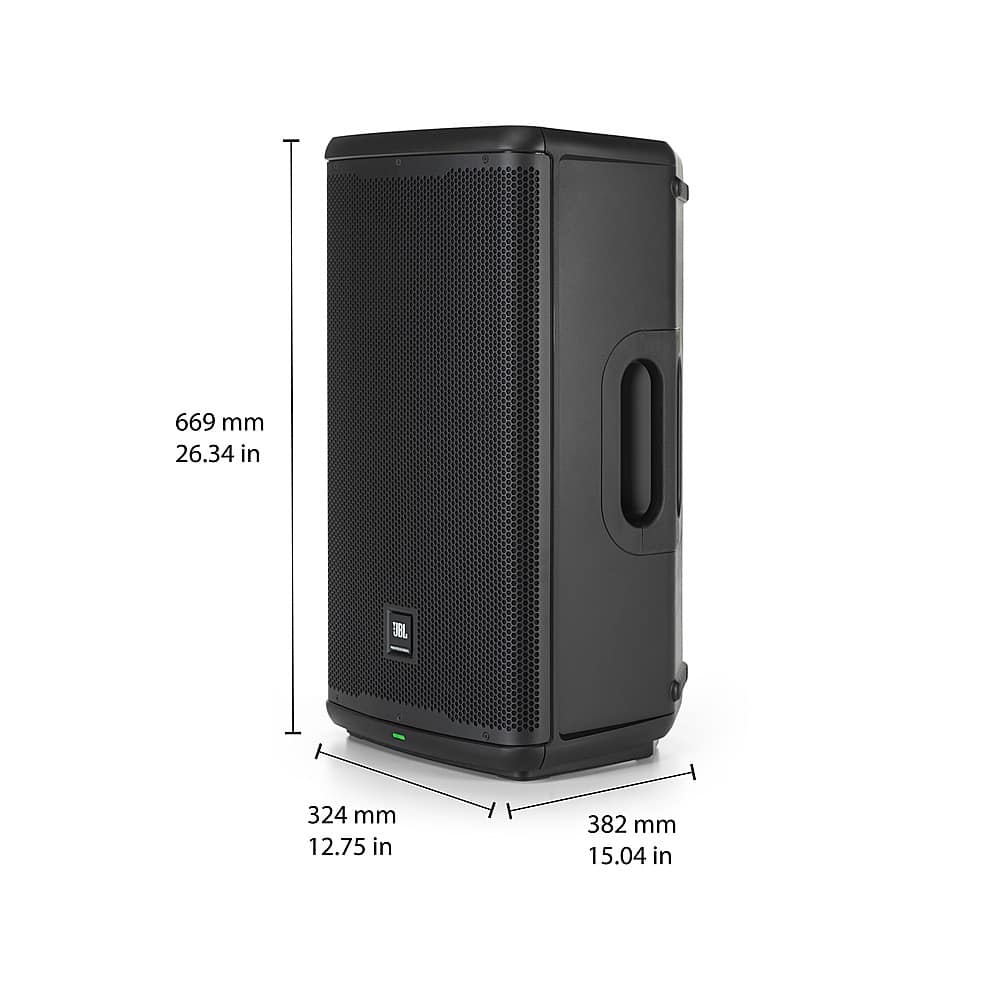

Dimensions
- Product Height: 26.38 inches
- Product Width: 15 inches
- Product Length: 12.91 inches
- Product Weight: 32.19 pounds
Warranty
- Warranty – Parts: 7 Years
- Warranty – Labor: 7 Years
Specifications
- UPC: 691991035135
