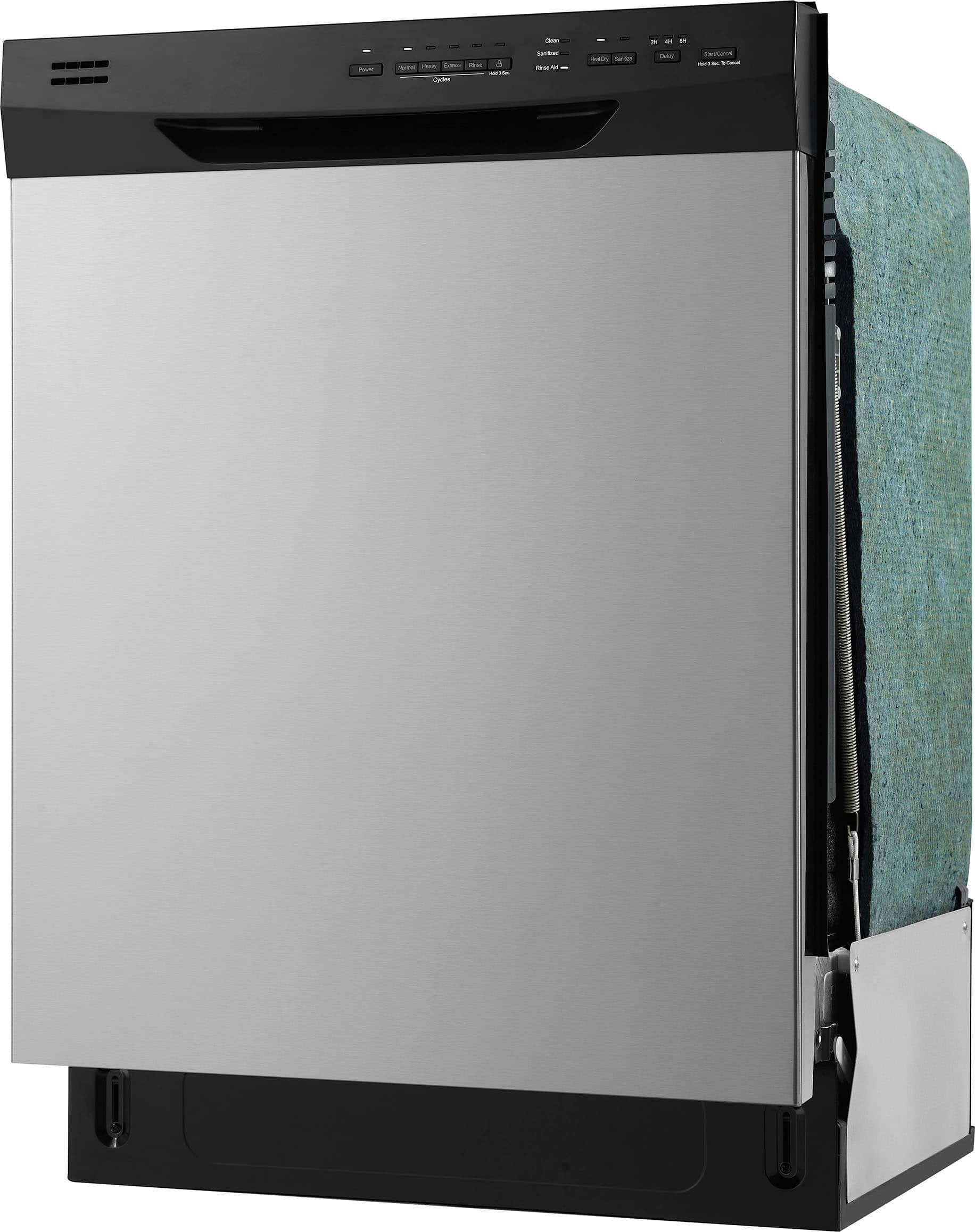

Make cleanup easier with the Insignia 24” Front Control Built-In Dishwasher with Sensor Wash, Stainless Steel Tub, 51 dBA. Upper and lower racks comfortably store cups, plates, bowls and cookware. A silverware basket keeps your smaller utensils separate from the rest of the load and can be set on the top or bottom rack. The smart wash system automatically chooses the best cycle, based on how soiled and full your load is. Choose between Normal, Heavy, Express, and Rinse wash cycles, and complement your newly cleaned dishes with a sanitize wash or heat dry option.

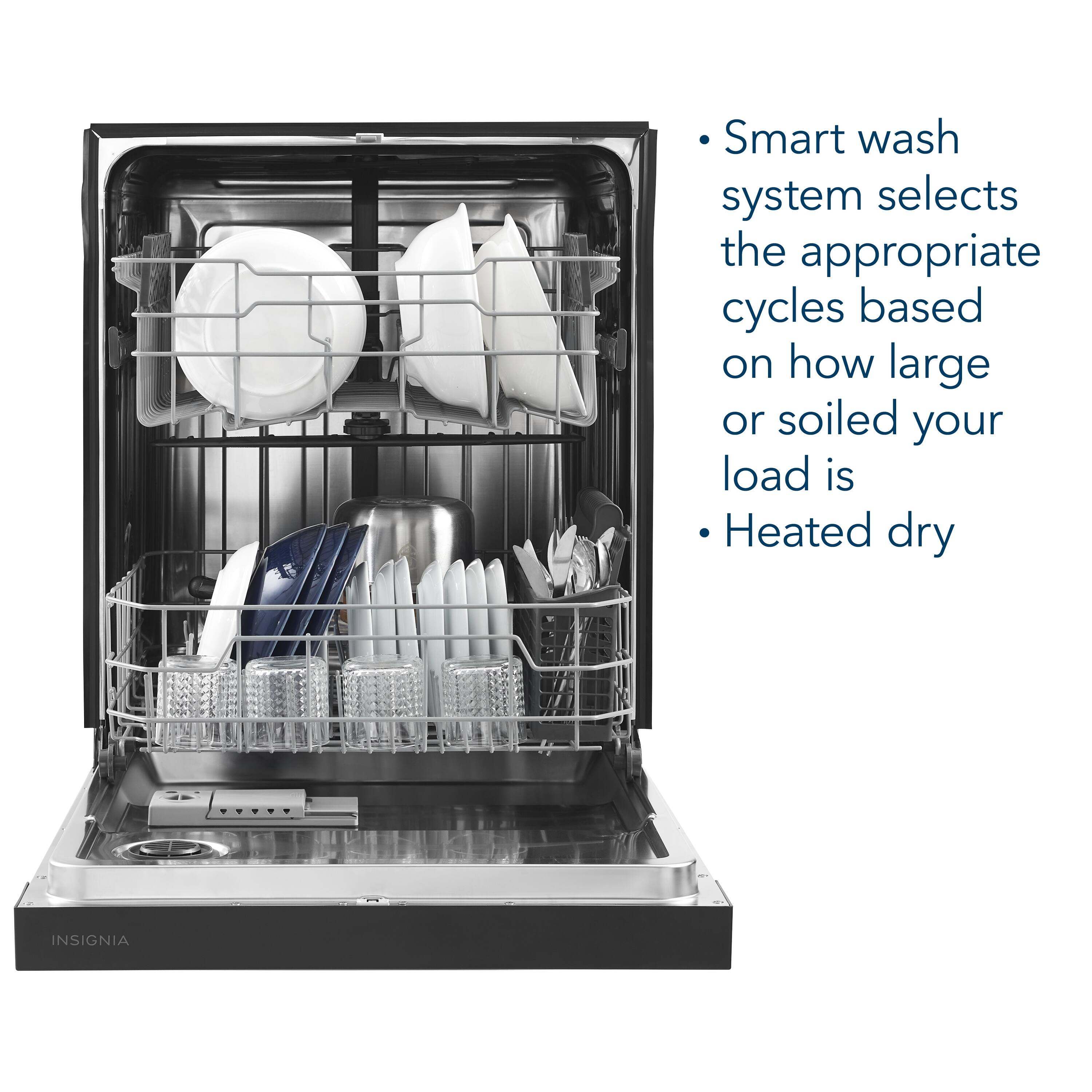

Smart wash system
Automatically selects the appropriate cycle based on how large and soiled your load is to efficiently clean your dishes.
Filter system
Separates dirty water and clean water into different chambers for better performance with less water and energy use.

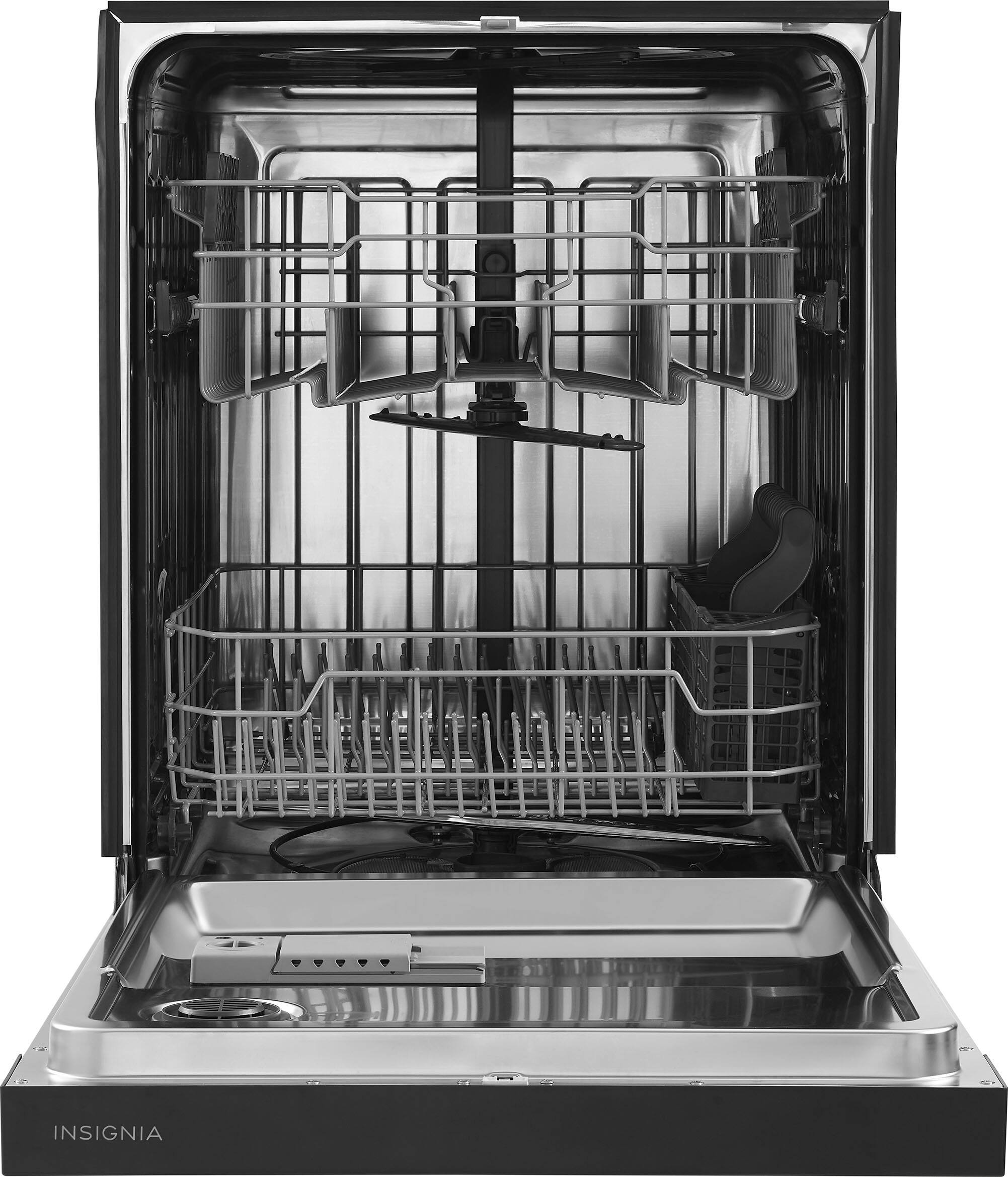

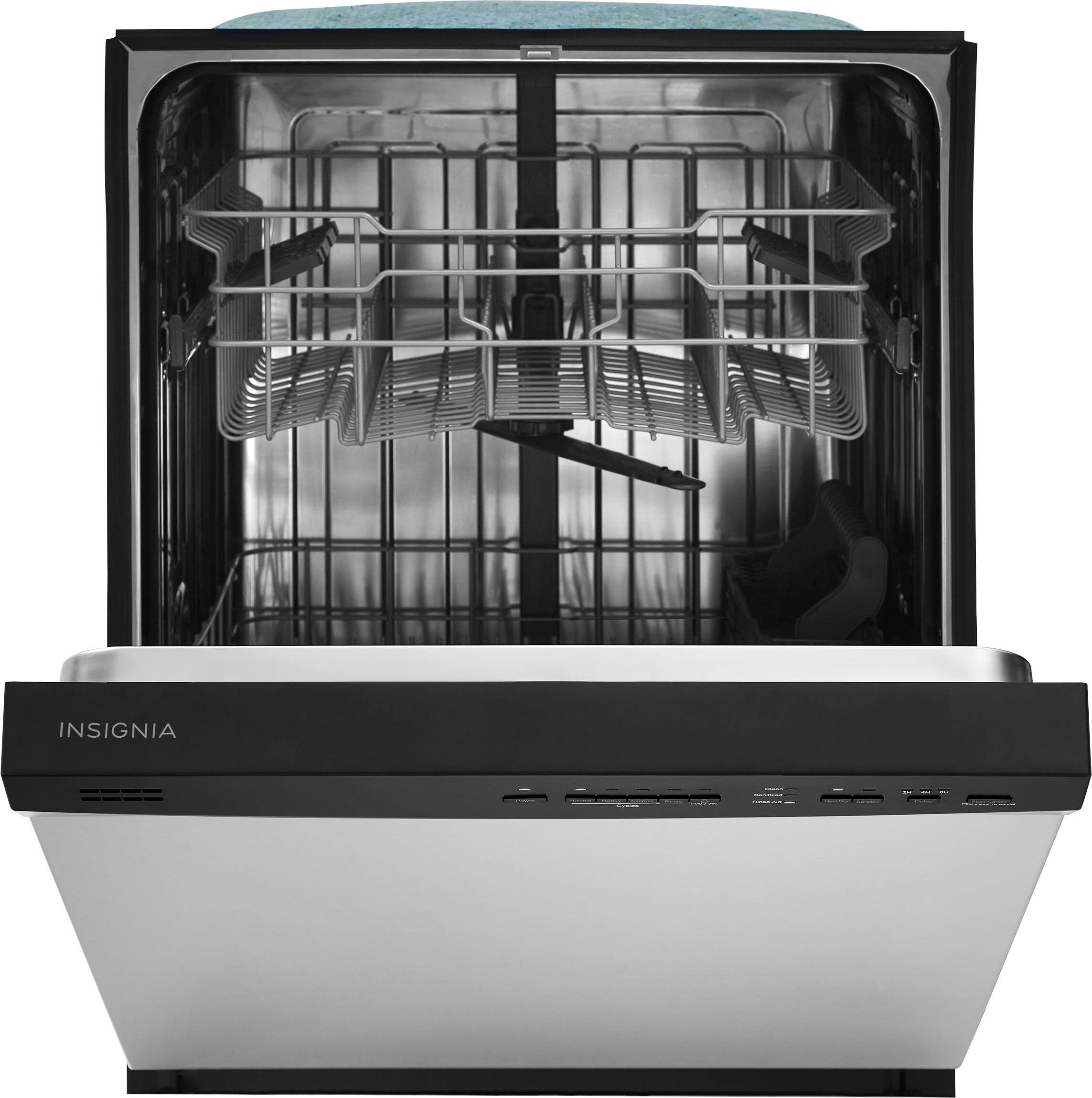

Upper and bottom racks
Upper rack holds cups, glasses, small plates and bowls while the bottom rack stores plates, saucers and cookware.
Folding tines
Provide extra support for larger, hard-to-fit items.
Silverware basket
Place the silverware basket on either the upper or lower racks for more versatile loading options.

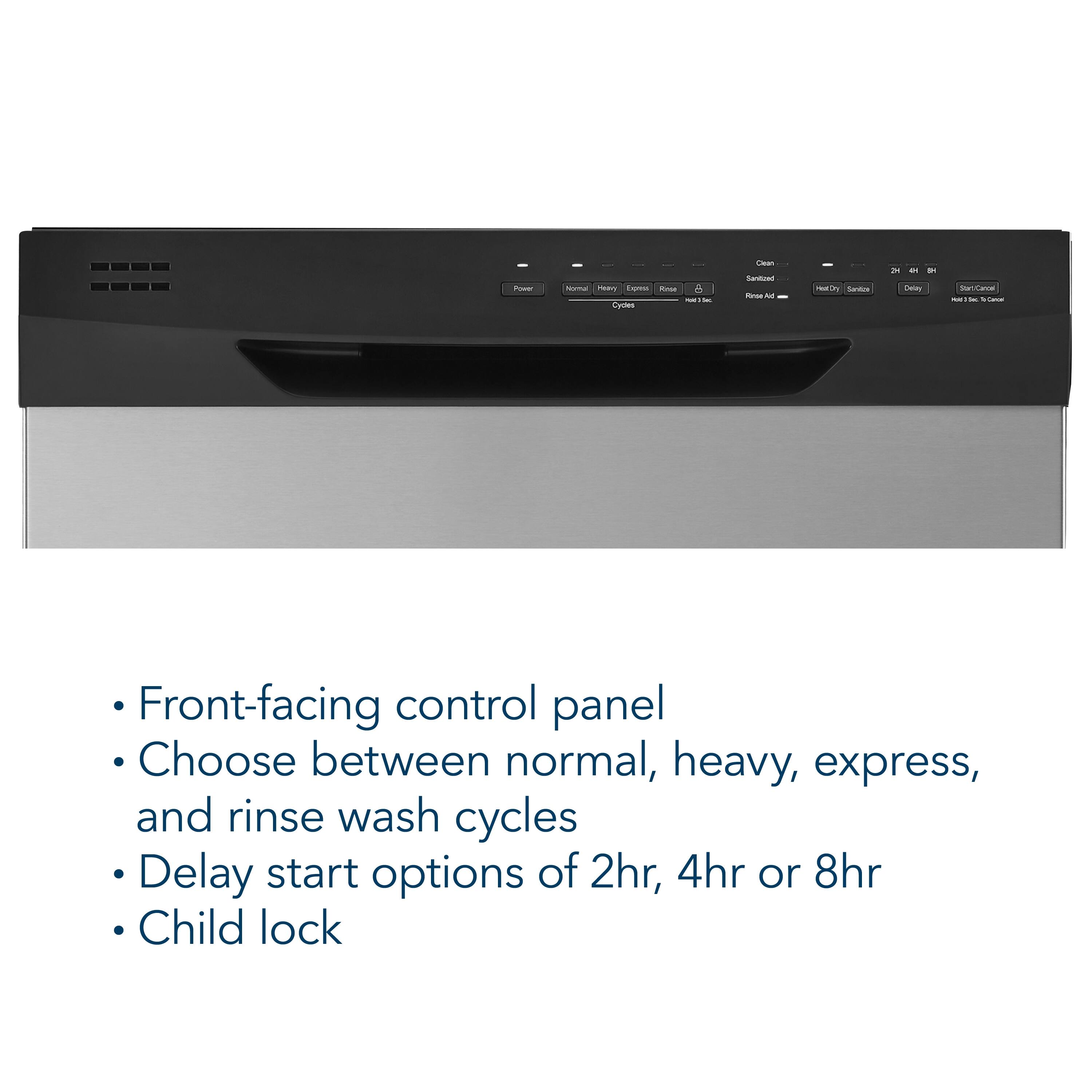

Front-facing control panel
Electronic control panel is easy to access and is located on the front of the dishwasher door. Door must be closed for dishwasher to function.
Wash cycle selections
Choose between Normal, Heavy, Express, and Rinse wash cycles to get the cleanest loads
Sanitize rinse option
Maintains a high water temperature of 158° F (70° C) to sanitize your load. NSF certification gives you peace of mind that your dishes and glassware are sterile.
Delay Start 2hr, 4hr, 8hr start option
Wait to wash your dishes until the perfect time.
Heat dry option
Uses heat to dry dishes at the end of a cycle.
Child lock
Prevents young children from changing settings or starting the dishwasher.

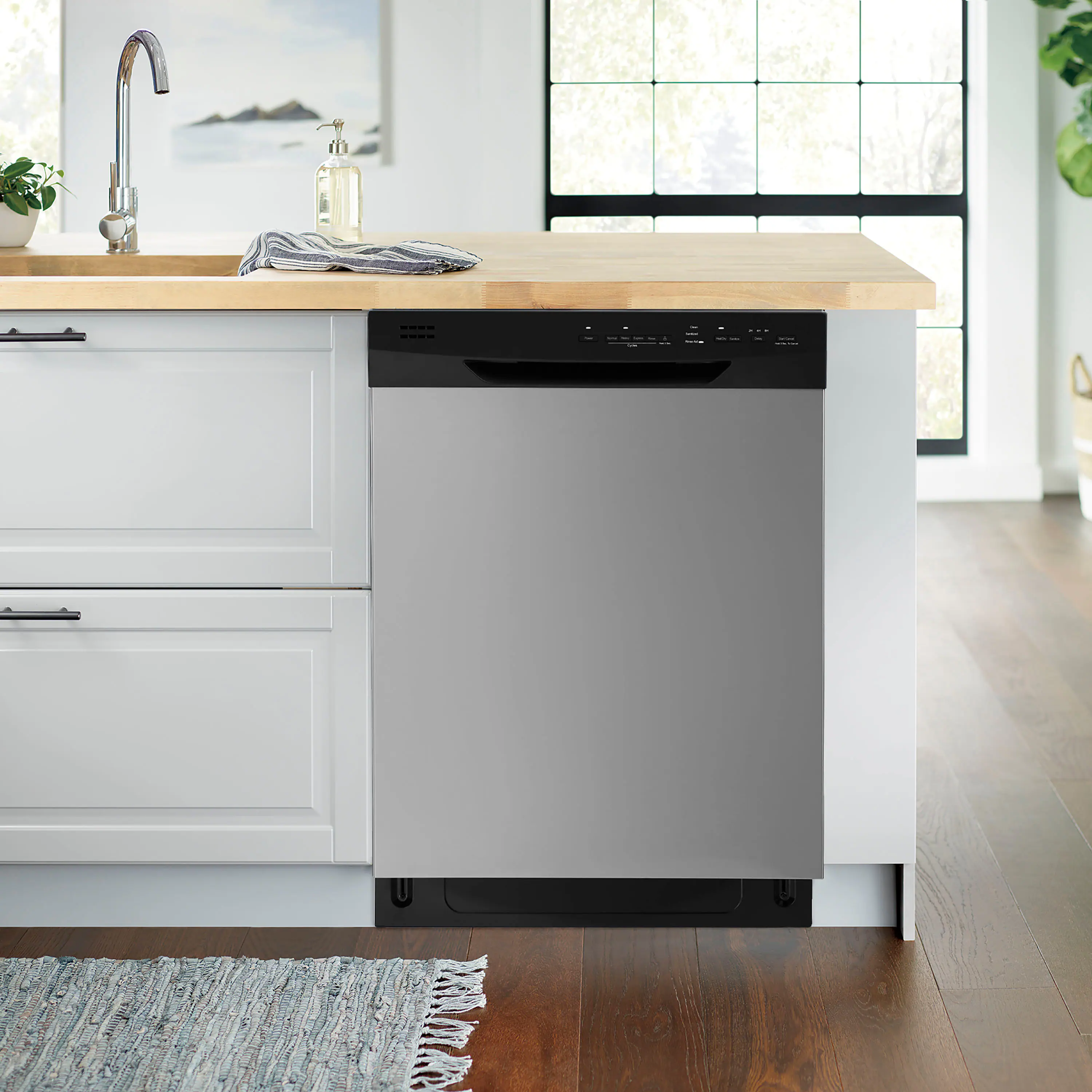

Built-in installation
Fits under your countertop for an unobtrusive addition to your kitchen.
Brought to you by
Insignia brings you affordable, dependable products with all the features you need.

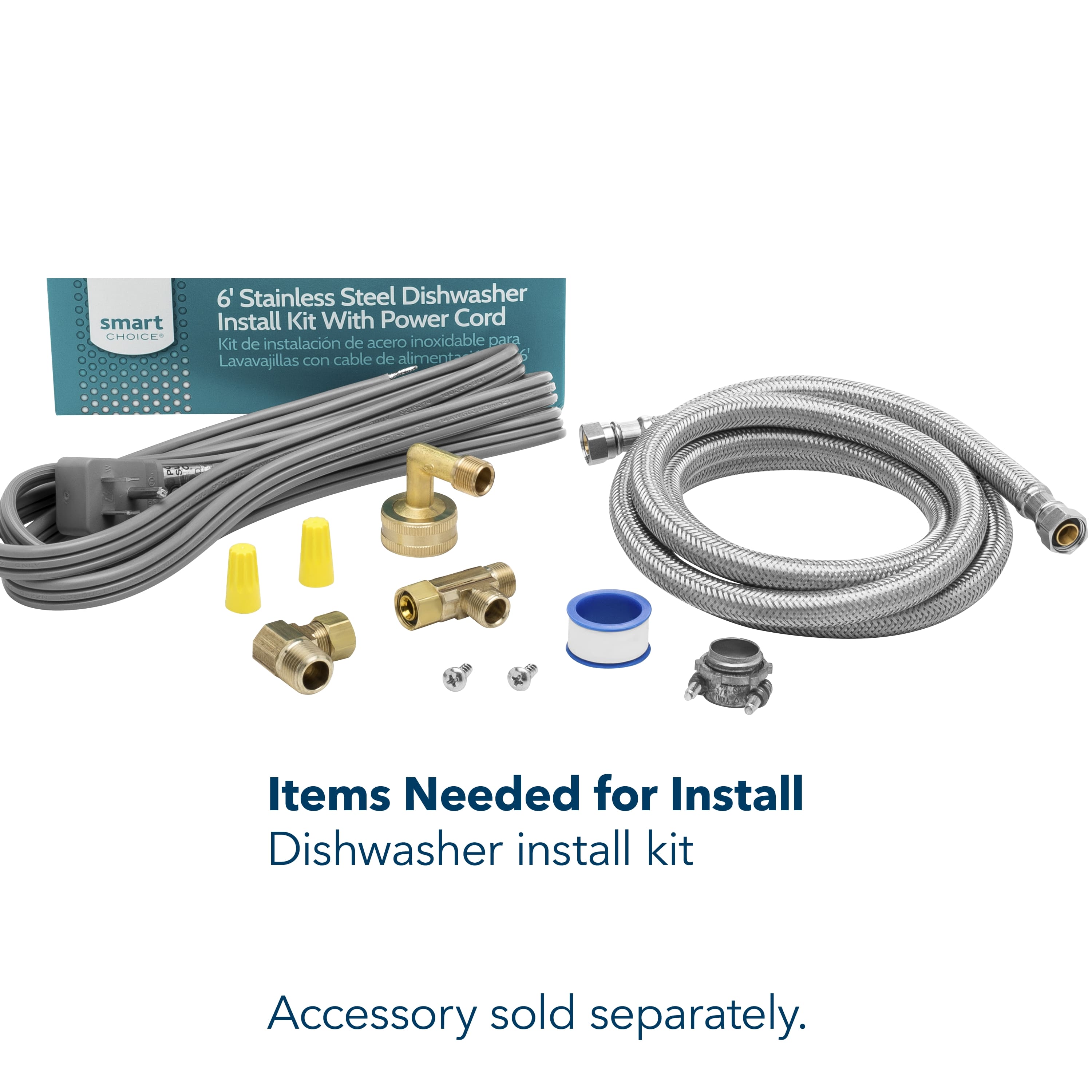

All dishwasher purchases require a dishwasher hookup kit be purchased from . Without a hookup kit, your installation will not be completed. Find a hookup kit in the accessories section on this page.
Specifications
Key Specs

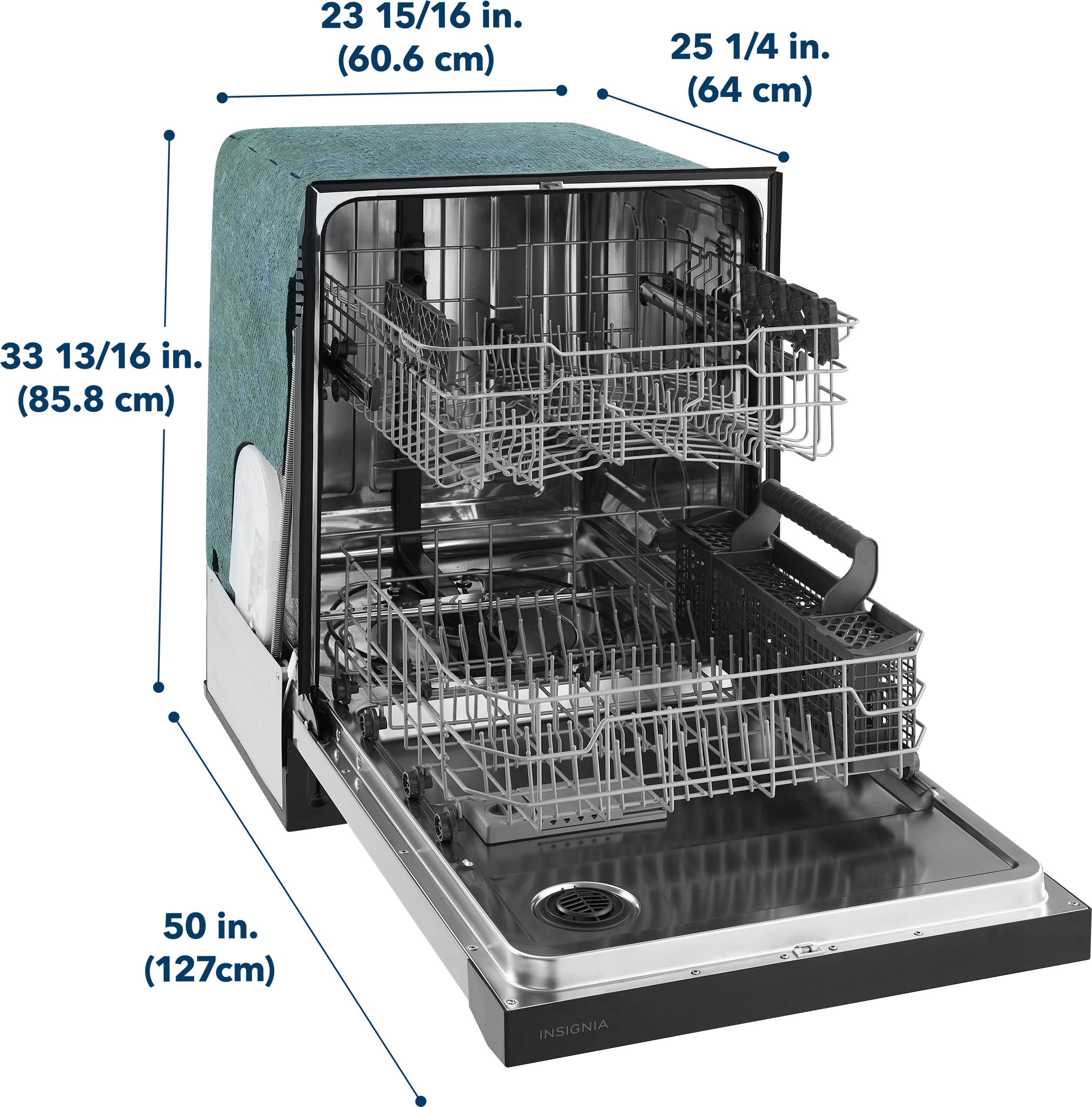

- Product Height: 33 13/16 inches
- Product Width: 23 15/16 inches
- Product Depth: 25 1/4 inches
- Operating Sound Level: 51 decibels adjusted
- Number Of Racks: 2
- Tub Finish: Stainless steel
- Place Setting Capacity: 14
- Color Finish: Stainless steel
Features
- Hard Food Disposer: No
- Drying Method: Heated drying
- Delay Start: Yes
- End-Of-Cycle Signal: Yes
- Cycle Status Lights: Yes
- Child Lock: Yes
- Filtered Water: Yes
- Water Soil Sensor: Yes
Cycle Specifications
- Number of Cycles: 4
- Dishwasher Cycles: 4
- Options and Programs: Programs: Normal, Heavy, Express, Rinse; Options: Heat Dry, Sanitize, Delay, Child Lock.
- Sensor Wash: Yes
- Steam Cleaning: No
- Steam Pre-Wash: No
- NSF-Certified Sanitization Cycle: Yes
- Water Consumption Per Cycle: 3.5 gallons
General

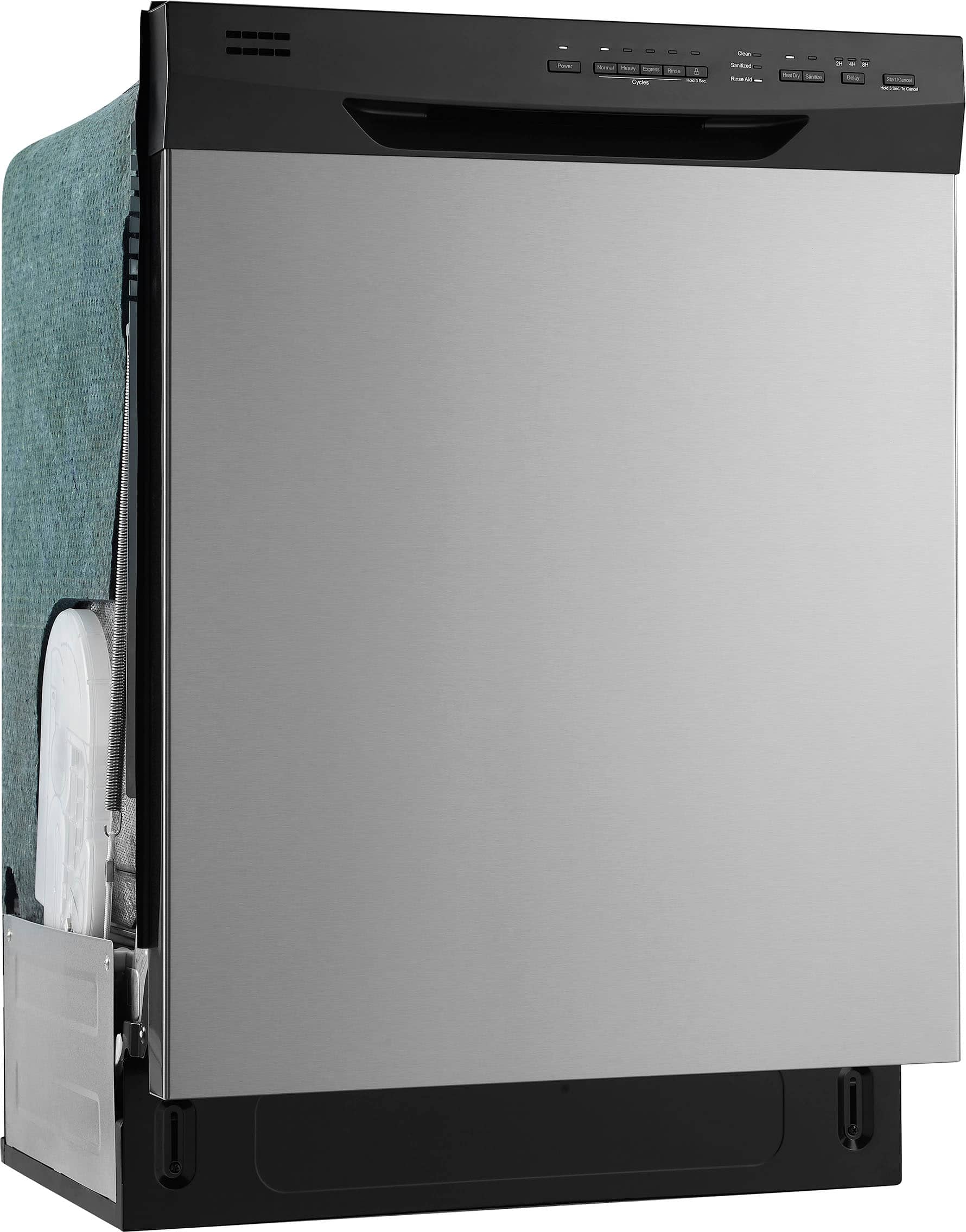

- Product Name: 24” Front Control Built-In Dishwasher with Sensor Wash, Stainless Steel Tub, 51 dBA, and ENERGY STAR Certification
- Brand: Insignia™
- Model Number: NS-DWRF2SS3
Rack Features
- Upper Rack Features: Cup shelf
- Lower Rack Features: Removable silverware basket, Adjustable tines
- Rack Material: Nylon
Electrical Specification
- Estimated Annual Electricity Use: 249 kilowatt hours
- Estimated Annual Operating Cost: 35 United States dollars
- Amperage: 8.4 amperes
- Voltage: 120 volts
Cut-Out Dimensions
- Cut-Out Height: 34 inches
- Cut-Out Width: 24 inches
- Cut-Out Depth: 24 1/2 inches
Warranty
- Warranty – Parts: 1 Year Limited
- Warranty – Labor: 1 Year Limited
Dimensions
- Depth Without Handle: 25 1/4 inches
- Depth With Handle: 25 1/4 inches
- Depth With Door Open: 50 inches
- Product Weight: 80 pounds
Design
- Panel Ready: No
- Dishwasher Type: Built-in dishwashers
- Control Type: Button
- Control Location: Front control
- Display Type: LED
- Handle Type: Recessed handle
- Fingerprint Resistant: No
Certifications Listings & Approvals

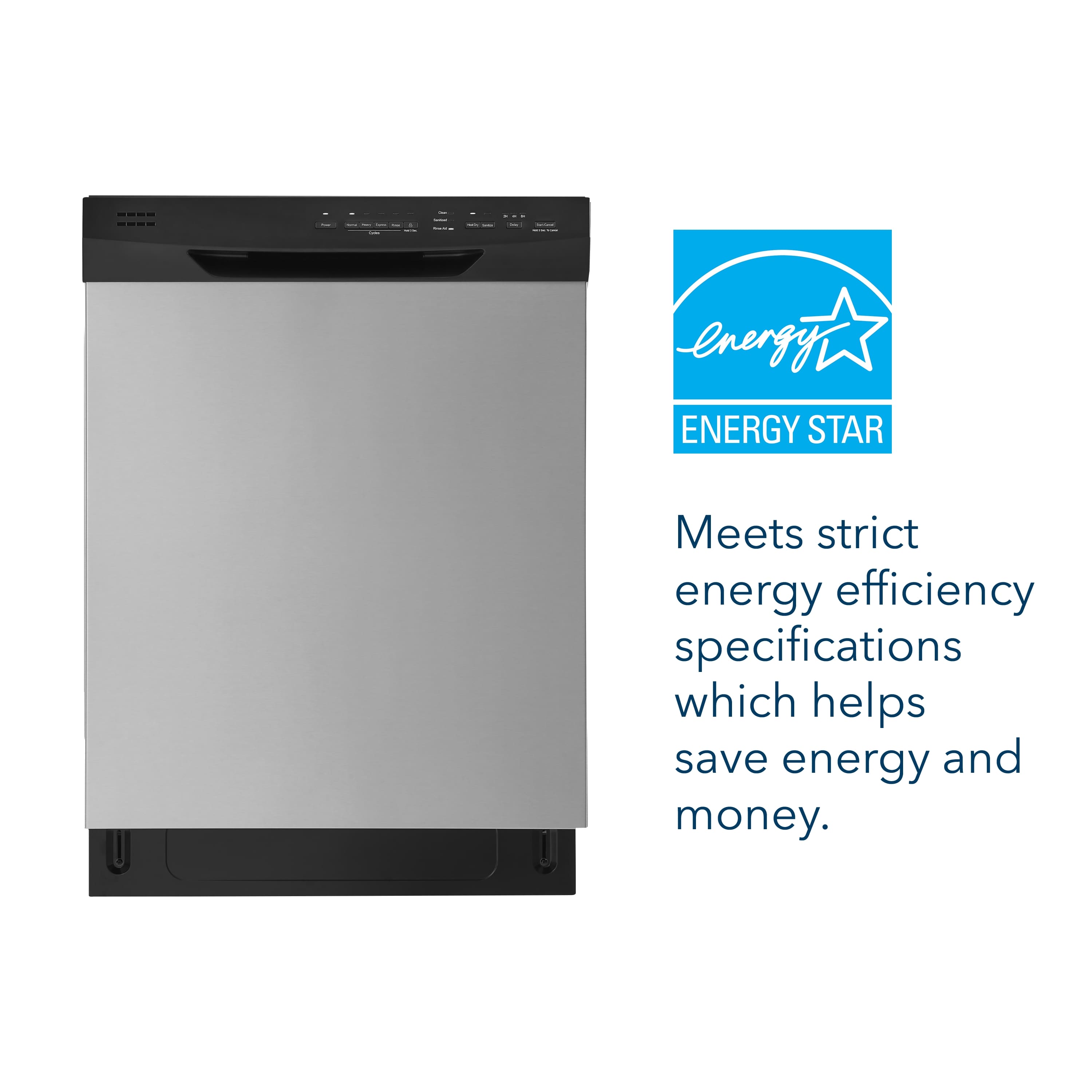

- ENERGY STAR Certified: Yes
- ADA Compliant: No
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
Included
- Power Cord Included: No
- Integrated Water-Softener: No
Specifications
- UPC: 600603275272
