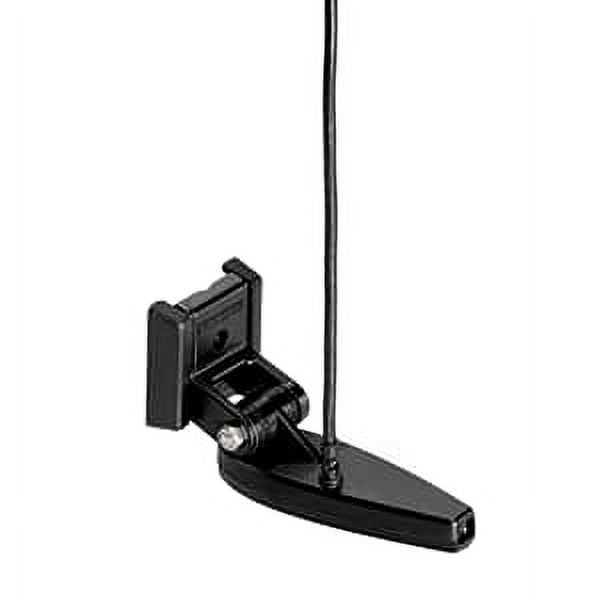

MEGA Down Imaging Transom Mount Transducer supports MEGA Imaging/ 455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20’ cable.
Compatible with: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 7 MDI GPS G4N, HELIX 8 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G4N. Cable Length: 20 Feet Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz; Dual Spectrum CHIRP Max Depth: 1200ft (365m); MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 350ft (107m), MEGA DI: 1075-1150 kHz – 125ft (38m); 1-Year Limited Warranty
