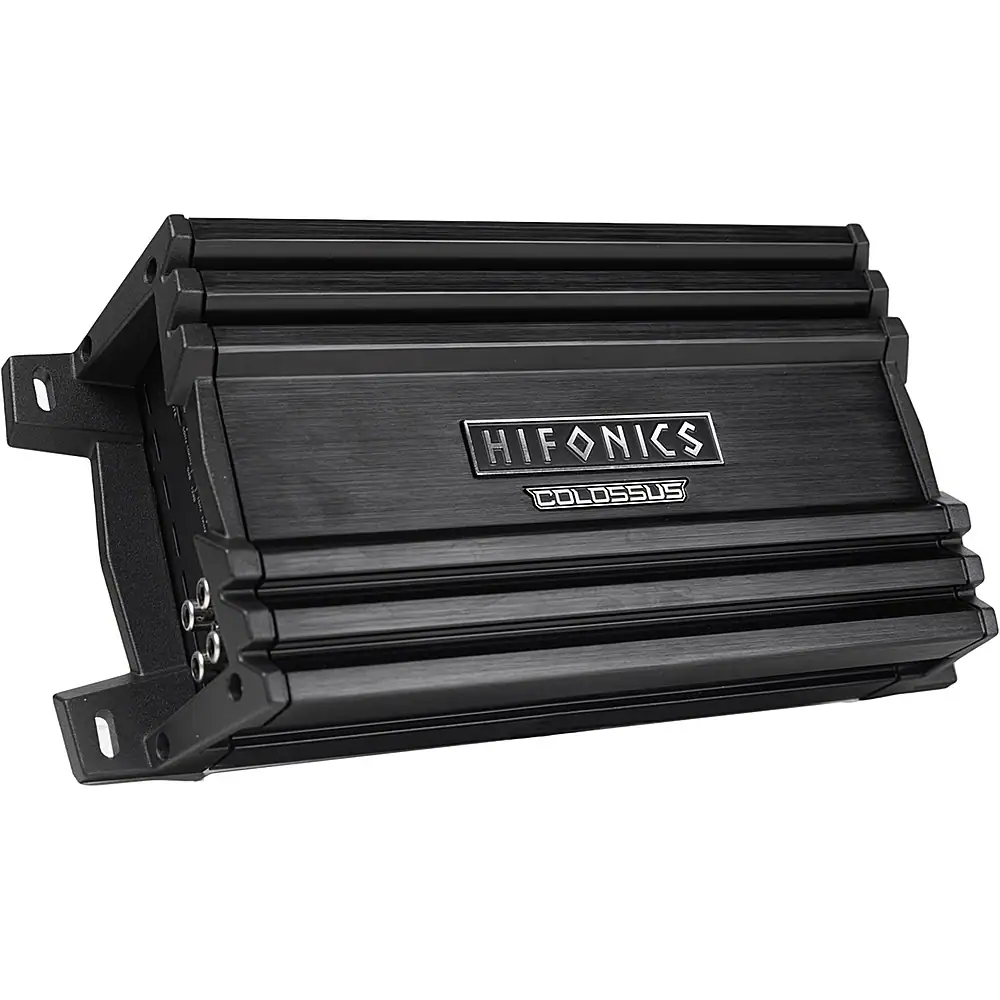

This Hifonics COLOSSUS MINI ultra-compact mono block amplifier delivers 1200W in a small footprint. The amplifier suites a wide range of applications, such as motorcycles, UTVs, and automotive vehicles.
Compact design
Small footprint is perfect for a wide range of applications, such as motorcycles, UTVs, and automotive vehicles.
Mass-loaded heat sink
The mass-loaded extruded aluminum heat sink results in better thermal management and output performance, with no fan cooling required.
High-end preamplifier circuit
Accepts a wider range of input signals.

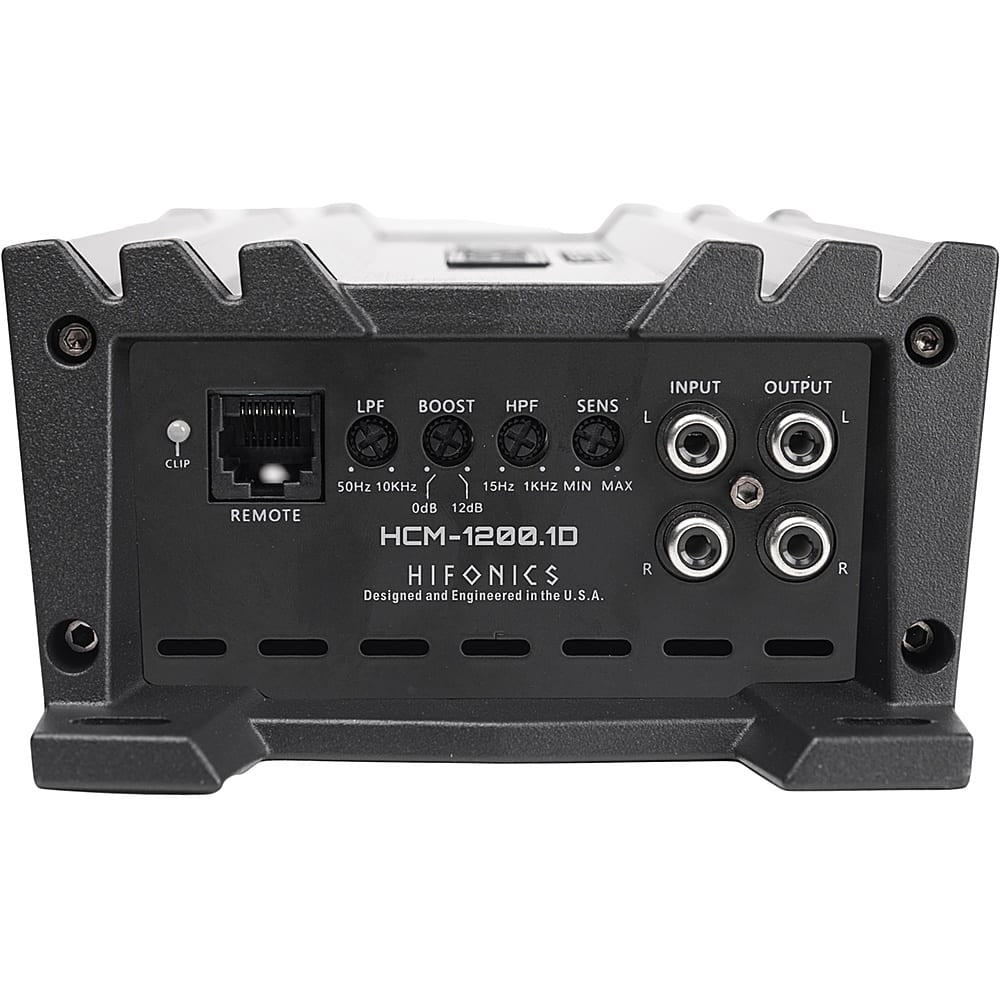

RCA inputs
Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant.
High-tolerance output device
Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method.
Operation mode
Mono only.
Clean board construction
Multilayer?ed printed circuit boards (PCB) with surface-mount components require fewer parts and result in a cleaner design.
Full-range Class D amp
Features a full-range Class D chipset, making it compatible with a wide range of drivers, especially pro-style speakers.
Power supply
Air core transformer is more effective for higher frequencies and reduces energy loss due to its open-core design.
Delayed turn-on function
Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises such as hisses and pops.
Connection type
Secure molded connection terminal for all power, ground, and speaker connections. Angled for ease of access and a clean wire management profile.

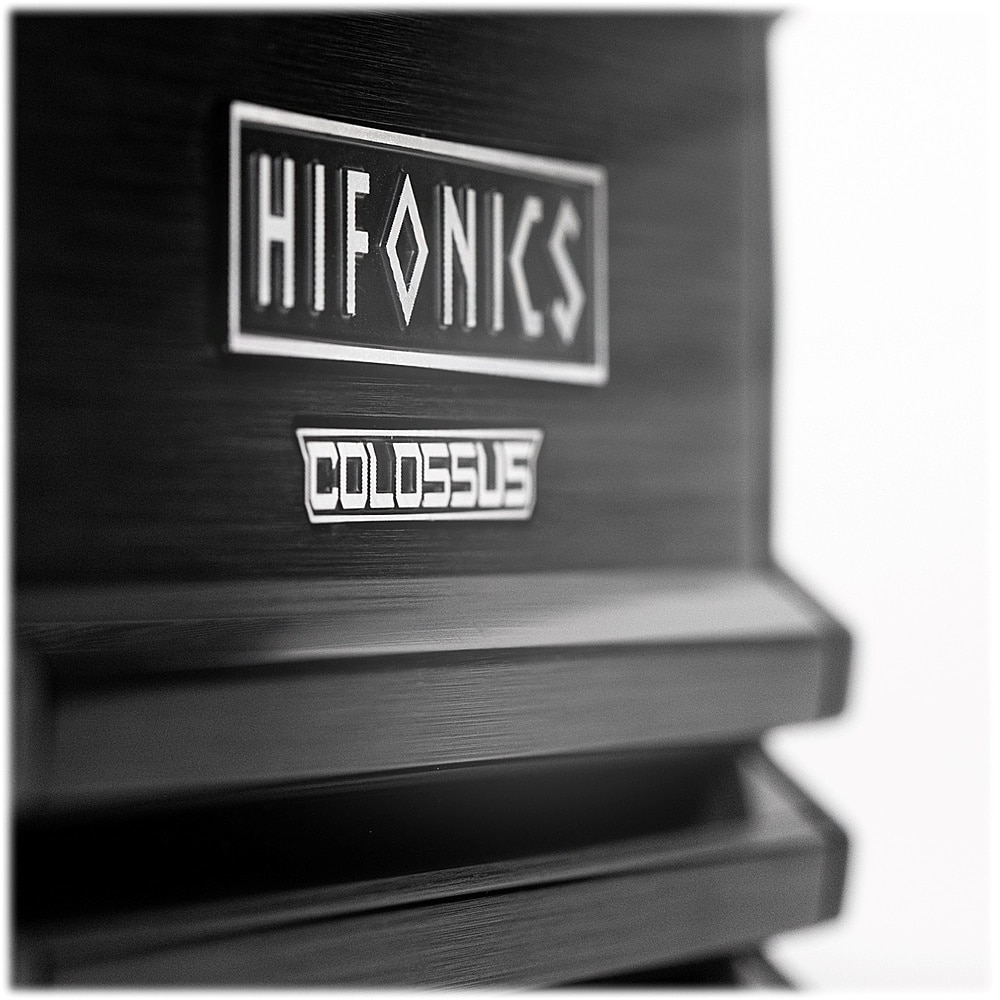

Stylized fly-cut CNC badging
The Hifonics and COLOSSUS logo badges are made of CNC machined aluminum for a sleek and stylish look.
Triple protection circuits
Over-/undervoltage, short circuit, and thermal protection circuits give you peace of mind that your investment (audio system and vehicle) will be protected under nearly every circumstance.

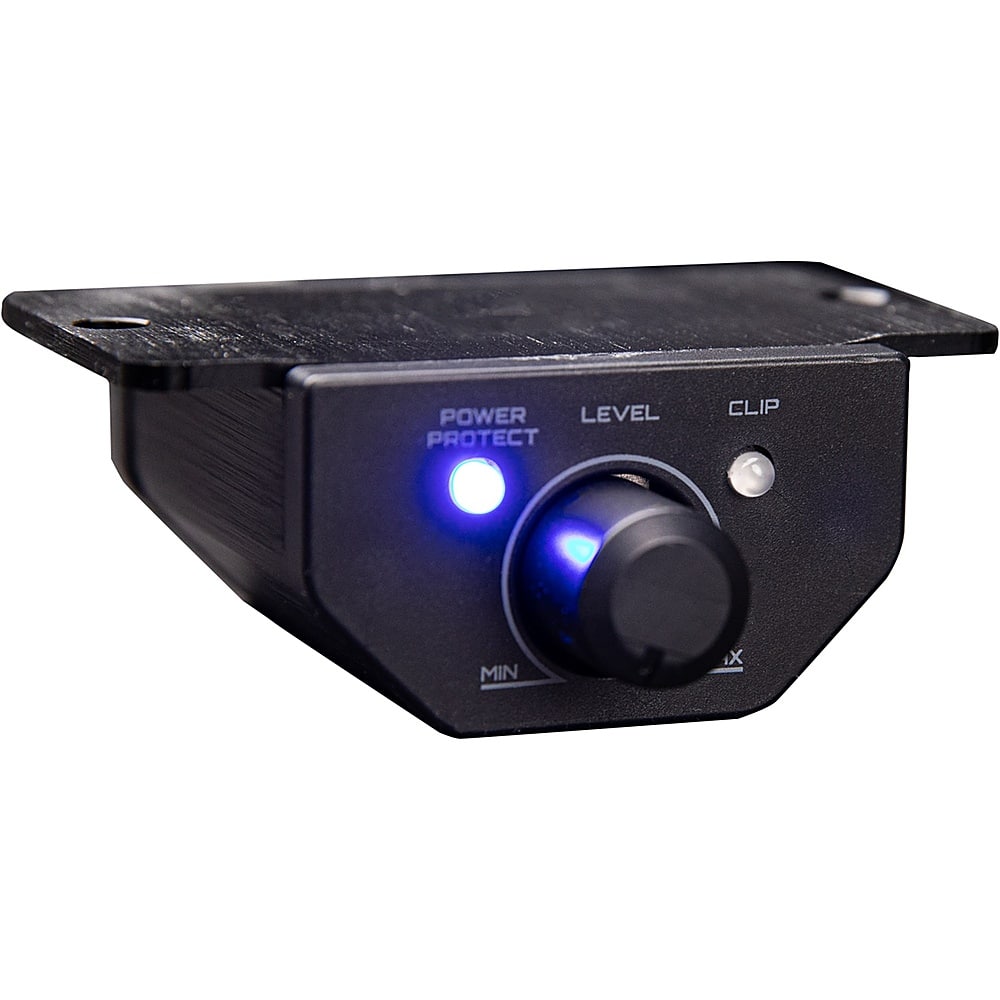

Bass remote included
The included bass remote allows you to adjust the bass level relative to the setting on the amplifier end panel. The LED indicator light displays green when the amplifier is powered on and red when the amplifier enters protection mode.
Specifications
Key Specs
- Color: Black
- Maximum Watts x Channel @ Ohms: 1200 x 1 @ 1 Ohm, 600 x 1 @ 2 Ohms, 300 x 1 @ 4 Ohms
- Amplifier Class: D
- Number Of Channels: 1.0
- Bass Boost: Variable
- Low-Pass Crossover: Variable
- High-Pass Crossover: Variable
- Speaker-Level Inputs: No
General
- Brand: Hifonics
- Model Number: HCM-1200.1D
- Product Name: COLOSSUS MINI 1200W Ultra-Compact Mono Block Car Audio Amplifier
Audio Power
- Total Power Handling Maximum: 1200.0 watts
- Watts Per Channel Maximum: 1200.0 watts
Audio
- Minimum Frequency Response: 10.0 hertz
- Maximum Frequency Response: 11.0 kilohertz
- Total Harmonic Distortion: 0.1 percent
Features
- Remote Control Included: Bass
- Fan Cooled: No
Output
- Preamp Outputs: Yes
Dimensions
- Product Height: 2.72 inches
- Product Width: 5.28 inches
- Product Depth: 11.1 inches
- Product Weight: 5.15 pounds
Warranty
- Warranty – Parts: 1 Year
- Warranty – Labor: 1 Year
Specifications
- UPC: 806576234685
