The Hi-Lift All-Cast Jack is manufactured from high yield and tensile strength iron castings, the same durable metal that Hi-Lift Jack Company has used for over 100 years. The Hi-Lift Jack is rugged, highly versatile, and puts you in command of situations requiring lifting, pushing, pulling, winching, and clamping. The two-piece handle and socket design is built for extended life. For speedy disengaging, the lifting unit automatically drops away when the load is removed. It has a 4.5-inch long lifting nose for positive contact with the load. The climbing pins are made from specially processed steel with 125,000 PSI tensile strength and 100,000 PSI yield. The steel bar is manufactured of specially rolled extra high carbon steel with 80,000 minimum tensile and carbon .69 to .82. The steel bar can be reversed for extra long life. The steel handle is made of 14-gauge high-yield structural tubing with minimum yield of 55,000 PSI.

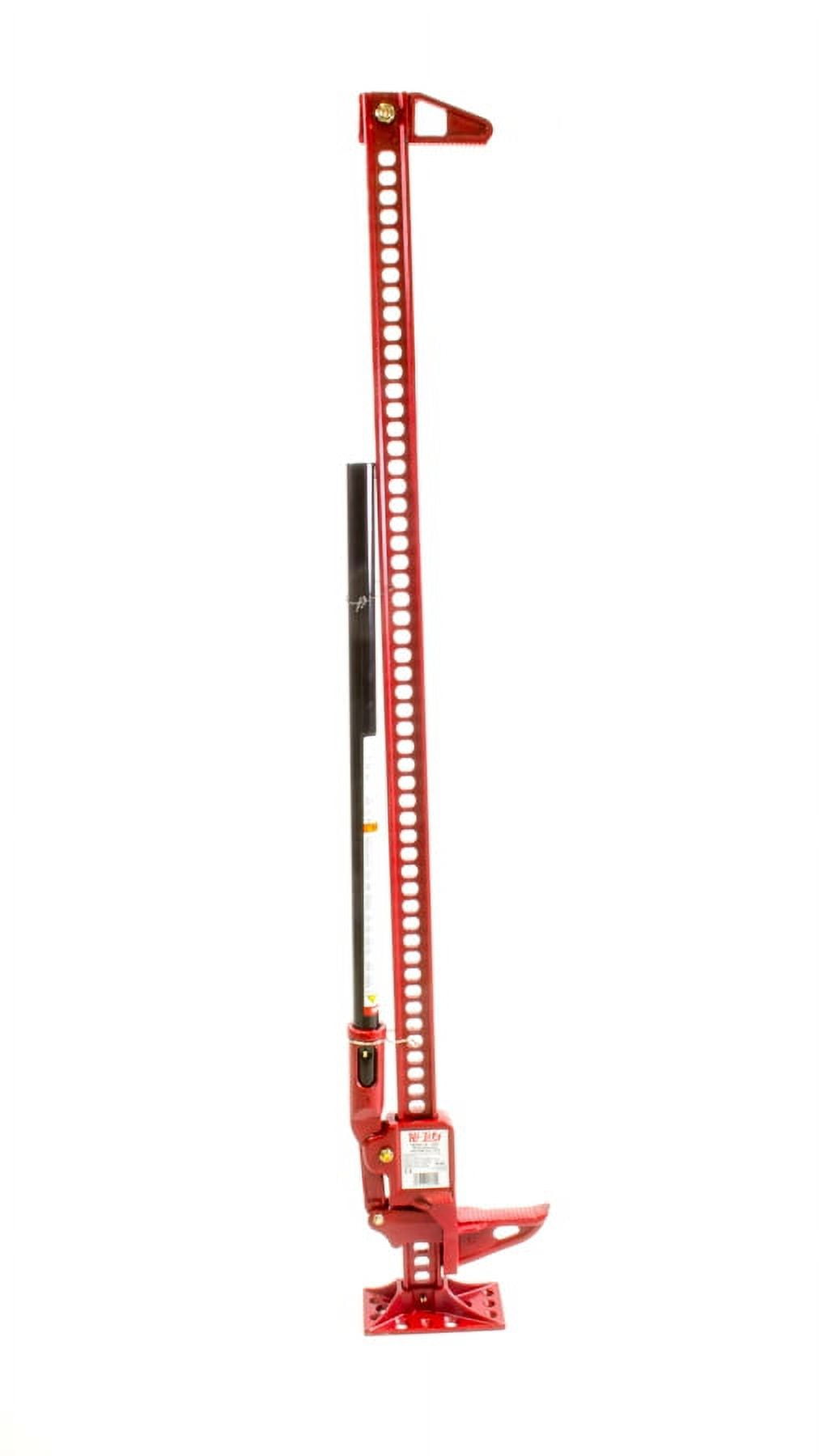

The Hi-Lift Jack 60 inch cast jack is constructed with a mix of cast components Top winch connector clamp and powder coated finish with zinc-plated hardware standard on all jacks Two piece handle and socket is durable and reliable. Made of Cast Parts. Clamping Capacity: 750 lbs Safe use information stickers, including rated load details and operating instructions, affixed to handle For greater safety, all Hi-Lift jacks are equipped with a shear bolt which prevents the jack from being used on loads greater than 7000 pounds
