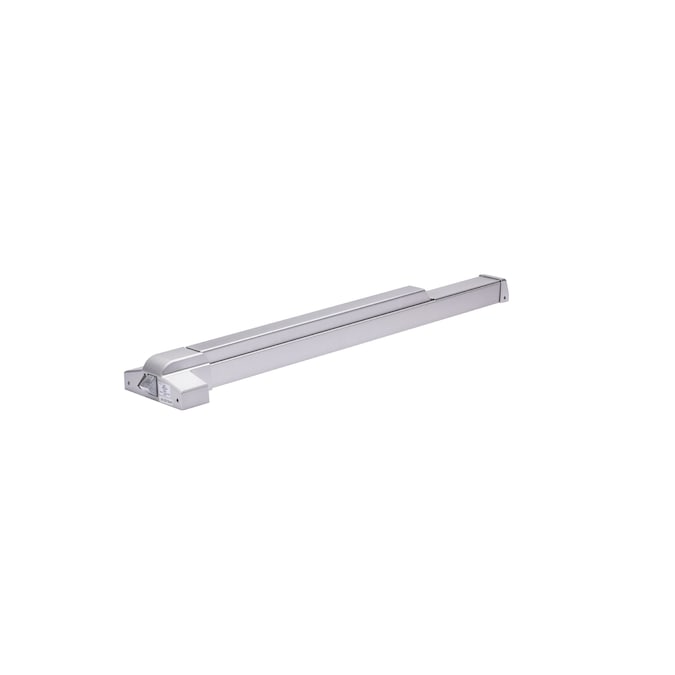

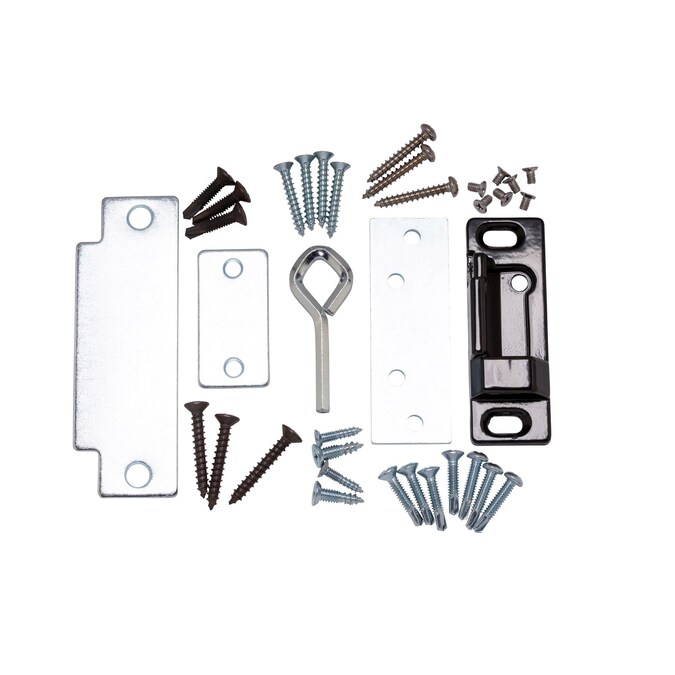

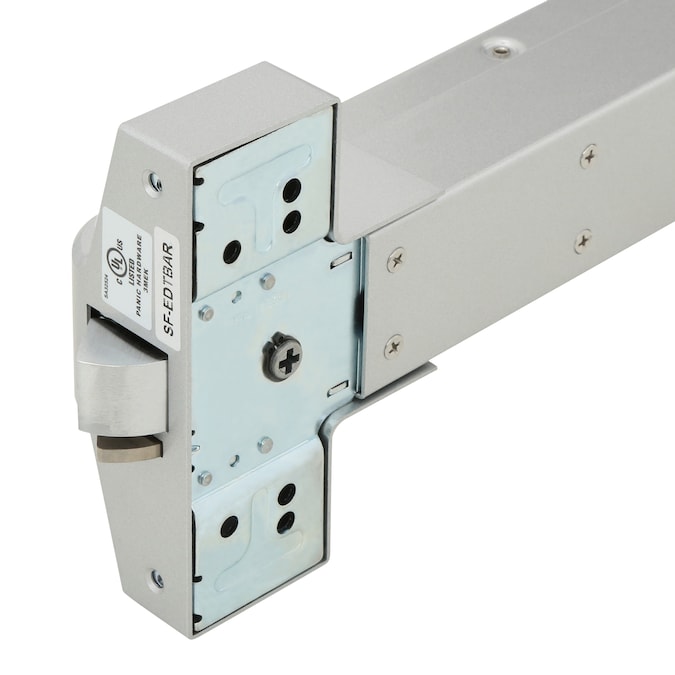

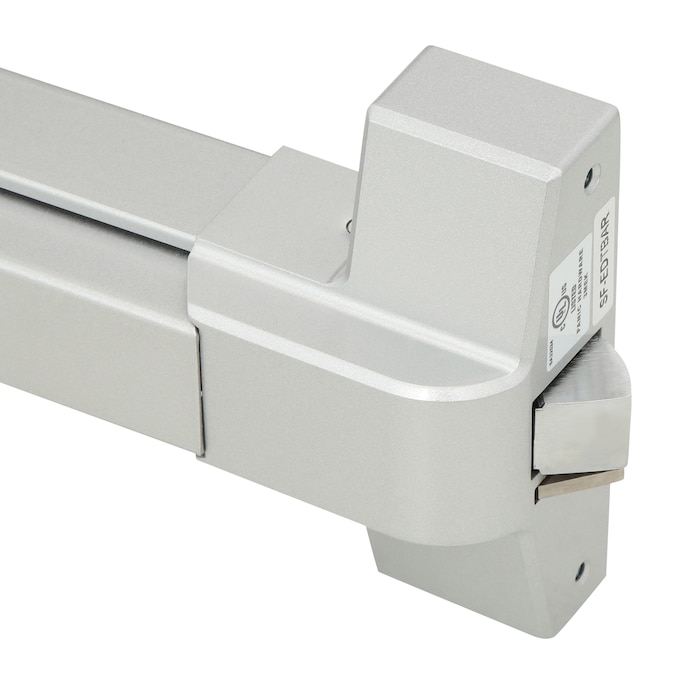

The Global Door Controls EDTBAR series fire rated “Touch Bar” style exit device is suitable for hollow metal or wood doors where there is no projection on the surface. Its’ appropriate for commercial and industrial applications where heavy duty usage is anticipated. Moreover, it fist with doors up to 36 in. wide. It comes with a roller latch, strike plate, and mounting hardware. However, the exterior lever trim is sold separately. These series meet the performance standards of Grade 1 and ADA compliant exit devices. Item is available in Aluminum, Duronodic and Stainless Steel finishes.

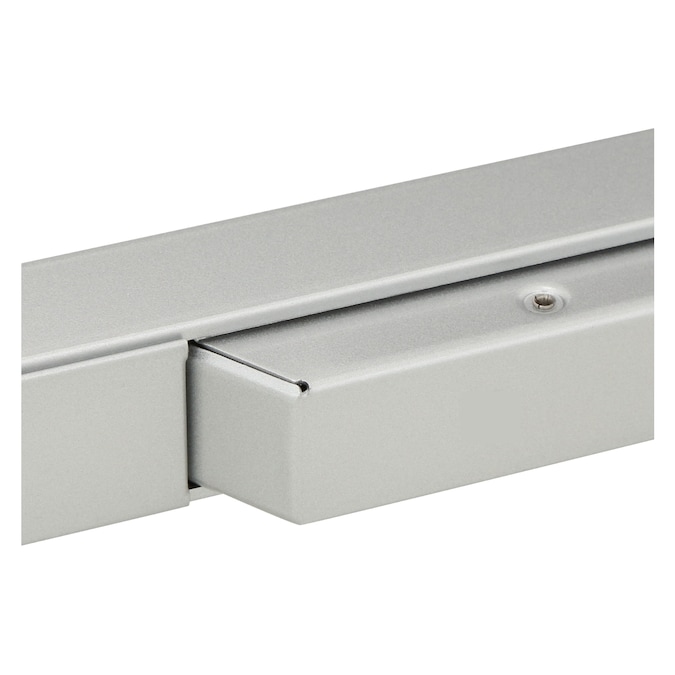

- Rim surface exit device of extruded anodized aluminum
- Compatible with wood and hollow metal doors up to 36in wide
- Meets the standards of Grade 1 and ANSI A156.3 – UL10C Fire Rated
- Suitable for hollow metal or wood doors
- Set up for dogging & includes dogging hex key (½ turn 5/32 in hex key)
- Recommended installation for mounting height at 41 in from finished floor to center line of push rail
- Made from anodized aluminum for more durability
- Comes non-handed / reversible
- 1 Year mechanical and finish warranty
General
- Manufacturer Color/Finish: Aluminum
- Series Name: EDTBAR Series
- Type: Rim exit device
Dimensions
- Height Measurement: 84-in
- Maximum Door Thickness (Inches): 2
- Maximum Door Width (Inches): 36
- Maximum Weight Capacity (lbs.): 300
- Minimum Door Thickness (Inches): 1.75
- Minimum Door Width (Inches): 26
- Projection Measurement: 3-in
- Width Measurement: 36-in
Features
- Commercial/Residential: Commercial
- Door Handing: Universal reversible
- Door Type: Wood and metal
- Drop Forged Arm: No
- Grade Type: Grade 1
- Hardware Included: Yes
- Lockable: Yes
- Material: Aluminum
- Non Handed: Yes
- Parallel Arm Bracket Included: No
- Use Location: Interior/Exterior
- Warranty: 1-year
Certifications
- CA Residents: Prop 65 Warning(s): No
Miscellaneous
- UNSPSC: 30171500
