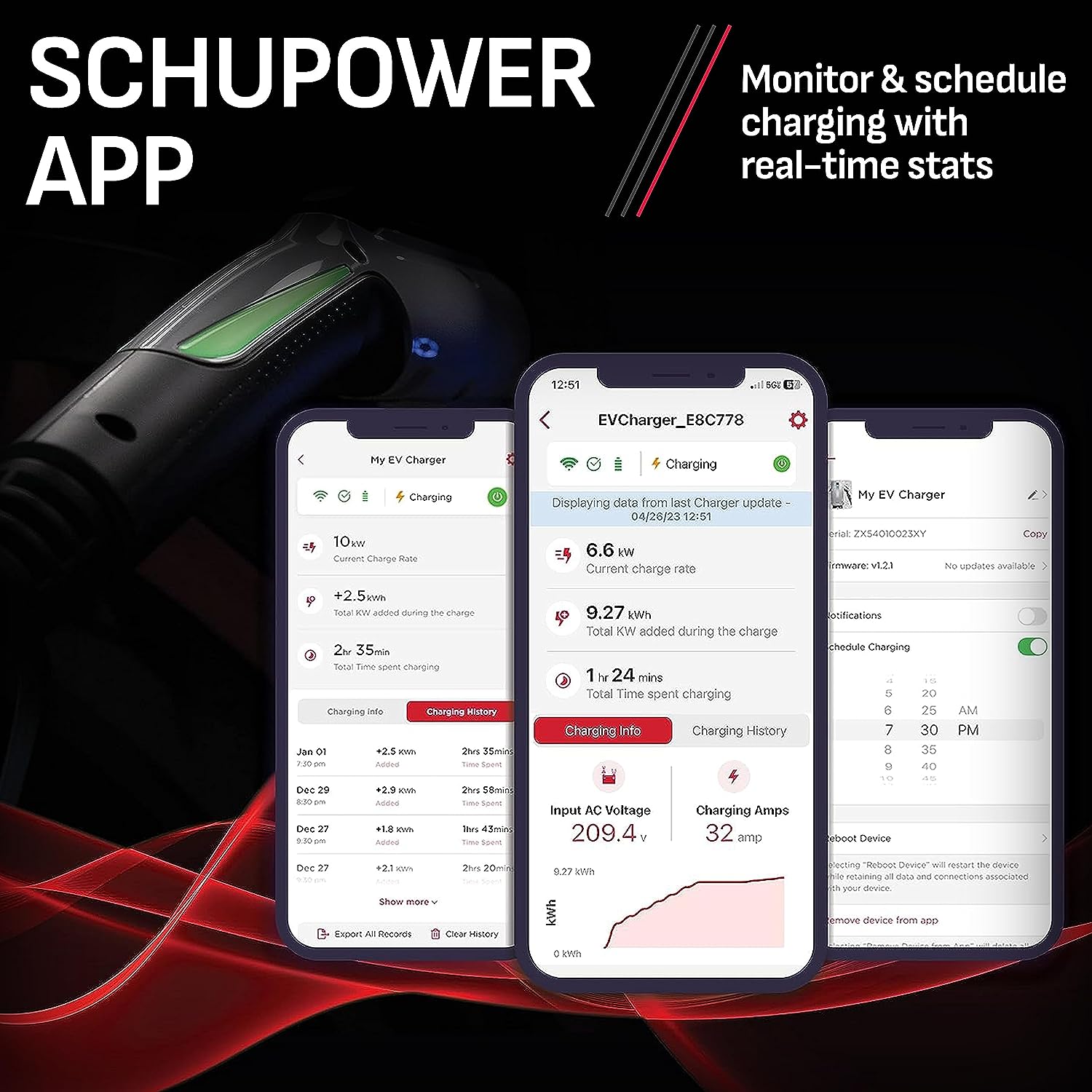

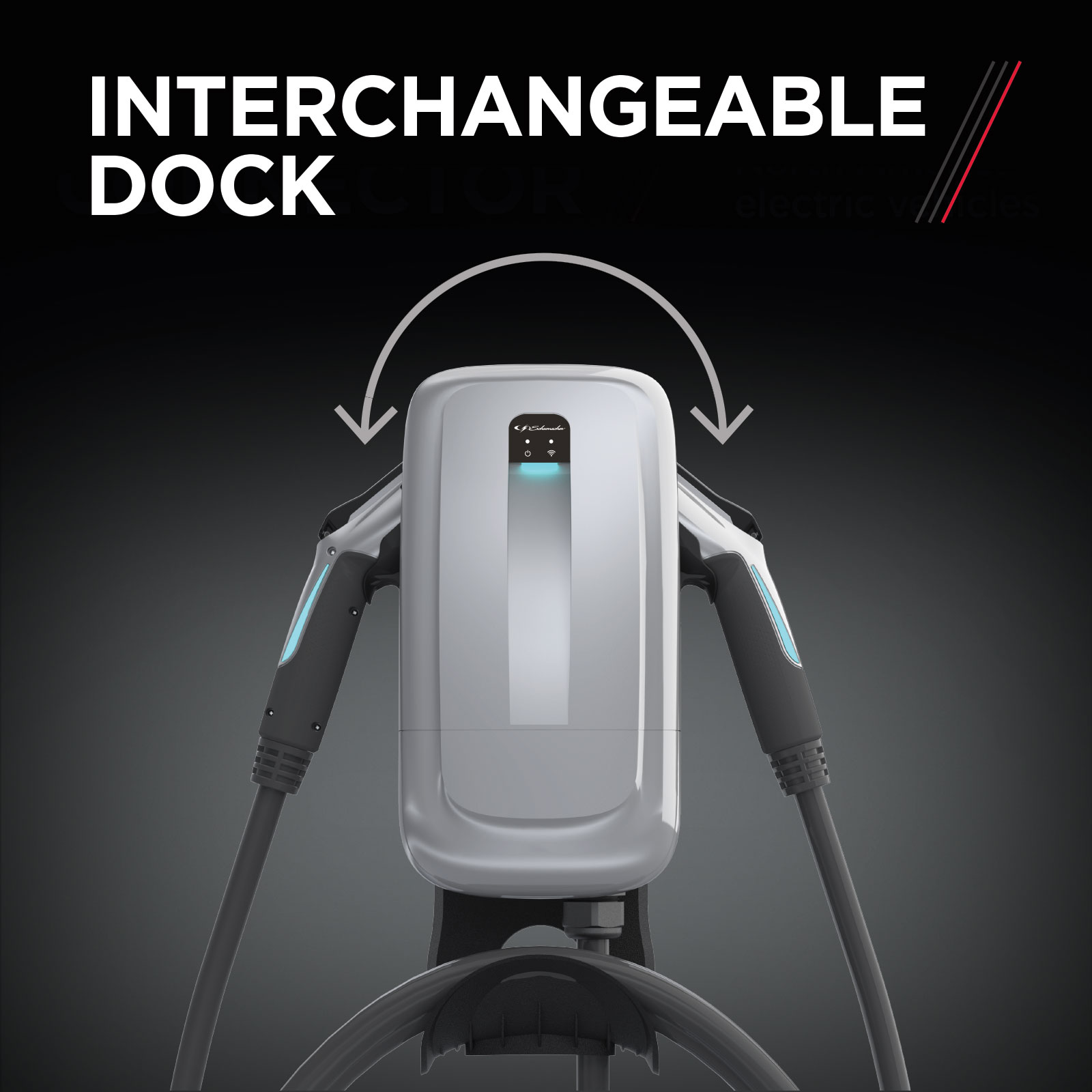

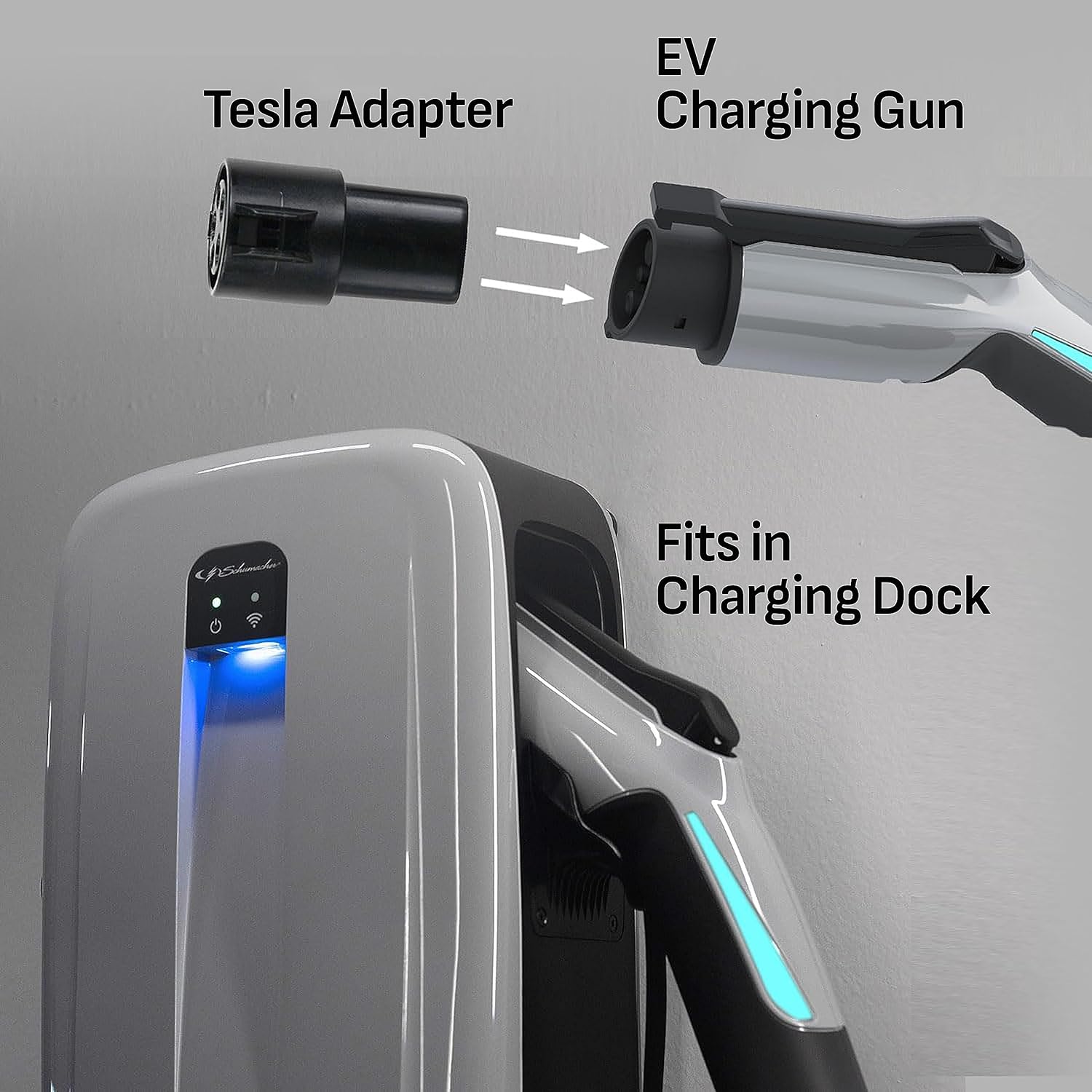

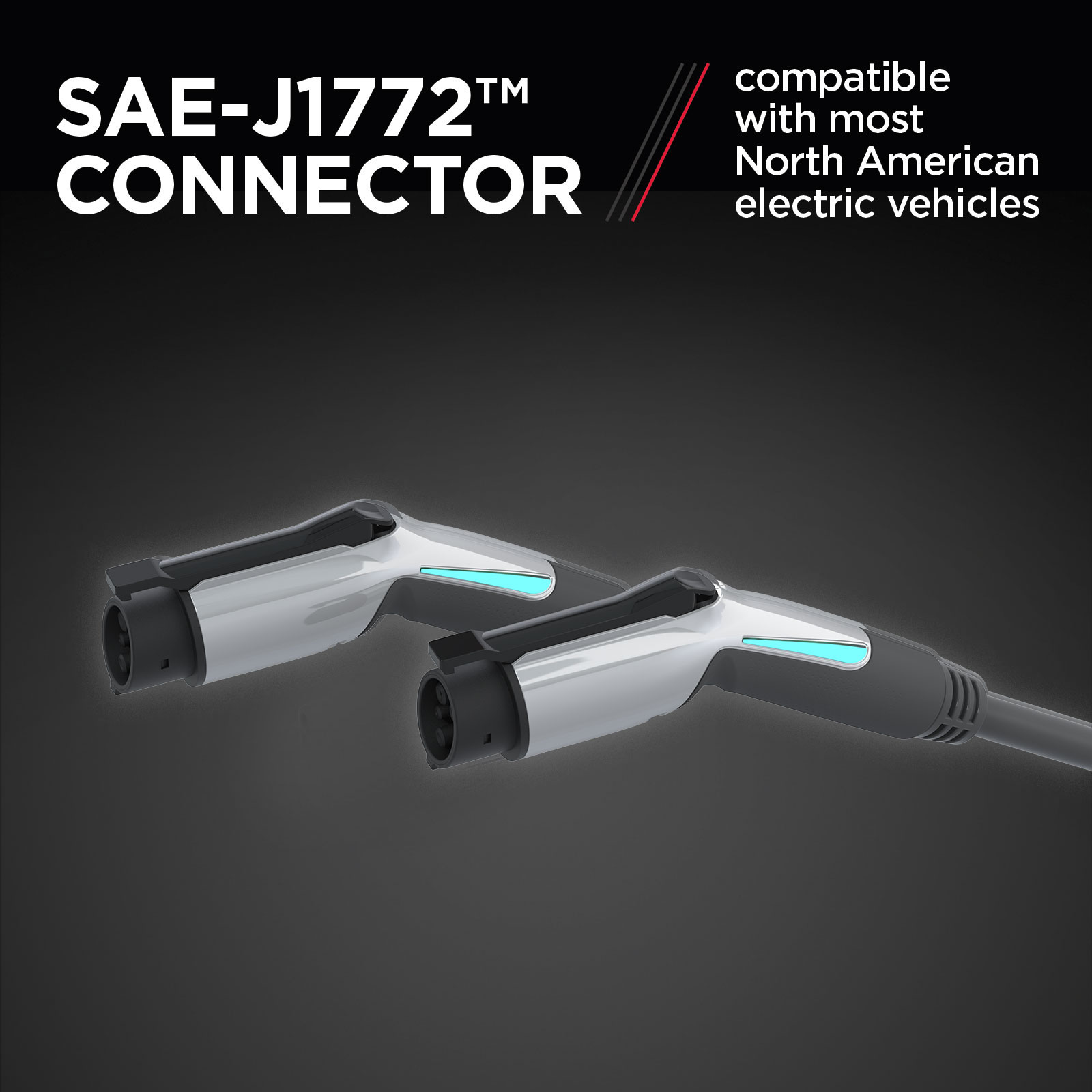

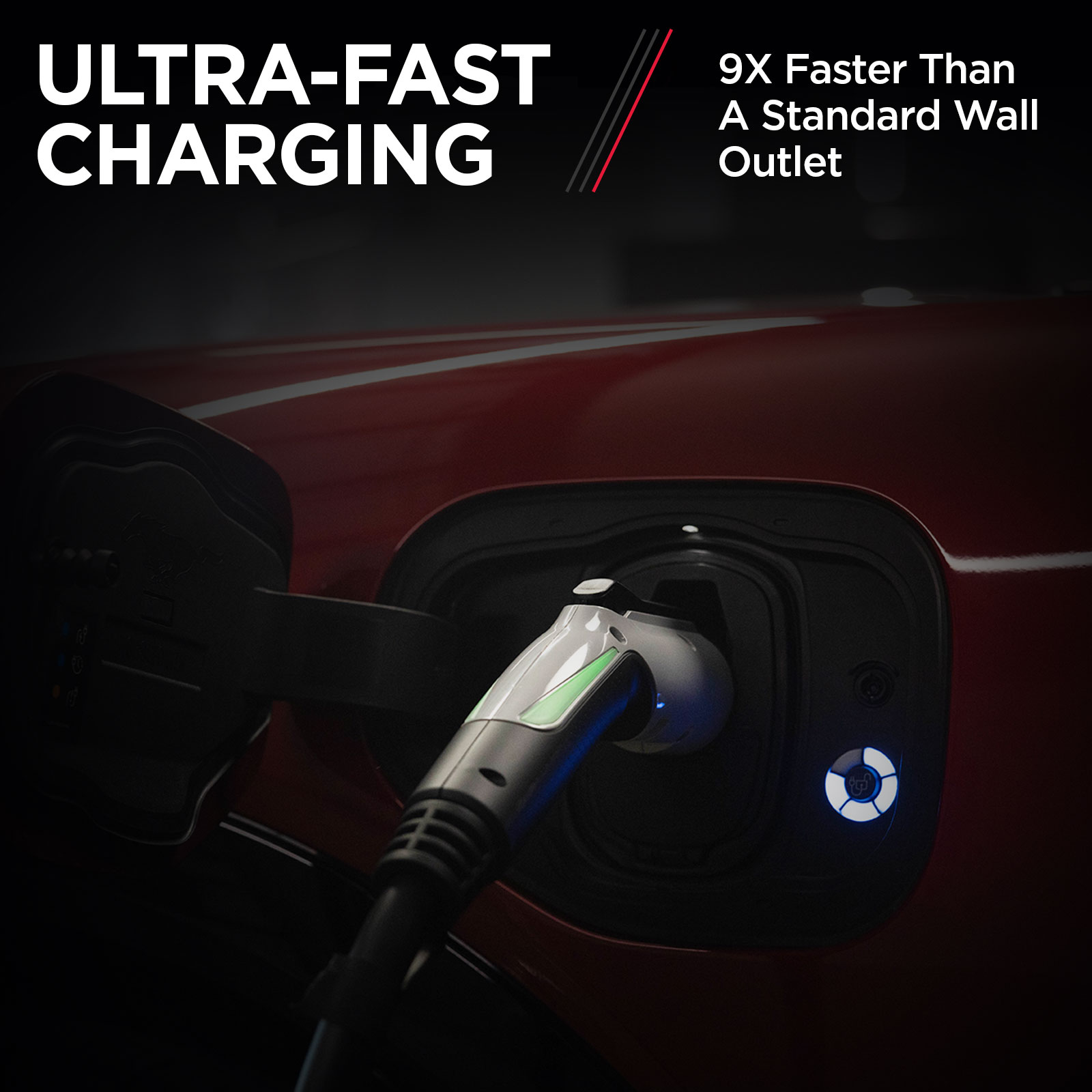

The Schumacher SEV1600HW Hardwired Level 2 EV Wall Charger is the ultimate charging solution for electric vehicle (EV) owners. Enjoy faster charging times and the convenience of charging at home with this advanced unit. With a configurable current up to 50A, this wall charger can charge up to eight times faster than standard Level 1 chargers. The included charging gun features an SAE-J1772 (universal) connector that is compatible with most North American EVs, while Tesla® vehicles may require an adapter (sold separately). Using this charger is a breeze – just plug the charging gun into your EV’s charging port and enjoy automatic charging. With integrated Wi-Fi® and Bluetooth®, you can connect to the SchuPower™ app and schedule charging or monitor charging progress from anywhere. The charger’s low-profile design and built-in cord management, along with the flexible cable cradle, ensure that it won’t take up your garage space or impede your vehicle while pulling in or out. The SEV1600HW also comes with a custom interchangeable dock with dual docking capability, so you can tailor your usage to your needs. The 25-foot long charging cable lets you easily charge your vehicle, whether the charger is installed indoors or outdoors. Upgrade your charging experience with the Schumacher SEV1600HW Hardwired Level 2 EV Wall Charger and power up your EV with ease. The Schumacher SEV1600HW Level 2 EV Wall Charger must be installed by a licensed electrician. Any changes to the wall charger’s electrical settings must also be made by a licensed electrician. Contents include: Schumacher SEV1600HW charging station, output cable with EV charging gun, cable cradle, (2) 5.5 mm (0.22 in.) x 50 mm (2 in.) lag screws for wall mounting, (2) 4 mm (0.16 in.) x 16 mm (0.63 in.) self-tapping screws to attach the cable cradle, mounting template, and user manual.
Color/Finish Family: Silver
Manufacturer Color/Finish: Silver/Black
Series Name: EVSERIES
Cable Length (Feet): 25
Depth (Inches): 19.5
Height (Inches): 12
Weight (lbs.): 24.4
Width (Inches): 17.5
AC Charging Power Output (Kilowatts): 12
ADA Compliant: No
Amperage (Amps): 50
Charging Level: Level 2
Charging Time: 4-8 hours
Commercial/Residential: Residential
Delayed Time Charge: No
Ground Fault Protection: Yes
Hub Required: No
Integrated RFID Reader: No
Exclusive: No
Maximum Working Temperature (Fahrenheit): 122
Minimum Working Temperature (Fahrenheit): -22
Mounting Hardware Included: Yes
Mounting Type: Wall mounted
Number of Charging Plugs: Single
Power Source: Hardwired
Remote Access: No
Simultaneous Charging: No
Smartgrid Enabled: No
Universal: Yes
Use Location: Indoor/Outdoor
Voice Controlled: No
Volts: 240
App Compatibility: Yes
Bluetooth Compatibility: Yes
Compatibility: Fits all electrical vehicles
Smart Compatible: No
Wi-Fi Compatibility: Yes
Works with Amazon Alexa: No
Works with Android: No
Works with Apple HomeKit: No
Works with iOS: No
Works with SmartThings: No
Works with the Google Assistant: No
CA Residents: Prop 65 Warning(s): Yes
cUL 2594 Compliant: No
ENERGY STAR Certified: Yes
NEC 625 Compliant: No
SAE J1772 Compliant: Yes
Safety Listing: cMETus safety listing
UL 2594 Compliant: No
UNSPSC: 52161500
