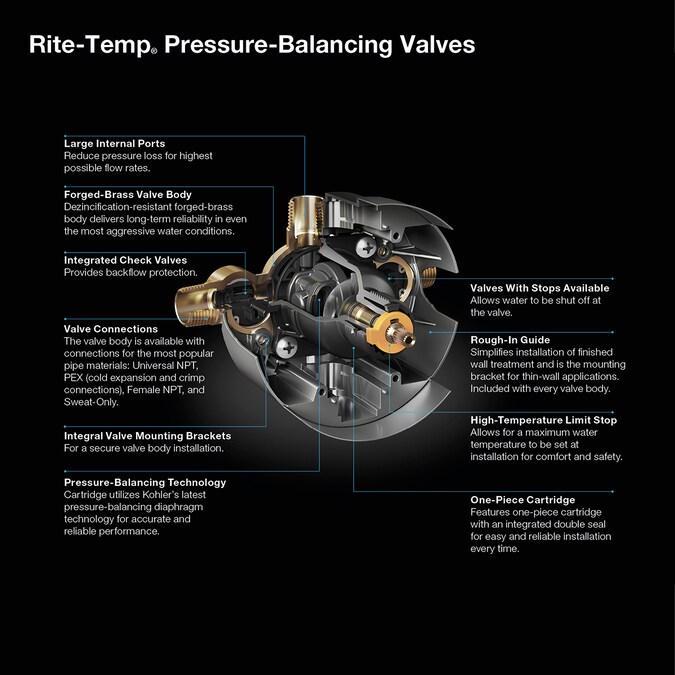

The new ER Rite-Temp valve system sets new standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish from ER’s comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.
- Includes valve body, pressure balance cartridge, rough-in guide, and mudguard
- 1/2-In Universal NPT and direct sweat inlets and outlets
- 5.0 gpm (18.9 l/min) maximum flow rate at 45 psi
- Single lever design cycles from off through cold to hot
- Provides temperature regulation and automatic anti-scald protection

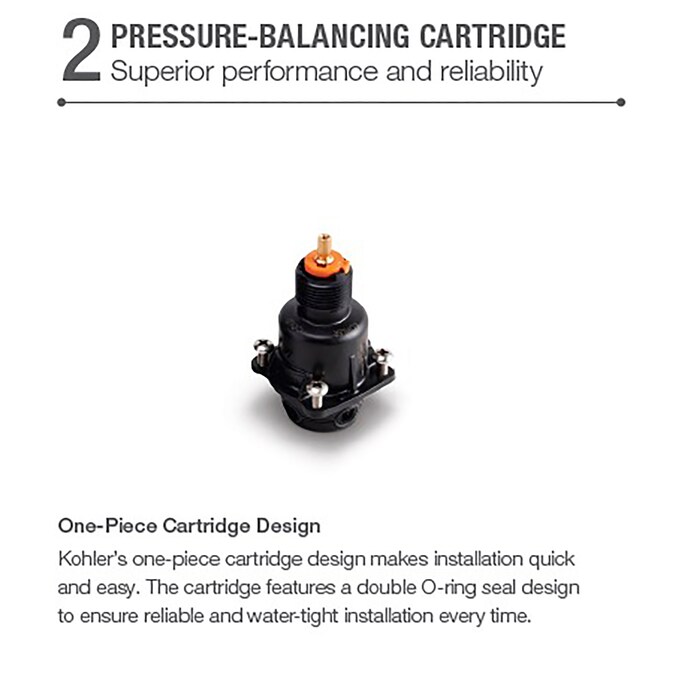

- One piece cartridge design simplifies installation and maintenance
- Adjustable high temperature limit stop to control maximum water temperature
- Requires valve trim to complete installation (sold separately)
- Designed for use in standard, back-to-back and thin wall installations
General
- Series Name: N/A
- Type: Pressure relief valve
Dimensions
- Inlet Diameter: 1/2-in
- Inlet Size in Inches: 1/2-in
- Outlet Diameter: 1/2-in
Features
- Inlet Thread Type: MNPT

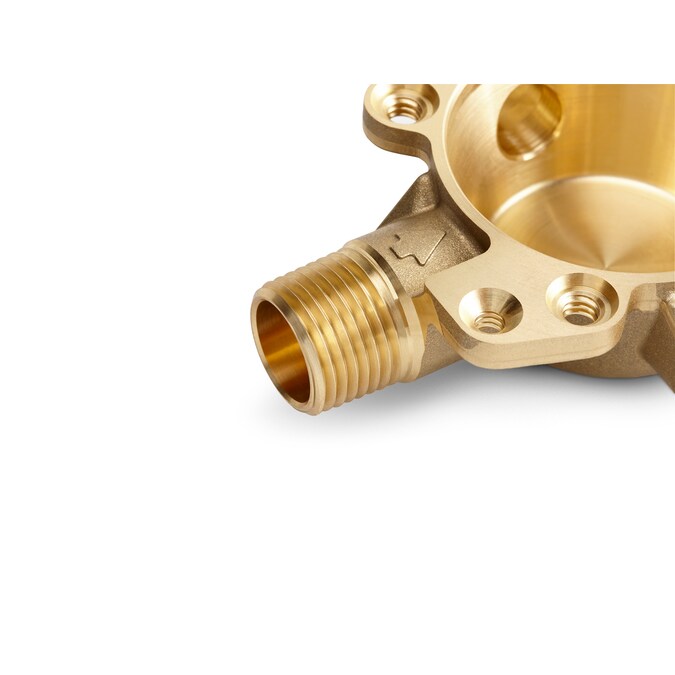

- Material: Brass
- Maximum Pressure: 45 PSI
- Outlet Thread Type: MNPT
- Warranty: Limited lifetime
Compatibility
- Compatible Pipe Material: N/A
Certifications
- CA Residents: Prop 65 Warning(s): No
- Complies with Federal Lead Guidelines: Yes
Miscellaneous
- UNSPSC: 40141600
