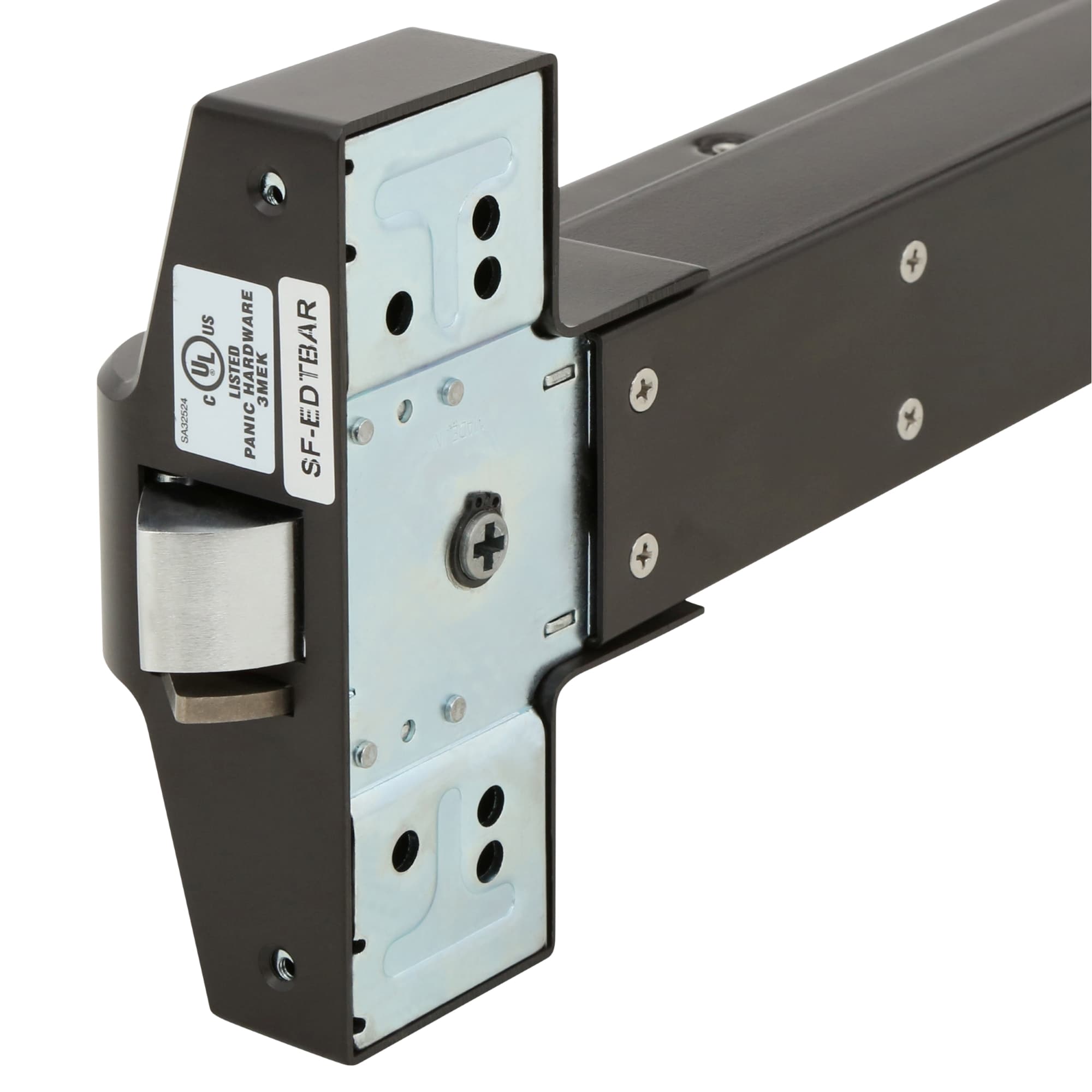

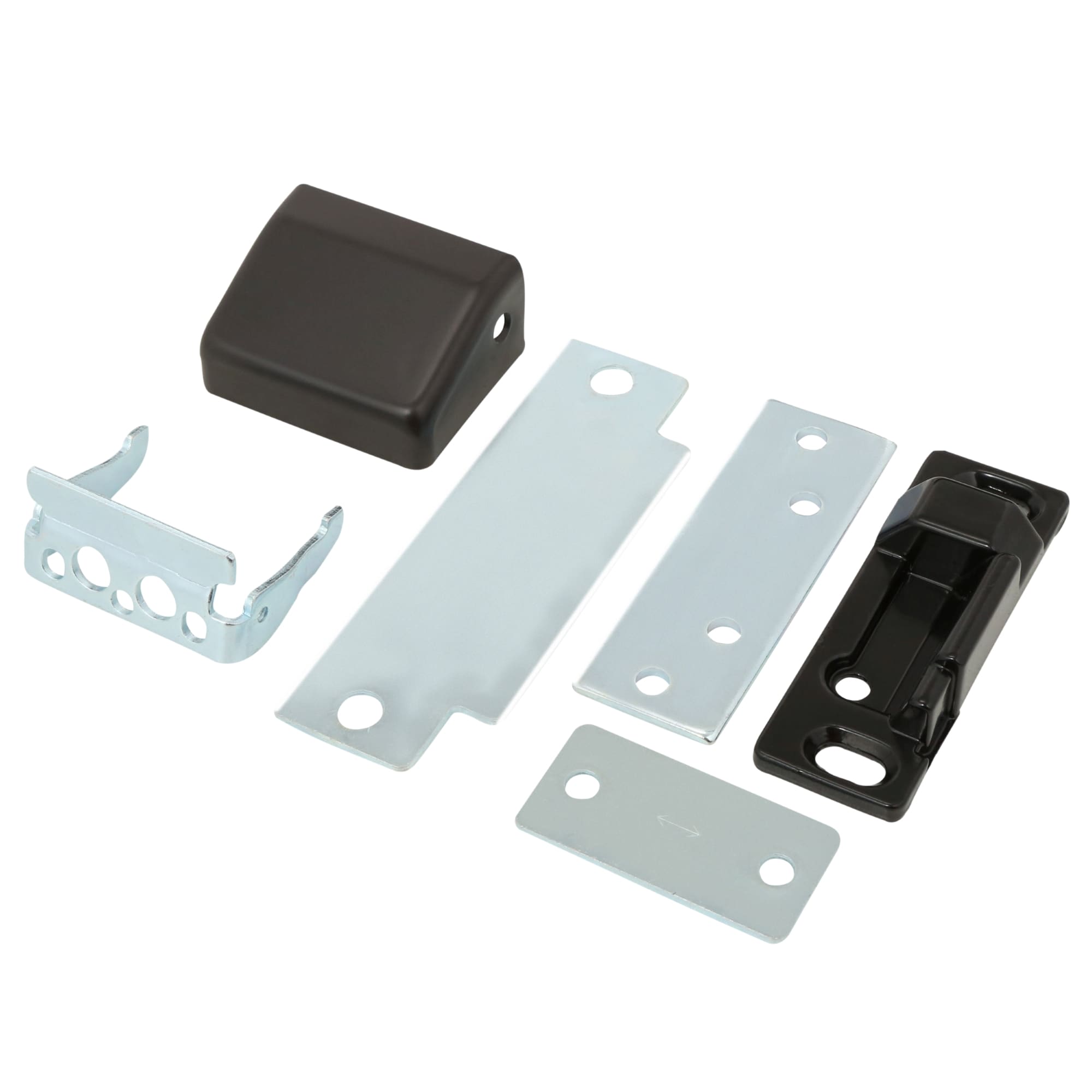

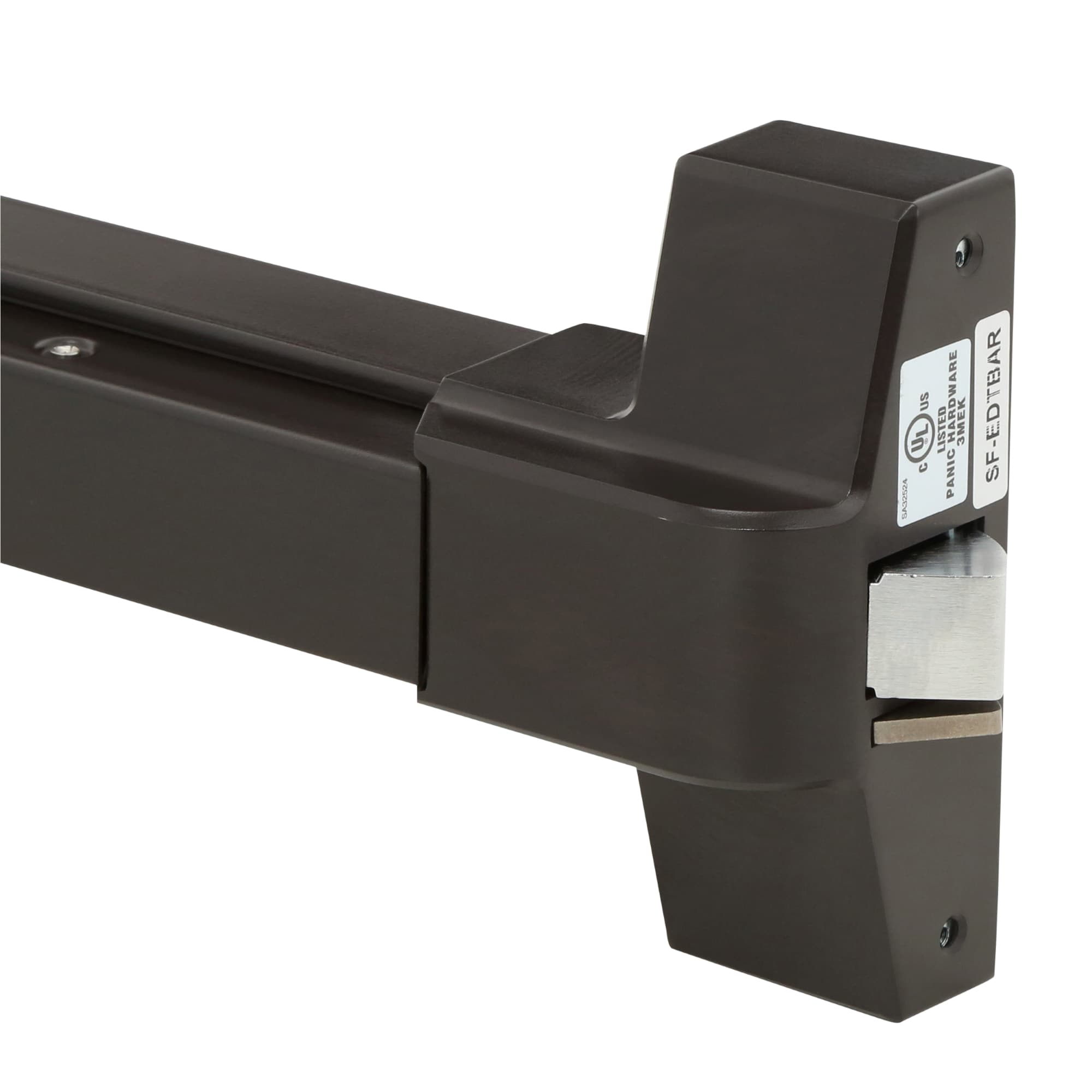

The Global Door Controls EDTBAR series “Touch Bar” style exit device is suitable for hollow metal or wood doors where there is no projection on the surface. Its’ appropriate for commercial and industrial applications where heavy duty usage is anticipated. Moreover, it fist with doors up to 36 in. wide. It comes with a roller latch, strike plate, and mounting hardware. However, the exterior lever trim is sold separately. These series meet the performance standards of Grade 1 and ADA compliant exit devices. Item is available in Aluminum, Duronodic and Stainless Steel finishes.
Manufacturer Color/Finish: Duronodic
Series Name: EDTBAR Series
Type: Rim exit device

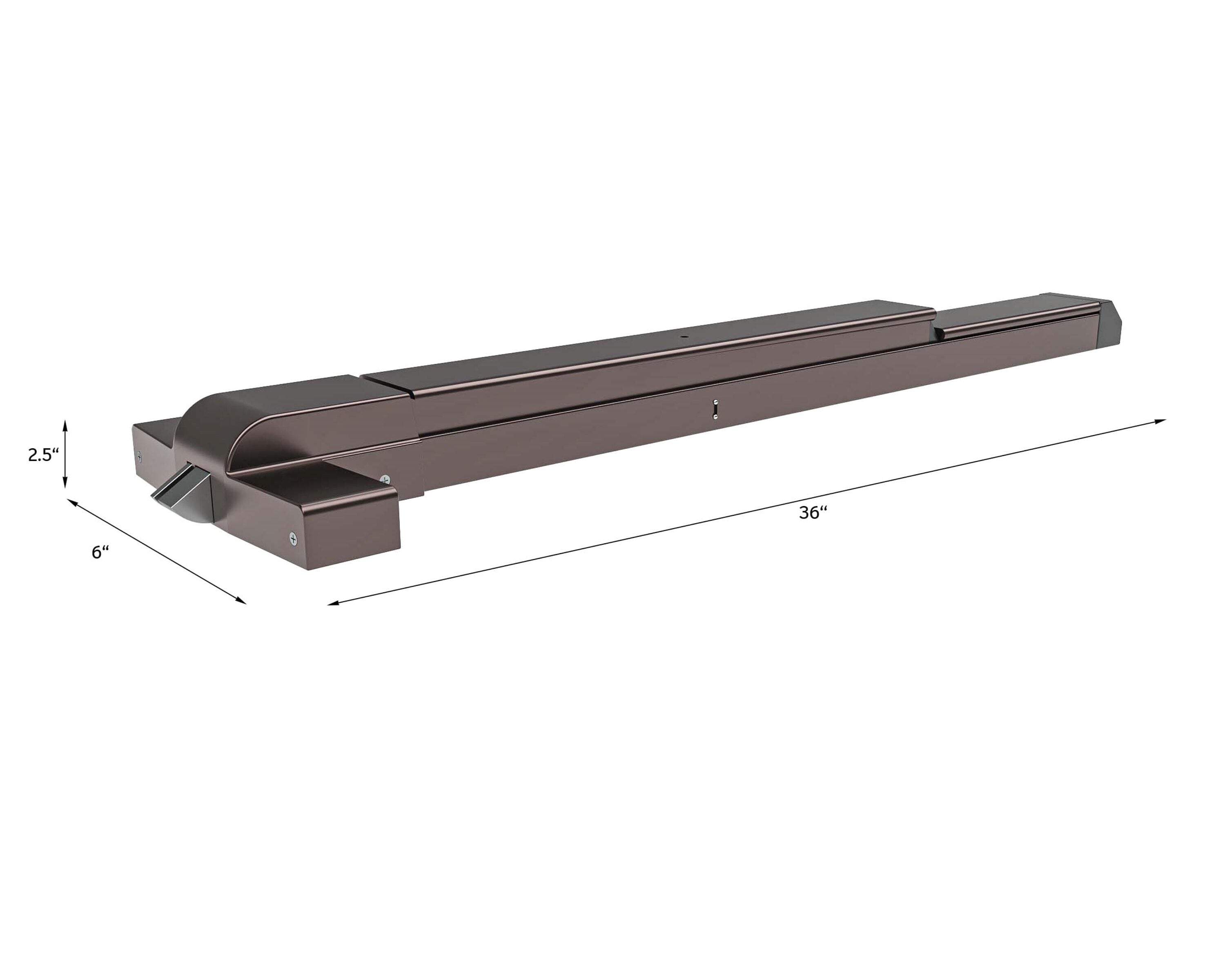

Height Measurement: 84-in
Maximum Door Thickness (Inches): 2.0
Maximum Door Width (Inches): 36
Maximum Weight Capacity (lbs.): 300
Minimum Door Thickness (Inches): 1.75
Minimum Door Width (Inches): 30
Projection Measurement: 3-in
Width Measurement: 32-in
Commercial/Residential: Commercial
Door Handing: Universal reversible
Door Type: Wood and metal
Drop Forged Arm: No
Grade Type: Grade 1

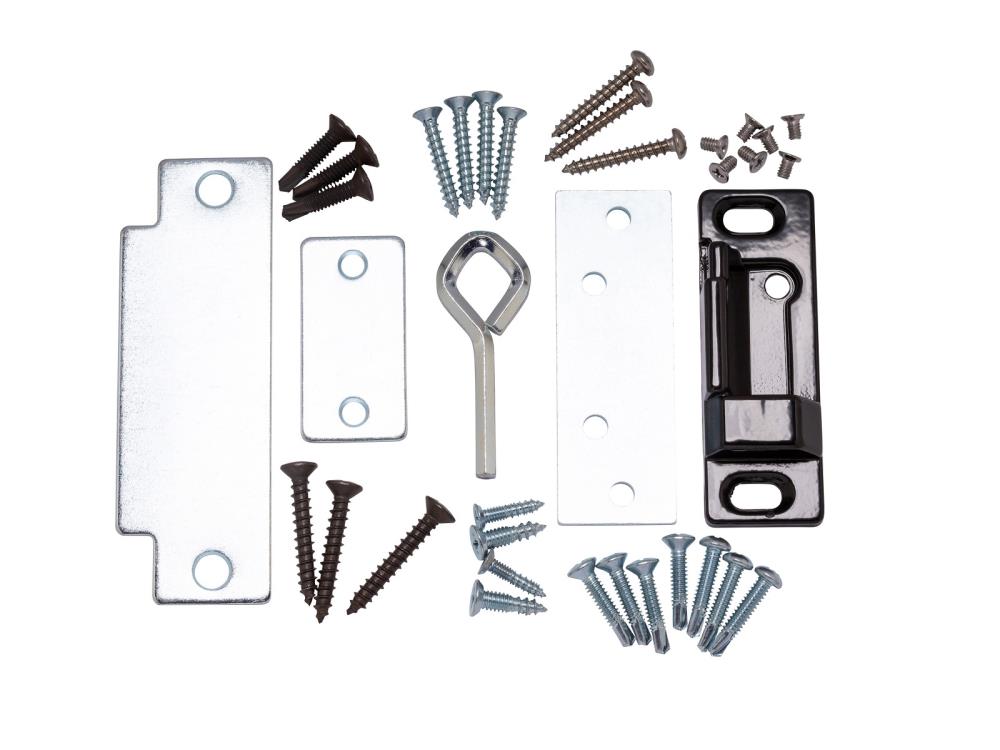

Hardware Included: Yes
Lockable: Yes
Material: Aluminum
Non Handed: Yes
Parallel Arm Bracket Included: No
Use Location: Interior/Exterior
Warranty: 1-year
CA Residents: Prop 65 Warning(s): No
UNSPSC: 30171500
