Quick, easy and clean describe the new plug-on neutral design attributes offered by Eaton. Time saving features offer a quick installation equating to less time on the job. Designed to maximize installation efficiency and to provide additional convenience allowing for an easy installation. New features that help ensure an aesthetically clean and professional installation.
- BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings
- Rated NEMA 3R for outdoor use
- Dedicated neutral bus for breaker connection
- In-board neutral bar increases gutter space to allow for professional installation of conductors

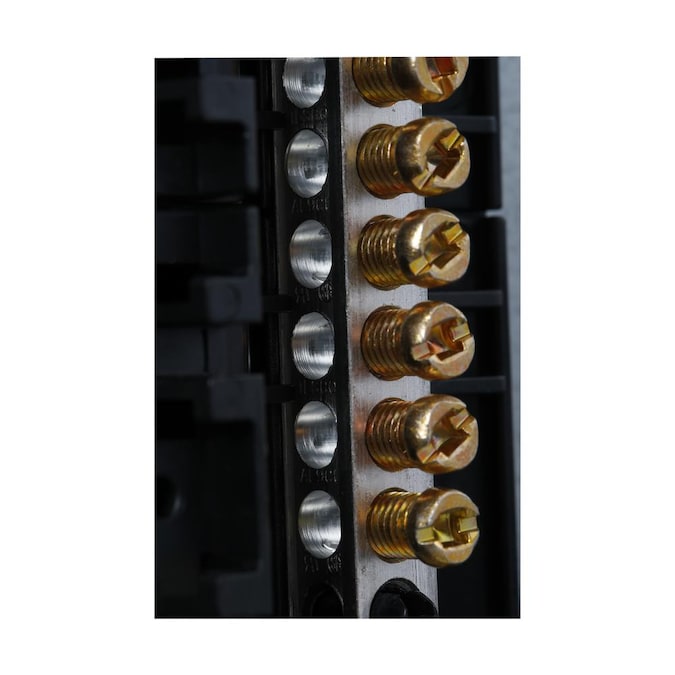

- Backed out neutral screws allows for quick connection of neutral and ground conductors

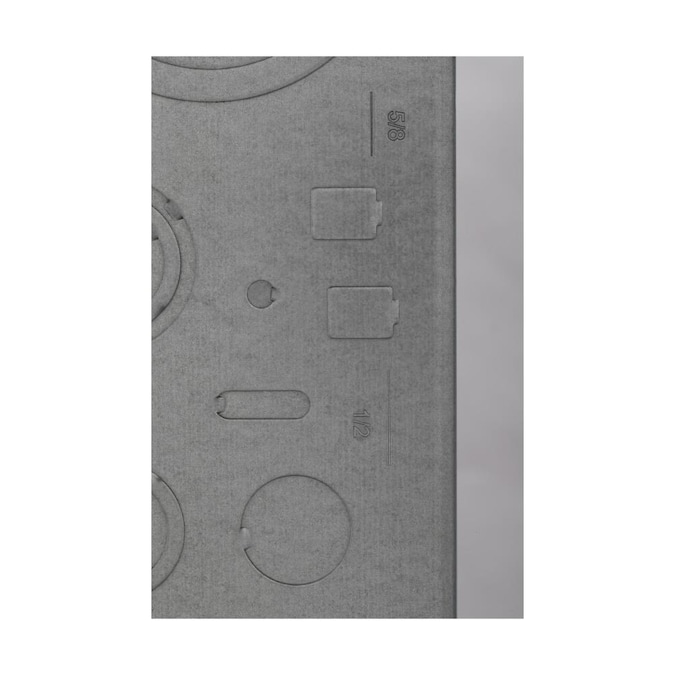

- Optimized knockout locations for additional access and easier to remove
- Self-leveling tabs allow for quick drywall offset and helps simplify installation
- Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications

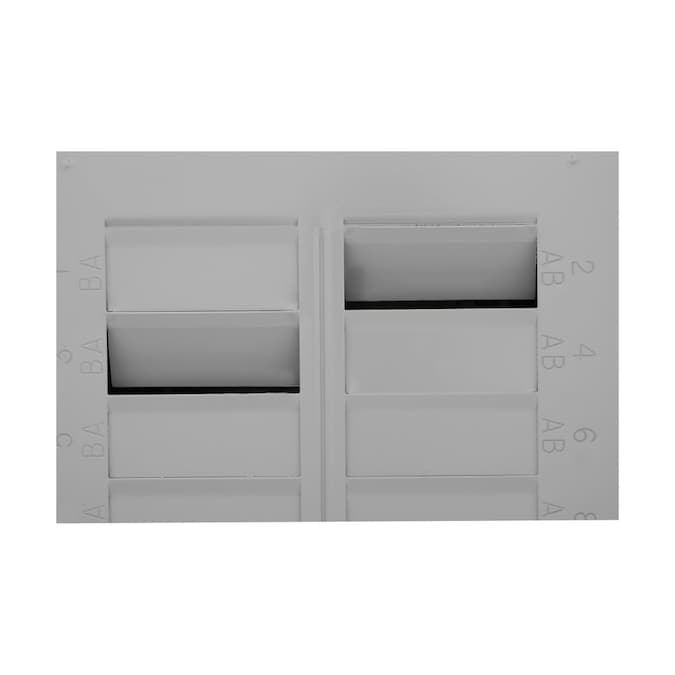

- Rigid cover spine provides strength when twist outs are removed allowing for easier removal
General
- Manufacturer Color/Finish: Gray
- Series Name: Type BR
- Type: Main lug
Dimensions
- Depth (Inches): 22.5
- Height (Inches): 5.5
- Width (Inches): 15.8
Features
- Amperage: 125
- Buss Bar Construction: Aluminum
- Circuits: 40
- Cover Included: Yes
- Feed-Through Lugs: No
- Ground Bar Installed: No
- Mounting Type: Combination
- Number of Spaces: 20
- Orientation: Over/Under
- Paintable: No
- Phase Type: Single phase (120/240)
- Plug-On Neutral: Yes
- Usage: Sub-panel
- Use Location: Outdoor
- Value Pack: No
- Value Pack Contents: Non-applicable
- Warranty: 10-year limited
Compatibility
- Brand/Model Compatibility: Fits Most
Certifications
- CA Residents: Prop 65 Warning(s): No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 39121100
