Complete rod hanging, seismic and safety attachments, cable tray and strut mounting, clamp mounting, and/or rail mounting applications with the 20V MAX* XR® 1 in. Rotary Hammer. This high-performance drill is powered by a brushless motor and a durable German-engineered mechanism that delivers 2.1 Joules of impact energy. Equipped with SHOCKS ACTIVE VIBRATION CONTROL®, this tool helps maximize productivity on tough jobs.
- Brushless motor for extended runtime and durability

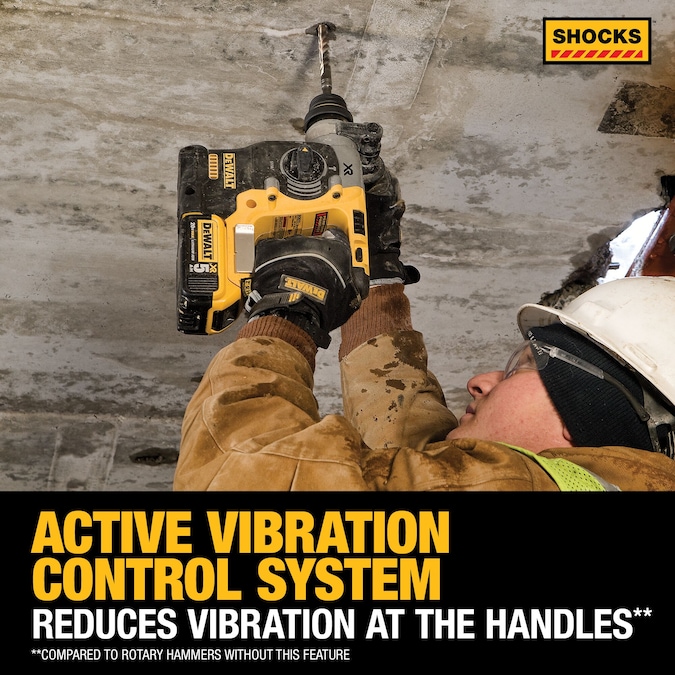

- SHOCKS- active vibration control significantly reduces vibration and increases user comfort and productivity, a Perform and Protect feature

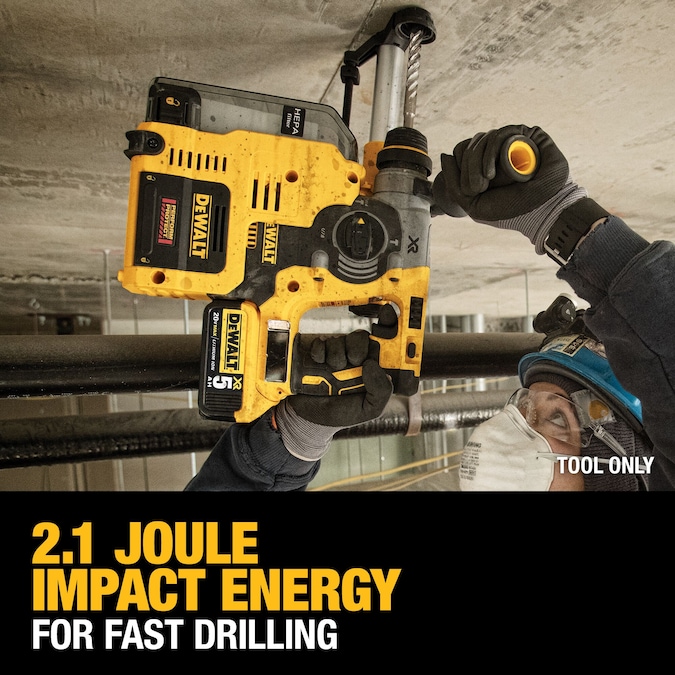

- 2.1 Joules impact energy provides corded power without the cord
- Retractable utility hook for convenient hanging
- Outstanding power-to-weight ratio results in superior productivity

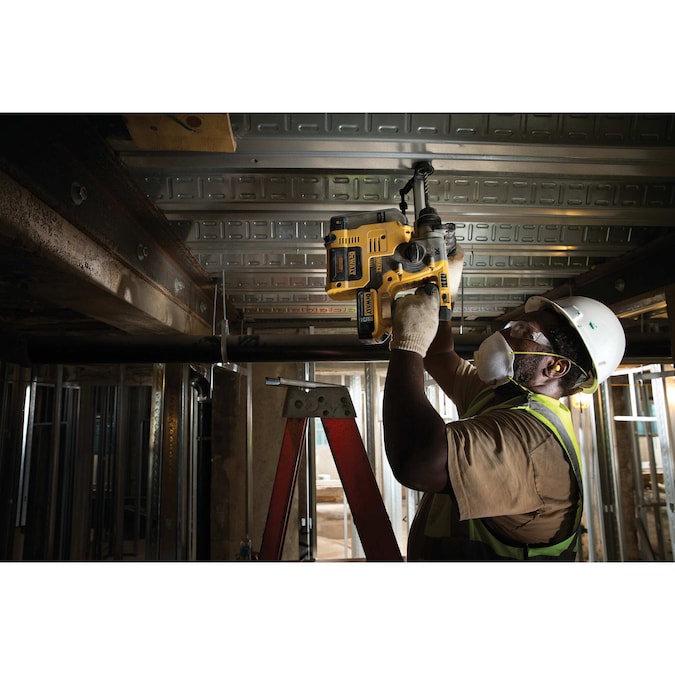

- Optimized ergonomic design provides exceptional overhead drilling experience
- Factory-set clutch reduces sudden, high torque reactions if bit jams

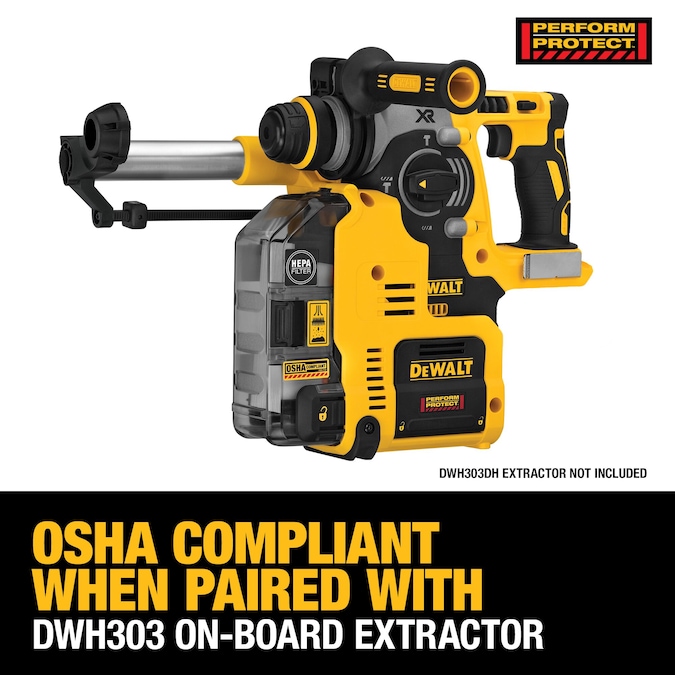

- Dust extractor ready; use with D25303DH
- Includes (1) DCH2731 1-in brushless rotary hammer, (1) 360 degree side handle, (1) depth rod, (1) retractable utility hook
General
- Battery Voltage: 20-volt max
- Color/Finish Family: Yellow
- Series Name: N/A
- Sub-Brand: XR
Dimensions
- Maximum Capacity Concrete (Inches): 1
- Maximum Capacity Steel (Inches): 0.5
- Maximum Capacity Wood (Inches): 1
- Maximum Chuck Size: 1-in
- Tool Height (Inches): 8.6
- Tool Length (Inches): 13
- Tool Weight (lbs.): 5.4
- Tool Width (Inches): 4.2
Features
- Bare Tool: Yes
- Battery Amp Hours: 0
- Battery Platform: DEWALT 20V MAX
- Battery Type: Sold separately
- Case Included: No
- Charge Time (Minutes): 0
- Charger Included: No

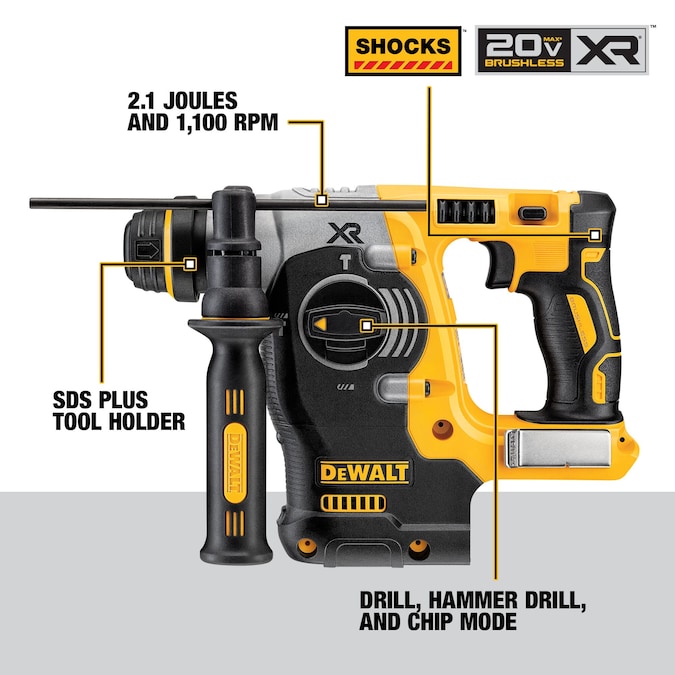

- Chuck Type: SDS-plus
- Cordless: Yes
- Forward and Reverse Switch Included: Yes
- Impact Energy (Foot/lbs.): 2.1
- Keyed/Keyless: Keyless
- Maximum BPM: 4600
- Maximum RPM: 1100
- Number of Batteries Included: 0

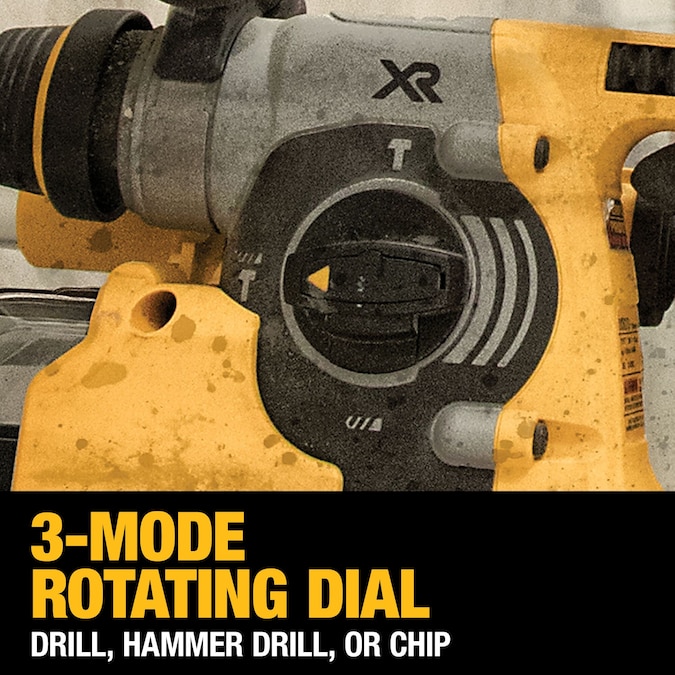

- Operation Modes: Hammer; rotation; Rotary hammer
- Package Contents: DCH273 1-in (26mm) SDS rotary hammer, 360° side handle, depth rod, and adjustable hook
- Side Handle Included: Yes
- Tool Power Output: N/A
- Variable Speed: Yes
Compatibility
- App Compatibility: No
- Bluetooth Compatibility: No
- Wi-Fi Compatibility: No
- Works with Android: No
- Works with iOS: No
Warranty
- Battery Warranty: N/A
- Tool Warranty: 3-year
- Warranty: 3-year limited
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 27112700
