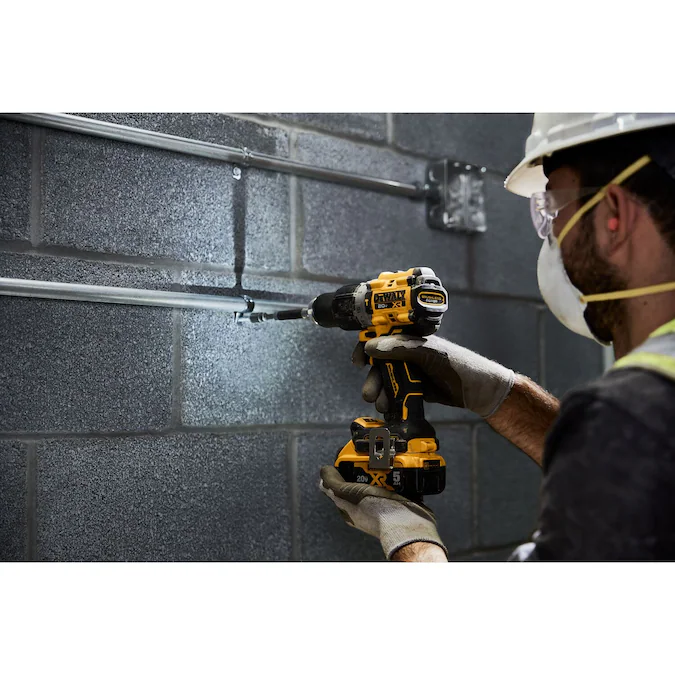

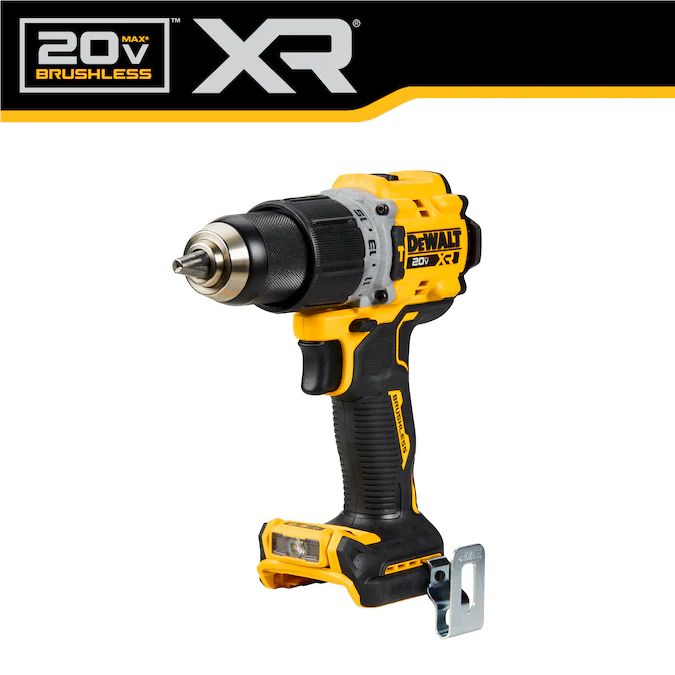

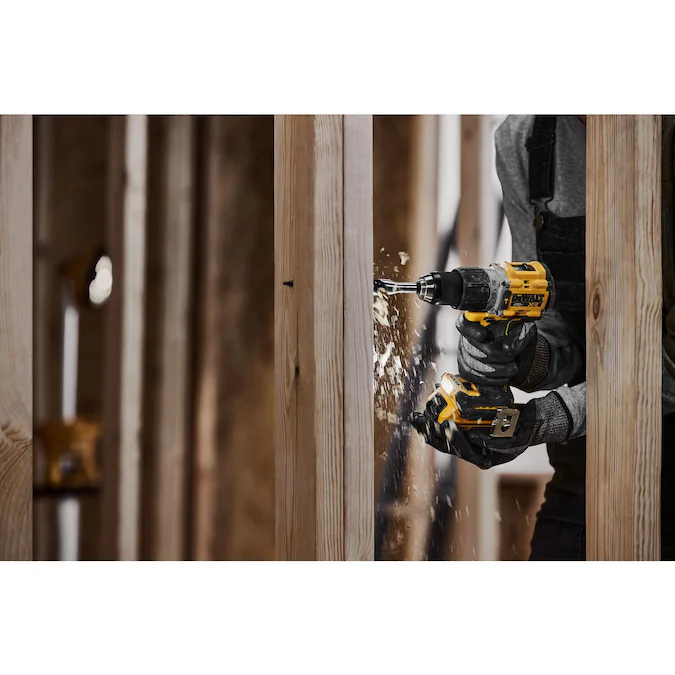

Experience Power™ and complete demanding drilling applications with this 20V MAX* XR® Brushless Cordless 1/2 in. Hammer Drill/Driver. Make quick work of masonry drilling applications with the integrated hammer mode function. The lightweight and balanced design allows for extended productivity in tight spaces.
- Complete challenging projects with up to 40% more UWO** versus the DCD796B using DCB205 battery or DCBP034 DEWALT POWERSTACK™ battery (sold separately)

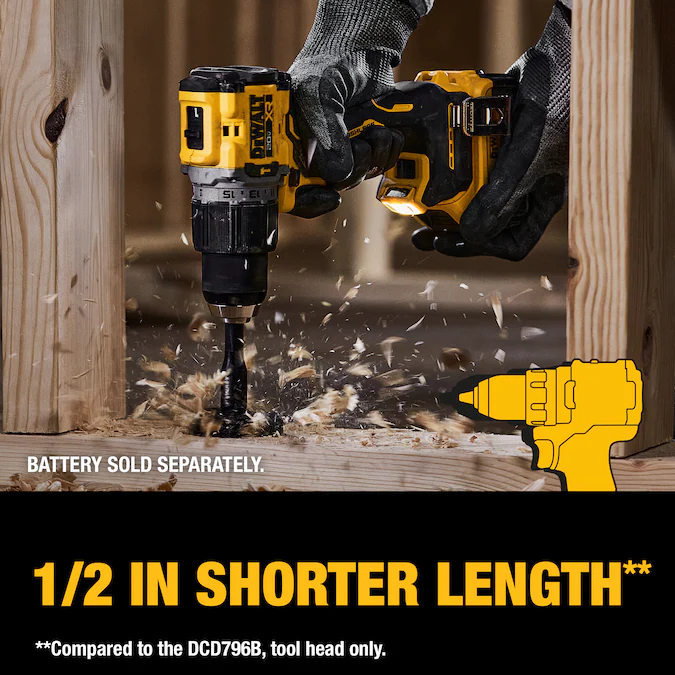

- Access hard to reach work areas: Compact 7-in size is 1/2-in shorter in length*** compared to the DCD796, tool head only

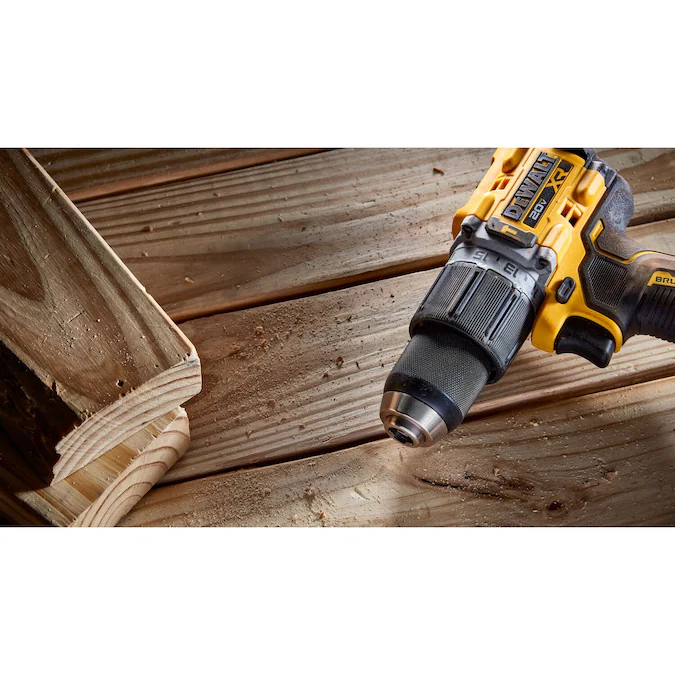

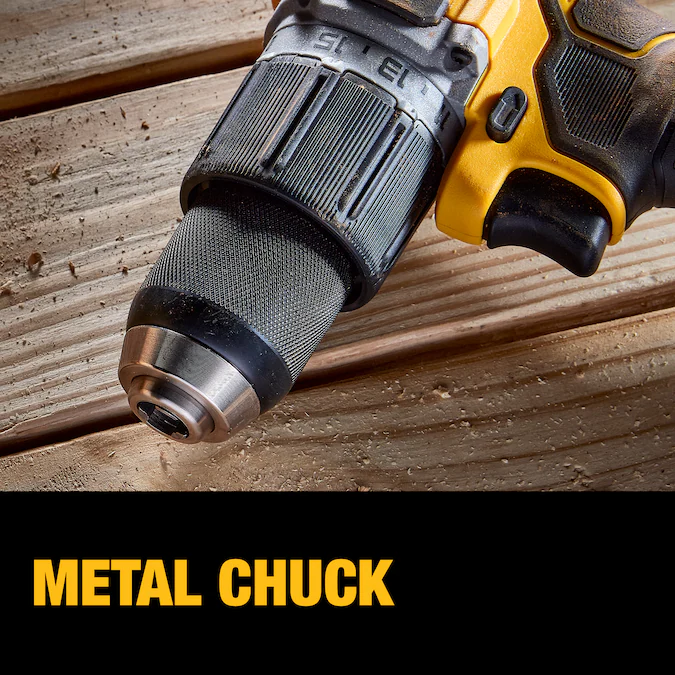

- High bit retention with 1/2-in metal ratcheting chuck

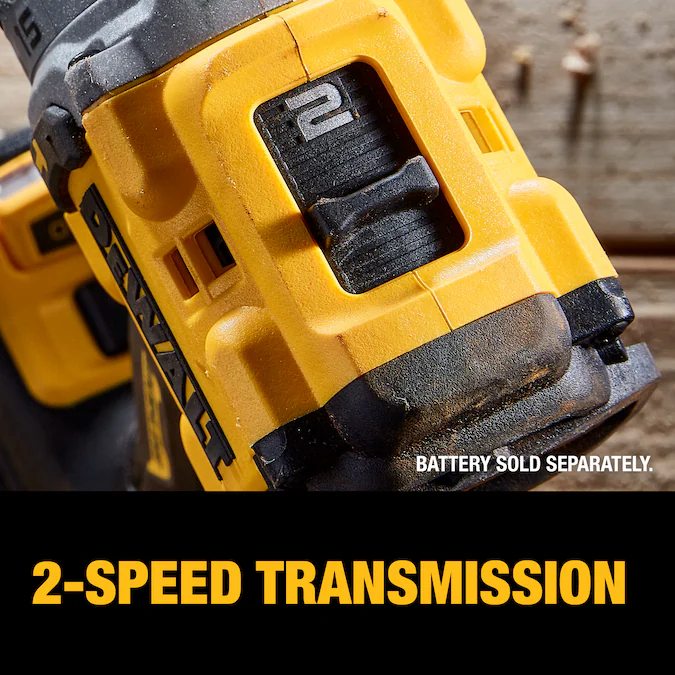

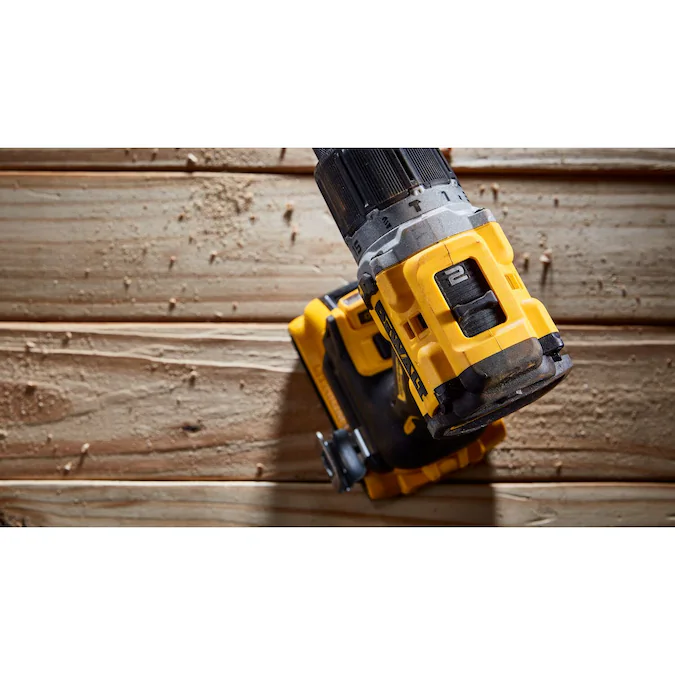

- Pro-level speed, control, and precision: High-speed transmission with variable trigger and 2 speed settings (0-650/0-2,000 rpm)

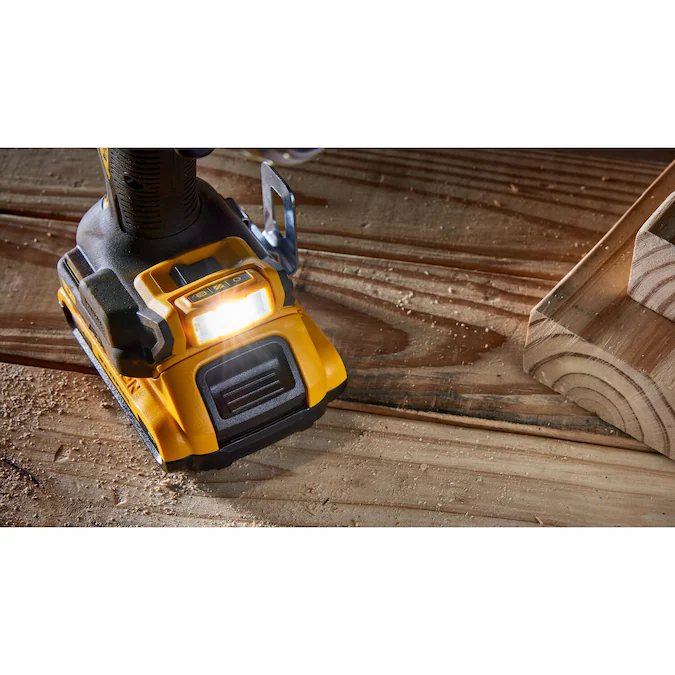

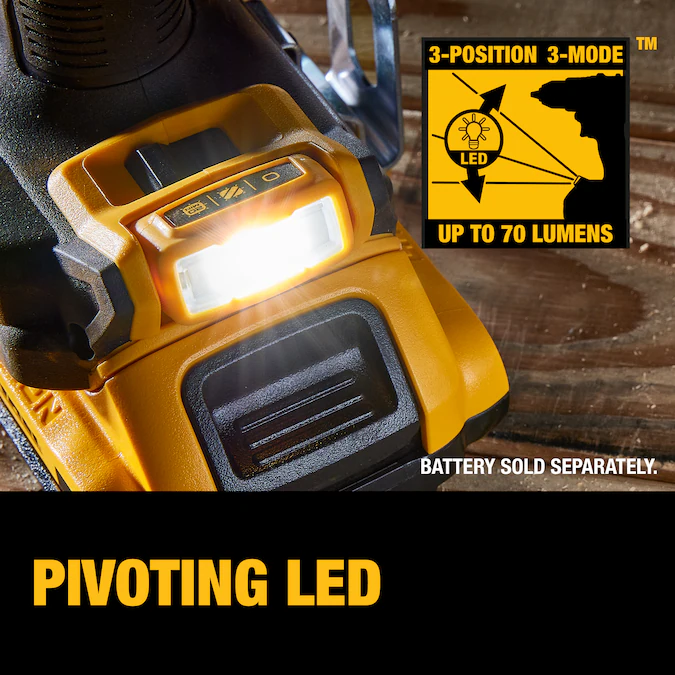

- Brighten dark work areas: Adjustable 3-Position, 3 Mode led with up to 70 Lumens, including led spotlight mode which features a 20-minute shutoff function for extended work time in low-light spaces
- Designed to help you get more done with optimized performance and runtime

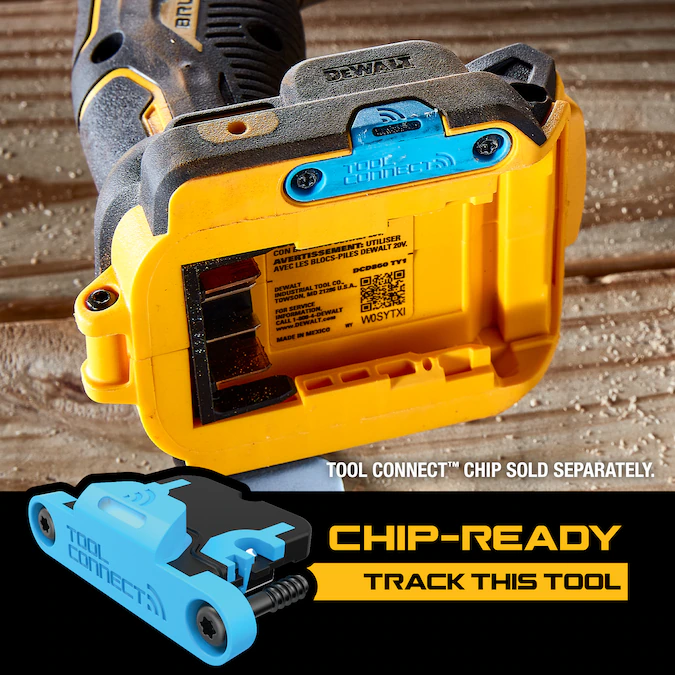

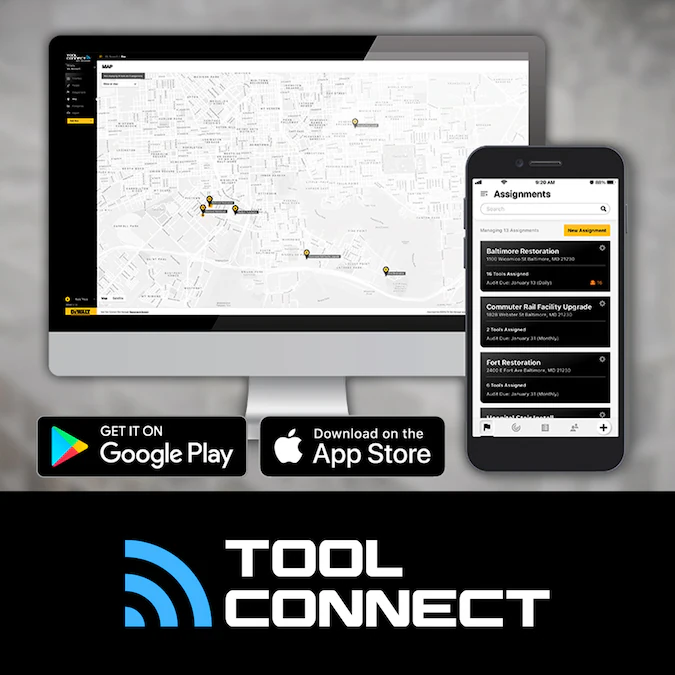

- Manage and track tools at the jobsite: Drill/Driver chip pocket accepts Tool Connect™ chip DCE042 and connects with Tool Connect™ Site Manager app for seamless worksite asset management (DCE042 sold separately)
General
- Battery Voltage: 20-volt max
- Color/Finish Family: Yellow
- Sub-Brand: XR
Dimensions
- Cord Length (Feet): 0
- Maximum Chuck Size: 1/2-in
- Tool Height (Inches): 8.14
- Tool Length (Inches): 7
- Tool Weight (lbs.): 2.95
- Tool Width (Inches): 2.5
Features
- Accessories Included: No
- Amperage: 0
- Bare Tool: Yes
- Battery Amp Hours: 0
- Battery Recharge Time (Minutes): 0
- Battery Type: Sold separately

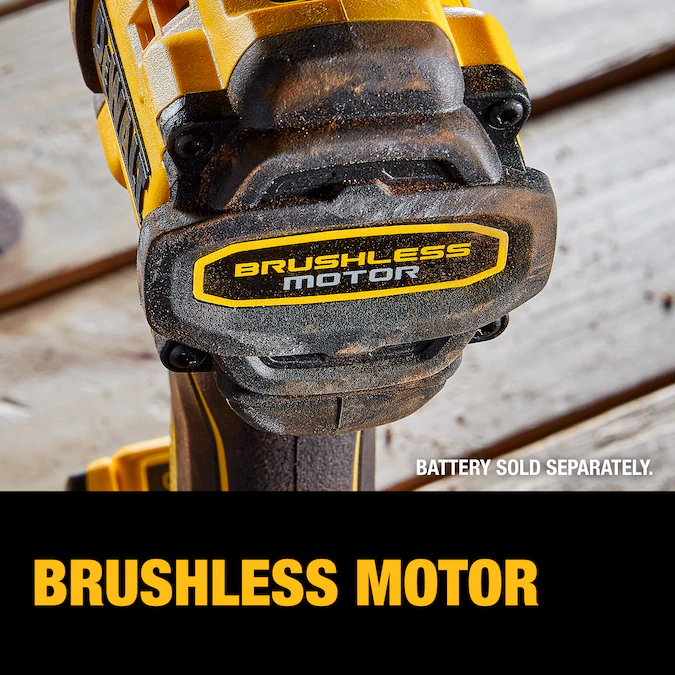

- Brushless: Yes
- Case Included: No
- Charger Included: No
- Chuck Type: Keyless
- Cordless: Yes
- Forward and Reverse Switch Included: Yes
- Hybrid Capable: No
- Maximum BPM: 34000
- Maximum RPM: 2000
- Number of Batteries Included: 0
- Number of Clutch Settings: 15
- Package Contents: (1) DCD805B Brushless Cordless 1/2-in Hammer Drill
- Second Battery Amp Hours: 0
- Side Handle Included: No
- Tool Power Output: 900 UWO
- Variable Speed: Yes
- Variable Speed Trigger Included: Yes
- Warranty: 3-year limited
Compatibility
- App Compatibility: No
- Bluetooth Compatibility: No
- Smart Compatible: No
- Wi-Fi Compatibility: No
- Works with Android: No
- Works with iOS: No
Warranty
- Tool Warranty: 3-year limited
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 27112700
