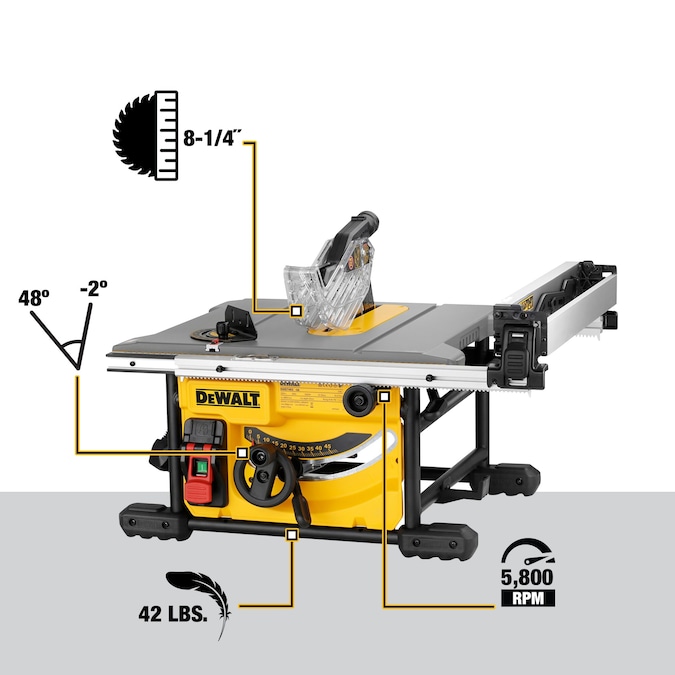

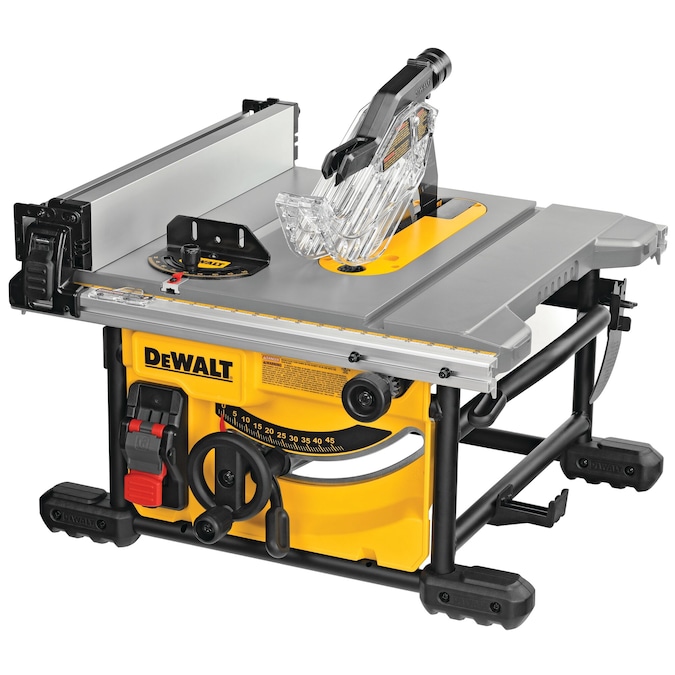

Maximized for accuracy and capacity this DEWALT® DWE7485 8-1/4 inch table saw includes on-board storage for blade guard assembly, non-through cut riving knife, anti-kickback pawls, blade change wrenches, miter gauge and push stick. The powerful DEWALT® 15 amp, 5800 RPM motor allows users to complete a majority of applications. The rack & pinion fence allow for fast, easy adjustments and provides the capacity to rip 4×8 sheet goods.
- Compact size for easy transportation and storage

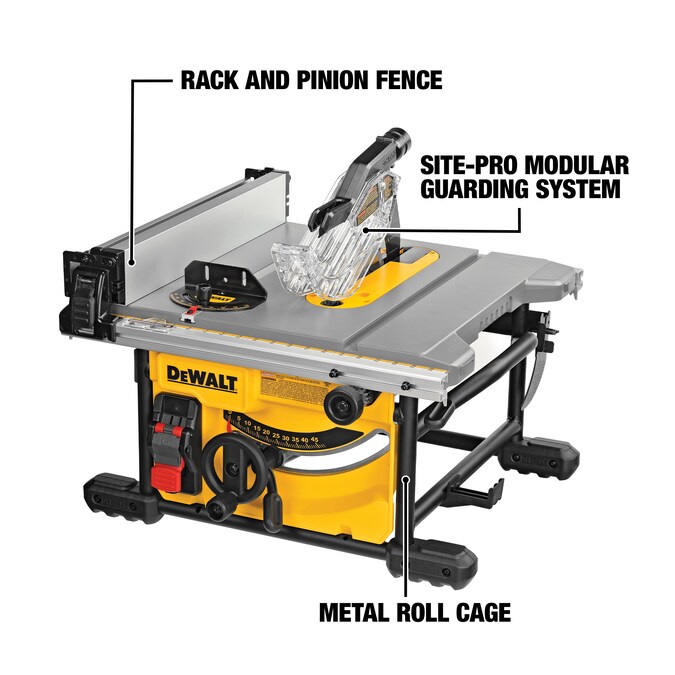

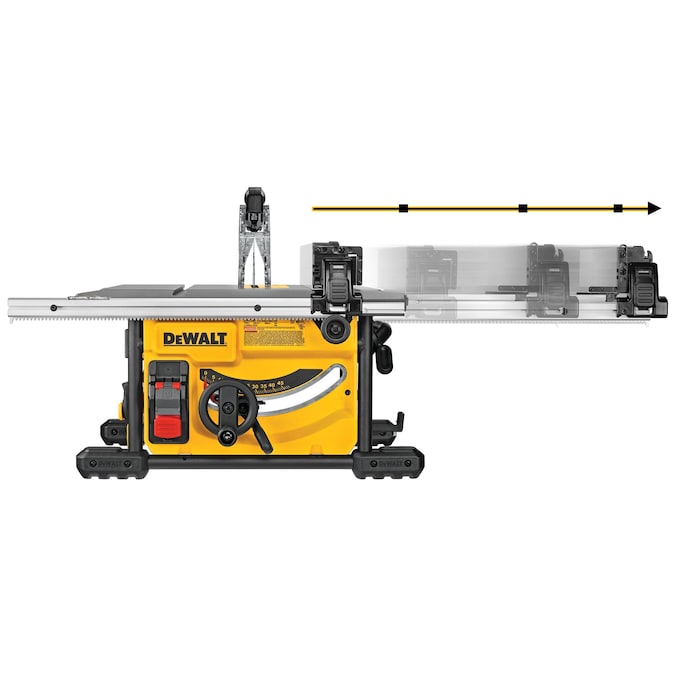

- Rack & pinion telescoping fence rails make fence adjustments fast, smooth, and accurate

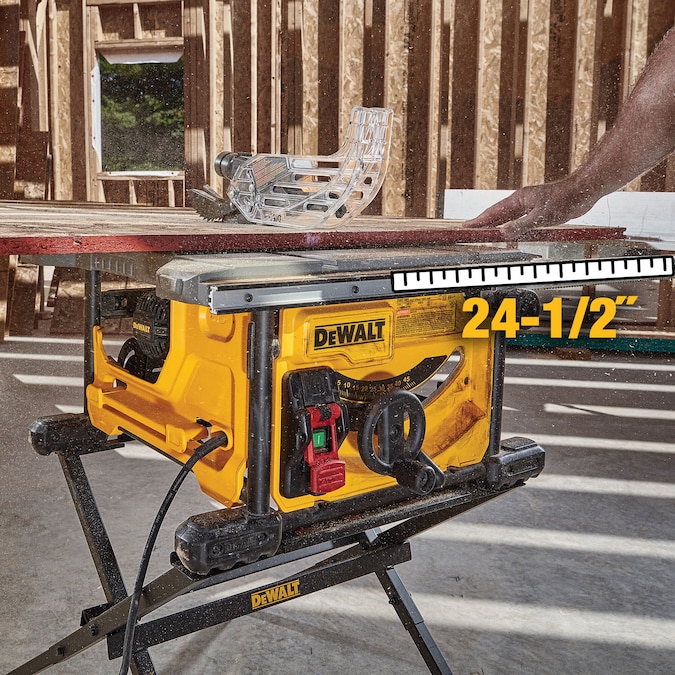

- 24.5-in of rip capacity for ripping 4×8 plywood or OSB sheets

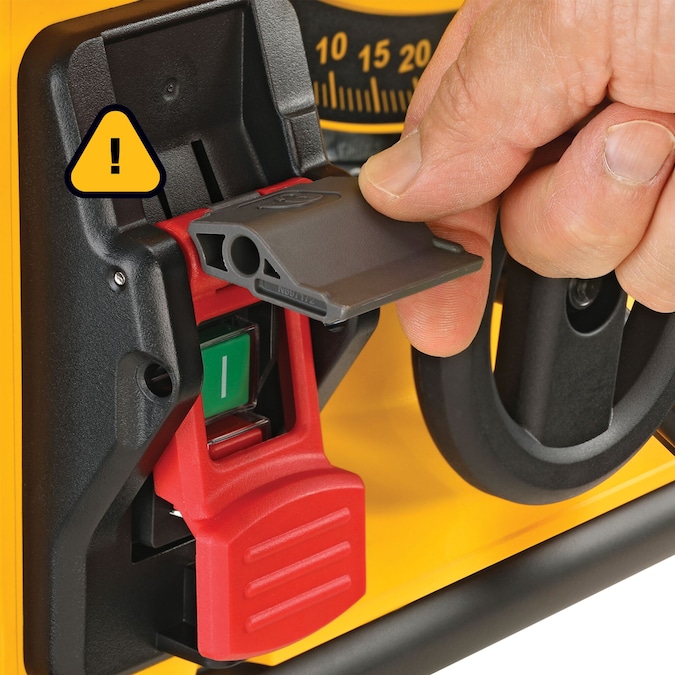

- Power-loss reset prevents accidental restarts following a power disruption when the tool is left in the on position
- Blade brake
- On-board storage for guard, fence, wrenches, and miter gauge

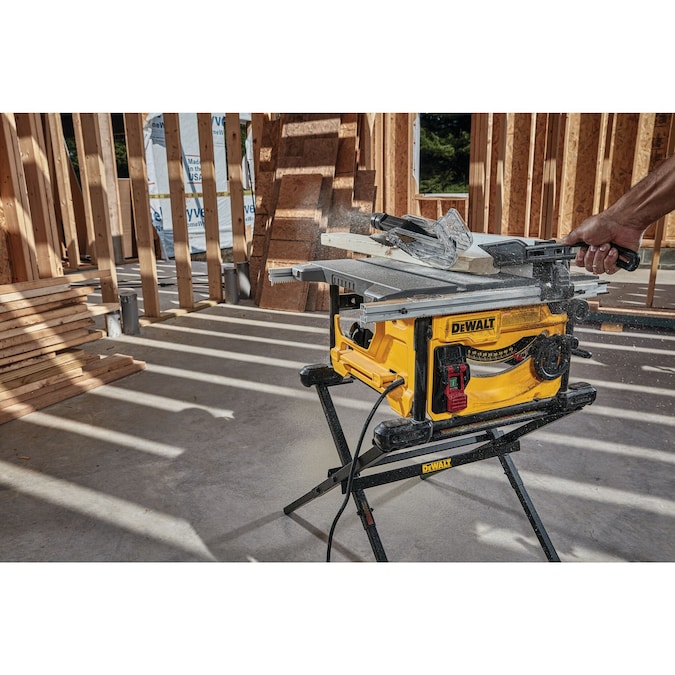

- Metal roll cage base for jobsite durability

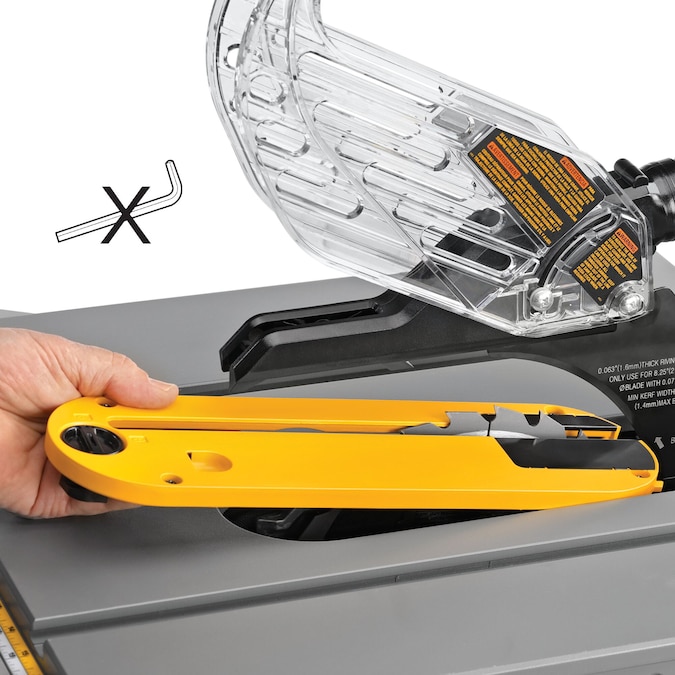

- Site-Pro Modular Guarding System allows for tool-free adjustments of the guarding
General
- Type: Jobsite
Dimensions
- Arbor Diameter: 5/8-in

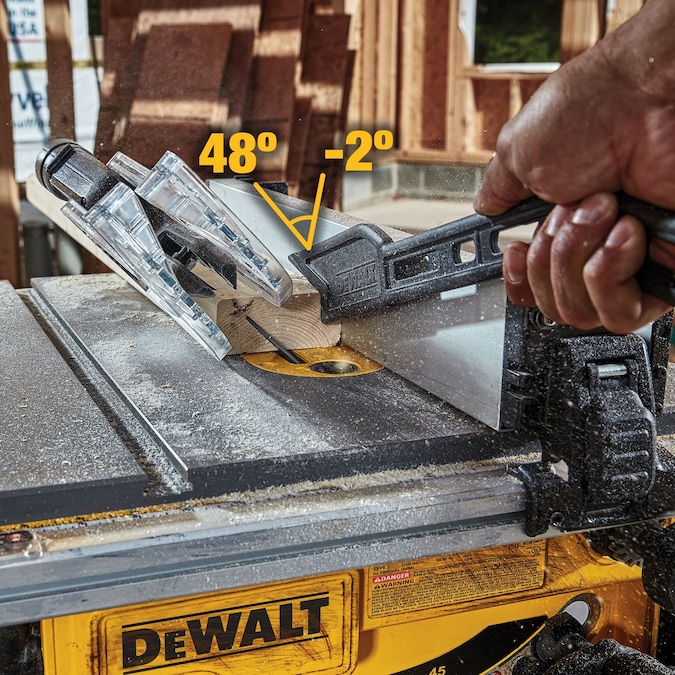

- Bevel Capacity (Degrees): 47
- Blade Size (Inches): 8.25
- Cutting Depth (Inches): 2.5625
- Depth Control: Yes
- Height (Inches): 26
- Left Rip Capacity (Inches): 12
- Maximum Depth at 45 Degrees (Inches): 1.75
- Maximum Depth at 90 Degrees (Inches): 2.563
- Right Rip Capacity (Inches): 24.5
- Saw Blade Diameter: 8-1/4-in
- Table Height (Inches): 12.875
- Table Length (Inches): 22.75
- Table Width (Inches): 14.88
- Weight (lbs.): 46
Features
- Amps: 15
- Auxiliary Handle: No
- Battery Included: No
- Blade Included: No
- Blade Material: Carbide-tipped
- Caster Platform Included: No
- Charger Included: No
- Cordless: No
- Dust Handling: Port
- Hybrid Capable: No
- Maximum Blade Speed (RPM): 5800
- Micro Adjust Rip Fence: Yes
- Portable: Yes
- Repetitive Cut Marking System: No
- Spindle Lock: No
- Voltage: 0
- Warranty: 3-year limited
- Worm Drive: No
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: Not safety listed
Miscellaneous
- UNSPSC: 23101500
