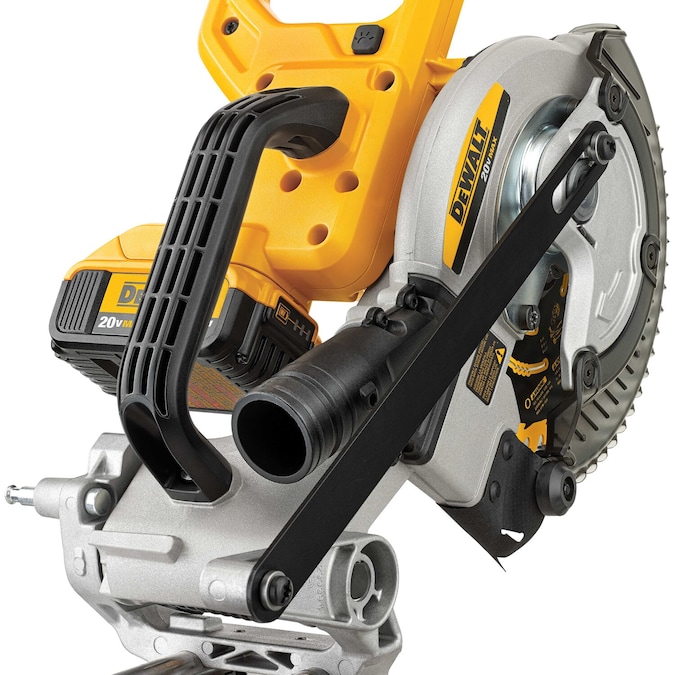

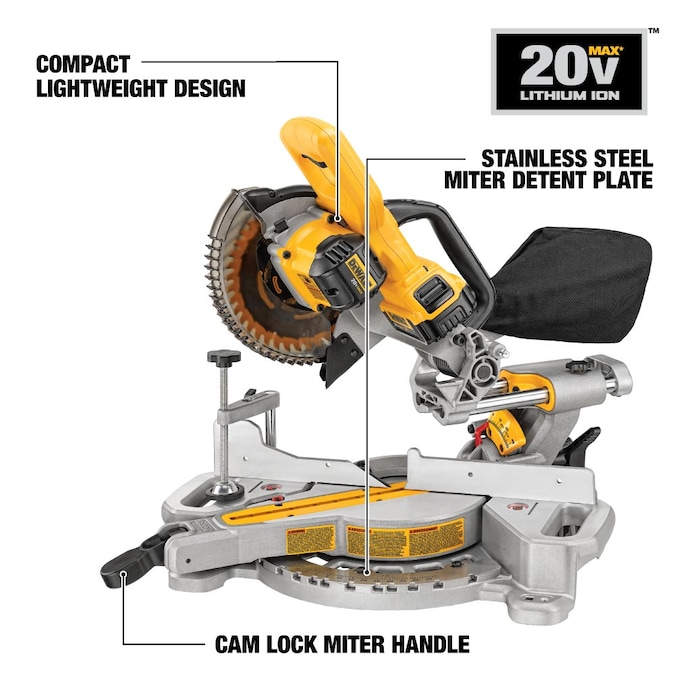

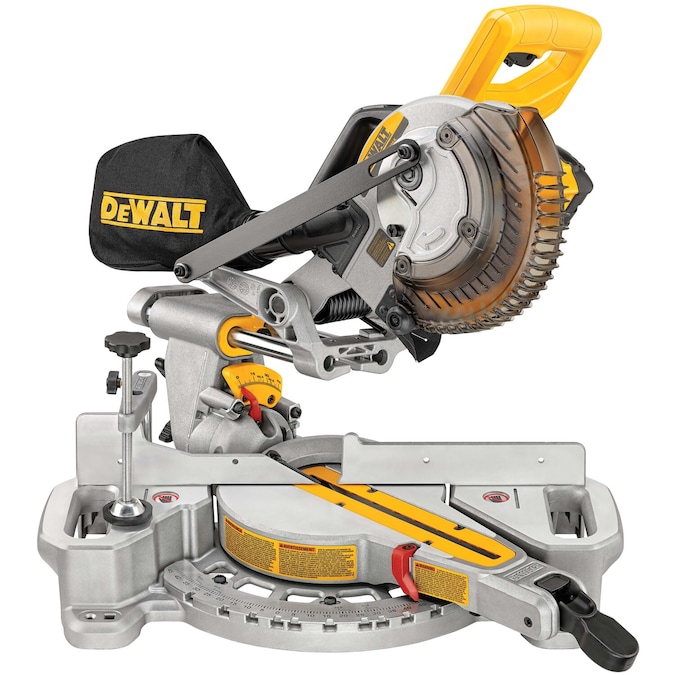

The DCS361M1 20-volt MAX 7-1/4-in sliding miter saw comes with a battery and charger which provides on average 183 cuts of 2 x 4 pine or 275 cuts of 3-1/4 pine baseboard. Adjustable stainless steel miter detent plate with 11 positive stops improves productivity and ensures cutting accuracy.

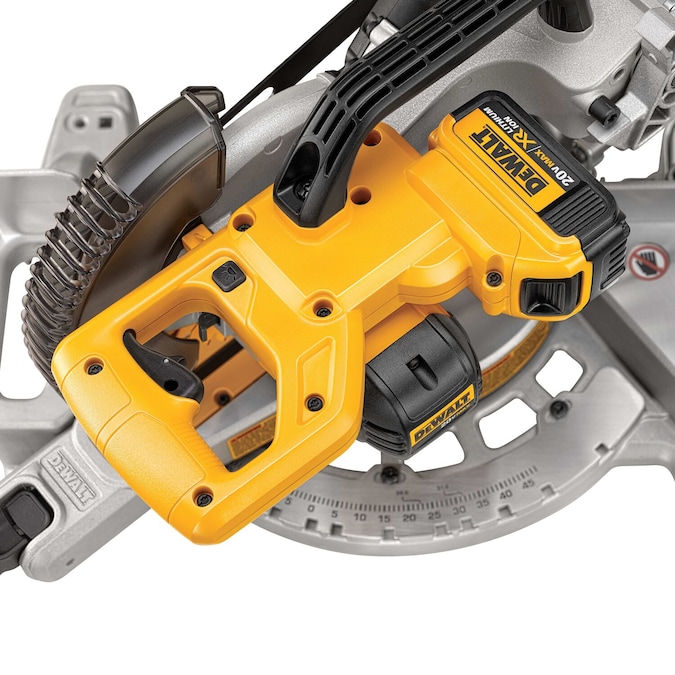

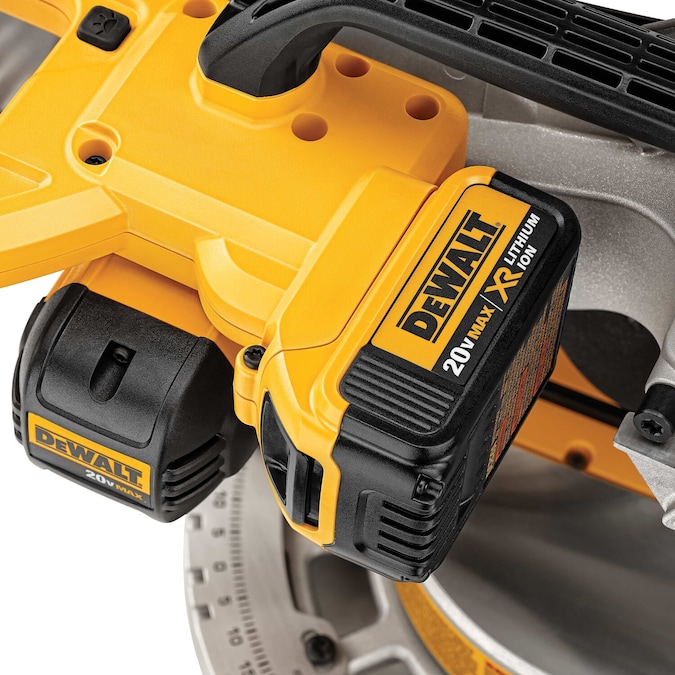

- Utilizes 20-volt MAX battery pack (DCB204) which provides on average 183 cuts of 2 x 4 pine or 275 cuts of 3-1/4 pine baseboard
- Integrated cut line cross-cut positioning system provides adjustment-free cut line indication for better accuracy and visibility
- Capacity to cut 3-5/8-in nested crown and 3-1/2 base vertically

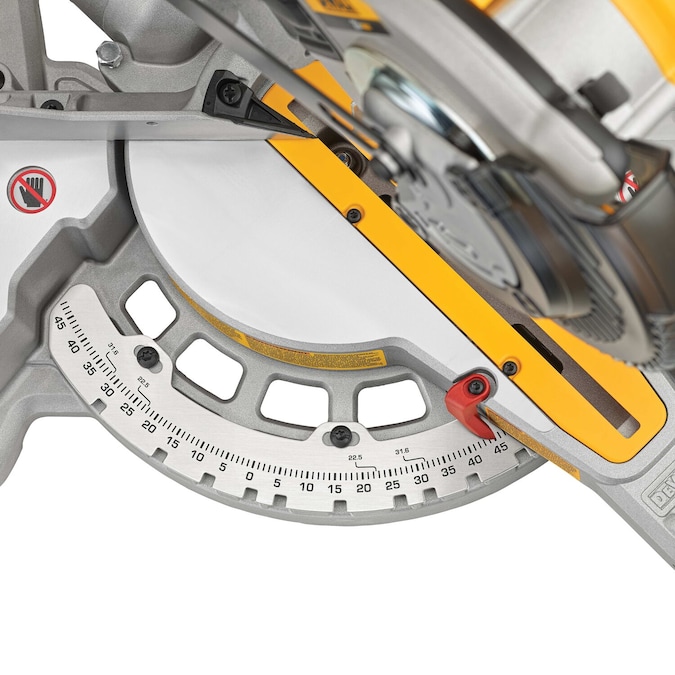

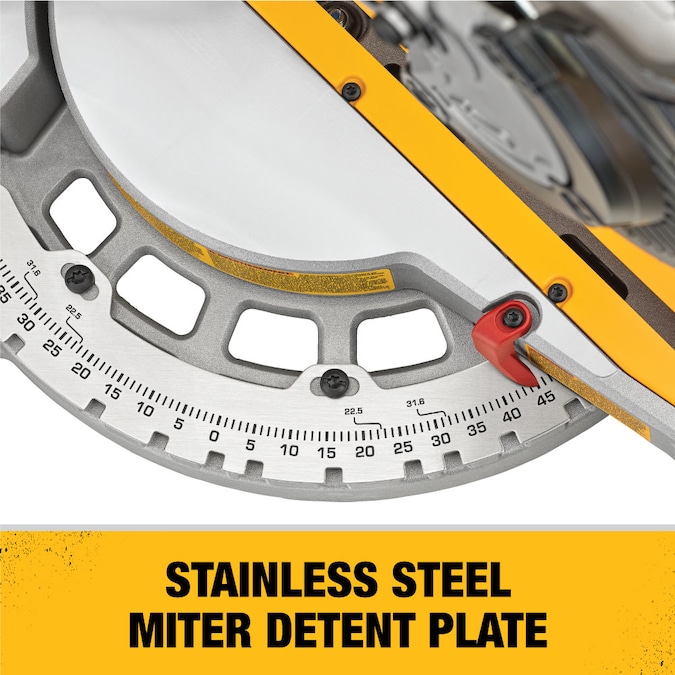

- Adjustable stainless steel miter detent plate with 11 positive stops improves productivity and ensures cutting accuracy

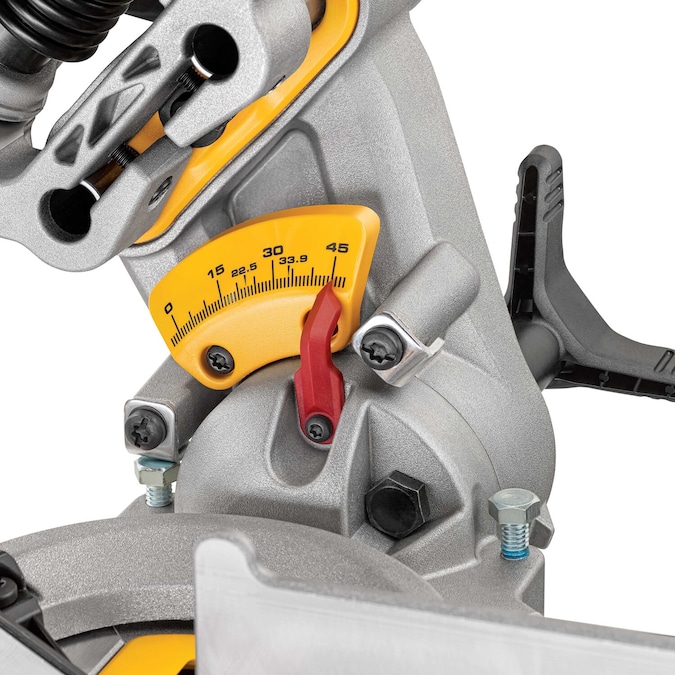

- Oversized bevel scale makes bevel angle adjustments accurate and easy

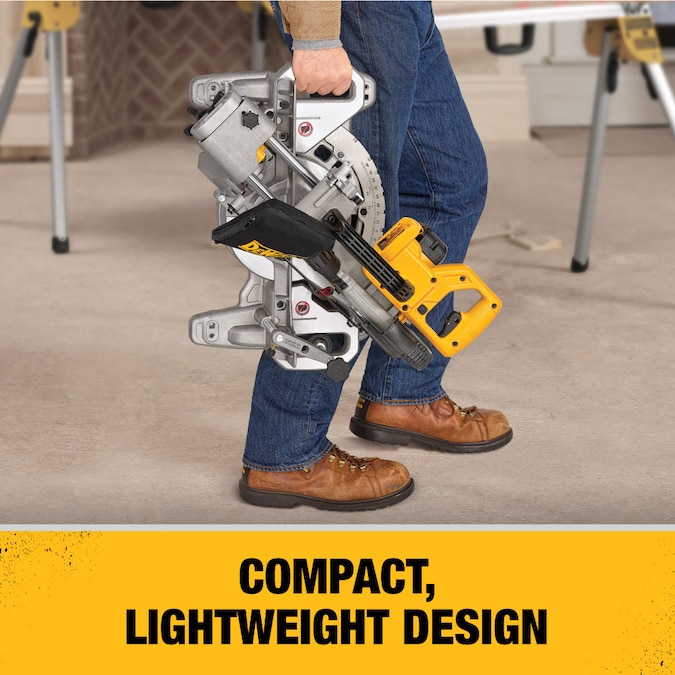

- Compact, lightweight design (30-lbs) allows for easy transport and storage

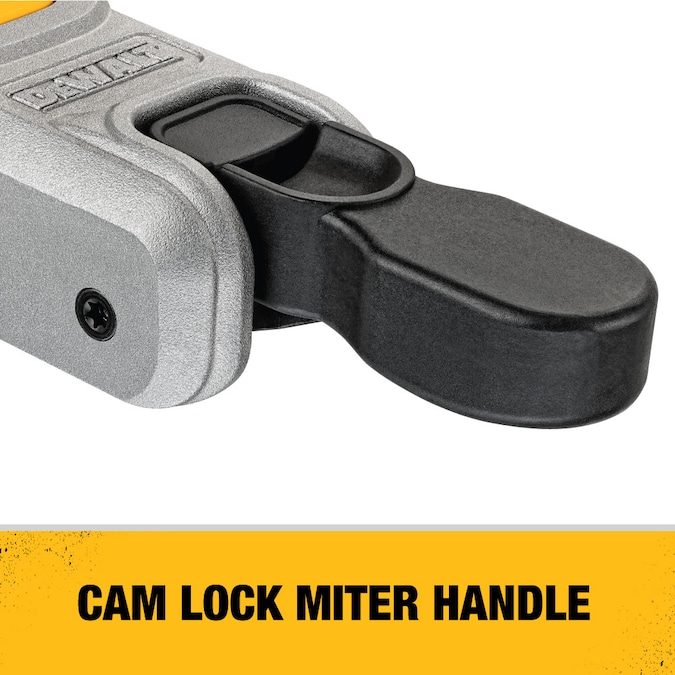

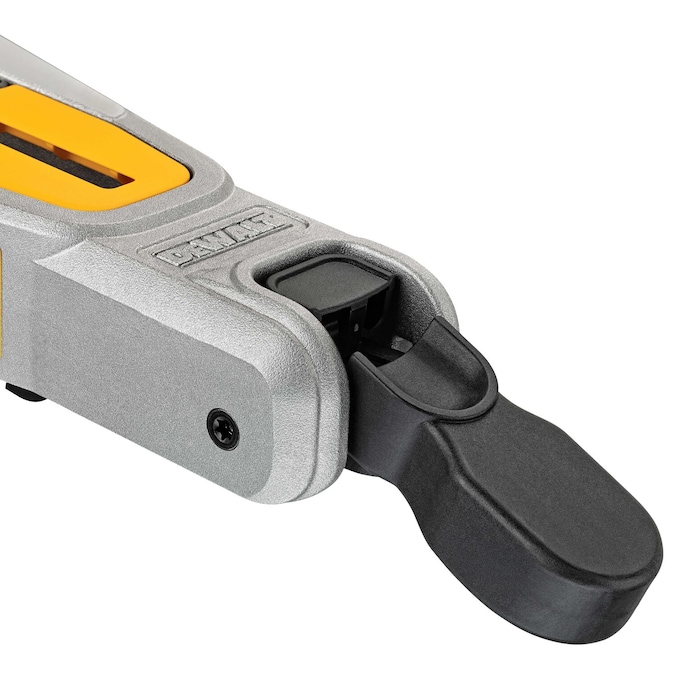

- Cam lock miter handle delivers quick and accurate miter angles

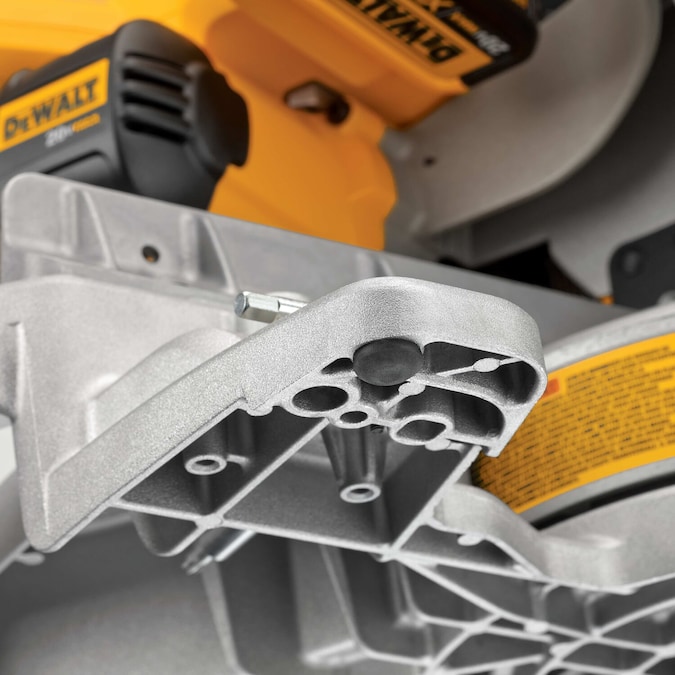

- Precise miter system and machined base fence support optimize durability and cutting accuracy
- Includes (1) DCS361 cordless miter saw, (1) carbide blade, (1) 4.0 Ah battery, charger
General
- Battery Voltage: 20-volt max
- Laser Color: N/A
- Series Name: N/A
- Sub-Brand: N/A
Dimensions
- Arbor Diameter: 5/8-in

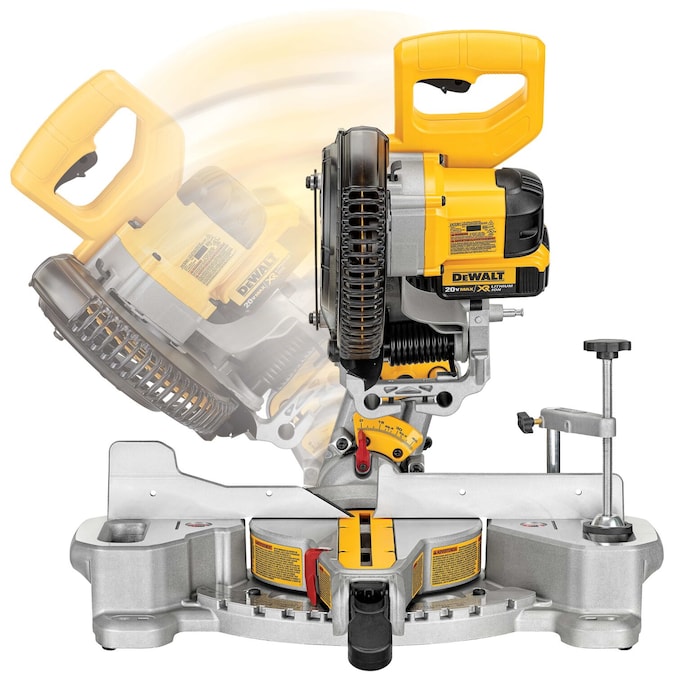

- Bevel Capacity (Degrees): 45
- Cord Length (Feet): 0
- Depth of Cut at 45 Degrees (Inches): 5.5
- Depth of Cut at 90 Degrees (Inches): 8
- Height (Inches): 15
- Length (Inches): 25
- Maximum Fence Height (Inches): 4
- Saw Blade Diameter: 7-1/4-in
- Tool Weight (lbs.): 31.6
- Width (Inches): 19
Features
- Amperage (Amps): 0
- Battery Included: Yes
- Bevel: Single
- Bevel Lock Style: Clamp
- Blade Included: Yes
- Charger Included: Yes
- Compound: Yes
- Cordless: Yes
- Dust Handling: Port
- Electric Brake: No
- Folding: No
- Laser Guide: No
- Maximum Miter Cut – Left (Degrees): 45
- Maximum Miter Cut – Right (Degrees): 45
- Maximum Speed (RPM): 3750
- Miter Stop: No
- Number of Teeth: 40
- Power Rating (HP): 0
- Quick Release Vise: No
- Slide: Yes
- Sliding Fence: Yes
- Spindle Lock: Yes
- Worm Drive: No
Warranty
- Warranty: 3-year limited
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 27112700
