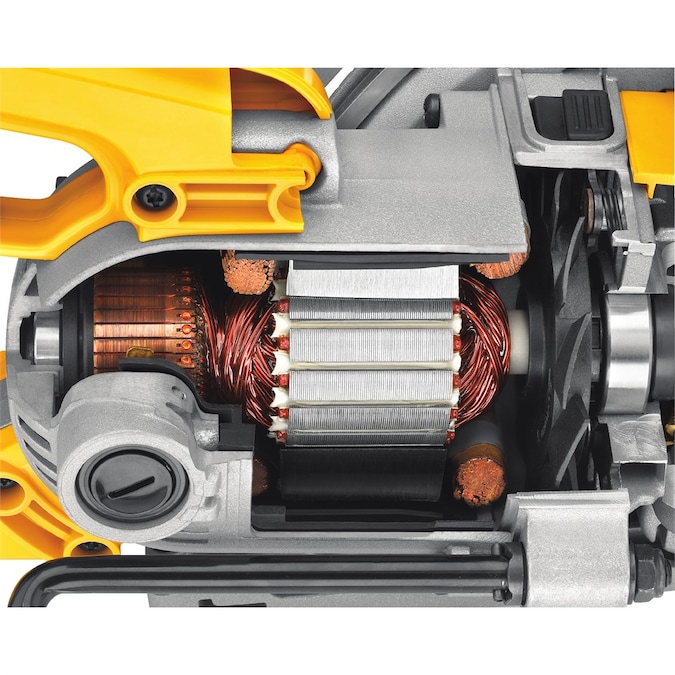

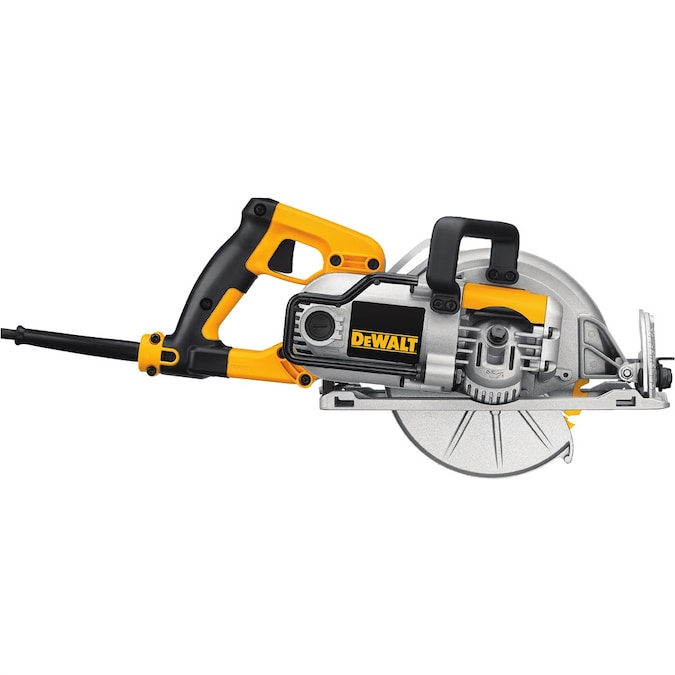

The DWS535 7-1/4 In. worm drive circular saw has a 15 Amp motor that delivers 4,800 rpm and features 53-degree bevel capacity for advanced applications. Lightweight and durable magnesium construction for optimum user handling, comfort, and strength includes electric brake which stops blade after the trigger is released.

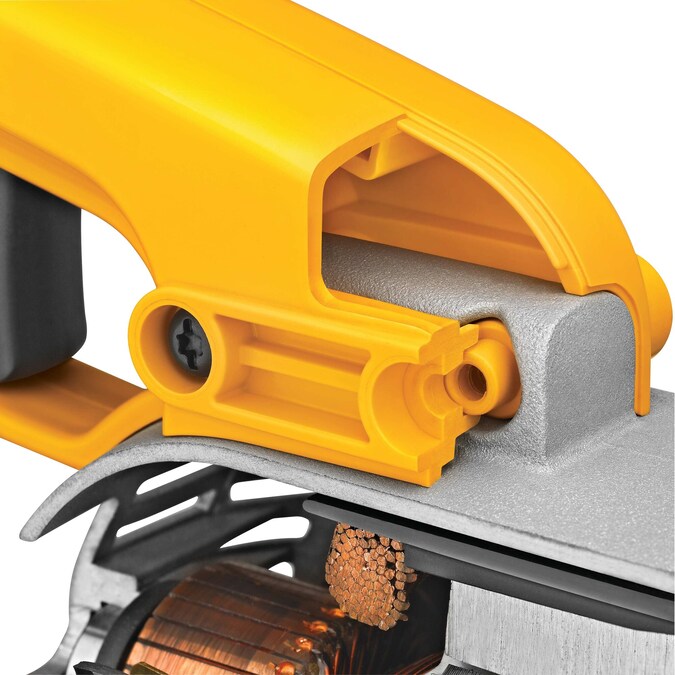

- Lightweight magnesium and aluminum construction including durable magnesium footplate

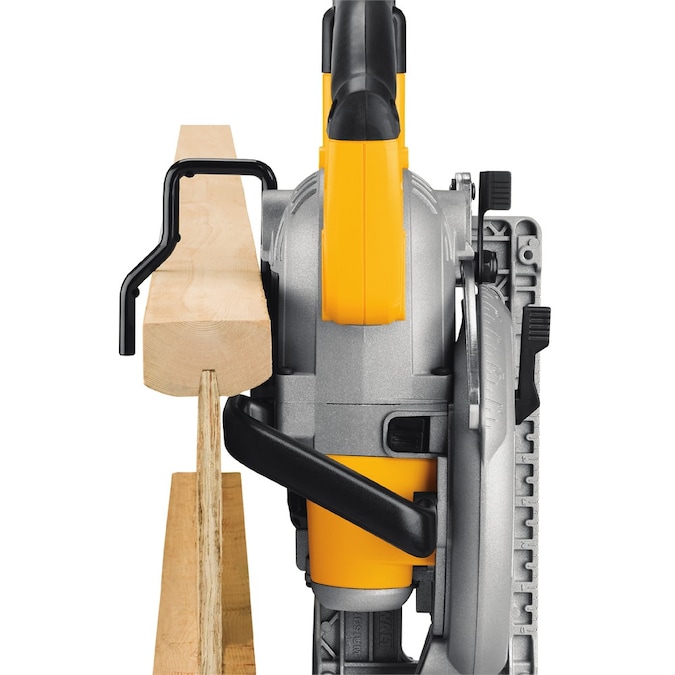

- Extra wide saw hook accepts materials up to 2-3/4 In. wide

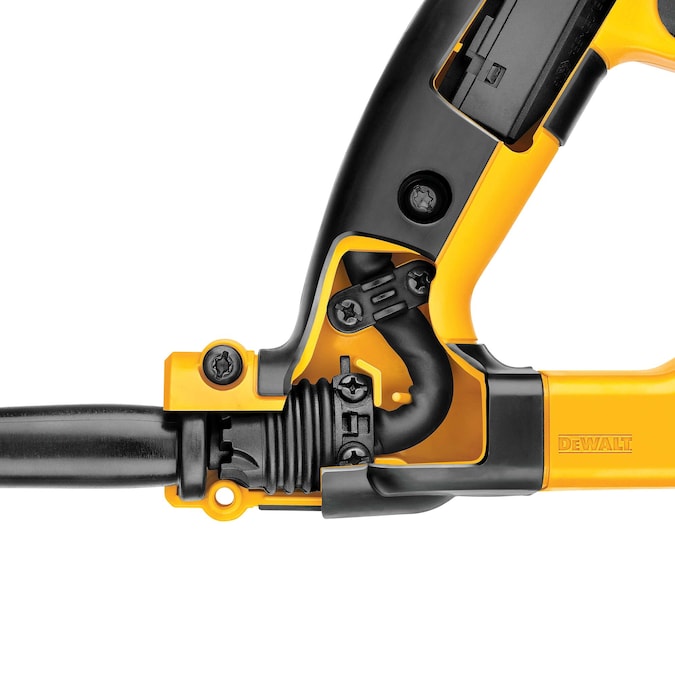

- Tough cord protection with 4X better cord-jerk protection
- 53 Degree bevel with stops at 22.5 and 45
- 53 Degree bevel capacity for advanced applications
- Bevel detents at 22.5 degrees and 45 degrees for fast and accurate setting to common angles
- Dual rip ports to accept available DWS5100 12-in dual port rip guide

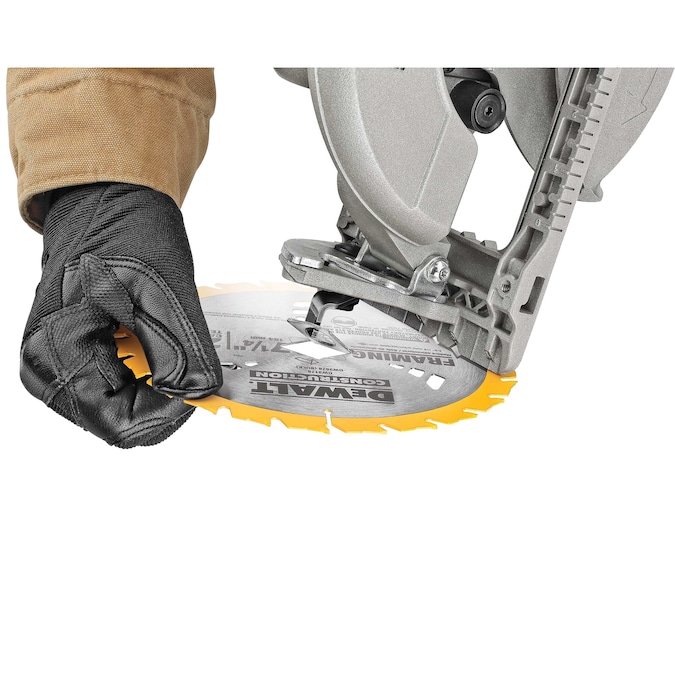

- Top-accessible spindle lock enables easier and faster blade changing
- Electric brake stops blade after trigger is released
General
- Battery Voltage: N/A
- Sub-Brand: N/A
- Type: Circular saw
Dimensions
- Bevel Capacity (Degrees): 53
- Cord Length (Feet): 8
- Cutting Depth (Inches): 2.44
- Depth Control: Yes
- Dust Chute Diameter(OD) (Inches): 0
- Maximum Depth at 45 Degrees (Inches): 0
- Maximum Depth at 90 Degrees (Inches): 2.44
- Saw Blade Diameter: 7-1/4-in
- Weight (lbs.): 17.95
Features
- Accessories Included: Yes
- Amperage: 15
- Battery Included: No
- Bevel Stop: No
- Blade Included: No
- Blade Material: Carbide-tipped
- Blade Side: Left
- Brake: Yes
- Case Type: N/A (no case)
- Charger Included: No
- Cordless: No
- Dust Blower: No
- Dust Chute: No
- Dust Collection: No
- Fence Included: No
- Gear Type: N/A
- Horsepower: 0
- Laser Guide: No
- Maximum RPM (RPM): 4800
- Number of Batteries Included: 0
- Shoe Type: Magnesium
- Spindle Lock: Yes
- Variable Speed: No
- Voltage: 0
- Warranty: 3-year limited
- Work Light: No

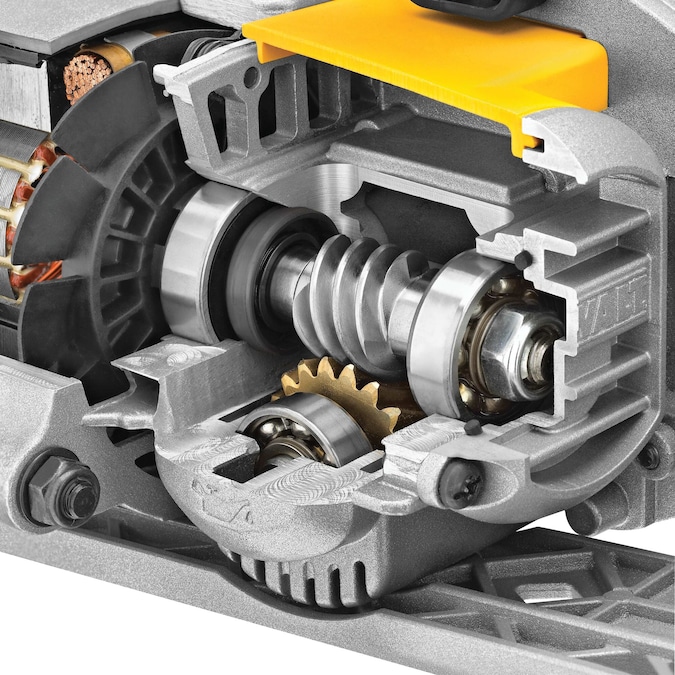

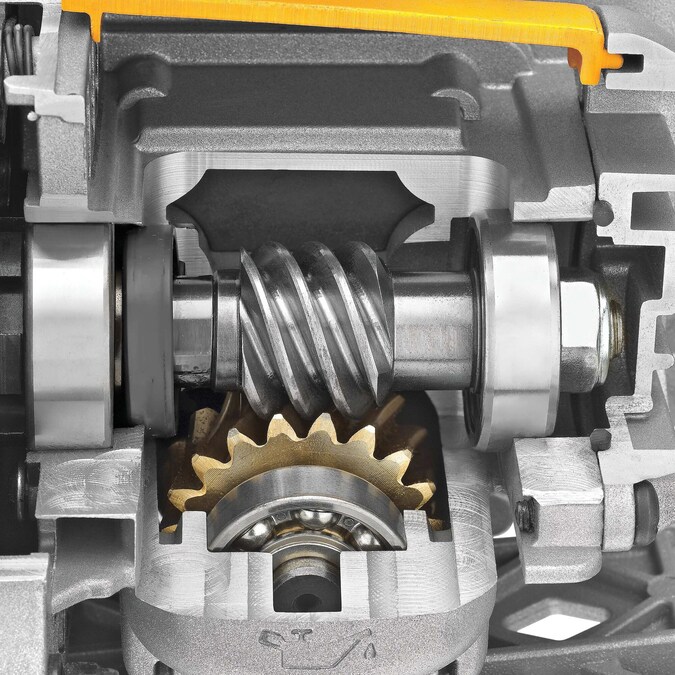

- Worm Drive: Yes
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 27112700
