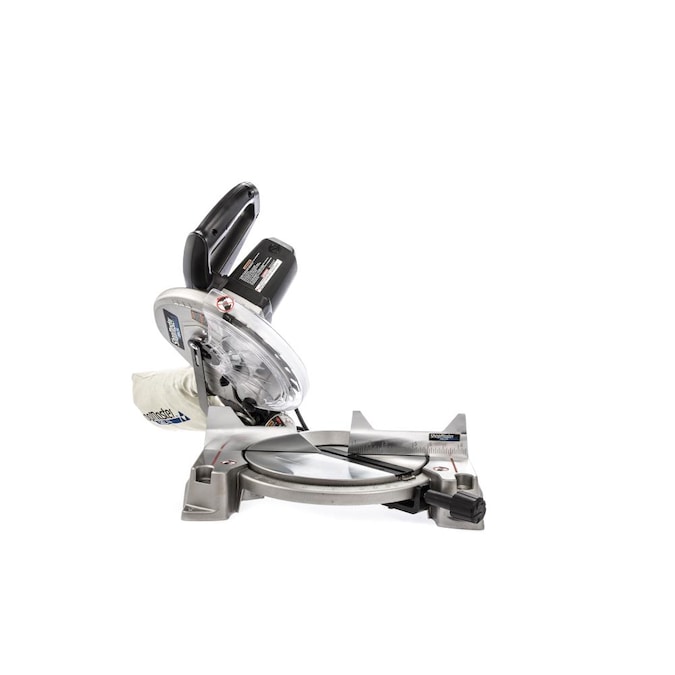

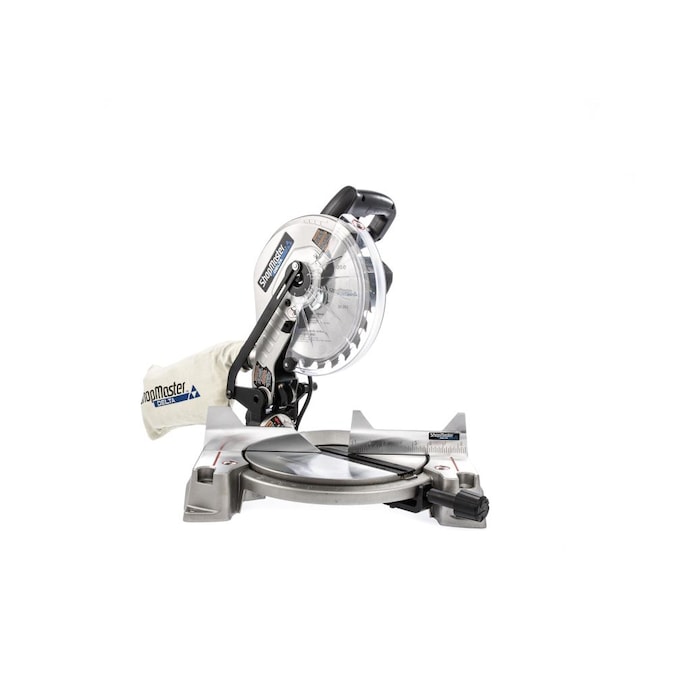

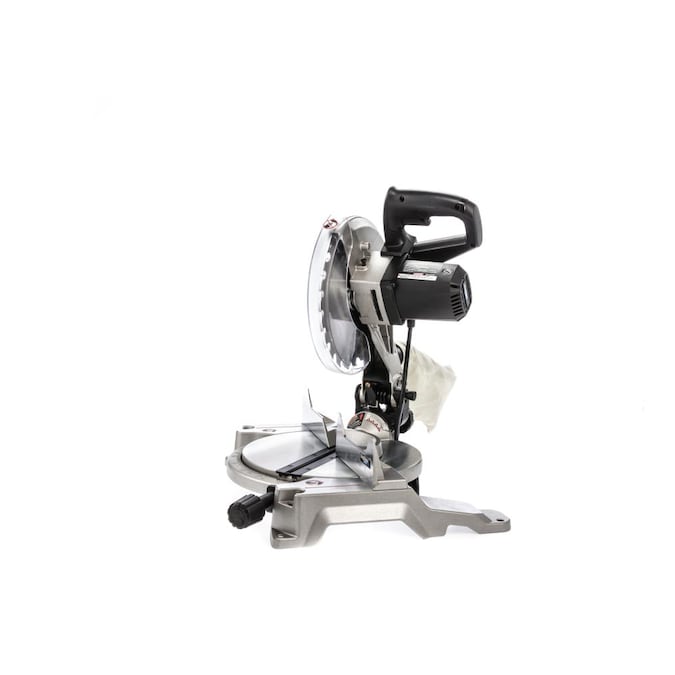

The shop master 10 in compound miter saw is a lightweight saw easily moved from room to room or job to job.
- Can cut 4 x 4 posts and 2 x 6 dimensional wood in one pass
- Miters to 45 degrees left and right with 9 positive stops
- Battery operated laser to align blade with workpiece for better accuracy
- Electric brake stops the blade within a second after releasing switch
General
- Battery Voltage: N/A
- Laser Color: Red
- Series Name: N/A
- Sub-Brand: N/A
Dimensions
- Arbor Diameter: 5/8-in
- Bevel Capacity (Degrees): 45
- Depth of Cut at 45 Degrees (Inches): 3.25
- Depth of Cut at 90 Degrees (Inches): 3.75
- Height (Inches): 23.2
- Length (Inches): 17
- Saw Blade Diameter: 10-in
- Tool Weight (lbs.): 31
- Width (Inches): 15.3
Features
- Amperage: 15
- Bevel: Single
- Blade Included: Yes
- Compound: Yes
- Cordless: No
- Dust Handling: Port
- Electric Brake: Yes
- Folding: No
- Laser Guide: Yes
- Maximum Miter Cut – Left (Degrees): 45
- Maximum Miter Cut – Right (Degrees): 45
- Maximum Speed (RPM): 5500
- Miter Stop: Yes
- Power Rating (HP): 1
- Quick Release Vise: No
- Slide: No
- Spindle Lock: Yes
- Worm Drive: No
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 27112700
