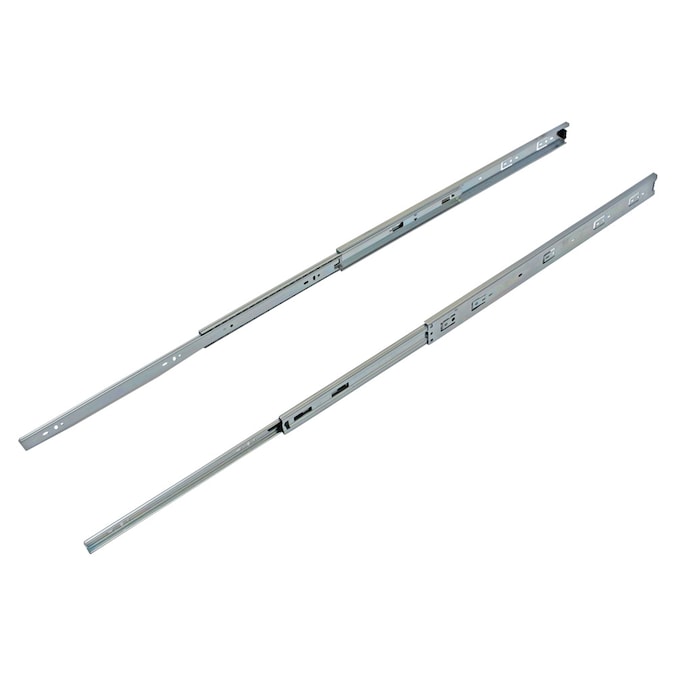

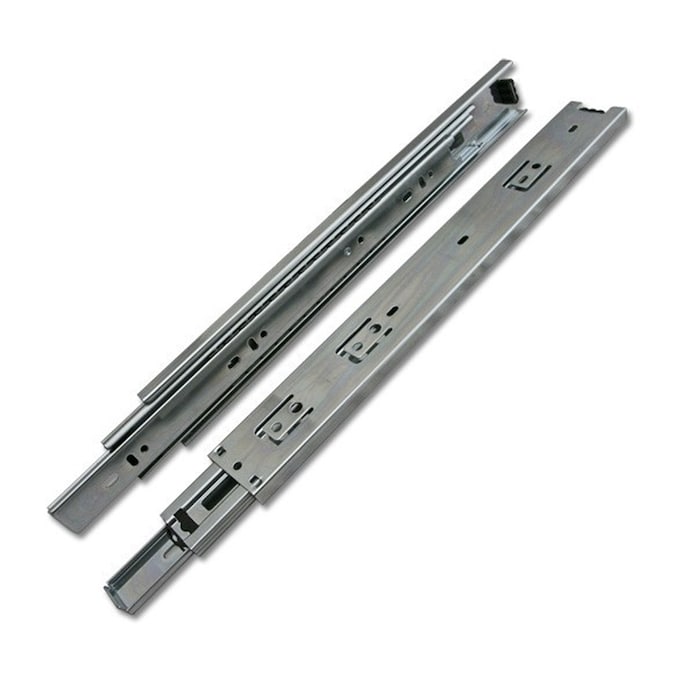

CSH 12-in Side Mount 100-lb Load Capacity Silver Drawer Slide (15-Pieces)

• Bulk contractor box 15 Pair of slides
• Hardware fasteners NOT included due to application capacity and variances
• Full extension slide 100 lbs load capacity per pair
• Actual slide spec dimension 300 mm (11-13/16 in) L x 45.6 mm (1-3/4 in) H
• Exceeds ANSI/BIFMA tests
• Easy lever disconnect for removing drawer box; 1/2 in side clearance per side
• 32 mm hole pattern metric slide
• Non-handed; Steel ball bearings
• Cabinet member slide features a front face frame mount screw hole for face frame-eliminates the use for a front face frame bracket

General

• Color/Finish Family: Silver
• Manufacturer Color/Finish: Zinc

Dimensions

• Length (Inches): 12
• Load Capacity (lbs.): 100
• Maximum Extended Length (Inches): 24

Features

• Material: Steel
• Mount Type: Side
• Package Contents: 15 pair of slides
• Package Quantity: 15
• Self-Closing: No
• Soft Close: No
• Warranty: None

Certifications

• CA Residents: Prop 65 Warning(s): Yes

Miscellaneous

• UNSPSC: 30161800
