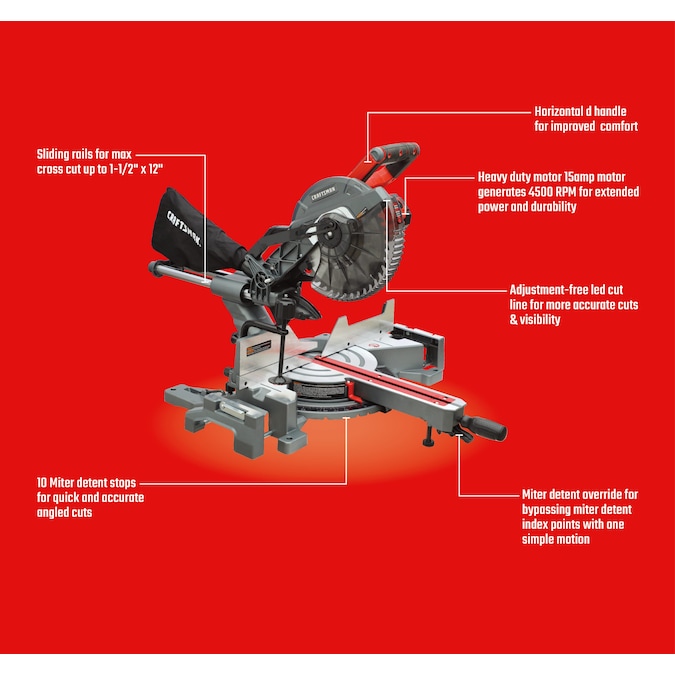

- 15 amp heavy-duty motor generates 4500 RPM for extended power and durability
- Horizontal D grip handle with two-position safety trigger for right or left handed use
- Sliding head provides maximum cross cut capacity up to 12 in
- Adjustment free LED cut line for more accurate cuts and visibility

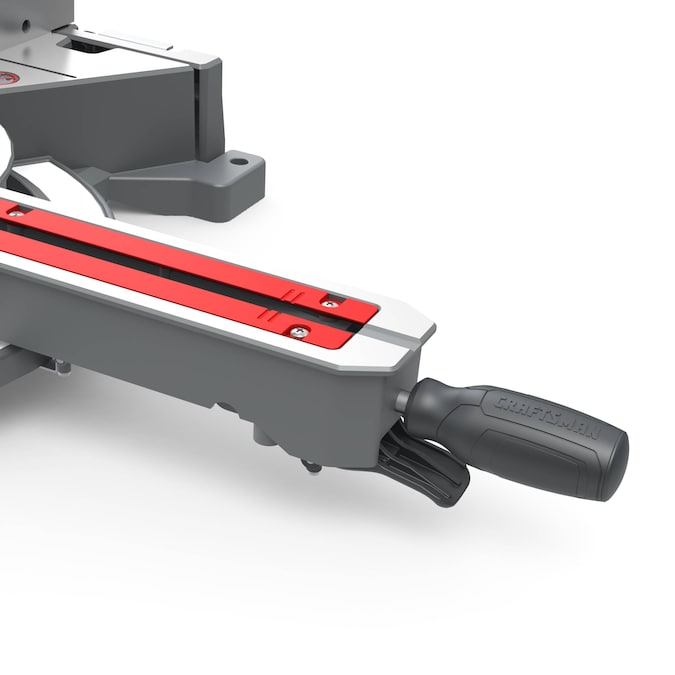

- Miter detent override for bypassing miter detent index points with one simple motion

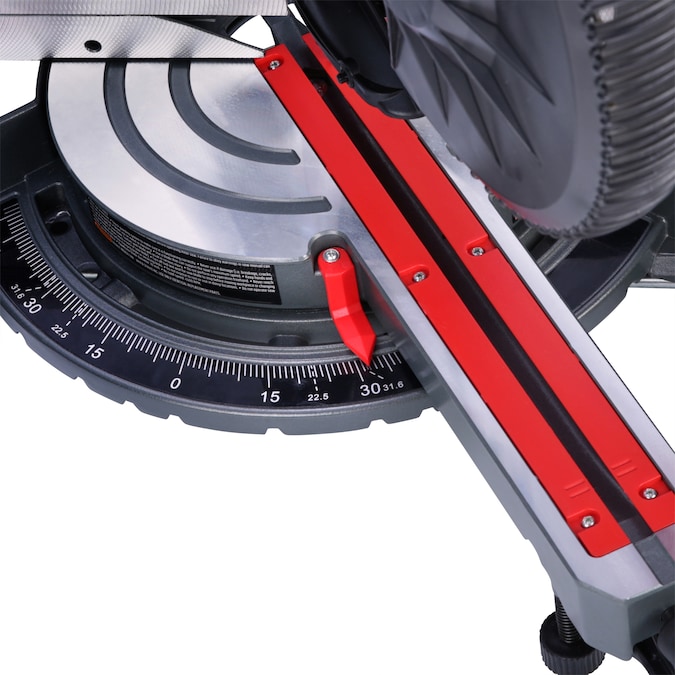

- 9 Miter detent stops for quick and accurate angled cuts
- Includes: workpiece clamp, dust bag, blade wrench and 10 inch 40T carbide tipped blade
Dimensions
- Arbor Diameter: 5/8-in
- Bevel Capacity (Degrees): 48
- Cord Length (Feet): 6
- Depth of Cut at 45 Degrees (Inches): 1.5
- Depth of Cut at 90 Degrees (Inches): 3.5
- Height (Inches): 22.83
- Length (Inches): 31.69
- Saw Blade Diameter: 10-in
- Tool Weight (lbs.): 50
- Width (Inches): 22.83
Features
- Amperage (Amps): 15
- Battery Included: No
- Bevel: Single
- Bevel Lock Style: Twist
- Blade Included: Yes
- Charger Included: No
- Compound: No
- Cordless: No
- Dust Handling: Port
- Electric Brake: Yes
- Folding: No
- Hybrid Capable: No
- Laser Guide: No
- Maximum Miter Cut – Left (Degrees): 52
- Maximum Miter Cut – Right (Degrees): 60
- Maximum Speed (RPM): 4500
- Miter Stop: Yes
- Number of Teeth: 40
- Power Rating (HP): 2.4
- Quick Release Vise: No
- Slide: Yes
- Sliding Fence: Yes
- Spindle Lock: Yes
- Warranty: 3-year limited
- Worm Drive: No
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: CSA safety listing
Miscellaneous
- UNSPSC: 27112700
