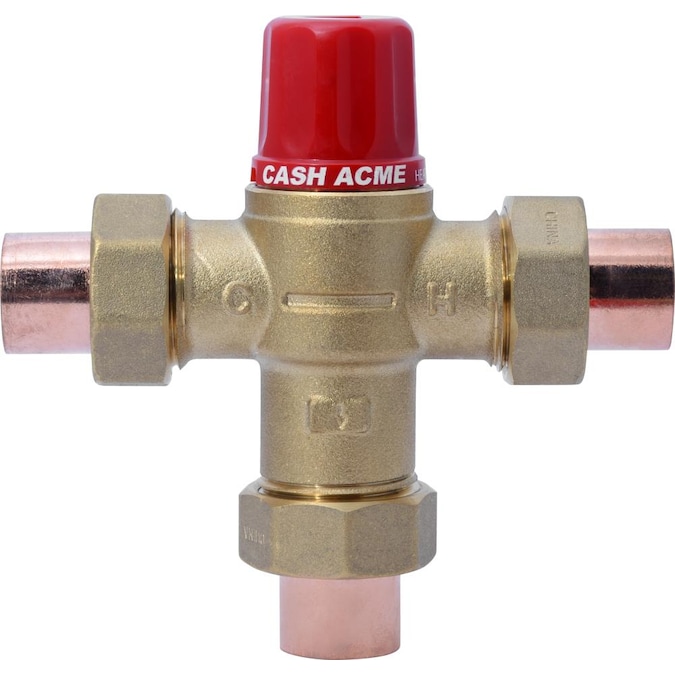

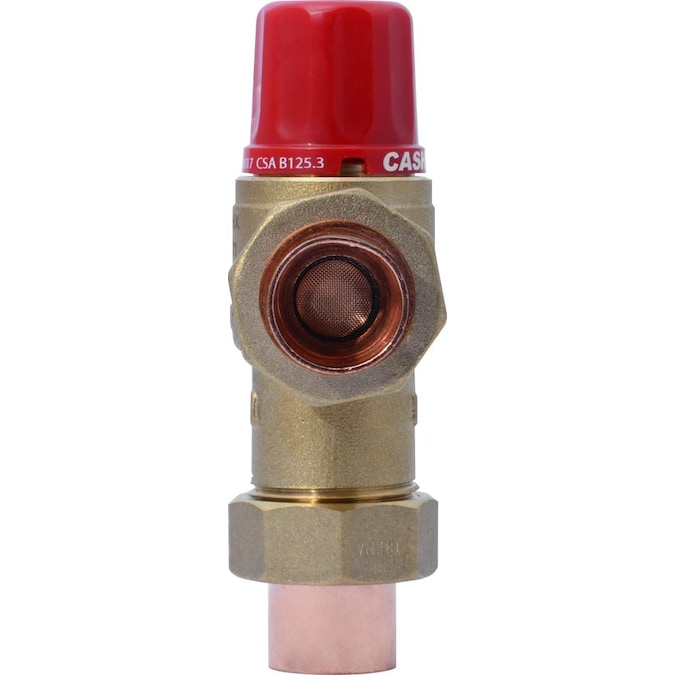

The 24514Z temperature actuated thermostatic mixing valve mixes hot and cold water to deliver reduced temperature hot water. This Heatguard® valve offers a high flow rate which reduces system pressure losses, and robust, low complexity construction. An adjustable and lockable handle prevents tampering. The extended outlet temperature range – up to 176 degrees F (80 degrees C) – makes the 24514Z ideal for heating system applications. Adj. Outlet temperature range: 85-176 degrees F (29-80 degrees C).
- Bronze body for durability
- Integral sweat union connections on all 3 ports
- High flow rate design for lower pressure losses within the system
- Maximum pressure 230 PSI
- Factory set outlet temperature range 115 to 120 degrees
- Adjustable temperature range from 85 to 176 degrees
General
- Color/Finish Family: Bronze
- Manufacturer Color/Finish: Brass
- Series Name: N/A
- Type: Hydronic mixing valve
Features
- Warranty: 5-year limited
Compatibility
- Compatibility: Hot water
Certifications
- CA Residents: Prop 65 Warning(s): Yes
Miscellaneous
- UNSPSC: 40101800
