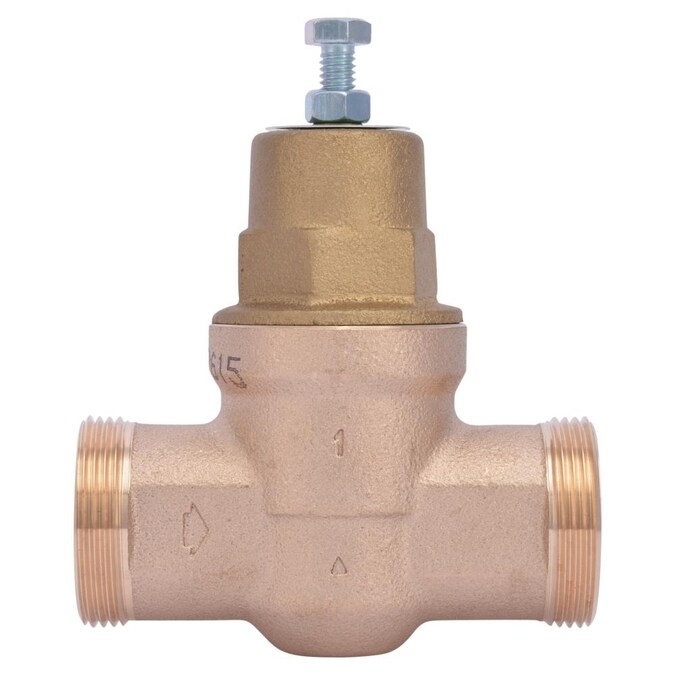

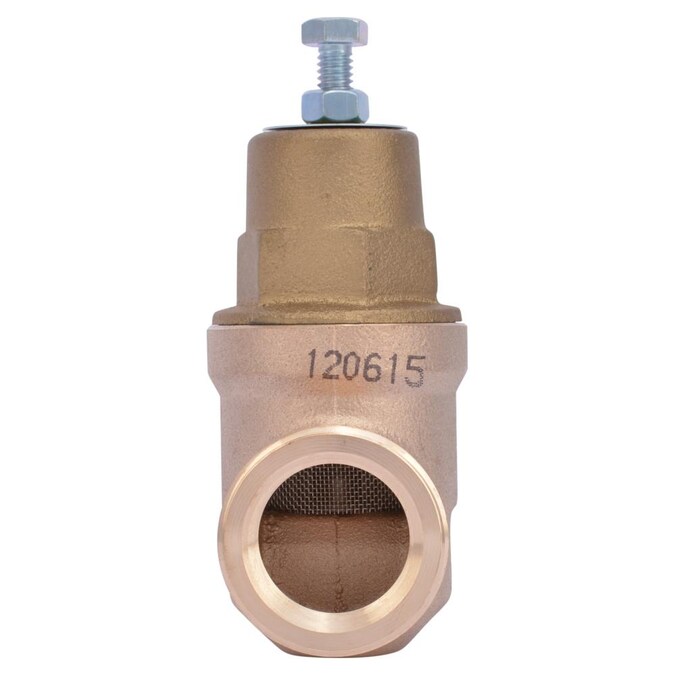

The EB45 pressure regulator features a half cartridge design that offers the performance of a high end, cartridge based valve and the price of a traditional regulator. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge based valve. The EB45 comes factory set at 45 PSI but may be adjusted between 10-70 PSI.
- Modular cartridge design reduces the number of parts requiring service
- Rugged bronze body
- Certified to ASSE standard 1003 and CSA standard B356 listed by IAPMO and ASSE and certified lead free complying with NSF 372
- By-pass mechanism integral with the cartridge
- Every valve is tested for performance prior to shipping
- Assembled and tested in the USA
General
- Series Name: EB45
- Type: Pressure regulator valve
Dimensions
- Inlet Diameter: 1-in
- Inlet Size in Inches: 1-in
- Outlet Diameter: 1-in
Features
- Inlet Thread Type: MNPT
- Material: Brass
- Maximum Pressure: 400 PSI
- Outlet Thread Type: MNPT
- Warranty: 2-year limited
Compatibility
- Compatible Pipe Material: Multi-Purpose
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Complies with Federal Lead Guidelines: Yes
Miscellaneous
- UNSPSC: 40141600
