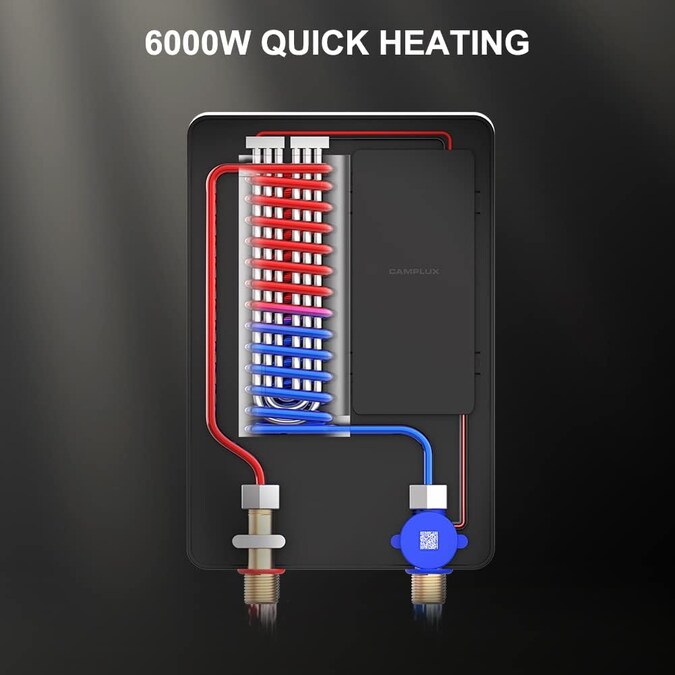

Camplux TE06Bpro is a 1.8 GPM 6KW high efficiency electric water heater designed for continuous hot water. Advanced flow control patented technology invented, automatically maintains water temperature for constant comfort. This intelligent unit heats water on demand so it uses less energy while giving you an endless flow of instant hot water. The compact design, easy to handle and install,connect into a 240 V hard wired.
- Endless instant hot water and save energy, on demand, only heats the water when needed, no standby energy consumption, saving up to 50% energy consumption.

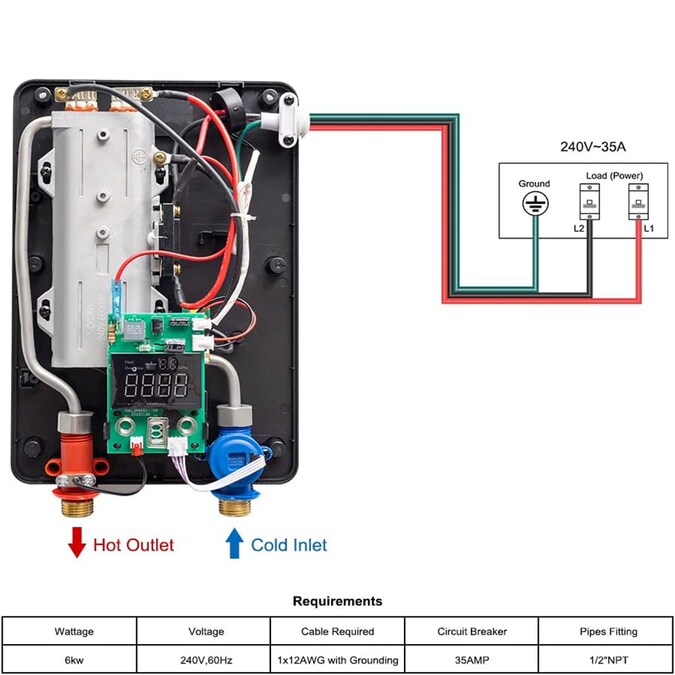

- Easy to install, compact size design, hardwire, requires a 30A circuit breaker, 12 AWG min wire size, fits under your bathroom sink or kitchen sink.
- LED display and smart temperature control, adjust temperature range from 85° to 130°F, temperature rise of 1.0 GPM is 50°F.
- Camplux 6 kw tankless electric water heater TE06BPRO, provide hot water for a bathroom, office breakroom, small sink, and other point-of-use or low-flow applications, provides between 0.26 and 1.8 gallons-per-minute depending on the inlet water temperature.
- Smart modulation system, built-in high-precision thermostat, adjust power automatically when flow rate and temp setting changes, keeping stable temperature of the output hot water, not too cold or too hot.

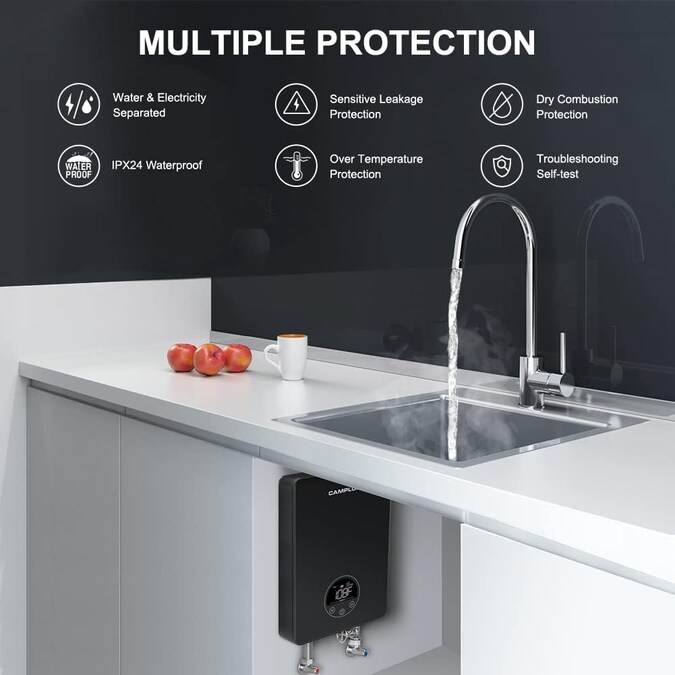

- Safe, 304 food-grade stainless steel water tube design, and anti-leakage, waterproof, over-heating protection, dry combustion protection, troubleshooting self-test, the control panel also displays error codes if issues arise.
- Water Flow Range, 0.26 GPM to 1.8 GPM, 240 V AC, product size, 10.9″ x 7.08″ x 2.5″, water connections size, 1/2″ NPT.
- Install Tip, unit come with no plug, must be hard wired, connected to the fixed circuit 35A breaker and installed vertically, only suitable for sink use, not for showers.
General
- Color/Finish Family: Black
- Type: Tankless
Dimensions
- Depth (Inches): 2.5
- Family Size: 1
- Height (Inches): 16.5
- Nominal Capacity (Gallons): 1.8
- Water Connection Size: 1/2-in
- Weight (lbs.): 4
- Width (Inches): 7.4
Features
- Annual Fuel Utilization Efficiency % (Percentage): 95.55
- Automatic Shut-Off: Yes

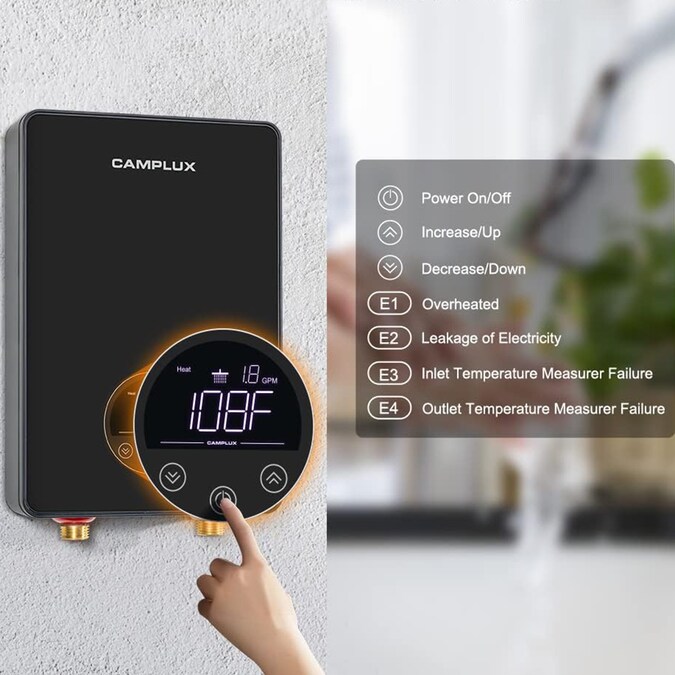

- Display Type: Digital
- For Use with Mobile Homes: No
- For Use with RVs: No
- Grade: Commercial/Residential
- Grid Capable: No
- High Efficiency: Yes
- Ignition Type: Electric
- Installation Location: Closet

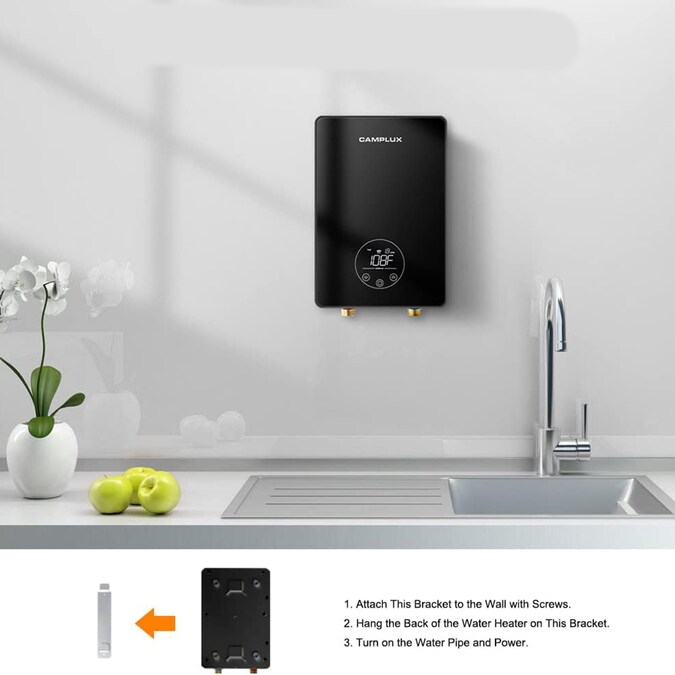

- Installation Type: Wall mount
- Max Number of Simultaneous Appliances: 2
- Maximum Gallons per Minute: 1.8
- Maximum Temperature (Fahrenheit): 130
- Minimum Temperature (Fahrenheit): 85
- Overheat Shut-Off: Yes
- Pilot Light Indicator : No
- Pilot Light Window: Yes
- Point of Use: No
- Power Source: Electric
- Super High Efficiency: Yes
- Temperature and Pressure Relief Valve: Yes
- Uniform Energy Factor: 0.98
- Use Location: Indoor
- Vent Type: None required
- Voice Controlled: No
- Voltage (Volts): 240
- Warranty: 1-year
- Water Connection Location: Bottom
- Water Heater Style: Regular
- Wattage (Watts): 6000
Compatibility
- App Compatibility: No
- Bluetooth Compatibility: No
- Smart Compatible: No
- Wi-Fi Compatibility: No
- Works with Amazon Alexa: No
- Works with Android: No
- Works with Apple HomeKit: No
- Works with iOS: No
- Works with SmartThings: No
- Works with the Google Assistant: No
Certifications
- CA Residents: Prop 65 Warning(s): No
- ENERGY STAR Certified: No
- Safety Listing: UL safety listing
Miscellaneous
- UNSPSC: 40101800
