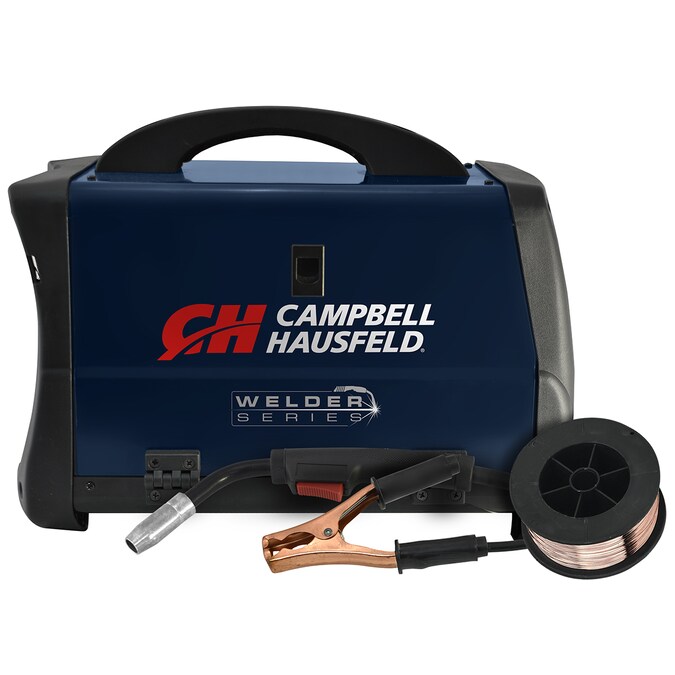

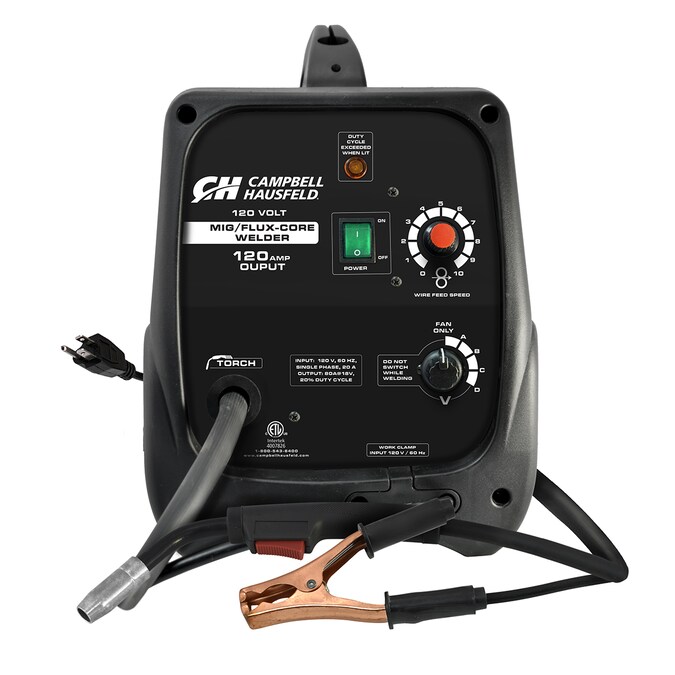

The Campbell Hausfeld 120 Amp output, wire feed, MIG/flux core welder (DW313000) is great for welding projects around the house and shop. Select from four heat settings to match metal thicknesses up to 3/16 inch. Thermal overload protection activates automatically to avoid overheating. Infinite wire speed control allows exact adjustments for a smooth, even weld bead. The gun is equipped with trigger-activated arc for easy starting. Includes a starter spool of flux-cored wire, and 2 extra contact tips. This unit comes with flux core wire so gas is not needed to weld with this unit. No gas comes with the unit. However, it is designed so it can be converted to use gas when flux core wire is not wanted. It can be used with 100% argon, 100% carbon dioxide, or 75% argon and 25% carbon dioxide.
- Ideal for tackling welding projects around the house and shop, without having to use gas
- Select from four heat settings to match metal thicknesses up to 3/16 inch during welding
- Thermal overload protection activates automatically to prevent the welder from overheating
- Infinite wire speed control allows exact adjustments for a smooth, even weld bead
Dimensions
- Depth (Inches): 26
- Ground Cable Length: 8 feet
- Height (Inches): 16.5
- Maximum Weldable Thickness (Mild Steel): 3/16-in
- Maximum Wire Thickness: 0.035mm
- Minimum Weldable Thickness (Mild Steel): 24 gauge
- Minimum Wire Thickness: 0.023mm
- Weight (lbs.): 47.4
- Welding Gun Cable Assembly Length: 8 feet
- Width (Inches): 15.5
Features
- Amperage: 120
- Contact Tips Included: Yes
- Drive Motor Overload: No
- Duty Cycle (Percentage): 20
- Hand Shield Included: No
- Helmet Included: No
- Input AC Voltage: 120
- Instructional Media Included: Yes
- Maximum Wire Feed (Inches per minute): 240
- Minimum Wire Feed (Inches per minute): 45
- Primary Circuit Breaker: No
- Process: MIG flux-cored
- Sample Flux Wire Included: Yes
- Sample MIG Wire Included: No
- Thermal Overload Protection: Yes
- Uses Argon Gas: Yes
- Uses Argon/Carbon Dioxide Mixed Gas: Yes
- Warranty: 5-year limited
- Work Clamp Included: Yes
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: cETLus safety listing
Miscellaneous
- UNSPSC: 23271400
