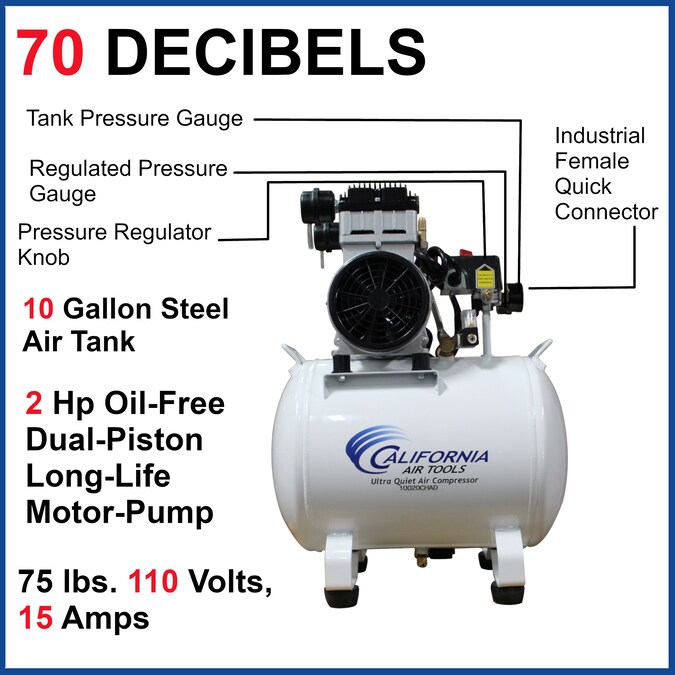

The California Air Tools 10020CHAD Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound. The Powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-10020CHAD Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures. The large low profile 10 Gallon Steel Horizontal Air Tank makes storing under a bench, desk or shelf very easy. The factory installed California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. The 10020CHAD is designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise.

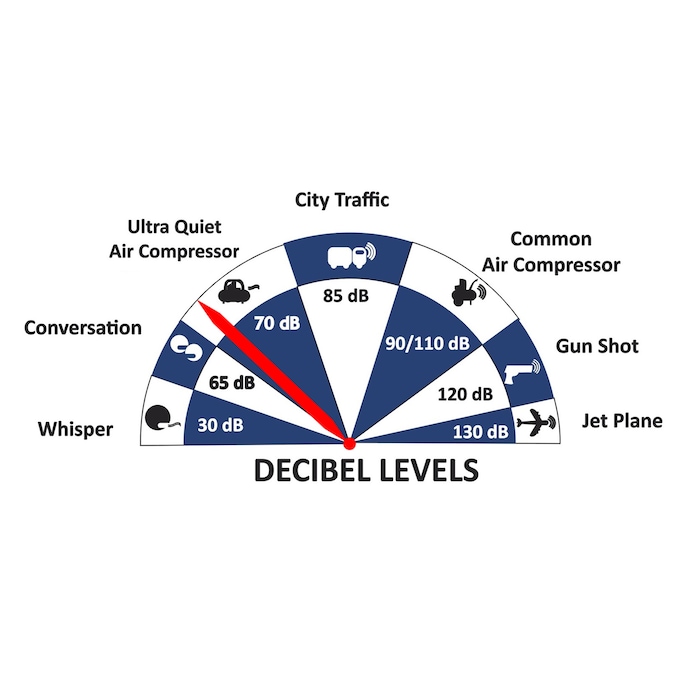

- Ultra quiet only 70 dB
- Oil-free pump cleaner air for better tool operation, less maintenance and costs
- Powerful 2.0 HP motor
- 6.40 CFM at 40 psi and 5.30 CFM at 90 psi
- 125 Psi maximum pressure
- 10 Gallon horizontal steel air tank
- Auto drain valve factory installed
- 2 Pressure control gauges 1 universal industrial 1/4 inch quick connector
- L (19″) x W/D (15″) x H (26.5″)
General
- Sub-Brand: N/A
- Type: Electric
Dimensions
- Fitting Size: 1/4-in
- Tank Capacity (Gallons): 10
- Weight (lbs.): 75
Features
- Accessories Included: No
- Air Delivery SCFM @ 100PSI (CFM): 0
- Air Delivery SCFM @ 175PSI (CFM): 0
- Air Delivery SCFM @ 90PSI (CFM): 5.3
- Amperage: 14
- Cordless: No
- Decibel Rating (Decibels): 70
- Engine Displacement (Cu. Centimeters): 0
- For Use with Air Brushing: Yes
- For Use with Bolting: Yes
- For Use with Brad Nailing/Stapling: Yes
- For Use with Cutting: Yes
- For Use with Drilling: Yes
- For Use with Finish Nailing: Yes
- For Use with Framing Nailing: Yes
- For Use with Grinding: Yes
- For Use with HVLP Painting: No
- For Use with Roof Nailing: Yes
- For Use with Sanding: Yes
- For Use with Spraying: Yes
- For Use with Surface Prep: Yes
- Maximum Pressure: 125 PSI
- Motor Type: Induction
- Noise Rating: Quiet (70 decibels or below)
- Number of Tools Included: 0
- Phase: Single-phase
- Portable: No
- Pump Type: Oil-free
- Rechargeable: No
- Running Horsepower: 2.0
- Stage: Single stage
- Start Type: Electric start
- Tank Style: Hot dog
- Voltage (Volts): 110
- Warranty: 1-year limited
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: Not safety listed
Miscellaneous
- UNSPSC: 40151600
