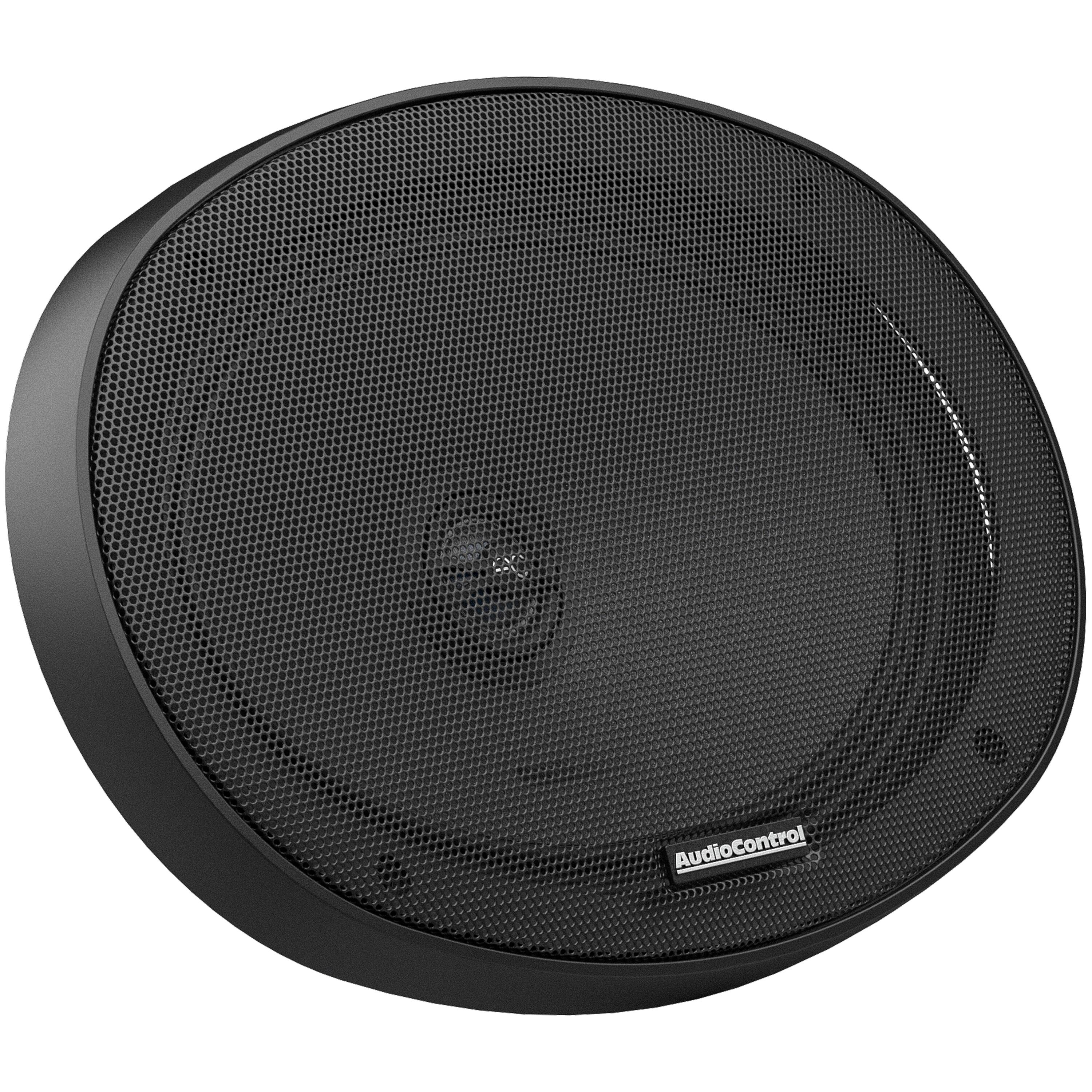

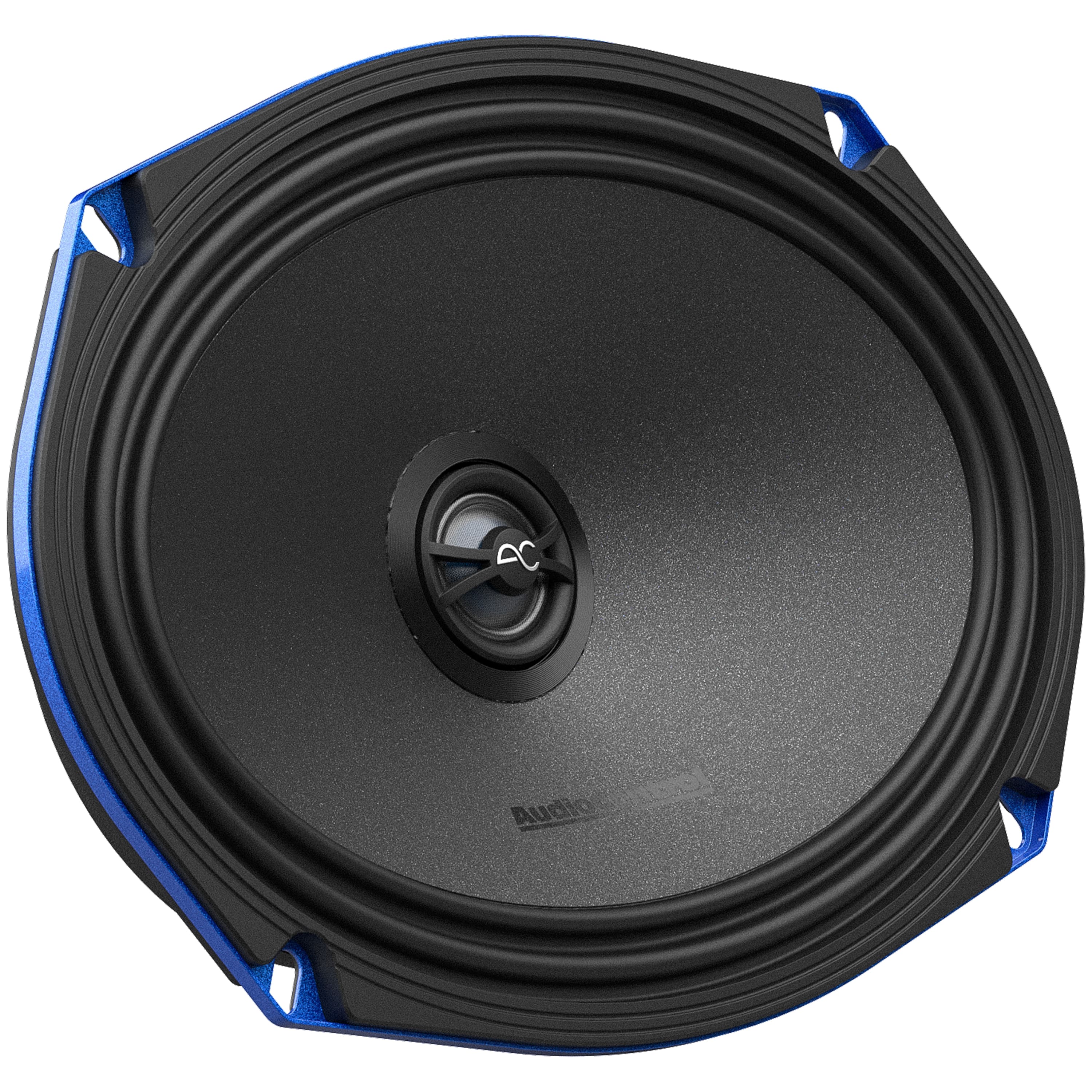

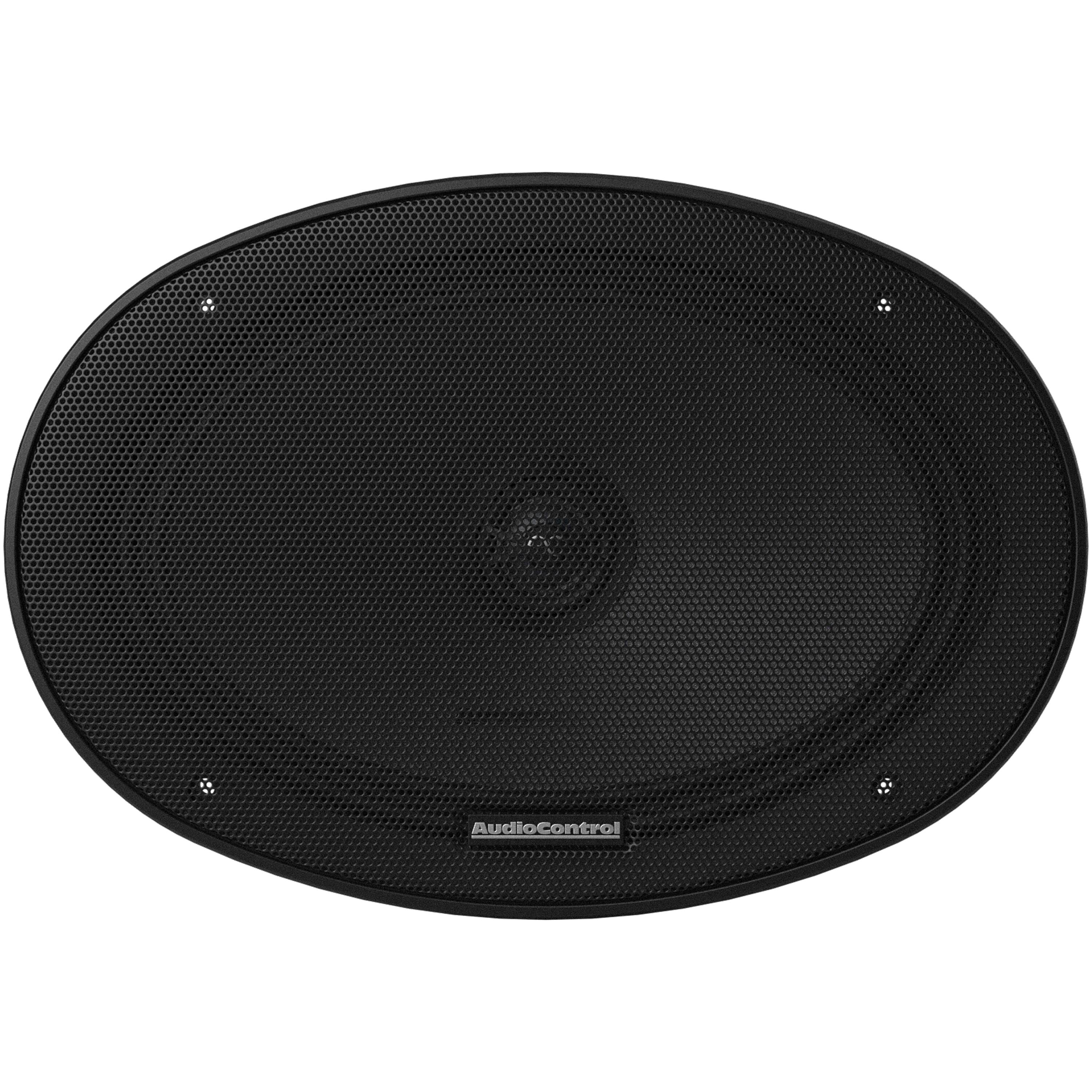

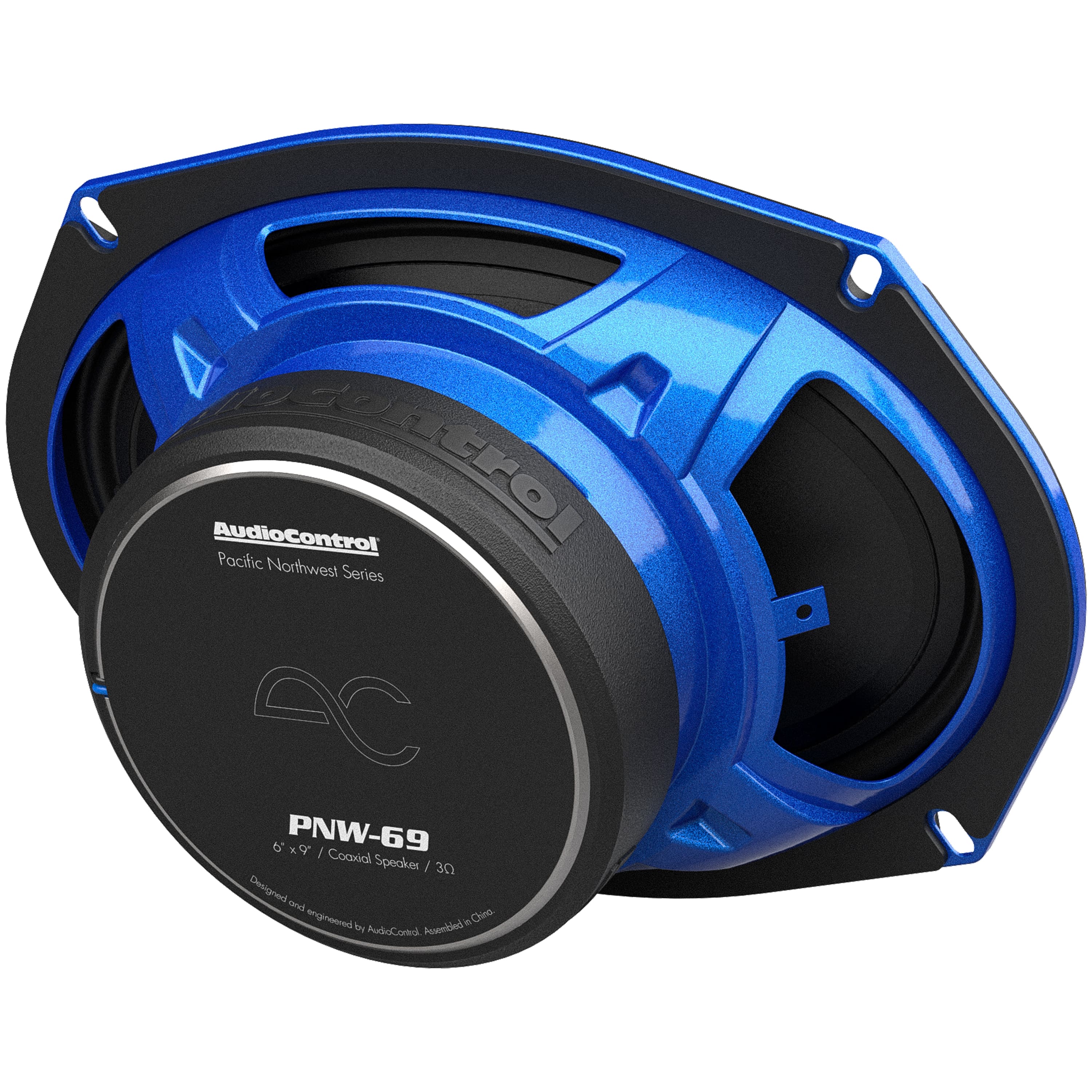

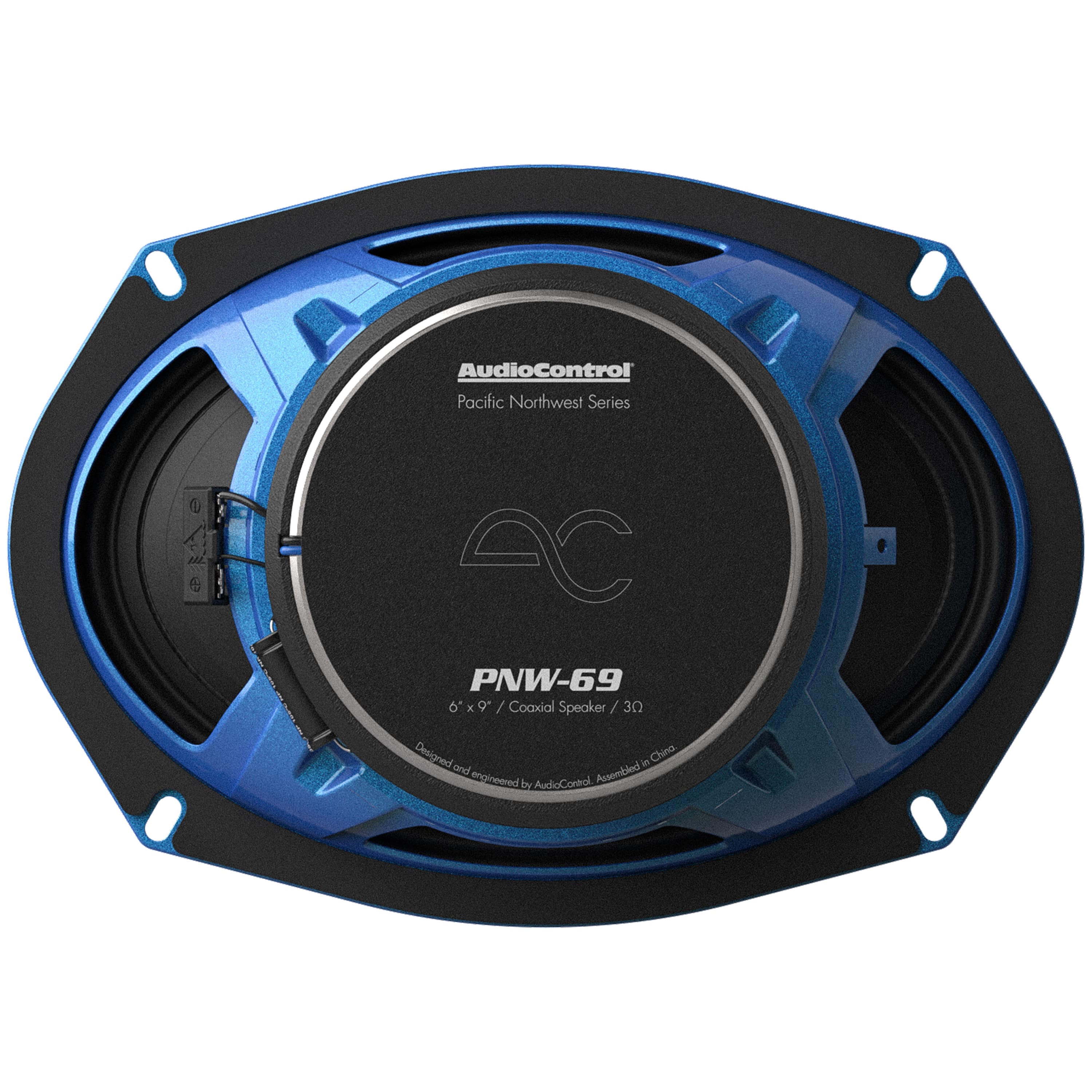

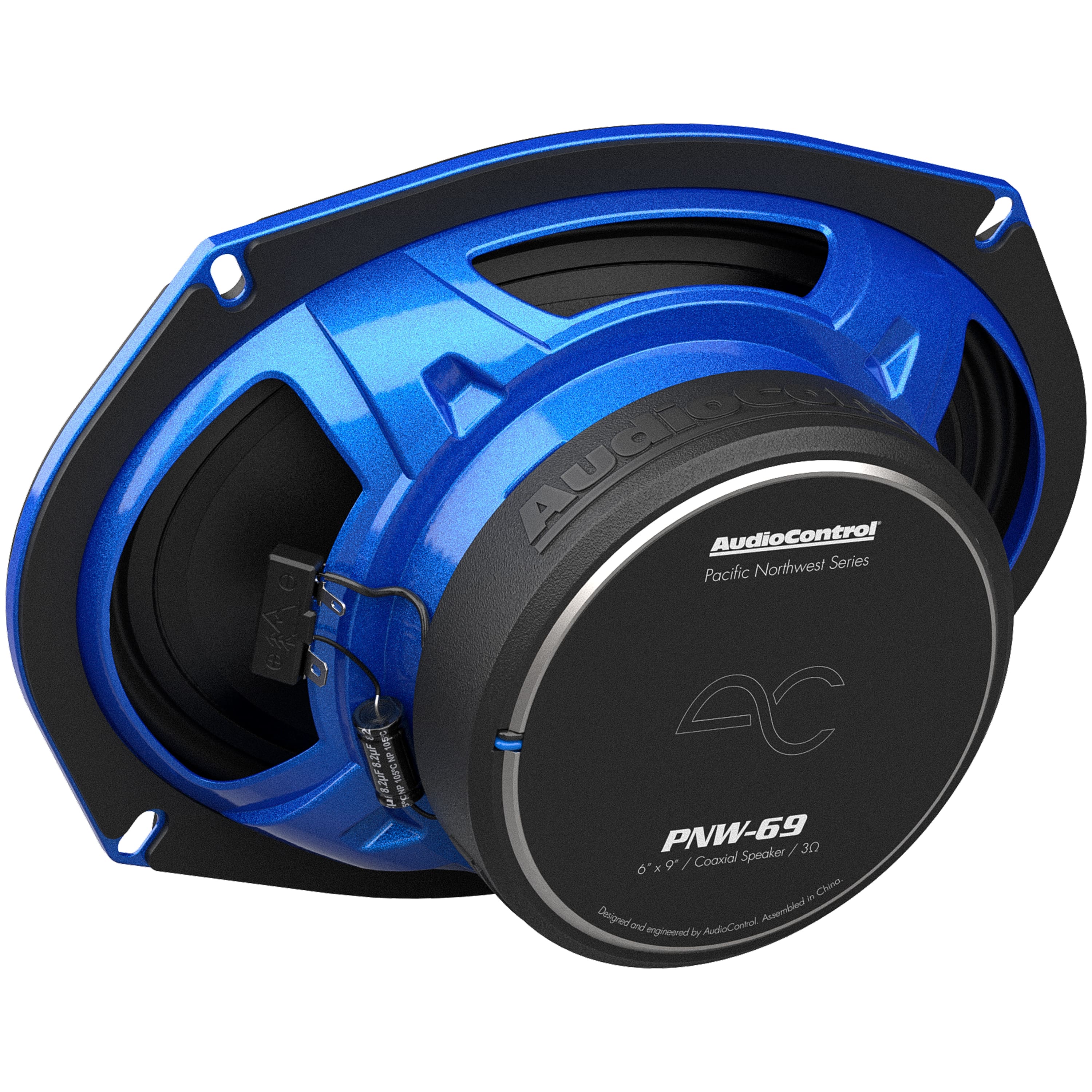

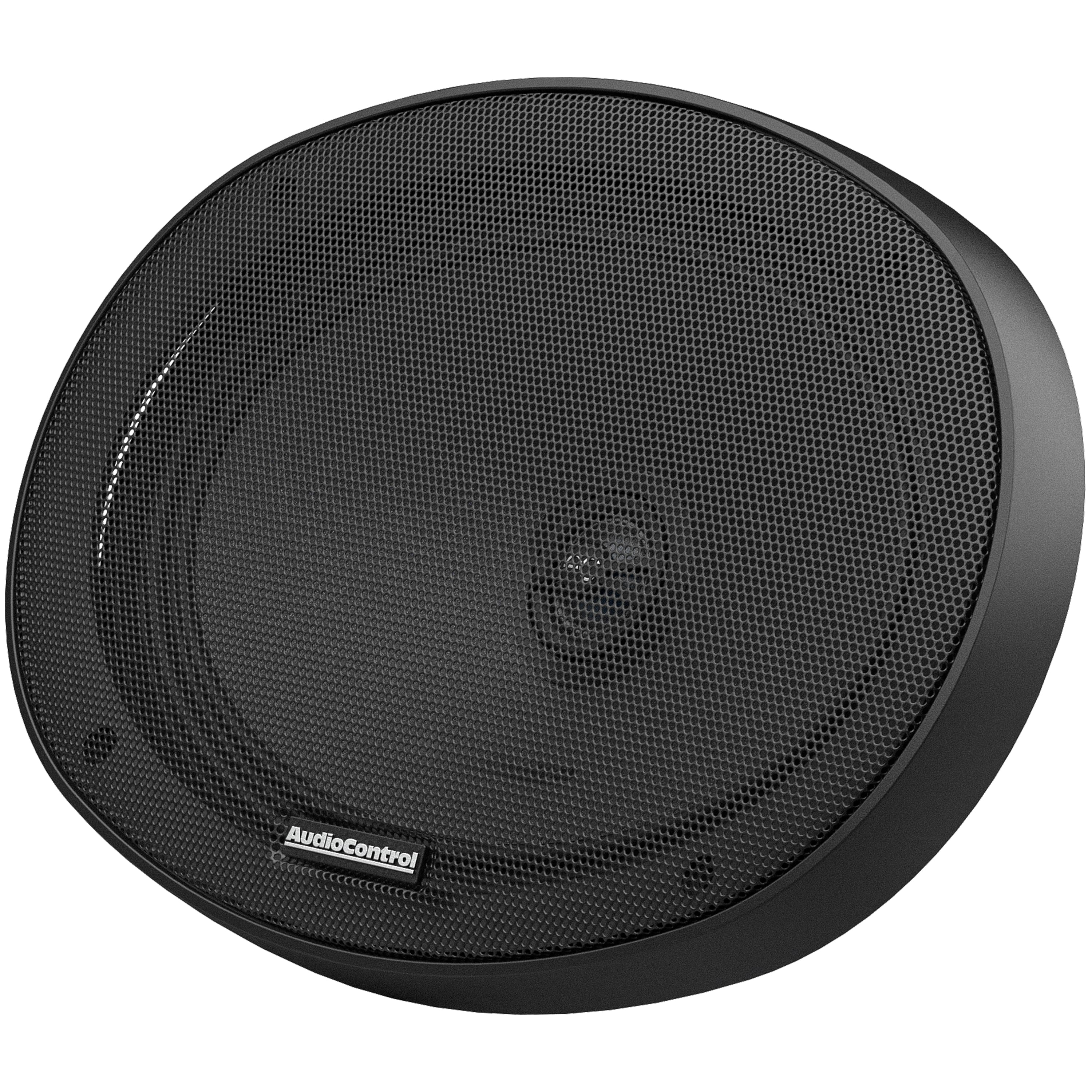

Experience the vibrant landscapes of the Pacific Northwest on every drive with the PNW Series Speakers from AudioControl. These 6” x 9” coaxial speakers combine ultimate structural strength with top-quality engineered audio components to demand detail, clarity, and volume from your car audio. The PNW-69 is built to fit most modern OEM speaker locations and includes high-quality mounting hardware for easy installation.
6” x 9” coaxial speaker pair
Upgrade your vehicle’s factory audio system with high-fidelity speakers.
Handles up to 100W peak power (75W RMS)
Provides robust sound.
3 ohms impedance
Conducts power evenly to keep the speakers working at an appropriate level.
Rigid poly mica-coated cone with linear double-roll surround
Improves sound reproduction while reducing distortion.
1st order series Butterworth crossover
Ensures relatively constant impedance and tweeter protection.
50 Hz – 20 kHz frequency response
Accurately produces a wide range of sound.
Rear dampened hybrid silk dome tweeter
Delivers extended frequency response.
Edge-enhanced steel frame
Provides added structural strength.
Black anodized voice coil former
Allows for superior heat dissipation.
Complex FEA designed high-efficiency motor
Enables reliable high power output.

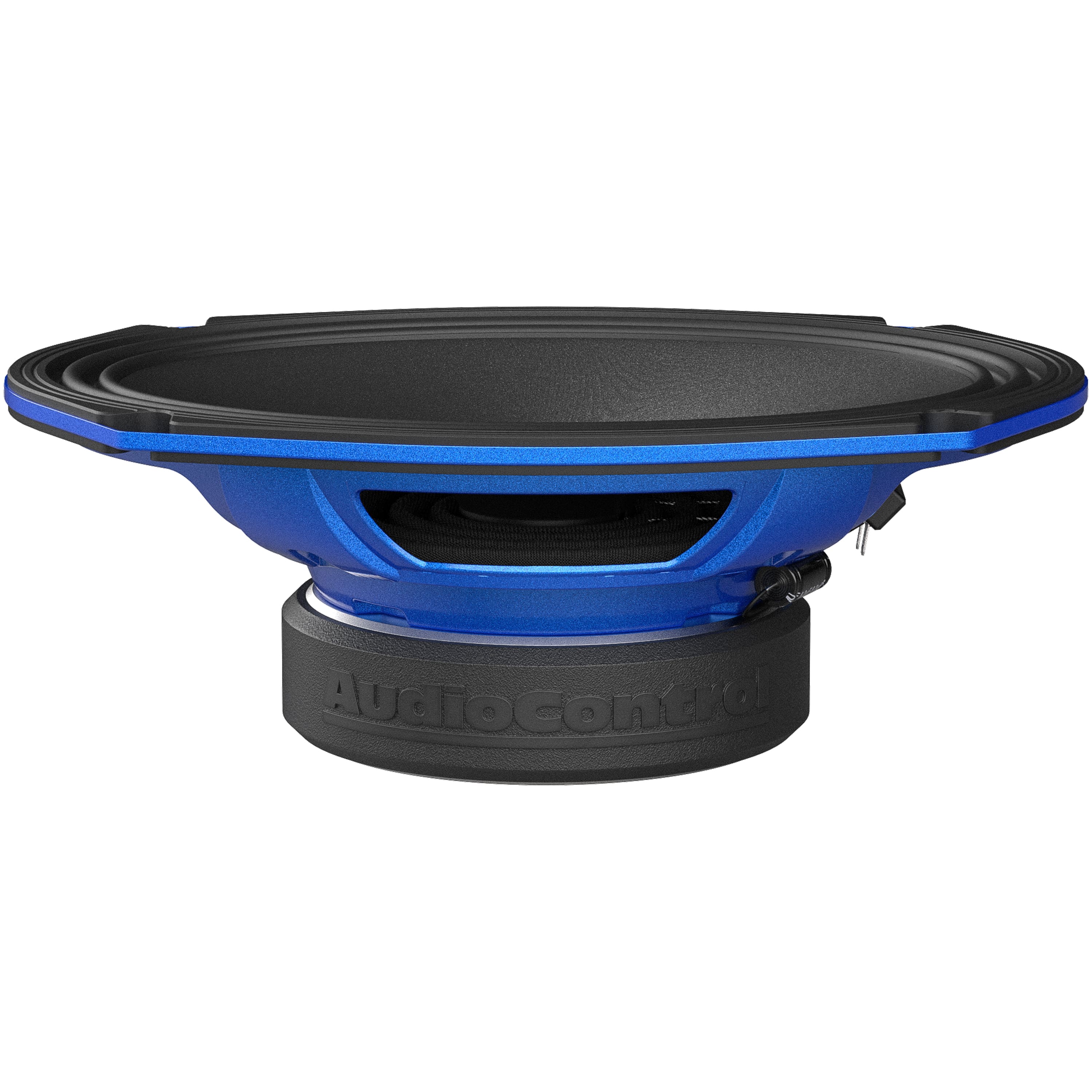

2.95” mounting depth; 5.74” x 8.34” cutout dimensions
The shallow basket depth makes installation easier.
Specifications
Key Specs
- RMS Power: 75 watts
- Peak Power Handling: 100 watts
- Minimum Frequency Response: 50 hertz
- Maximum Frequency Response: 20 kilohertz
- Sensitivity: 88.25 decibels
- Speaker Size: 6″ x 9″
- Speaker Type: Coaxial
- Tweeter Composition: Rear dampened hybrid silk dome
- Woofer Composition: Poly mica-coated cone
- Woofer Surround Material: Linear double-roll surround
- Color: Black/Blue
Dimensions
- Cutout Diameter: 8.34 inches
- Mount Depth: 2.95 inches
- Product Height: 7.2 inches
- Product Width: 10.43 inches
- Product Depth: 3.93 inches
- Product Weight: 11 pounds
Features
- Integrated Crossover: Yes
- Marine: No
- Grille Included: Yes
Warranty
- Warranty – Parts: 2 years
- Warranty – Labor: None
General
- Product Name: PNW Series 6″ x 9” High-Fidelity Coaxial Speakers (Pair)
- Brand: AudioControl
- Number Of Speakers: 2
- Model Number: PNW-69
Audio
- Impedance: 3 ohms
Specifications
- UPC: 850038647490
