- 30-Amp Arc Plasma Cutter, 1/2-inch Clean Cut, 100-250V Wide Voltage.
- CUT-30 has state-of-the-art IGBT inverter technology, excellent arc cutting process, and excellent arc stability; designed for demanding industrial work, construction, including home and hobby; it requires less work to pass Cleaner cuts yield better results overall.
- High-quality design manufactured to American industrial-grade standards; Efficiently cuts stainless steel, alloy steel, mild steel, copper, iron, cast iron, aluminum alloys, and aluminum up to 1/2 inch, produces straight cuts, angles, holes, curves, notches , Groove, Round and V-groove .
- The intelligent power supply system can automatically detect the input voltage; you can use between 100V and 250V, and the machine will automatically adjust accordingly; it has multiple safety protection functions such as automatic voltage fluctuation compensation, overheat protection, over current protection, and overload protection.
- The advanced lightweight model design allows for easy machine movement, and the power cord extends 700 feet and still resists power fluctuations and cable attenuation; it is perfectly suitable for demanding advanced jobs, as well as home projects and repairs.

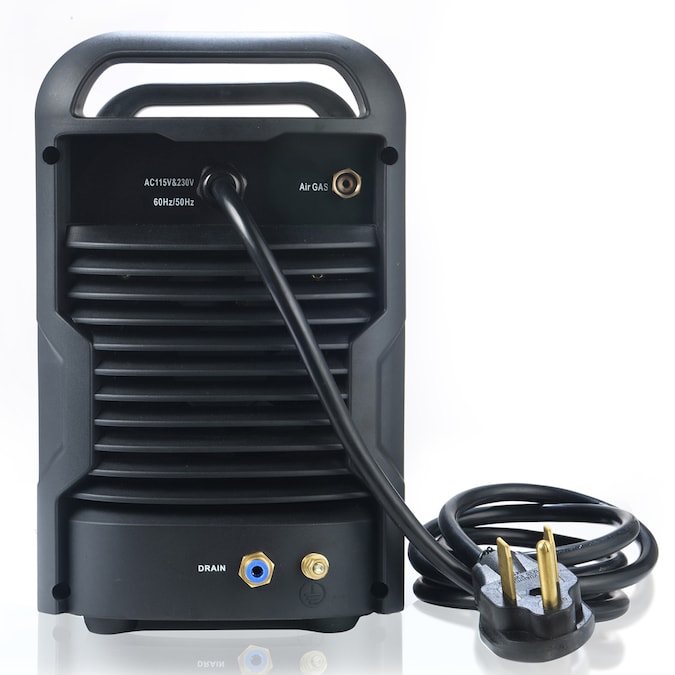

- 60% duty cycle ensures efficient cutting for a long time; NPT 1/4 inch industrial D-type connector can be easily and quickly connected to the air compressor; the air filter is pre-installed in the machine, automatically controlled by the solenoid valve, easy to use; automatic temperature Control the fan to keep the machine running quietly.
Dimensions
- Depth (Inches): 18

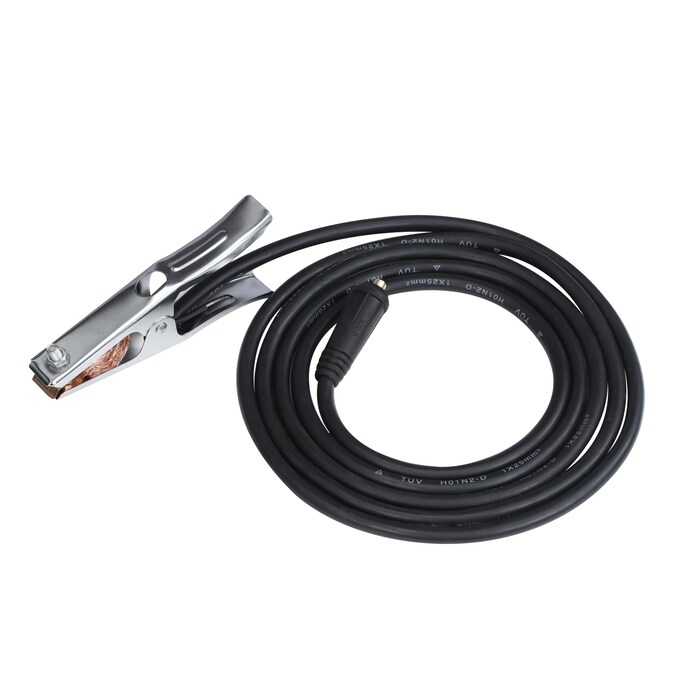

- Ground Cable Length: 10 feet
- Height (Inches): 14
- Maximum Cutting Thickness: 1/2-in

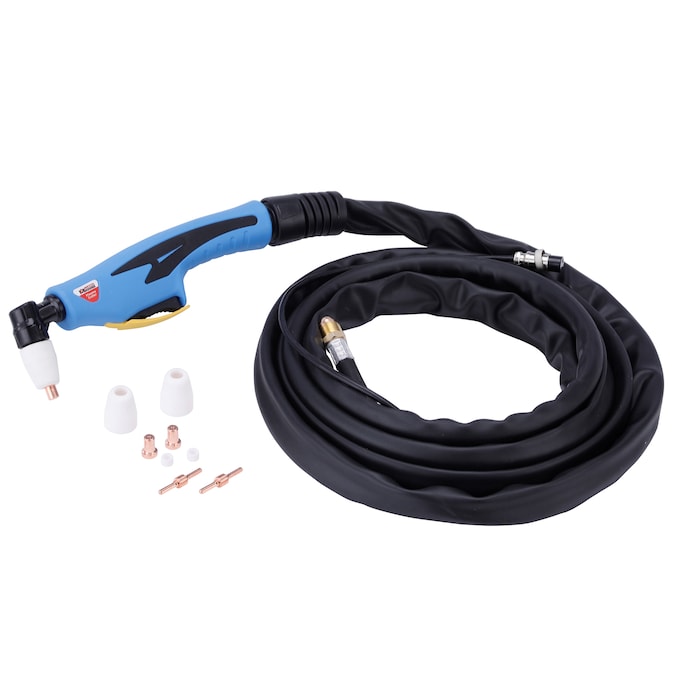

- Torch Cable Assembly Length: 14 feet
- Weight (lbs.): 20
- Width (Inches): 8
Features
- Air Compressor Included: No
- Air Pressure Maximum (PSI): 100
- Air Pressure Minimum (PSI): 60
- Amperage: 30
- Cuts Aluminum: Yes
- Cuts Brass: Yes
- Cuts Cast Iron: Yes
- Cuts Copper: Yes
- Cuts Stainless Steel: Yes
- Cuts Steel: Yes
- Cutting Speed (Inches Per Minute): 15
- Input AC Voltage: 120 and 230
- Kit: Yes
- Primary Circuit Breaker: Yes
- Process: Plasma cutting
- Thermal Overload Protection: Yes
- Warranty: 1-year limited
- Work Clamp Included: Yes
Certifications
- CA Residents: Prop 65 Warning(s): Yes
- Safety Listing: ETL safety listing
Miscellaneous
- UNSPSC: 23271400
